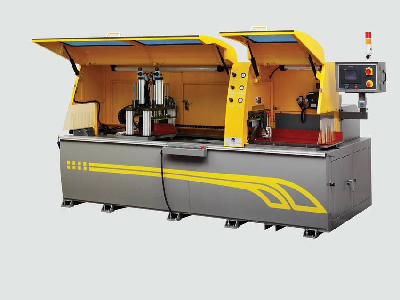

Automatic Cutoff Saws come in upcut and horizontal models.

Press Release Summary:




Suited for aluminum and other non-ferrous metals, PMI-455 Series CE NC Automatic High Production Cutoff Saws have hydraulically driven saw blade feed for maximum saw blade stability. Worktable moves 2 mm forward and backward after cut is complete and saw blade is retracting to ensure smooth finish. To prevent distortion of thin wall profiles, saws feature pneumatic clamping system with adjustable clamping pressure. Cutoff programs are managed via Mitsubishi NC controls.



Original Press Release:



Pat Mooney Inc. Adds PMI-455 Automatic High Production Cutoff Saws to Its PMI Line



Addison, IL – The Saw Company has added to its line the PMI-455 Series of CE NC Automatic High Production Cutoff Saws for aluminum and other non-ferrous metals. The PMI-455 is equipped with a range of features to ensure highly productive and precise performance.



For maximum stability of the saw blade during the sawing operation, the PMI-455’s saw blade feed is driven by a hydraulic system. This is especially beneficial when cutting solid or heavy walled extrusions/tubes. The saw blade travels horizontally through the material and is mounted on linear guide ways. The saw head travels on the linear guide ways for accurate cutting of large materials.



For a smooth finish, the PMI-455 includes a specially designed saw worktable that moves 2mm forward as well as backward after the cut is complete and the saw blade is retracting.  This feature prevents scratches from occurring when the saw blade retracts back to its home position. To prevent distortion of thin wall profiles, the PMI-455 features a pneumatic clamping system with adjustable clamping pressure. The carriage vise has two vertical and two horizontal clamps, rendering it capable of clamping irregular shaped pieces of material without any additional features.  The fixed vise has two vertical and one horizontal clamp to ensure the part is clamped securely during the cutting operation. Clamps can be adjusted based on material size. The PMI-455’s extensive clamping system enables the cutting of multiple, bundled pieces at one time.



The PMI-455’s precise Micro-Drip Blade Lubrication System releases a small amount of lubricant to the air line at the point of discharge for control and economical distribution of the saw lubricant.



PMI-455 cutoff programs are managed with Mitsubishi NC controls. An operator-friendly touch screen allows for easy input of the desired cut length, number of pieces, blade speed and more. The machine then monitors cutoff jobs for accuracy. One hundred programs can be stored with up to 12 steps.



For safety, PMI-455 CutOff Saws are equipped with a safety enclosure monitored by limit switches. The machine cover must be closed for the saw to cycle. The saw blade access door is also protected via a limit switch. In the event that the door is opened while the saw is in operation, the machine will shut down and the saw blade will not cycle.



Two types of PMI-455 Production Saws are available. The compact Type A Upcut Saw features a design where the saw travels through the workpiece from under the worktable. Its 10 HP motor and 3200 RPM saw blade speed enable quick and precise sawing of lighter aluminum extruded shapes. Type A machine dimensions are 98.5” x 51.25” x 79.5”. The Type L Horizontal Saw features a design where the saw travels horizontally on linear guideways for maximum speed. The 15 HP motor of the Type LE allows for sawing of extrusions and tubes; the 20 HP motor of the Type LS enables sawing of solid bars and extruded shapes. The Type L features variable saw blade speeds of 1500 to 3500 RPM. Type L machine dimensions are 138” x 82.67” x 73.23”.



Along with PMI saws, Pat Mooney’s extensive line includes FMB Band Saws, Nishijimax CNC Carbide Cold Saw Systems, Danobat Band and Transfer Saws, Manual Cold Saws, Kanefusa Saw Blades and Cold Saw Blades.



For more information from Pat Mooney Inc. – The Saw Company, call 800-323-7503, e-mail info@patmooneysaws.com , visit www.patmooneysaws.com , or contact Pat Mooney Inc. – The Saw Company, 502 S. Westgate Street, Addison, IL 60101, Phone:  (800) 323-7503 Fax: (630) 543-5584.
