Actuators offer maximized power density.

Press Release Summary:




WITTENSTEIN TPM+ actuators feature helical toothing in gearhead, allowing for optimized operation at output, while minimized noise levels lessen influence of meshing frequencies. Single-stage versions, suited for rack-and-pinion, and 2-stage versions for rotary drive tasks are available. They are offered in 5 power sizes with acceleration torque from 50-1,600 Nm and noise levels from less than 58 dBA to less than 72 dBA. Various reduction ratios are also offered.



Original Press Release:



TPM+ Power the Newest Product of the WITTENSTEIN TPM+ Actuator Series

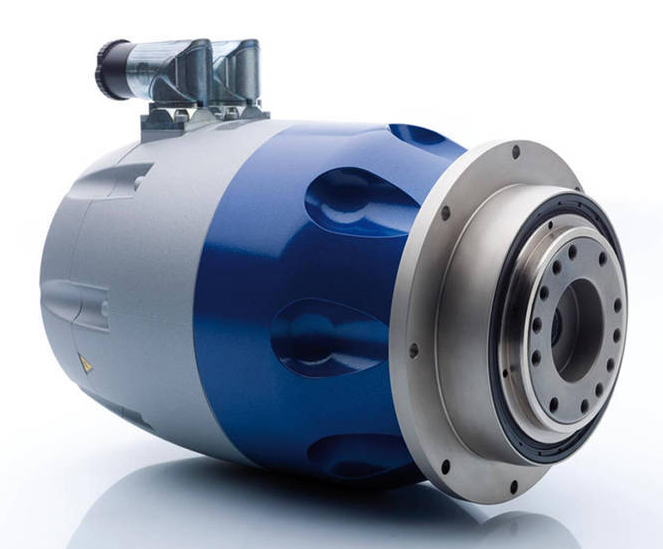

This latest solution from WITTENSTEIN's actuation family offers superior power density in an exceptionally compact package.

The TPM+ power is available in a single-stage version - well suited for rack-and-pinion or other high speed applications - or as a two-stage actuator for rotary drive tasks. Various reduction ratios are offered to facilitate an actuator design characterized by optimal energy efficiency and dynamics. Helical toothing in the gearhead allows for smoother running at the output and the influence of meshing frequencies is minimized with the overall noise level at 6 dB lower than alternative technologies.

The permanent magnet synchronous motors developed by WITTENSTEIN offer remarkable power density mainly due to the high pole count and the optimum copper fill factor in the slots. At the same time, the high quality of the laminations in the stacks helps optimize the power balance by limiting losses due to eddy currents. As for the feedback systems, WITTENSTEIN relies on the robust technology of rugged resolvers and the precision of optical encoders using the EnDat and Hiperface protocols. A backlash-free permanent magnet brake is available as an option.

TPM+ power sizes 004 010 025 050 110
Max. acceleration torque [Nm] 50 130 380 750 1600
DC bus voltage [V DC] 320, 560
Overall length [mm] 149 175 197 236 305
Max. torsional stiffness [Nm/arcmin] 12 33 86 190 610
Tilting stiffness [Nm/arcmin] 225 550 560 1452
Torsional backlash, std/reduced [arcmin] 4/2 3/1 3/1 3/1 3/1
Reduction ratio
1-stage 4, 5, 7, 10
2-stage 16, 20, 25, 28, 35, 40, 50, 70, 100
Degree of protection IP65 IP65 IP65 IP65 IP65
Noise level [dB(A)] <58 <60 <64 <65 <72
