AC/DC Power Supplies target medical and dental applications.

Press Release Summary:




Compliant with UL60601-1 and TUV 60601-1 medical safety standards, PM400 Series delivers 300 W in convection cooled environments and 400 W with forced air. Units accept universal input voltage of 90-264 Vac and provide output voltages from 12-48 Vdc, with standby output of 5 Vdc at 100 mA. Housed in 4 x 7 x 1.58 in. package, RoHS-compliant power supplies offer efficiencies greater than 88%, leakage currents as low as 300 µA at 264 Vdc, and 4,000 Vac input-output isolation.



Original Press Release:

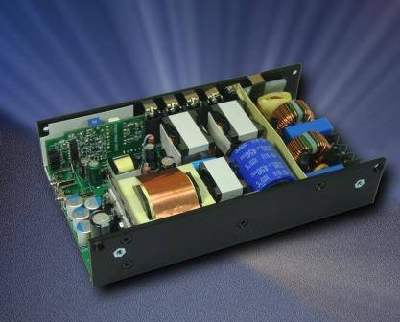

New 400 Watt Medical and ITE Power Supplies in a Low Profile 4" X 7" X 1.58" Package



Hudson, MA - The new PM400 Series' of AC/DC power supplies from Protek Power offer 400 watts of performance packed design and compliancy to UL60601-1 and TUV 60601-1 medical safety standards. Units are also RoHS compliant. This low profile 400W Series is ideal for a variety of medical and dental applications, including patient vicinity medical devices.

The PM400 Series' accept a 90-264VAC universal input. Single output models have voltages ranging from 12VDC to 48VDC, with a standby output of 5VDC @ 100mA. The low profile, 4" x 7" x 1.58" footprint makes the PM400 Series' an ideal choice for designs with low profile constraints. Units provide 300W of power in convection cooled environments and 400W with forced air (user provided or select the optional cover and fan that does not add to the product footprint).

The Series boasts high efficiencies greater than 88%, leakage currents as low as 300µA at 264VAC, and 4000VAC input-output isolation voltage for the PM400 Series. Comprehensive protection circuitry, including overvoltage and short circuit protection, is inherent in the design. EMC Performance meets Level B standards and units have an MTBF of 350,000 hours at full load.

Units are economically priced, with the PM400 Series starting at $119.00 in OEM quantity, with delivery from stock to 12 weeks ARO. Full specifications are available on-line at www.protekpowerna.com or contact our Sales/Technical Group at sales@protekpowerna.com or (978) 567-9615

Protek Power North America, Inc., 43 Broad Street, Suite B206, Hudson, MA 01749
Telephone 978-567-9615 / Fax 978-567-9601
