Ultra Compact 15-40 Watt Power Supplies with PCB or Chassis Mount Options

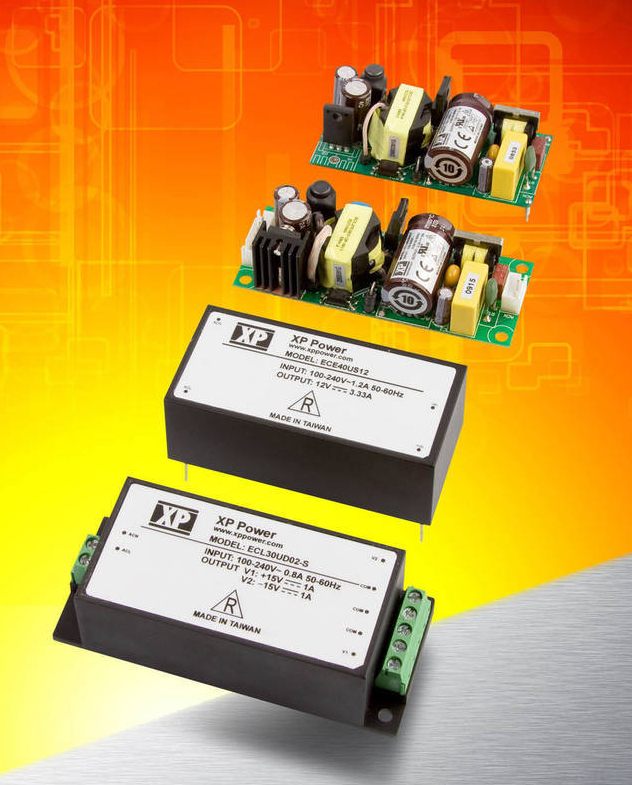

XP Power announced today two additions to its range of ultra compact high power density AC-DC power supplies. New products include the introduction of the encapsulated single output ECE series, and multiple output models of the existing ECL family.

The ECE20 are encapsulated PCB mount 20 Watt devices, measuring just 1.07 x 2.06 x 0.91 inches (27.7 x 52.4 x 23.0 mm), while the ECE40 units measure only 1.50 x 3.10 x 1.10 inches (38.1 x 78.7 x 27.9 mm) and have up to 40 Watts output. The ECE40 are also encapsulated and are available in either a PCB mount version, or chassis mount package with screw terminals. Both the ECE20 and ECE40 series have a power density of 9.97 / 7.82 Watts per cubic. The ECE20 is 38 percent smaller than the previous 15 Watt models.

They are believed to be the smallest 20 and 40 Watt encapsulated product on the market and have the highest power density in their respective categories.

Providing all the popular nominal output voltages from +3.3 to + 48 VDC, the single output ECE series is ideal for a broad range of low power applications in space constrained designs.

Also being released are dual and triple output 15 Watt and 30 Watt versions of the popular ECL series. These compact supplies, with sizes starting from just 1.20 x 2.44 x 0.96 inches (30.7 x 62.0 x 24.4 mm) for the 15 Watt open frame PCB mount models are available in open frame or encapsulated PCB mount, and chassis mount with either connectors or screw terminals. The new multiple output models provide combinations of +/-12, +/-15, 5/12, 5/+/-12 and 5/+/-15 VDC outputs.

All units across the ECE and ECL ranges feature a no load input power of less than 0.3 W helping customer's end-products comply with internationally recognized energy efficiency standards. Both series also meets XP Power's 'green power' limits.

Operating from as low as -10 degrees C and up to +50 degrees without derating, the converters can operate in most environments without the need for additional heat sinks or forced airflow. Operation up to +70 degrees C is possible with derating.

The units comply with EN550022 level B standard for both conducted and radiated emissions without the need for additional filtering components.

The ECE and ECL series are available from either Newark or direct from XP Power and have a 3 year warranty. Pricing starts at $26.00 for orders of 500 pcs.

For further information and reader enquiries:

Duane Darrow, XP Power, 990 Benecia Avenue, Sunnyvale, CA 94085

Tel: (408)732-7777

Fax: (408)732-2002

Email: ddarrow@xppower.com

Web: www.xppower.com

William Sng SK, XP Power (Singapore) PTE LTD

Tel: +65 68469368

Fax: +65 67418730

Email: wsng@xppower.com

Web: www.xppower.com

For further information, text and graphics by email or to discuss feature article opportunities:

Robert Huntley, Publitek Limited, 18 Brock Street, Bath, BA1 2LW, United Kingdom

Tel: +44 (0) 1225 470000

Fax: +44 (0) 1225 470047

E-mail: robert.huntley@publitek.com

Web: www.publitek.com

XP Power is committed to being a leading provider of power solutions, including AC-DC power supplies and DC-DC converters. With ISO9001:2008, XP Power offers total quality, from in-house design through to manufacturing facilities around the world. The company offers the widest range of power products available from one source and unrivalled technical and customer support, aiding both vendor consolidation and cost reduction programmes. XP has 27 sales offices throughout Europe, North America and Asia.

XP Power Ltd, a London Stock Exchange listed public company, has design centres in Fyfield (UK), Orange County (California), and Singapore, which also serves as the company's headquarters. Manufacturing is carried out near Shanghai, China. The design teams push back the boundaries of cost and technology, providing market leading power products. Dedicated in-house Engineered Solutions teams provide customer specific solutions, with rapid response times. The applications team provide expert technical support to help customers integrate and use XP power products worldwide.
