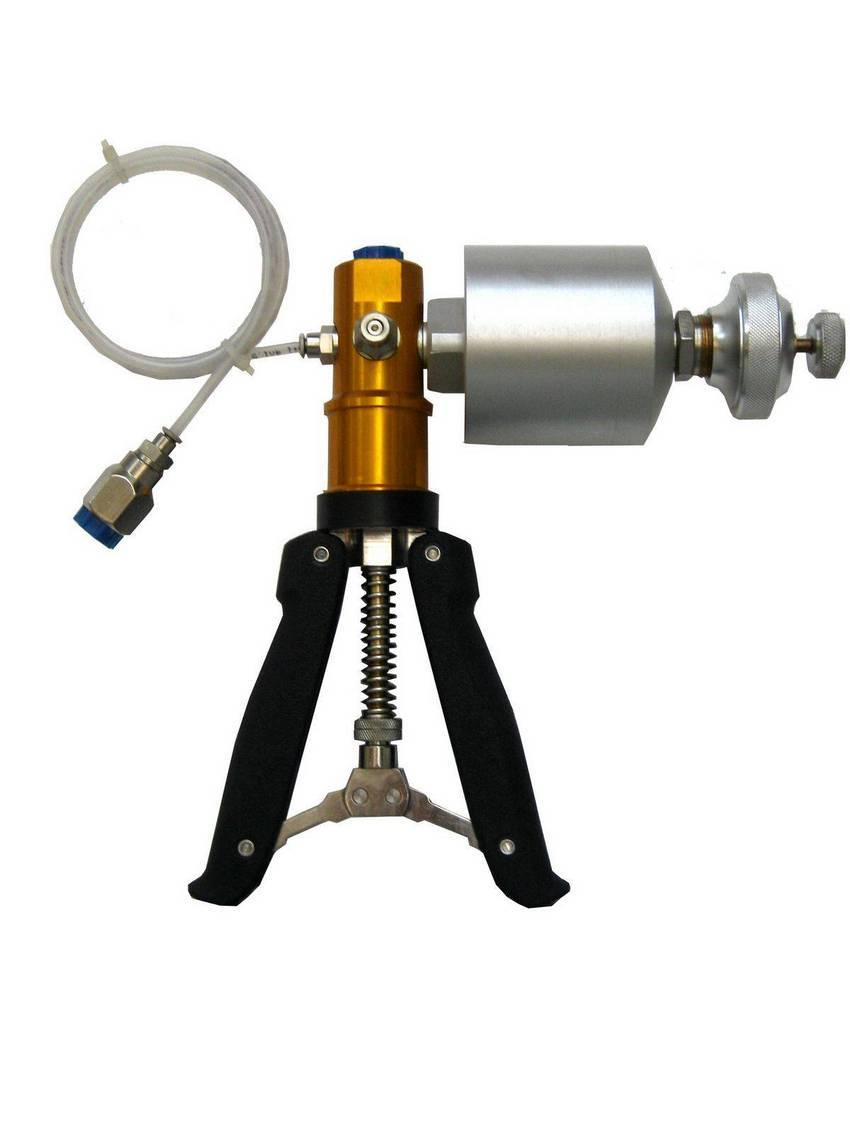

Pneumatic Hand Pump Series

Our BRAND NEW Pneumatic PHP Hand Pump Series range up to 600 PSI (40 Bar) of pneumatic pressure depending upon the PHP pump model. They all combine pressure and vacuum generation with an easy to grip handle that is spring loaded with scissor action, and offers a fine adjustment vernier and pressure release value too.

Model	           PHP 2	            PHP 10/25	          PHP 35/40
Range -0.9 to 2 Bar (up to 30 PSI) -0.9 to 10/25 Bar(150/350 PSI) -0.9 to 35/40 Bar(500/600 PSI)
Type Handheld Handheld Handheld
Fine Adjustment Vernier Vernier Vernier
Stroke Adjustment Spring Loaded/Lock Nut Spring Loaded/Lock Nut Spring Loaded/Lock Nut
Pump Type Scissor Action Scissor Action Scissor Action
Connection to fit
Master Indicators 3/8" BSP (F) 3/8" BSP (F) 3/8" BSP (F)
Case - for Pump
Only Optional Optional Optional
Case - for Pump,
Adaptors, & Hose Optional Optional Optional
Set of BSP or NPT
Adaptors(up to 5 types)Optional Optional Optional

For additional information, please contact:

E Instruments International,

172 Middletown Blvd., Suite B201, Langhorne, PA 19047

Tel: 215-750-1212, Fax: 215-750-1399
