PITTMAN® Offers a Full Range of DC Micromotors Specially Designed for Medical Applications

HARLEYSVILLE, PA - PITTMAN® Motors, a division of AMETEK/Precision Motion Control, offers high-performance slotless brushless DC motors for medical applications, such as high-speed surgical tools, dental tools, medical instruments, and other small medical devices.

As the medical industry trends away from pneumatic devices and moves toward DC motor platforms, motor design and manufacturing requires a new level of technology to meet demanding medical applications.

In addition to their small size, PITTMAN high-performance slottless brushless motor designs offer many benefits that are well suited for medical applications. These miniature motors are capable of very high speeds, produce little or no EMI emission (electromagnetic interference), provide long life, and have low audible noise.
In addition, the slotless design eliminates magnetic cogging. In PITTMAN slottless brushless motors, the stator teeth are completely eliminated by forming and encapsulating the entire stator winding along the inside surface of the back iron. The result is zero detent torque, low inductance and fast response rates.

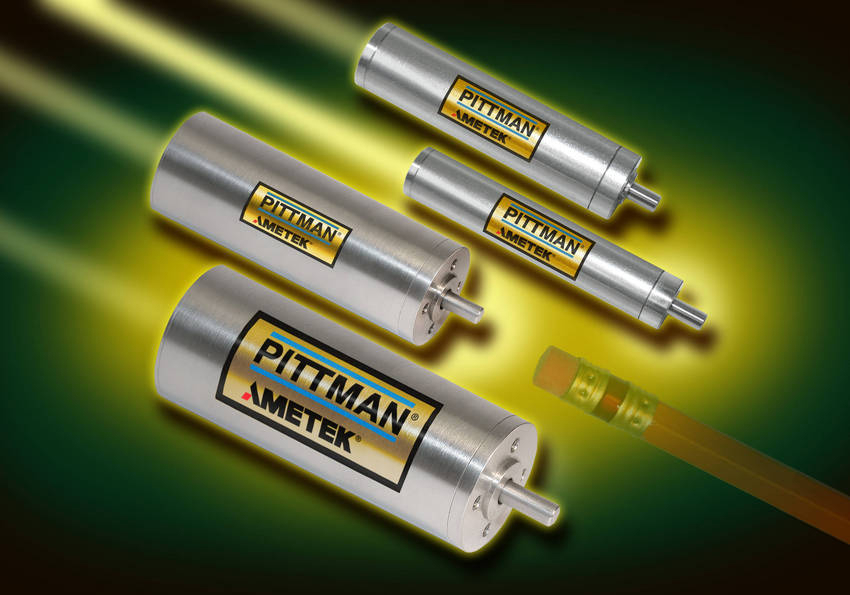

PITTMAN's smallest high-performance motor is 0.375" (9.53mm) with a maximum speed of up to 70,000 RPM and a torque rating of up to 0.3 oz-in (0.002Nm). Overall length is 2.00" (50.8mm). The motor has a 2 pole permanent magnet rotor, a 3 phase stator and sensorless commutation.

Larger diameters in the high-performance line include 0.5" (12.7mm), 0.8" (20mm), and 1.1" (28mm). Maximum speeds are available up to 60,000 RPM and torque ratings from 0.9 oz-in (0.006Nm) to 14.9 oz-in (0.105Nm). Each diameter has 2 available stack lengths.

The motors are constructed using 4 pole rotors, 3 phase stators, and integral hall sensor feedback spaced for 120 electrical degrees.

Standard features for the high-performance DC motor offering include shielded ball bearings, stainless steel construction and high-energy neodymium rotor magnets. Permanent magnet rotors are balanced for smooth and quiet operation at high speeds. Autoclavable versions are available in all motor sizes. For more information, visit www.Pittman-Motors.com or contact an engineer at 267-933-2105.

About Pittman

Pittman is part of the AMETEK Precision Motion Control division. Pittman products are designed into a wide variety of high tech motion applications including lab automation, medical devices, communications equipment, semiconductor processing equipment, aerospace systems, and many other applications where precision motion is critical.

The Pittman motor line spans a wide variety of dc motor sizes and technologies ranging from 12mm diameter brushless slotless dc motors used in high speed medical applications to large NEMA frame dc servo motors used in sophisticated automation equipment. Pittman also offers a wide variety of complementary products such as gearboxes, encoders, brakes, and drive systems. For more information, visit www.Pittman-Motors.com.


Marcia Colucci

203-756-7441 ext. 255


343 Godshall Drive, Harleysville, PA 19438

Tel: 330-673-3452
