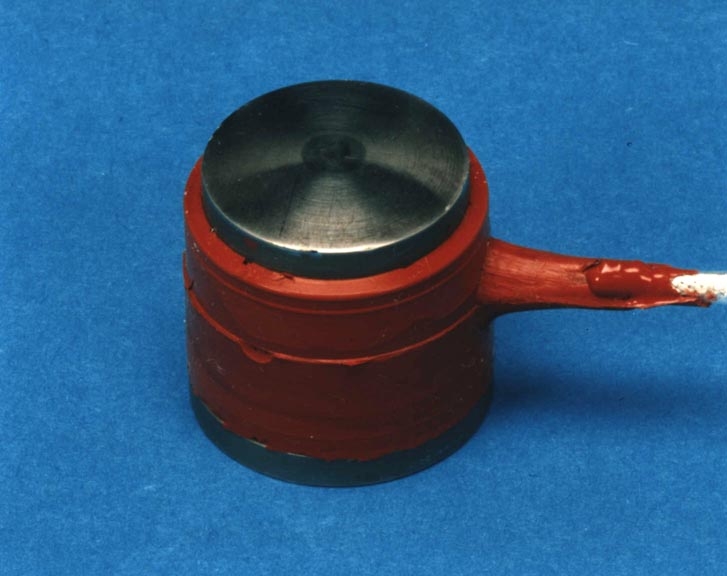

Compression Load Cells measure up to 10,000 lb.
May 14, 2002 - Stainless steel Model 3691 Series is sealed for IP 67 environmental protection for automotive, aerospace, process control, and industrial applications. Each has integral cable, radius loading surface, and temperature compensation. Higher capacity units come with removable anti-rotation pin. Repeatability is less than 0.5%, non-linearity and hysteresis is better than 1%, and overload protection is 150%. Operating temperature range is from -65 to 200 deg F.
Original Press release
Lebow Products, Inc.
1728 Maplelawn Drive
Troy, MI, 48084-4600
Lebow Products Offers New Compression Load Cells That Provide Flexibility, Durability, and Low Cost for Industrial Applications
Troy, MI, April 26th, 2002; Lebow Products Inc. introduces its new Model 3691 Series line of compression load cells. These rugged, durable cells are constructed of stainless steel and are sealed for an IP 67 environmental protection to allow for a broad range of application use in automotive, aerospace, process control, and industrial markets. Special features include integral cable, compact design, fully temperature compensated, and radius loading surface. The higher capacity units come with a removable anti-rotation pin. Repeatability specification is less than 0.5%. Non-linearity and hysteresis specification is better then 1%. Ultimate overload protection of 150%. Allowable excitation voltage is 15 volts AC or DC. Bridge resistance is 350 Ohms with an insulation resistance of 5000 Mega Ohms. Operating temperature range is from -65 F to 200 F. Capacity ranges are from 1,000 pounds force to 10,000 pounds force.
Established in 1955, Lebow Products manufactures a complete line of torque sensors and load cells. The torque sensor family consists of precision rotary in-line and reaction torque sensors, as well as industrial grade TorqStar sensors. The load cell products include fatigue resistant and general purpose models. These products are utilized for precise measurement in R&D, manufacturing, process control and many other applications in a broad range of markets. Website - http://www.lebow.com/. Contact us at 1-800-803-1164.
