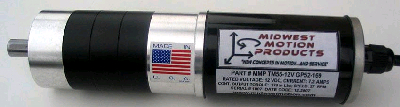

DC Gearmotor develops 170 lb-in. torque at 27 rpm.
December 6, 2007 -
Accepting any 12 Vdc source, Model MMP-TM55-12V GP52-169 measures 2.14 in. dia x 7.75 in. long, and has keyed output shaft measuring 12 mm dia x 25 mm long. Mounting is accomplished via 4 face-mount M5 threaded holes, equally spaced on 40 mm dia B.C. Weighing 3 lb, reversible unit is rated for 444 lb-in. peak torque and requires 7.2 A at 12 Vdc to generate full load torque. Motor is IP54-rated and suited for electric vehicles, robotics, and automation applications.
Original Press release
Midwest Motion Products
10761 Ahern Ave., S.E.
Watertown, MN, 55388
New 12 Volt DC Gearmotor Develops 170 IN. LB. Torque At 27 RPM
"Low Speed, High Torque Unit provides benefits for battery powered Electric Vehicles, Robotics & Automation Applications"
30 Nov. 2007 Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear Motor, the Model No. MMP-TM55-12V GP52-169.. Accepting any 12 Volt DC source, including battery power, this robust Gear Motor measures just 2.14" in Diameter, by 7.75" long, and has a keyed output shaft of 12mm diameter by 25mm long. Easy mounting is accomplished with 4 "face mount" M5 threaded holes, equally spaced on a 40mm Dia. B.C.
The output of this reversible gearmotor is rated for 170 IN LBS continuous torque, at 27 RPM, and 444 IN LBS Peak. Despite its compact size and weight of approximately 3 pounds, it's an efficient design, requiring just 7.2 Amp at 12 Volts DC to generate its Full Load Torque. That translates into long life battery charge, very quiet operation, and lower cost drive electronics. Motor windings for 24, 36, 48 & 90 Volts are available.
This unique design is rated at an "IP 54" protection level for operation in harsh environments. Variable Speed accomplished with our fully compatible Speed Control, Model MMP 25A-12V, or MMP 20A-12V-RSP
Samples are available FROM STOCK for rapid prototyping needs. An up to date listing of Finished Products available from Stock can be found at http://www.midwestmotion.com/inventory.pdf
Typical options available from the company include Servo Motors with integral Optical Encoders, Failsafe Brakes, Analog Tachometers, and Planetary Gear heads, with standard ratios ranging from 3:1 to 2653:1, and standard or low backlash precision gearing available. Motor Winding Options include 24V, 36V, 48V, 60V and 90 Volts DC.
The company offers a variety of standard ancillary equipment including DC power supplies, DC servomotors, PWM Servo Amplifiers, Motor Speed Controls, Linear Actuators and a wide variety of DC gear-motors. Custom Motor Shaft and mounting configurations are also available. Typical applications include Battery Operated Motors & E.V. drives, Medical, Mobility / Accessibility products, Robotics & Automation including (Military) Unmanned Guided Vehicles, Semiconductor Processing Equipment, Actuators, Packaging & Labeling Machines, Metalworking Machines, and many other applications requiring precise motion control.
Each respondent is eligible to receive a free copy of the MMP "e-Catalog" on CD-ROM.
