Pressure Sensors detect pulsations of paper slurry.
October 14, 2004 - Piezoelectric ICP® pressure sensor models 106C10 and 106C20 are used for detecting and monitoring dynamic pressure pulsations of paper slurry in headbox and piping systems. Also used for troubleshooting root causes of slurry flow irregularities, units generate 300 mV/psi output signal. AC-coupled devices ignore ambient, static background pressure, or very slow pressure changes while measuring pressure transients, surges, spikes, and pulsations.
Original Press release
PCB Piezotronics Inc.
3425 Walden Ave.
Depew, NY, 14043 2495
Slurry Pulsation Pressure Sensors

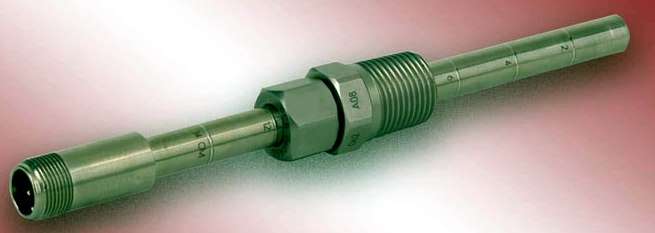

October 7, 2004, Depew, NY â€“ High-sensitivity piezoelectric ICP® pressure sensors from the Pressure Division of PCB Piezotronics, Inc., measure fast pressure transients, surges, spikes, and pulsations in paper slurry delivery systems. Models 106C10 and 106C20 ICP® dynamic pressure sensors are used for detecting and monitoring dynamic pressure pulsations of paper slurry in headbox and piping systems, and for troubleshooting root causes of slurry flow irregularities.
The units generate a low-noise, 300 mV/psi (43.5 mV/kPa) output signal, are installed through check valves, and adjust for flush-mounting within the slurry flow. Because the sensors are AC-coupled devices, any ambient, static background pressure or very slow pressure changes are ignored, permitting the units to monitor low-level dynamic pressures while being subjected to high static background pressure levels.
For additional information, contact the Pressure Division of PCB Piezotronics, Inc. toll-free at 888-684-0011 (in the U.S. and Canada) or 716-684-0001; fax 716-686-9129; email: email@example.com, or visit PCBâ€™s web site at www.pcb.com.
PCB and ICP are registered trademarks of PCB Group, Inc.
