Laser Energy Probes have large surface areas.

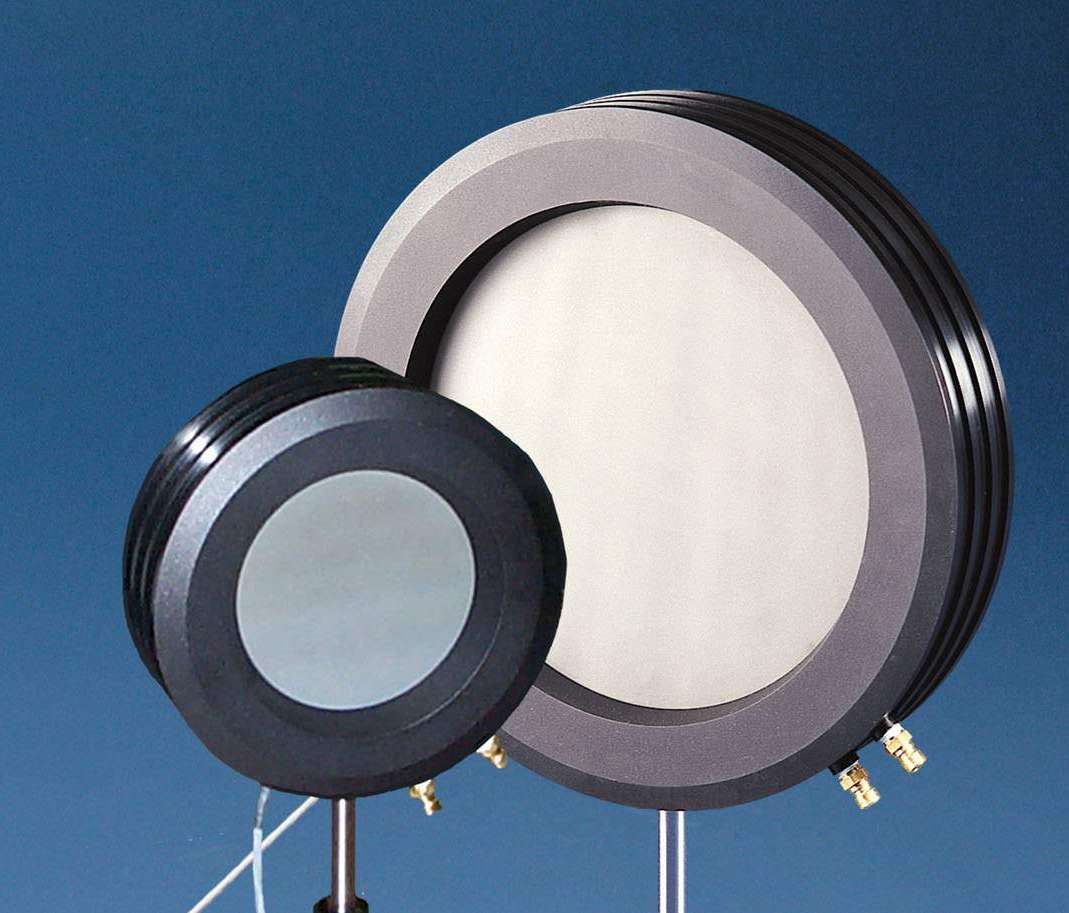

March 5, 2003 - Multi-kilowatt, water-cooled Models PM1K-100, PM3K-100, and PM5K-100, with 100 mm diameter surface area, and Model PM5K-200, with 200 mm diameter surface area, measure energy output of diode laser bars, large cross-section laser beams, diode laser arrays, and high-divergence laser beams. Probes measure output of lasers ranging from 0.19â€“11 µm with 1 W power resolution. Devices feature maximum average power density of 26 kW/cm2 and maximum pulse energy density of 0.6 J/cm2.
Original Press release
Coherent Inc., Laser Group
5100 Patrick Henry Dr.
Santa Clara, CA, 95054-1112
Coherent Molectron Introduces Large-Area, Multi-Kilowatt PowerMaxâ„˘ Laser Energy Probes
Santa Clara, Calif., February 27, 2003 â€“ Coherent Molectron (Portland, OR) introduces several new additions to its PowerMaxâ„˘ family of laser energy probesâ€”the PM1K-100, the PM3K-100, the PM5K-100, and the PM5K-200. As the largest area, multi-kilowatt, water-cooled probes on the market, these new devices are ideal for measuring the energy output of diode laser bars, large cross-section laser beams, large diode laser arrays and high-divergence laser beams.
PowerMax probes measure the output of lasers ranging from 0.19 to 11 µm. The PM1K-100, PM3K-100 and PM5K-100 feature a 100-mm-diameter surface area; the PM5K-200 features a 200-mm-diameter surface area. PM1K-100 measures power levels as high as 1 kW with maximum intermittent power of 1.5 kW. PM3K-100 measures up to 3 kW with maximum intermittent power of 4 kW. PM5K-100 and PM5K-200 measure power levels as high as 5 kW, or intermittent power as high as 7.5 kW. Each device exhibits 1W power resolution. PowerMax devices also feature a maximum average power density of 26 kW/cm2 and a maximum pulse energy density of 0.6 J/cm2.
â€śOur new PowerMax probes provide a broad range of power measurement capabilities combined with the largest surface areas available today,â€ť said Burt Mooney, director of sales for Coherent Molectron, â€śThis makes them a unique solution for measuring multi-kilowatt output of very large laser beams. And theyâ€™re compatible with Coherent Molectronâ€™s PowerMax, 3sigmaâ„˘ and EPMâ„˘ power and energy meters.â€ť
PowerMax probes feature Coherent Molectronâ€™s proprietary damage-resistant broadband coating. This provides significant performance improvements over large-area, black-painted probes. Theyâ€™re faster, more sensitive, and more resistant to scratches and laser damage across the spectrum, yet they maintain the desirable features of black paintâ€”including broad, flat spectral response, low reflectance, and good spatial uniformity.
Originally founded in 1985 Molectron Detector Inc. was acquired by Coherent Inc. in December 2002. Coherent Molectron designs and manufactures custom and standard detectors, electronics and instruments for measuring laser power and energy. The acquisition further enhances Coherent's instruments and components portfolio, providing customers with the broadest range of laser measurement and control solutions.
Founded in 1966, Coherent, Inc. is a Standard & Poorâ€™s SmallCap 600 company and a world leader in providing photonics-based solutions for the commercial and scientific research markets. Please direct any questions to Burt Mooney, Molectron director of sales, at (800) 366-4340. For more information about Coherent, including product and financial updates, visit our Web site at http://www.CoherentInc.com.
