Miyachi Unitek Corporation    Monrovia, CA 91016
Nov 25, 2005 Working with inverter and ac welding controls, WeldLab enables connection of one or multiple controls to computer in order to monitor status of up to 30 individual controls. It also lets user program weld schedules, collect weld history data, and export it for analysis. WeldStat, designed for fine spot high frequency and linear dc weld controls, lets users program weld schedules, program weld power supply settings, collect weld data, and perform statistical analysis.

Miyachi Unitek Corporation    Monrovia, CA 91016
Nov 23, 2005 Envelope Limits feature of high-frequency Model HF27 enables monitoring of programmed weld schedule by placing upper and lower limits around optimized weld signature. Any deviation results in alarm and specified action that may stop weld and/or initiate valve output. Feature can accurately detect slight changes in process that could lead to inconsistent welds, which is important in medical, electronics, and automotive industries.

Newson Gale, Inc.    Lakewood, NJ 08701
Nov 17, 2005 Designed for hazardous areas, Bond-Rite(TM) clamp protects against static electricity build-up in mobile or portable equipment. It creates and continuously monitors low-resistance connection to ground, providing visual verification through flashing LED indicator. Tungsten carbide teeth and clamping action penetrate insulating layers as well as built-up paint, resins, and adhesives. Intrinsically safe body, made of 316L stainless steel, is dust and water tight.

Dynamic Power Source, LLC    New Albany, IN 47150
Nov 15, 2005 Featuring 20 x 36 x 48 in. design, PowerBox(TM) 280MP utilizes 18 hp gasoline Kohler engine to power its 20 cfm Quincy compressor and 200 A/5,500 W generator/welder combination. Self-contained, hydraulically driven PowerBox 280HD, with similar characteristics as 280MP, suits vehicle applications that already utilize power take off system. Both models mount onto side pack of service body, into load space of pick-up or service body vehicle, or onto welder platform.

Weldcraft    Appleton, WI 54911
Nov 08, 2005 Operating at up to 400 A, Super Cool 18® TIG torch features water chamber that allows water to flow down, around, and up entire length of torch head to prevent overheating. It includes heavy copper components and gas shielding nozzle that screws onto water chamber sleeve. Available with standard WP-18 long or short back caps, Super Cool 18 uses standard gas lens alumina nozzles, hoses, power cables, and collets and accommodates tungsten ranging from .020-3/16 in.

AmTech    Danbury, CT 06813
Oct 28, 2005 With total stroke of 1.9 in., 20 kHz Ultraweld Linear 20 employs actuator that works in linear up/down motion and may be tooled for nonferrous welding applications. Vertical stroke makes tooling parallel front to back at all times. Along with precision roller bearing slide, system features dovetail mounting, flow controls, and adjustable upper and lower positive stops. Polar mounted ultrasonic stack facilitates linear and axial setup.

DE-STA-CO Industries    Madison Heights, MI 48071
Oct 28, 2005 Providing quick clamping in repetitive production operations, Heavy-Duty Toggle-Lock Pneumatic Clamps are suited for short run jobs with temporary fixturing. They offer max exerting force of 1,600 lb and open to max of 130°, providing clearance for materials being clamped. Indexable clamp arms can be repositioned in 45° increments, and are offset, allowing them to be mounted on left, right, or both sides of clamp. Completely enclosed linkage protects against contaminants.

A and A Mfg. Company, Inc.    New Berlin, WI 53151
Oct 21, 2005 Suitable for MIG, TIG, and stick welding, Weld Curtain protects against effects of near UV and UV radiation emitted during arc welding. When extended, curtain measures 72.0 in. H x 74.5 in W. When retracted, it stands 4 in. high with base of 80.5 in. long. Heavy-duty steel shade features double-stitched pocket to secure shade bar and can be used in temperatures as low as 10°. Steel outriggers create stable base with high visibility safety finish.

Orbimatic GmbH    Peterborough PE7 3FT  United Kingdom
Oct 18, 2005 Suited for high production environments where fusion weld is suitable, automatic TIG welding head, Model P24 accommodates tube diameters from 10-26 mm. It clamps directly to tube to be welded via expanding mandrel, which is operated by mechanical clamping system. As clamping mechanism clamps inside tube, head is automatically aligned concentrically. Fully enclosed welding zone enables unit to be used for highly reactive materials such as titanium.

Select-Arc, Inc.    Fort Loramie, OH 45845-0259

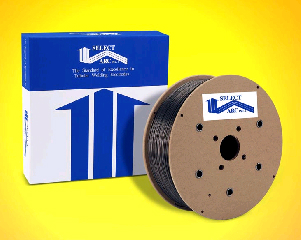

Oct 06, 2005 Intended for welding austenitic stainless steels to themselves in flat and horizontal positions, SelectAlloy 308 provides stable arc with removable slag and virtually no spatter. Low carbon equivalent, SelectAlloy 308L, is more resistant to intergrannular corrosion due to carbide precipitation without use of niobium or titanium stabilizers. SelectAlloy 308 welds 301, 302, 304, 305, and 308 SS, while SelectAlloy 308L welds 301, 302, 304L, 308, 308L, 321, and 347 grades.

Weldcraft    Appleton, WI 54911

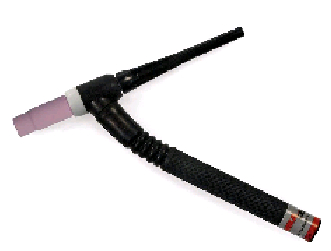

Sep 28, 2005 Intended for wide range of TIG applications, SF-225 Modular Flex Head Torch Package allows welding operators to customize single torch into multiple configurations. Standard with WP-9 and WP-17 Series 70° heads, power cable, water and gas hoses, and handle, system can be configured into 7 torch styles.

Bernard Welding Equipment    Beecher, IL 60401
Sep 21, 2005 Suited for hand-held, air-cooled industrial welding applications, Q(TM)-Guns come in 150-600 A models, are rated at 100% duty cycle with CO₂ gas, and offer multiple handle and trigger options. Power pin bushings integrated into back end assembly minimize number of parts and eliminate removal of rear strain relief to change power pins. Back end assemblies facilitate changeover of direct plugs and use of trigger cable adapters or pigtails.

3M    St. Paul, MN 55144
Sep 15, 2005 Designed to protect eyes from UV and infrared radiation, Model WS-320/37154 features auto-darkening filter that turns dark as soon as arc is struck and light again when welding stops. Shield allows welder to select from 3 variable dark state shade levels including 10, 11, and 12. Two user-selectable sensitivity levels provide arc detection in differing work and environmental conditions. Shield is suited for stick, MIG/MAG, and many TIG welding applications.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Aug 26, 2005 Multi-process, inverter-based Invertec® V450-PRO is suited for shops welding with 1/16 in. or larger diameter welding wire electrodes that also require power for arc gouging repair with 3/8 in. carbon. Capable of stick, Touch-Startâ„¢ TIG, MIG, cored wire welding, and arc gouging, product features controls that include selectable Hot Startâ„¢ and variable Arc Force functions. Unit delivers 5–570 A welding output, 88% efficiency rating, and 95% power factor rating.

Unitek Miyachi Corporation    Monrovia, CA 91017 7133
Aug 23, 2005 Featuring 532 nm output wavelength, model LW2AG provides users with visible light pulsed Nd:YAG welding laser designed for applications with reflective materials such as gold, copper, and copper alloys. It provides real-time optical power feedback control system along with user interface and fiber optic delivery in air-cooled package. Unit is suited for non-contact, zero ESD/EMI circuit bonding for microelectronics and sensors.

Weldcraft    Appleton, WI 54911

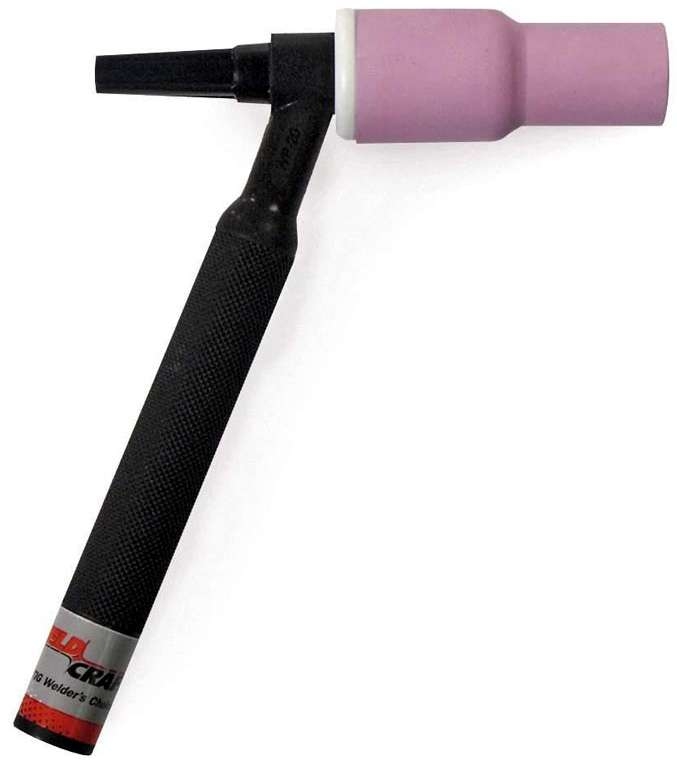

Aug 17, 2005 Providing up to 250 and 225 A respectively, WP-20 and WP-20P feature compact designs suited for applications with limited access or tight joints. Both utilize around-the-head cooling system that reduces weld discontinuities caused by overheated components. Available with 12.5 or 25 ft, rubber or vinyl power cables, torches are compatible with all 13N series of consumables. Rubber cables provide operator comfort and flexibility.

Speedline Technologies Inc.    Franklin, MA 02038
Aug 12, 2005 Electrovert EconoPak Gold®, Electra®, and Vectra® Wave Soldering Systems may be fitted with UltraFillâ„¢ Nozzle, designed to increase contact length and dwell time. Nozzle also reduces temperature drop so that minimal superheat is needed to reflow solder joints in second wave. Also available, Quick Change Solder Pot provides capability to switch between 2 alloys. It includes second solder pot with motors, pumps, flow ducts, nozzle, and 2 trolleys.

Great Lakes Air Systems    Clawson, MI 48017

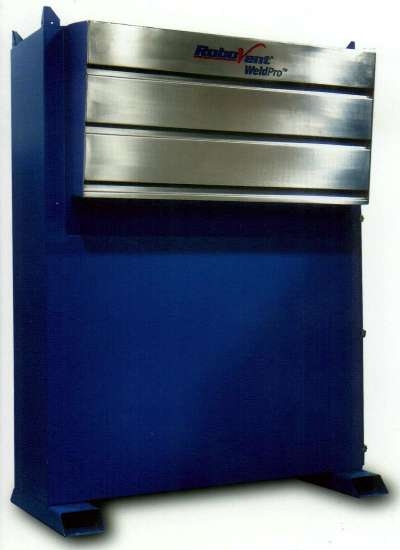

Aug 12, 2005 RoboVent WeldProâ„¢ ensures clean, safe conditions and compliance to federal regulations on emissions. Free-standing system recycles contaminated air using self-cleaning filtering system. Positioned in front of work area, bench, or fixture, system can capture 100% of smoke and contaminants right at source. Self-contained design eliminates need for central exhaust system.

Herrmann Ultrasonics, Inc.    Bartlett, IL 60103

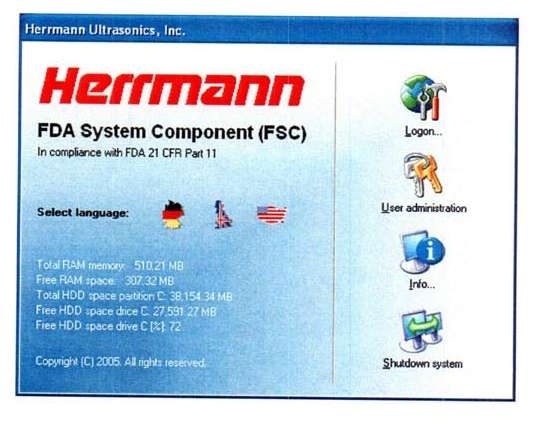

Aug 09, 2005 Ultrasonic welder is available with FDA System Component (FSC) add-on software package that meets FDA CFR 21 part 11 standards for login and traceability. Login screens only let authorized personnel operate system. Operators, defined as Administrator, Supervisor, Setup, or User, can be enabled or prohibited from changing different features of DIALOG touch weld process controller. Audit trail is created, showing all changes made and electronic signatures.

Weldcraft    Appleton, WI 54911
Aug 05, 2005 Water-cooled, Crafter Series(TM) 310 A Model CS310 features D-Handle(TM) design with self-indexing flat top that allows operator to orient torch by feel. ColorSmart(TM) color-coded hose sets help welding operators identify input water, return water/power cable, and gas. Reinforced rubber cable assembly offers flexibility in cold weather. Available with 12.5 and 25 ft cables, torch comes weld-ready with Weldcraft 13N series front-end parts.
