Rofin-Baasel Inc.    Boxborough, MA 01719

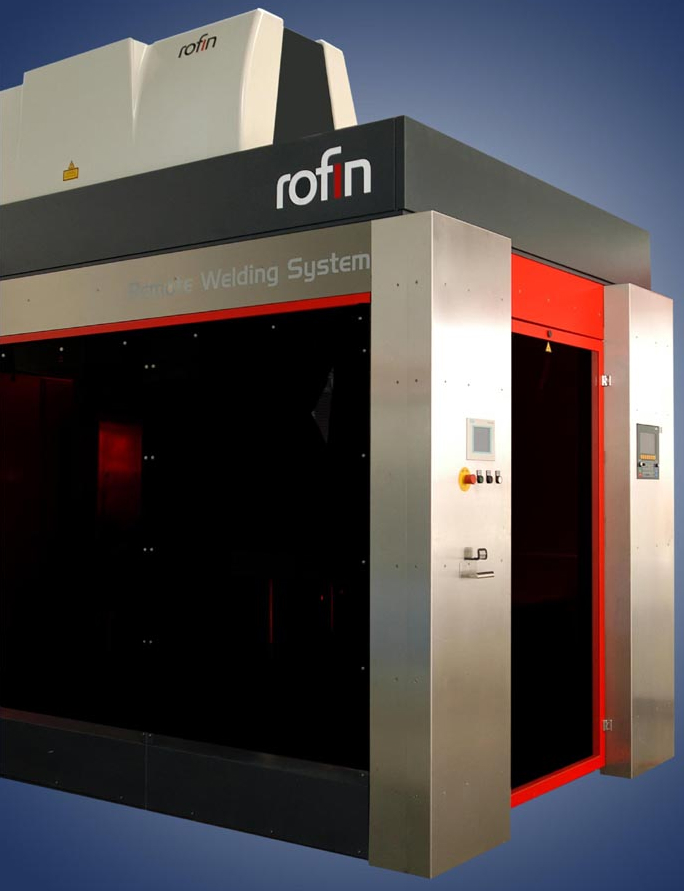

May 09, 2008 Featuring working envelope of 1,500 x 2,000 mm and typical indexing times under 50 ms between weld stitches, Remote Welding System (RWS) uses CO₂ slab laser system mounted above working area, on gantry, with laser beam delivered via mirrors. Complete system is enclosed by perimeter safety guarding and can operate continuously on 3-shift pattern. Approximately 20 million welding cycles, equating to more than 300 km of weld joint, can be generated without replacing any wear parts.

Herrmann Ultrasonics, Inc.    Bartlett, IL 60103
May 07, 2008 In addition to welding water- and air-tight seams, ROTOSONIC Machine can be equipped to cut fabric while sealing cut edge to prevent material from fraying or unraveling. Rotary Sonotrode and rotating anvil wheel prevent material drift and bulking during bonding process. Utilizing ultrasonic technology to actuate Ultrasonic stack at 30 kHz with up to 1,200 W, machine is suited for welding medical blankets, boat covers, tents, outdoor wear, and protective clothing.

Stoody Co.    Chesterfield, MO 63017
May 06, 2008 Stocked in popular sizes, including 308L, 309L, and 316L, 300 Series Flux-Cored Arc Welding (FCAW) Gas Shielded Wire comes in flat and horizontal versions as well as all position welding grades. All feature environmentally friendly wire basket and random wound wire, which lends to optimized deposition rate with minimal labor.

Arcos Industries, LLC    Mount Carmel, PA 17851

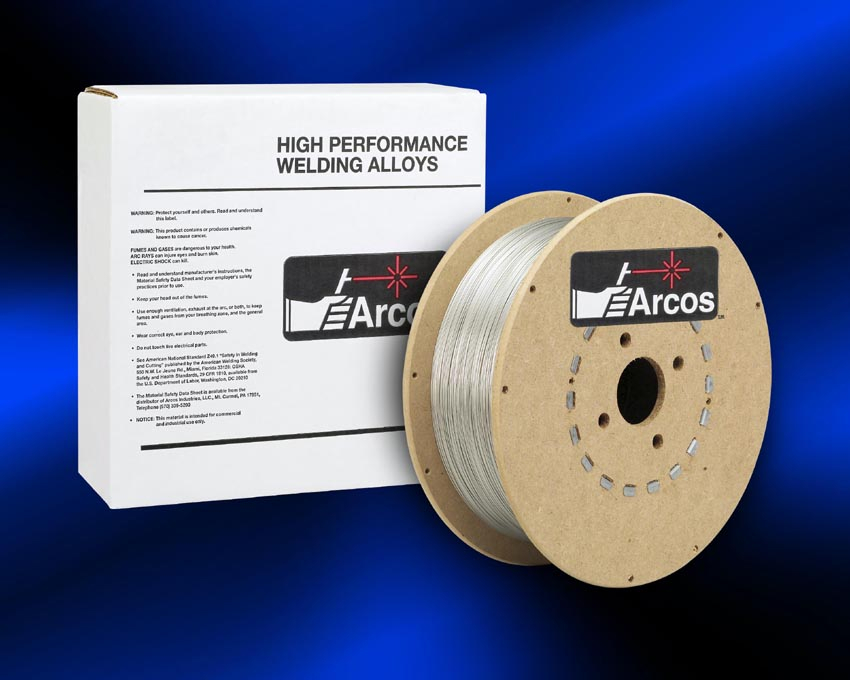

May 06, 2008 Capable of handling welding applications where superior seawater corrosion resistance is required, Arcos 803 (ECuNi) is covered electrode designed for shielded metal arc welding of wrought or cast 70/30, 80/20, and 90/10 copper-nickel alloys. It is also utilized to weld clad side of copper-nickel clad steel. Arcos 803 is suited for desalination plant, offshore construction, and marine environment welding applications.

Select-Arc, Inc.    Fort Loramie, OH 45845-0259

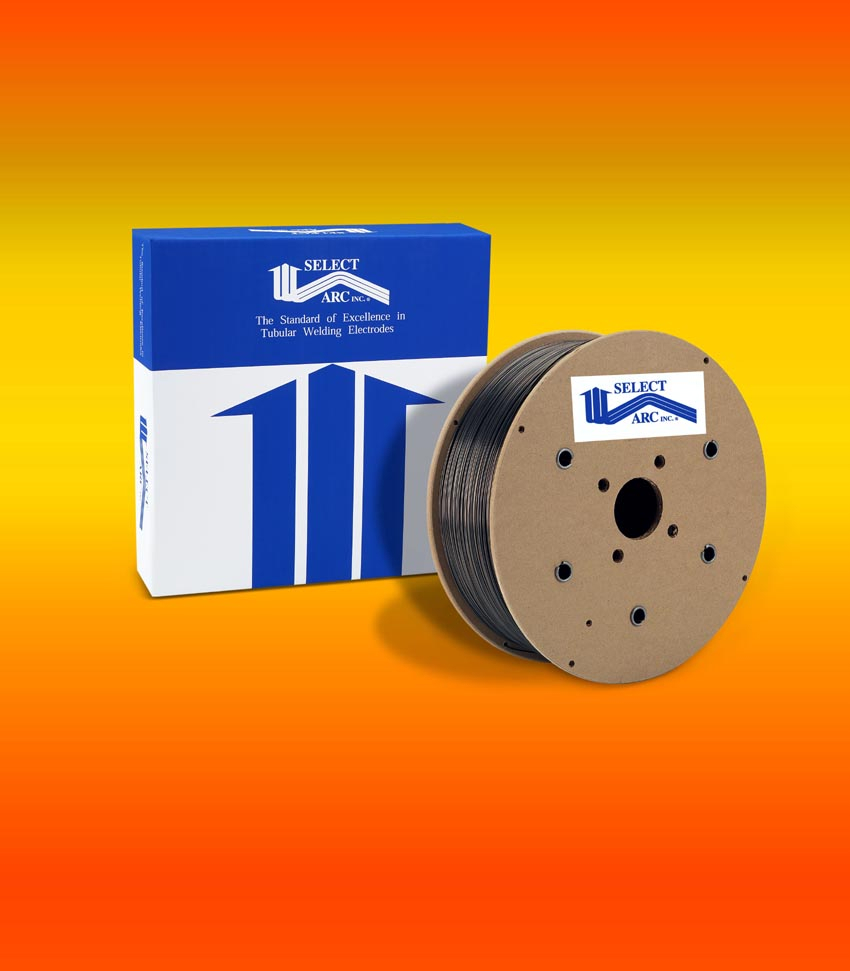

May 02, 2008 SelectAlloy 307EU-C produces weld deposit that is resistant to hot cracking, and features stable arc transfer that transitions into spray and maintains ability to bridge gaps. Unit delivers consistent deposit composition due to even distribution of core ingredients. It is suited for welding automotive exhaust systems, especially when joining austenitic stainless to ferritic stainless or carbon steel, ferritic to ferritic stainless or other dissimilar metals within exhaust system.

Unitek Miyachi Corporation    Monrovia, CA 91017 7133

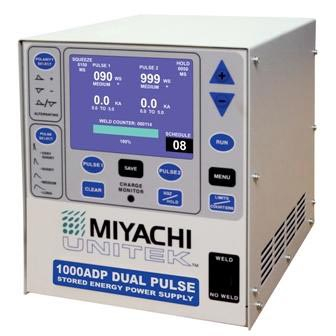

Apr 28, 2008 Advanced Dual Pulse (ADP) welder features current monitoring, programmable pulse polarity, high repetition rates, and 4 selectable pulse width durations. Uupslope function can be programmed to gradually increase weld energy to alleviate weld splash. Incorporating 6.5 in. high resolution color display that shows monitored current values, weld limits, weld counters, and squeeze/hold times programmed for each weld schedule, unit also comes in 100 and 300 W versions.

Hobart Brothers Co.    Troy, OH 45373-2900

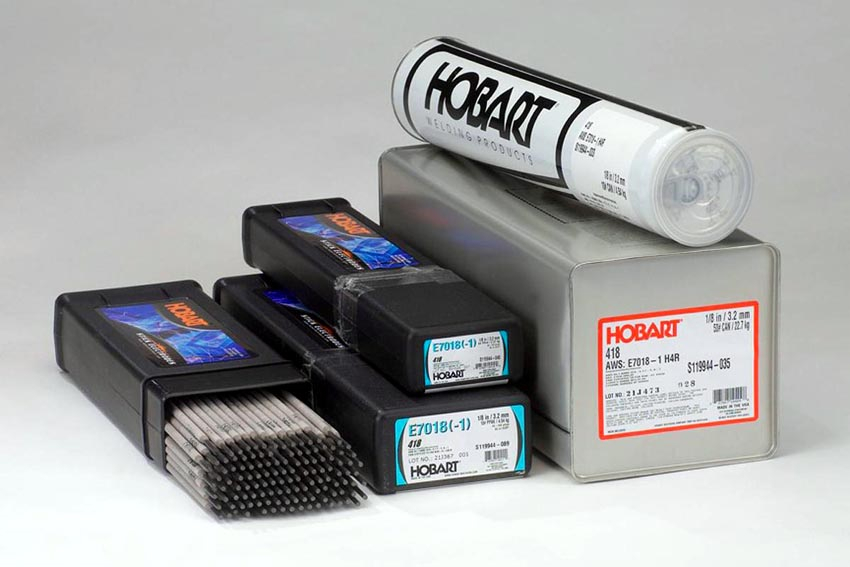

Apr 11, 2008 Providing high impact properties at temperatures as low as -50°F, Hobart® 418 (AWS E7018-1 H4R) low hydrogen stick electrode produces spatter-free arc and creates flat weld bead profile with fine rippled finished appearance. To minimize post-weld cleaning, Hobart 418 features removable slag that in many cases is self-peeling. With weld puddle that washes into sidewalls without undercutting, electrode is available in 10 and 50 lb hermetically-sealed cans and 5 and 10 lb P-Paks.

Arcos Industries, LLC    Mount Carmel, PA 17851
Apr 04, 2008 Arcos 392 (ERNiCrFe-6) is intended for cladding steel with nickel-chromium-iron weld metal and for joining steel and stainless steel to nickel-base alloys. Weld deposits can be age-hardened with degree of hardness depending on time and temperature. Alloy is suited for welding in cryogenic and elevated temperature (up to 1,800°F) environments such as power generation plants, petrochemical facilities, and furnace equipment.

Select-Arc, Inc.    Fort Loramie, OH 45845-0259

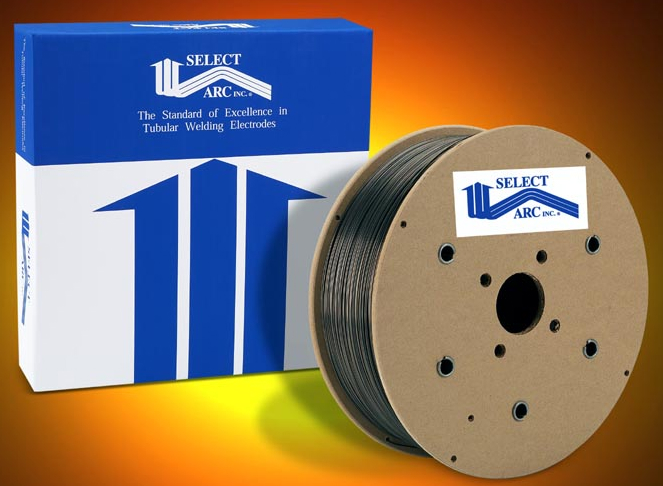

Apr 04, 2008 Suited for offshore platform construction, earthmoving/mining machinery, and shipbuilding, Select 820-Ni2 flux cored wire is intended for welding of carbon and ASTM A572/A575/A734 steels, which require v-notch toughness and tensile strength in 80,000-100,000 psi range. Producing weld deposit with 2.2-2.5% nickel, it features slag constituents for puddle control, fast freezing characteristics to facilitate welding in all positions, and smooth spray arc transfer with minimal spatter.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Mar 24, 2008 Designed for construction fleets, small contractors, and pipe welding applications, PRO 300 provides 20-410 A of welding power, as well as 12,000 W of peak generator power. Single circuit board is housed in sealed environment, protected from heavy industrial applications. Digital voltage control enables operators to pre-set and maintain voltage, while Lift-Arc function creates consistent and positive arc starts, and Auto-Stop function allows welder to break arc without flaring.

Crafford-LaserStar Technologies    Riverside, RI 02915
Mar 24, 2008 Offering alternative to microscope GTA welding, 7700 Series Welding System can lay beads as small as .0025 in. making it suited for plastic injection mold, tool, and die maintenance and repair. System can repair slots, pockets, radius contours, and angles as well as polished, engraved, and textured surfaces. It also repairs thin walls with little or no warping. Suited for tool steel, aluminum, copper, titanium, and powdered metals, welder minimizes handwork required before polishing.

Weldcraft    Appleton, WI 54911
Mar 19, 2008 Rated at 150 A dc and 125 A ac, both at 60% duty cycle, air-cooled Legacy(TM) LS17 includes soft-grip handle and interchangeable fingertip switch that provides remote amperage control. Knuckle joint at base of handle facilitates control and movement, while minimizing stress on power cables and backend of torch body. Torch is available with 12 ½ or 25 ft single-piece rubber cable assembly, each of which comes standard with protective sheath.

Thermostatic Industries, Inc.    Huntington Park, CA 90255

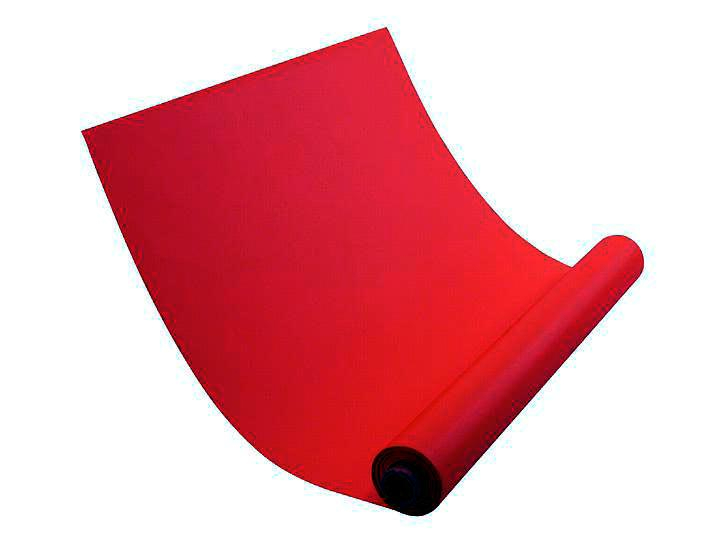

Mar 19, 2008 Bulldog Red(TM) welding blanket and welding curtain damage control cloth has weldshed coating that stops hazardous fluids from being absorbed into cloth when toxic or flammable fluids are present. Abrasion- and spark-resistant cloth has service temperature of up to 1,000°F, does not conduct electricity, and is resistant to chemicals and weld spatter. It is OSHA-compliant and is available in 38 or 60 in. rolls at 50 yd in length.

Orbitform    Jackson, MI 49204
Mar 18, 2008 Weld Tip System (WTS) for robotic spot welding inspects spot welding electrodes and ensures that face diameters and general appearance meet acceptance criteria. It incorporates CURE® technology (Concurrent Universal Recognition Engine) memory processing architecture and is suited for all welding cells.

Schleuniger, Inc.    Manchester, NH 03103

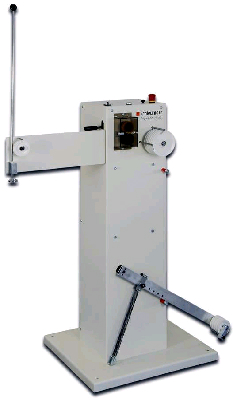

Mar 18, 2008 Designed for use with automatic Cut Strip Terminate machines, PreFeeder 60 features controlled roller drive that feeds wire into accumulator to reduce tension before it is pulled by feeding mechanism. Wire line height can be adjusted, and wire end detection sensor is optionally available. PreFeeder 60 helps maximize productivity of processing machine, especially when it comes to wire packaging that might be problematic such as wire barrels, loose wires, and cardboard boxes.

Image Industries, Inc.    Huntley, IL 60142
Mar 17, 2008 Offering full range of weld stud fasteners and equipment including arc weld studs, capacitive discharge weld studs, and cable management studs, POWERfast(TM) System withstands harsh environments and is suited for isolation bushings, grounding lugs, and other access panel applications. System also includes hinge pins, security bolts, door rods, and paint stripping nuts.

Rofin-Baasel Inc.    Boxborough, MA 01719

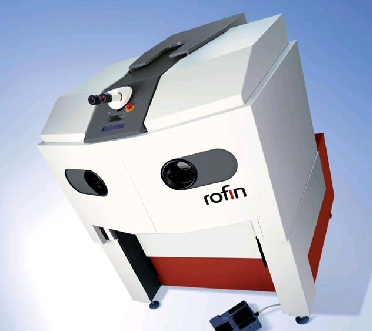

Mar 14, 2008 Incorporating 4 high-precision positioning axes and CNC programming, StarWeld Integral enables users to select as much automation as they desire. Working chamber provides space for objects with edge length up to 500 mm, while motorized X, Y, and Z axes move work pieces with max weight up to 500 kg, allowing rapid and accurate positioning of parts. StarWeld Integral can be used as manual welding laser, joystick-controlled deposit welding laser, and as CNC laser welding system.

Bernard Welding Equipment    Beecher, IL 60401
Mar 13, 2008 Designed for heavy equipment manufacturing operations, Heavy-Duty Centerfire(TM) Nozzles feature removable nozzle cone, built-in spatter guard, and heat-resistant insulating material that withstands degradation at 400-600 A. For companies that use same power source for MIG and self-shielded welding, Gasless Centerfire parts allow operators to convert Q-Gun from one process to another. Both nozzles and gasless parts operate with standard Centerfire contact tips and diffusers.

Kamweld Technologies, Inc.    Norwood, MA 02062
Mar 13, 2008 Including 4 models, FW-5 Series of Fusion Welders have temperature range of ambient to 950°F, are constructed in SS, and measure 11.5 in. Model FW-5A has digital temperature controller, while FW-5B features manual air temperature controller, and both are equipped with air regulators that prevent heater element burnout. Including internal air compressors, Models FW-5C and FW-5D include separate power/heat switches to prevent welders from heating up without air compressors running.

ERICO    Solon, OH 44139-2631
Mar 12, 2008 CADWELD® PLUS MULTI combinines mold block and a range of gaskets (batting) into complete welding system. It features compact compression structure to enable alignment of conductors and self-sealing design that prevents weld metal leakage. With one universal mold, user can make over 30 separate connection types, and each weld is complete in about one minute. Permanent molecular bonds that are created with system do not loosen or corrode.
