SICK, Inc.    Minneapolis, MN 55438

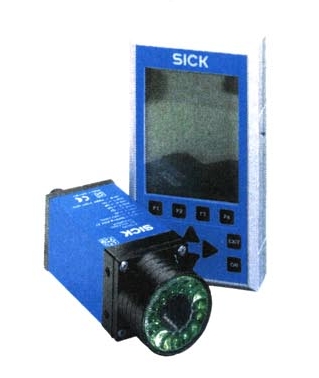

Apr 23, 2002 ICS 100 Intelligent Camera Sensor integrates into any application without need for special image processing knowledge. Its IP 64 housing and homogenous integrated illumination and lens allow it to mount in small and hostile factory environments. CMOS sensor permits inspection of glossy objects without glaring or blooming, and processing speeds reach up to 2.5 ms. Equipped with various algorithms, ICS 100 retains whatever it is taught.

DVT Inc.    Norcross, GA 30093
Apr 23, 2002 Legend 540, with built-in Ethernet connectivity and Hitachi SH4 processor, is at least 8x faster than existing sensors. Digitizing time is rated at 13 milliseconds, permitting full inspections of up to 7,000 parts per minute. No separate PC or frame-grabber board is required; all hardware is integrated into 1.5 in. thick by 4 in. tall housing. Legend 540 reads linear and 2-D barcode, and also performs OCR.

Sensors Unlimited Inc.    Princeton, NJ 08540
Apr 23, 2002 Room temperature camera employs 640 x 480 Indium Gallium Arsenide (InGaAs) focal plane array (FPA). Its short-wave infrared (SWIR) scientific imaging system (0.9 to 1.7 microns) suits laser profiling, emission microscopy, and imaging spectroscopy. Digital output (14-bit) can be integrated with LabVIEW(TM) software. Camera features snapshot mode exposure with multiple computer controlled integration times. It measures 4 x 4 x 6 in.

National Instruments Corp.    Austin, TX 78759-3504
Apr 22, 2002 NI Display Test software and hardware provides suite of pre-built display tests, including alignment, pixel defect, color, and contrast, for testing cell phones, PDAs, automobile displays, and other mobile terminals. To acquire images, it uses IMAQ(TM) machine vision software and image acquisition boards that integrate with LabVIEW and PXI measurement and automation hardware. Engineers have flexibility to create new vision tests.

Elmo Mfg. Corp.    Plainview, NY 11803

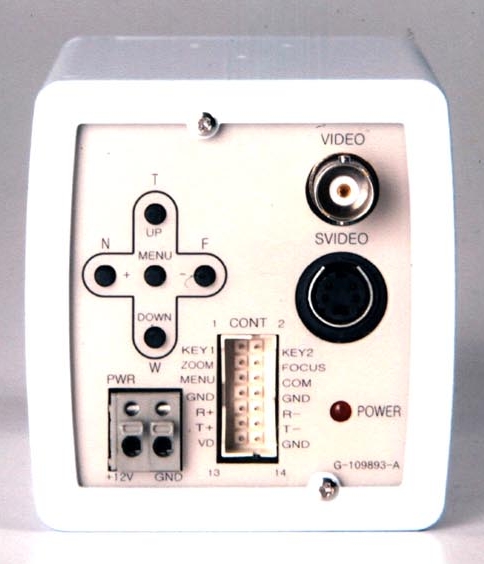

Apr 22, 2002 QNW4000 1/4 in. interline transfer CCD color camera features DSP circuitry. Day/night camera comes in weatherproof housing, and automatically converts to black and white operation at low light levels. Minimum illumination of 0.5 lux delivers images in near total darkness, while minimum illumination for color is 2.0 lux. S/N is 48 dB, and resolution is 470 TVL. Built-in vari-focal auto iris lens has 2.8 to 5.8 mm focal lengths.

Raythecon/TI Systems    Dallas, TX 75243
Apr 22, 2002 Radiometric 500D BST infrared thermal imager uses Compaq iPAQ(TM) personal digital assistant (PDA) as color display, image capture, and communication interface. Combining radiometer and PDA lets users capture infrared images and temperature data quickly and easily, even while working in remote work settings. The PDA allows users to import images and data for transmission via PC or wireless connection, sharing time-critical data across an enterprise.

Flir Systems, Inc.    North Billerica, MA 01862

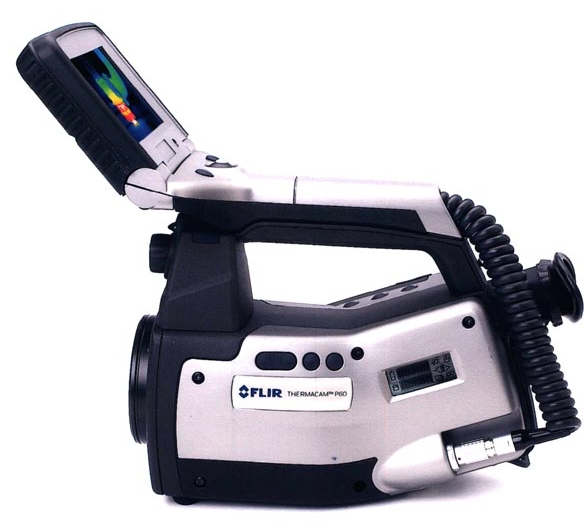

Apr 19, 2002 Palm-sized ThermaCAM(R) P60 IR inspection system offers thermal and visual imaging, built-in Laser LocatIR(TM), detachable carrying handle with integrated remote control and 4 in. LCD, and JPEG image storage. System works in concert with reporting and database software to automate process of collecting, reporting and archiving infrared images and inspection information. Inspection data and images can be downloaded from internal memory or removable FLASH card to PC.

Tamron USA Inc.    Commack, NY 11725
Apr 19, 2002 ZENZANON PS50-100mm F/4-5.6 zoom lens fits Bronica 6 X 6 format. It covers range of 27.5 to 55 mm, frequently used in landscape and event photography. Lens is built to endure professional use. Shell mechanism for front frame does not rotate same way two group zooming system usually rotates. This allows use of flower-shaped hood and PL Filter. Large flower shaped hood provides maximum shading effect at all focal lengths.

Tamron USA Inc.    Commack, NY 11725

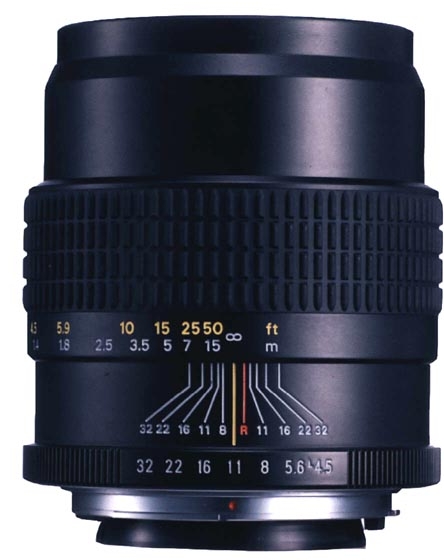

Apr 19, 2002 Zenzanon RF100mm F/4.5 lens, used with Bronica RF645 6x4.5 rangefinder camera, provides image quality by compensating for aberrations. Variation Gauss Type lens is based on symmetrical optical configuration, which makes overall dimensions smaller by shortening length and portioning power to front and back groups.

Ircon Inc.    Niles, IL 60714
Apr 19, 2002 Preform Inspection System consists of Stinger Thermal Imaging Camera, Preform Software, and optional Analog Output module. Real-time images of preforms are captured at speeds up to 60 frames/sec. Image data is sent to software where it can be stored for playback at different speeds, used for online process control, or exported into database for quality control. Both temperature and dimensional data are recorded.

Tamron USA Inc.    Commack, NY 11725
Apr 19, 2002 Compact 10X Motorized 6-60mm and 8-80mm Zoom Lenses are available in 1/3 in. format for both Video Auto Iris and DC Auto Iris. Cable outlet is in rear side of lens so as not to obstruct space of camera housing. Outdoor applications include airport systems, traffic control, and parking lots.

Tamron USA Inc.    Commack, NY 11725
Apr 19, 2002 Compact Vari-Focal 1/3 in. 2.8-12mm lens can be used in almost all CCTV applications. It has aspherical optical technology, and locking mechanisms on zoom, iris, and focus rings. Aspherical element eliminates image distortion and provides corner-to-corner sharpness. Fast F/1.4 -360 aperture makes lens suitable for use in applications with extreme lighting conditions. Only 2.2 in. long, lens fits in compact camera housings.

Tamron USA Inc.    Commack, NY 11725
Apr 19, 2002 ZoomCam 3.8-95mm F/1.6-3.7 AF camera, with 2 aspherical lenses, features 25X zoom ratio and is suitable for system integration. It automatically switches over to b/w when set to Day and Night mode with Automatic IR On/Off Switch. Camera incorporates 1/4 in. Super HAD CCD sensor resulting in horizontal resolution of more than 470 TV lines. Camera has DSP based circuitry, 5 white balance modes, auto iris, and 64 preset positions for Zoom/Focus.

PerkinElmer, Inc., Instruments Headquarters    Shelton, CT 06484-4794
Apr 19, 2002 Spectrum(TM) Spotlight 300 IR Imaging System, suitable for analytical services and surface science laboratories, generates images with complete chemical information in minutes instead of hours. Its patented detector technology overcomes traditional limitations of FT-IR imaging systems by eliminating step-scan data collection. Software tools identify differences in chemical content, and provide information about defects, impurities, and composition.

PerkinElmer Inc. / Life Sciences Unit    Gaithersburg, MD 20877
Apr 19, 2002 Kodak Image Station 1000 offers thermoelectrically cooled CCD technology. CCD pixel density of 1024 x 1024 and 10x optical zoom produces high resolution (20 micron/pixel at full zoom) as well as 16- and 32-bit image acquisition, which provide linearity of response over wide dynamic range for accurate intensity measurements. ID Image Analysis Software controls Image Station 1000, and provides easy-to-use capture and analysis capabilities.

PerkinElmer Inc. / Optoelectronics Unit    Montgomeryville, PA 18936
Apr 19, 2002 Astrocam cooled CCD camera includes Kodak KAF1602 chip with pixel resolution of 1536 x 1024. With 16-bit dynamic range, camera achieves high sensitivity for biomedical applications. Camera includes Image Pro(TM) based software, frame grabber card, power supply, and all necessary cables for operation.

Edmund Optics    Barrington, NJ 08007

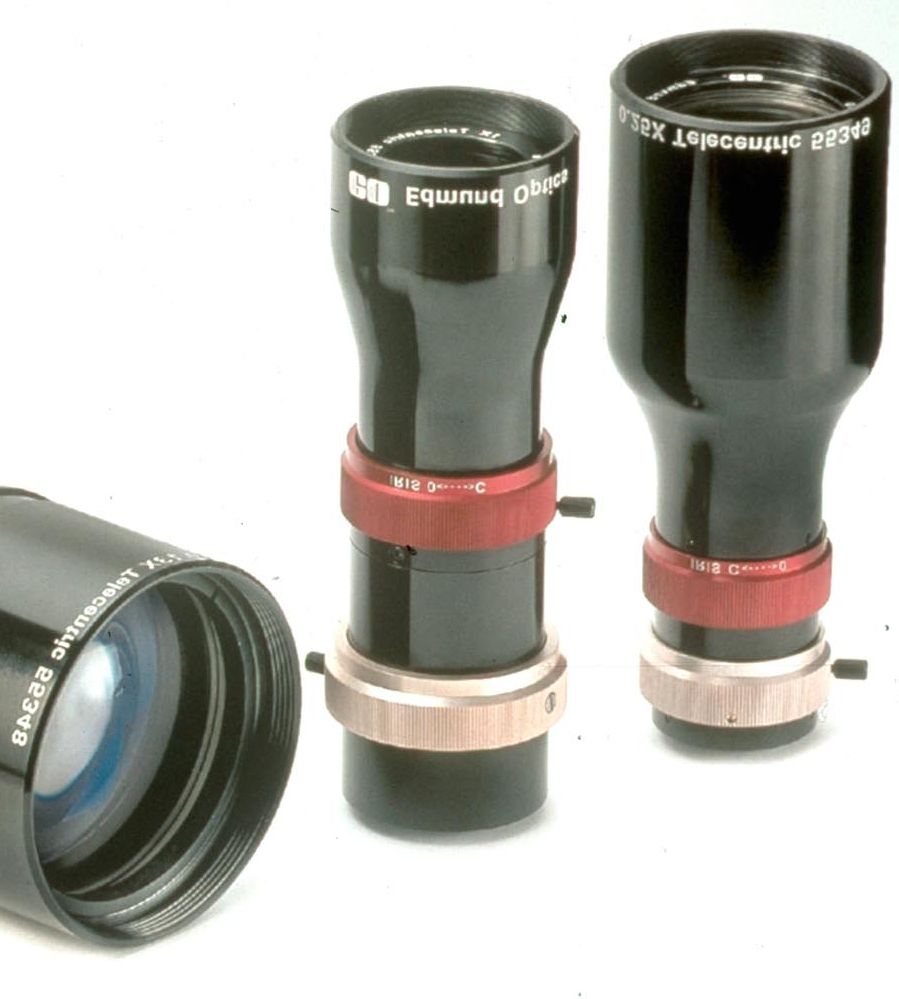

Apr 12, 2002 MVO (Machine Vision Optics) Telecentric Lenses for industrial machine vision applications are available in 4 magnifications from 0.13X to 1X. Working Distances range from 150 to 200 mm to 115 to 140 mm, and field of view ranges from 49.2 to 6.4 mm. They can be used with CCD sizes to 2/3 in., and provide less than 0.1 telecentricity. All lenses have front filter thread for addition of color filters, polarizers, or other mounted components.

LEDtronics, Inc.    Torrance, CA 90505
Apr 12, 2002 Solid-state Linear Bargraph LEDs have average life span of 100,000+ hours. Standard intensity LEDs, with 565 to 660 nm at 20 mA, come in Ultra-Red, High-Efficiency Red, Yellow, and High-Efficiency Green. Super Intensity LEDs, with 523 to 330 nm at 20 mA, are available in Super Orange, Super Yellow, and Aqua Green. LEDs are suitable for aviation instrument panels, temperature gauges, automotive instrument panels, and audio/video indicators.

Raindrop Geomagic    Durham, NC 27713
Apr 09, 2002 Geomagic Studio v4.1 supports 3D scanners and file types that create and store point data in grid-ordered format. It provides direct import of ordered data from 3PI (ShapeGrabber), AC (Steinbichler), CAM/CDM (Minolta Vivid 700/900), GTI (Genex), PMJX (3D Digital), and Minolta VIVID 700 or 900 scanners. It handles ordered data for shade points, manual registration, global registration and merge operations, and removes shaded color view from point clouds.

Flir Systems, Inc.    North Billerica, MA 01862

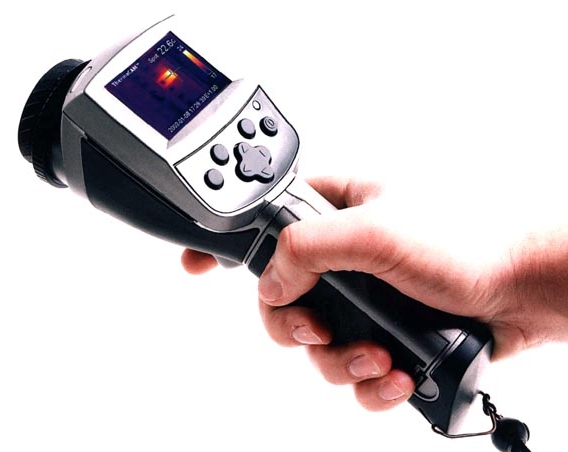

Apr 08, 2002 Handheld ThermaCAM E-Series offers crisp thermal imaging, precision temperature measurement and in-field JPEG image storage. Cameras include uncooled microbolometer IR detector that produces images which can be viewed on integral 2.5 in. LCD. TV rate (60Hz) imaging allows users to quickly scan moving targets and record subtle temperature changes in real-time. Laser LocatIR(TM) helps users associate IR image displayed with actual physical target.
