NEC Electronics    Santa Clara, CA 95050
May 05, 2005 Models NL160120AC27-05 and NL160120AM27-06/06A are 21.3 in. ultra-extended graphic array (UXGA), amorphous silicon TFT LCDs that utilize SA-SFT technology to offer 170° viewing angle and contrast ratio greater than 10:1. Color model NL160120-AC27-05 features direct, back-light system with 450 cd/m² brightness, while monochrome models NL160120-AM27-06/06A feature 1800 cd/m² brightness. Both incorporate switchable 10-bit internal LUT for customizable gray-scale setting.

YesTech Inc.    San Clemente, CA 92673
May 05, 2005 YESTraX enables traceability from automated inspection systems to offline review/rework station and can create serialized barcode that can be assigned to rework images as well as SPC data. It generates reports, archives data, and helps improve quality control. Additional capabilities include board defect logging, barcode generation for boards, and quality control report creation. Complete inspection programs can be created in under 30 min.

American Bright Optoelectronics Corp.    Chino, CA 91710
May 03, 2005 RoHS-complaint NovaBriteâ„¢ BWL 3 Series is offered as 13.50 x 13.50 mm self-contained Light Engine, PCB-mounted Light Module unit, or discrete LED Emitter. Capable of displaying 6,500 K with input power of 3.0 W, products feature viewing angle of 120° and typ output of 60 lm. Emitted color can be red, green, blue, amber, and white, and 2 dome lens styles are available to create 30° and 60° viewing angles.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 02, 2005 Measuring 1.6 x 0.8 x 0.6 mm, TLMx100x AlInGaP-based SMD LEDs are compatible with 0603 chipled footprint and feature 160° viewing angle. Red TLMS1000 (628 nm), orange TLMO1000 (605 nm), and yellow TLMY1000 (588 nm) offer luminous intensities of 4, 7.5, and 7.5 mcd, respectively, with luminous intensity ratio of less than 1.6 per packing unit. Units are rated for max dc forward current of 15 mA, reverse voltage of 12 V, and ESD withstand voltage up to 1 kV.

Kyocera Mita America Inc.    Fairfield, NJ 07004
May 02, 2005 Powered by AutoStore, server-based KYOcapture enables select multi-functional devices to capture, process, and route paper or electronic-based documents to multiple locations and document management systems. It processes documents utilizing OCR, ICR, forms recognition, and other technologies while routing documents to appropriate locations. Software also includes address book management and synchronization tool for Microsoft Exchange and Lotus Notes/Domino.

Solutions Lighting    Newcastle, OK 73065

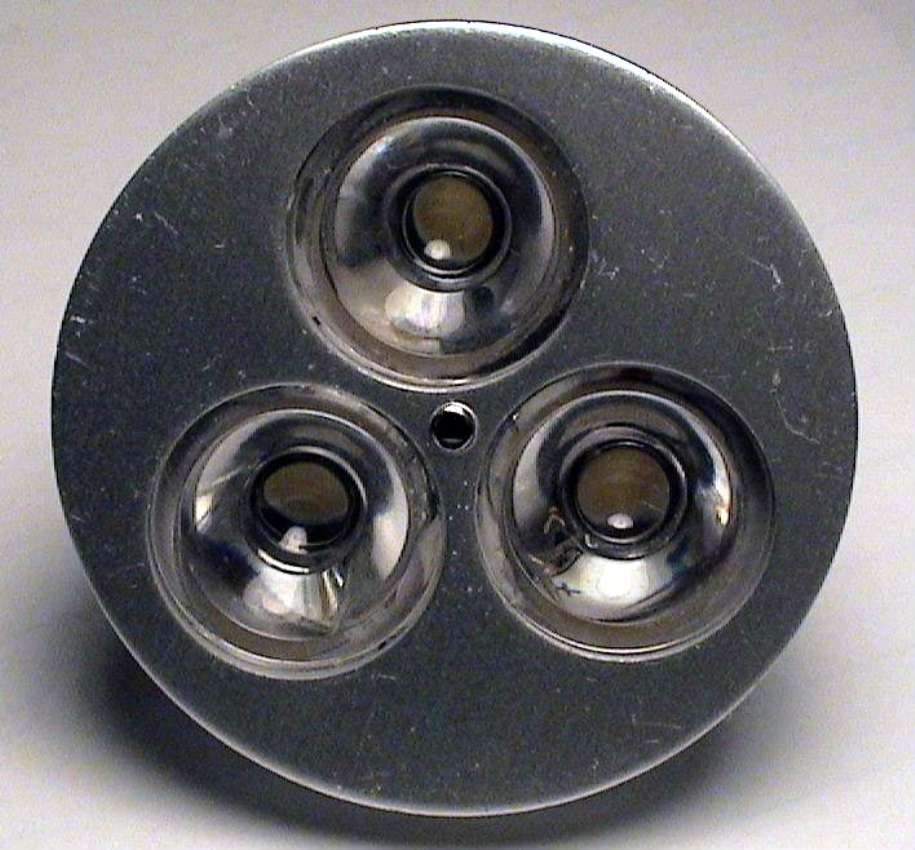

Apr 29, 2005 Model SSMR16-1W3 is comprised of high-power LED light source, optical lens system, and optimized thermal heat sink. Features include dimmable 10-12 Vac/dc, reverse polarity protection, G5.3 base type, and 25° beam angle. With overall power of 4.2 W, estimated life is 50,000 hr. Light output is 60 lumens, 3000 lux at 1 m. Available colors are white, warm white, blue, royal blue, green, cyan, red, and red orange.

JAI, Inc.    San Jose, CA 95134
Apr 29, 2005 Equipped with power and trigger LEDs on rear panel, CV-M71 provides users with ½ in. progressive scan, color camera based on Bayer CCD. It utilizes Sony ICX415AQ imager with 782 x 582, 8.3 µm square pixels. Capable of shutter speeds from 1/60-1/300,000 sec, camera operates at 60 fps at full resolution and 250 fps with 1/8 partial scan 24-bit RGB output via Camera Link base configuration. It features programmable exposure and auto iris lens video output.

RemoteScan Corporation    Missoula, MT 59802
Apr 28, 2005 RemoteScan for Medical Practiceâ„¢ enables medical offices to use any kind of document scanner, from any remotely hosted software application, to scan documents directly into electronic medical records. Utilizing RDP and ICA protocols, software includes Pass Through scanning feature that buffers and compresses images locally, then streams data to application software as bandwidth becomes available. Custom templates configure documents for consistency.

Fuji Photo Film Co. Ltd      Japan
Apr 28, 2005 Equipped with Image Intelligence digital image-processing software, DRYPIX 4000 can print high-resolution CR, CT, and MRI images. When used in combination with FCR PROFECT CS radiography system, unit offers optimal digital mammography system. DRYPIX 4000 is available in single-tray, double-tray, and in-vehicle type models.

Cooke Corporation, The    Romulus, MI 48174
Apr 27, 2005 Comprised of compact camera with external intelligent power supply, 14-bit pco.4000 system features thermo-electrical cooling and integrated image memory that enables 128 Mb/s image recording. With 4,008 x 2,672 pixel resolution, camera offers exposure times from 5 µs to 49 days. Along with 32-bit dynamic link library, Camware software is provided for camera control, image acquisition, and archiving.

Imperx Inc.    Boca Raton, FL 33487
Apr 27, 2005 Smart Camera Model IPX-2M30-L delivers max frame rate of 33 fps with 1,600 x 1,200 pixel resolution. Incorporating Lynx 32-bit RISC processor, high-speed unit offers horizontal windowing, subsetting to capture only particular area of interest, automated iris to prevent saturation in high-light situations, and 10 sec integration time. Camera provides environmental tolerance of -5 to +55°C, dynamic range greater than 60 dB, and gain range of 6–41 dB.

Xtralis Inc.    Norwell, MA 02061
Apr 27, 2005 Compliant with BS8418 standard, ADPRO FastTrace multi-site video security system features zone isolation capability, PTZ presets, arming/disarming function, secure video transmission, and alarm verification. SitePulse feature works over existing IP lines to continuously watch alarm status. VESDA LaserFOCUS 500 provides smoke detection for business-critical spaces of less than 5,000 ft². Both products include 10MAX voice evacuation system controller.

Nikon, Inc. Instrument Group Div.    Melville, NY 11747
Apr 25, 2005 Featuring 2 million pixel ½ in. format CCD, Model DS-2M cameras offer multiple live capture modes, picture sizes, and digital transfer rates while providing video display rates of up to 30 fps. System supports 3 camera heads including color CCD model DS-2Mv, cooled monochrome DS-2MBWc, and monochrome DS-2MBW for brightfield, darkfield, fluorescence and other microscopy techniques. Live preview mode with high frame-rate allows easy positioning of specimen.

Sensors Unlimited, Inc. (SUI)    Princeton, NJ 08540
Apr 21, 2005 Visible-InGaAs Area Camera, Model SU640SDVVis-1.7RT includes large format sensor that captures images from both visible and shortwave IR wavelengths from 400–1,700 nm. Focal plane array features quantum efficiency of 45% at 800 nm, 80% at 1,310 nm, and 75% at 1,550 nm on 25 micron pitch. Video camera has both EIA-170 analog and simultaneous 14-bit digital video CameraLink® compatible outputs. It includes individual pixel correction, external triggering, and windowing.

PPT Vision, Inc.    Eden Prairie, MN 55344
Apr 21, 2005 IMPACT intelligent cameras, including T-series intelligent cameras and C-series machine vision micro-systems, use Ethernet/IP for seamless integration with third party industrial products for data sharing and expanded I/O. Self-contained vision products use Inspection Builderâ„¢ v6.1 software, which aids in image processing and provides tools for deploying complete inspection solutions in factory environment.

Cognex Corp.    Natick, MA 01760 2059
Apr 21, 2005 Model In-Sight® 5403 captures full-frame 1,600 x 1,200 images at up to 15 frames/sec for detailed inspection of fast moving objects. Self-contained, industrial-grade vision sensor meets IEC specifications for shock and vibration and has IP 67 rating for dust and wash-down protection. With built-in Ethernet communications and In-Sight Explorer software, applications include precision gauging, alignment, and fine-defect inspection on very small parts.

Accu-Sort Systems, Inc.    Telford, PA 18969 1196
Apr 21, 2005 AccuVision® AV4000 v2.0 incorporates long-range camera, illumination, and decoder. Digital zoom is located in camera, which offers filterless design, mirror blower option, and ability to save parameters. Packaged in industrial housings, camera and illumination are permanently aligned. Software enables side-to-side detection, dimensioning to 0.5 in., and quadrant scanning. Unit integrates with network via Ethernet, serial, and modem connections.

Bivar, Inc.    Irvine, CA 92618 2593
Apr 20, 2005 Single-digit, 7-segment BD Blue Series offers 5 digit heights from 0.301–1 in. in 24 styles and models. For uniformity, each segment features 2 chips in series. Connection and choice of common anode or common cathode circuitry enables use in any numeric display configuration. Utilizing compounded diffused lens for even color distribution, Pb-free displays feature standard wavelength of 465 nm and are suited for medical and life support systems, avionics, and industrial controls.

GE Inspection Technologies, GmbH    Huerth 50354  Germany
Apr 20, 2005 Used with x-ray and isotope sources, CRx Tower computed radiography (CR) scanner inspects multi-thickness and composite components. Its multi-film simulation pre-sets allow different thicknesses to be captured in one image, and data is communicated automatically from plant's maintenance database via Rhythm software. Used as in-house or mobile unit, product scans up to 45, 14 x 17 in. plates/hr and performs automatic handling, reading, and erasing of imaging plates.

Fluid Components Intl.    San Marcos, CA 92069 5115
Apr 19, 2005 DM remote- and panel-mount meters provide digital readout of flow, totalized flow, and temperature from company's ST and GF Series thermal-dispersion mass flowmeters. Loop-powered DM10 LCD readout meter, scalable to +1,999 digits, features 1 in. high characters. AC-line powered DM15 features red LED readout, scalable to +9,999 digits, and programmable alarm set-point. Panel-mount DM20 flow totalizer provides local or remote digital readout on 8-digit display.
