Control Company    Friendswood, TX 77546
Aug 25, 2003 Traceable® Futuristic Clock/Thermometer/Humidity is visible from up to 20 ft. Display shows precise quartz-crystal timing with 0.01% accuracy, temperatures from -37 to +47°C and -34 to +116°F with 1.5°C accuracy, and relative humidity from 8-92% with ±5% accuracy. Low-profile, ABS impact-resistant case measures 12½ x 11 x 1 in. Clock dial diameter is 9 in., and temperature and humidity dials have diameter of 3 in. Unit is traceable to NIST standards.

Lathem Time Corporation    Atlanta, GA 30336 2801
Aug 20, 2003 Model 7000E calculates worked time between punches and prints accumulated totals directly on time card for up to 50 active employees or jobs. It also calculates actual or rounded time, and supports automatic break deduction. Unit prints in AM/PM, 24 hr, or 1/100th of an hour, and adjusts for short months, leap year, and daylight savings. Internal lithium battery maintains time, card totals, and program settings for up to 5 years without power.

Trumeter Co., Inc.    Deerfield Beach, FL 33442
Jul 16, 2003 Model 877X indicates process time of continuous processes. Sensor or encoder provides pulses for unit to monitor. Time between pulses is measured, and internal calculations are made to apply appropriate scaling factor, enabling unit to indicate actual time taken for items to travel through process. Unit has bright LED display and is available in ac- and dc-powered versions. Dual relay output, analog output, and RS-485 communications are optional.

Control Co.    Houston, TX 77258 8307
Jul 01, 2003 Traceable® Double Display Timer allows simultaneous programming of 2 activities from 20 hr to 1 sec, with 1 sec resolution and 0.01% accuracy. Each channel has distinct electronic alarm and display indicator when zero is reached; timer automatically counts up from zero to indicate time since alarming. Second display mode shows time of day and stopwatch. With ½ inch high digits that can be read from 10 ft away, product may be used flat or in flip-open stand position.

Peripheral Enhancements Corporation    Ada, OK 74820
Jun 10, 2003 EDGE DiskGO!™ Watch, available in 128 and 256 MB capacities, serves as fully functional watch with integrated USB 1.1 Flash Drive. Product plugs directly into any computer’s USB port and is plug-and-play compatible with most operating systems. It immediately appears as hard drive on user’s desktop, allowing transfer and storage of various data. Drive writes at 1 MB/sec and reads at 4.2 MB/sec. Secure Password Protection software is built-in.

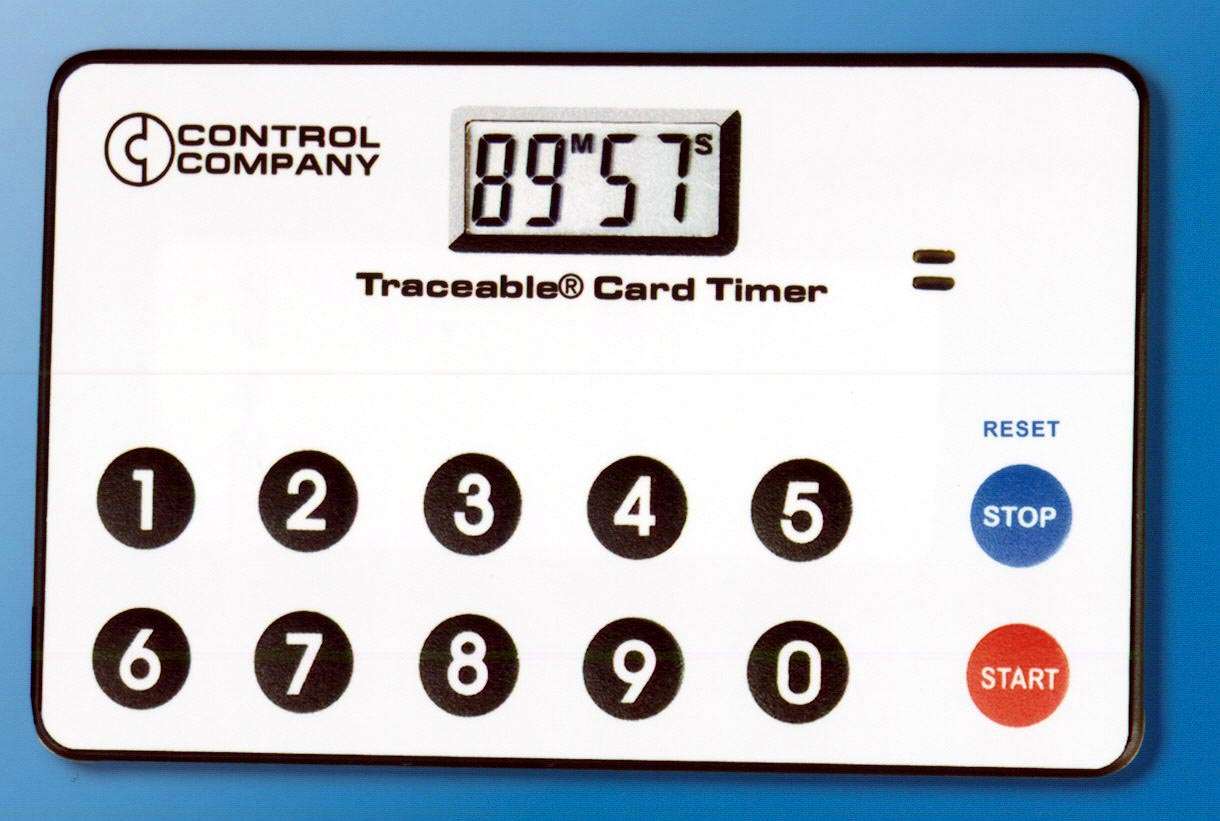

Control Company    Friendswood, TX 77546
May 20, 2003 Traceable® Credit Card Timer counts down from 99 min, 59 sec with 1 sec resolution. Accuracy is 0.01%. Alarm sounds for 1 min when zero is reached, and memory automatically recalls last set time. Unit includes timeouts and count-up stop watch. Individually serial-numbered Traceable® Certificate indicates traceability to standards provided by NIST. Timer is supplied with silver-oxide battery, magnet and Velcro(TM). Size is 3 3/8 x 2 1/8 x 3/16 in.

Connor-Winfield Corp., The    Aurora, IL 60505
Jan 28, 2003 Model MSTM-S3-IT3 acts as complete system clock module for Stratum 3 timing applications in accordance with GR-1244, Issue 2 and GR-253, Issue 3. It is suitable for remote or external locations where environment is not controlled. Operating temperature range is -40 to +85°C. Five volt, miniature module provides 40 second, filtered hold over history; operational status flags; and redundant 8 kHz references. It is useful for SONET, TDM, SDH, and PDH applications.

Extech Instruments Corp.    Nashua, NH 03063
Nov 14, 2002 Hygro-Thermometer Alarm Clock measures relative humidity from 20-90% with ±5% accuracy. Temperature measurements are °C/°F selectable and range from 14 to 140°F with 2°F accuracy. LCD displays temperature and humidity readings as well as day, date, and month. Clock alarm, with 4 minute snooze function, is also included. Unit, with stand, measures 9.8 x 7.5 x 1 in.

Primex, Inc.    Lake Geneva, WI 53147
Oct 24, 2002 GPS Master-Satellite Time System consists of synchronized clocks with roman or arabic numerals, in standard or military styles, with various finishes. Clocks measure 12.5 and 16 in., with molded plastic frames. Double-sided 12.5 in. clock is also available. Each clock has glass-crystal lens, operates in temperatures ranging from 32 to 158°F, updates to correct time 6 times a day, and adjusts for Daylight Saving Time, automatically.

Primex Wireless    Lake Geneva, WI 53147
Oct 24, 2002 GPS Master-Satellite Time System uses combination GPS and FM radio signals to synchronize all clocks in one system. Receivers capture atomic time signal from Global Positioning System (GPS) and master transmitter rebroadcasts time via localized radio signal. Satellite system clocks are not subject to atmospheric variances and self adjust to correct time. Clocks run on batteries that last up to 5 years.

Love Controls    Michigan City, IN 46361
Oct 22, 2002 Model LCT116 is offered with 8- or 11-pin sockets. Setpoint and timing functions are adjusted with individual set buttons. LCD on front indicates current time status and has bar graph for relative time remaining. Time ranges include 0.01-9.99 sec to 10-9990 hr. Timing functions include Signal On-Delay, Flicker on-Start, Signal ON/Off-Delay, Signal OFF-Delay, Interval Mode, One Shot and Flicker, Integration Time, Interval Delay, Flicker-One Shot, and Power On Start.

ABB SSAC    Baldwinsville, NY 13027
Oct 10, 2002 NHPU Series ProgramaCubeâ„¢ is pre-manufactured without function assigned. Functions, time ranges, and count ranges can be created without designing new module. Unit switches motors, lamps, and heaters directly, without addition of contactor. Switch-adjustable time delays of 0.1 sec to 1023 hrs in 6 ranges or 3 counting functions/ranges is available. NHPU can be ordered with 6, 10, or 20 A solid-state output. Microcontroller timing circuit provides repeat accuracy of 0.1%.

Love Controls    Michigan City, IN 46361
Sep 26, 2002 Model LCT016, in 1/16 DIN package, provides simple 8- or 11-pin socket installation. Scale and timing functions are adjusted with individual front-mounted switches. Tamper-resistant cover prevents unauthorized changes and restricts movement of analog set-point knob. LEDs indicate power and output status. Ranging capabilities are from 0.1-1.2 sec to 25-300 hrs. Timing functions include Signal On-Delay, Flicker Off-Start, Signal On/Off-Delay, and Signal Off-Delay.

Lathem Time Corporation    Atlanta, GA 30336 2801
Aug 28, 2002 Model 6000E top feed electronic payroll recorder lets employees drop time card in top, and automatically feeds, aligns, prints, and ejects card in seconds. Dot matrix printer can be programmed to print time in 12 or 24 hr format, in minutes or 1/100 hr. Programmable time table can be used to automatically shift between one of 6 columns across card to accommodate additional break and overtime punches. Built-in relay allows synchronized external bell ringing.

ABB SSAC    Baldwinsville, NY 13027
Aug 08, 2002 Functions, features, and options for Models KSPD, KSPS, and KSPU Series of ProgramaCubeâ„¢ solid state output timing modules are programmed in software. When order is received, software function is added, so modules are readily available. KSPD is available in 11 fixed, knob, or external adjustable dual timer functions; KSPS is available in 10 fixed, knob, or external adjustable single functions; and KSPU is available in 12 single DIP switch adjustable timer or counter functions.

Tork    Mount Vernon, NY 10550 2401
Aug 05, 2002 Model 5737TZ combines photocontrol and microprocessor timer and fits turn-lock photocontrol socket. It turns OFF at midnight and can turn back ON in early morning. Unit automatically tracks dusk and dawn times as they vary with seasons to determine midnight each day. It automatically corrects for daylight savings time and resets after power outages. Model 5717T turns OFF at various factory preset times during night. Model 5737TM turns OFF at midnight.

O'Keefe Controls Co.    Monroe, CT 06468
Jun 14, 2002 Repeat cycle timer control will periodically energize valve to allow flow of liquid or gas. Dwell and energize times are adjustable from 0.1 sec to 33 hr. Control comes with 6 ft cord and plug for 120 V/60 Hz power, and 6 ft cord and DIN connector for attachment to solenoid valve or other electric device. Applications include discharging water, injecting or spraying liquids, water injection, lubrication injection, irrigation, and sprinklers.

Time Mark Corp.    Tulsa, OK 74116 2019
Jun 07, 2002 Model 301 digital timer can be set for 1 of 5 functions that can cover 4 timing ranges. DPDT electro-mechanical output relay prevents unit from being affected by potential power loss or fault conditions. Timer has universal power supply for wide variety of AC and DC voltage ranges.

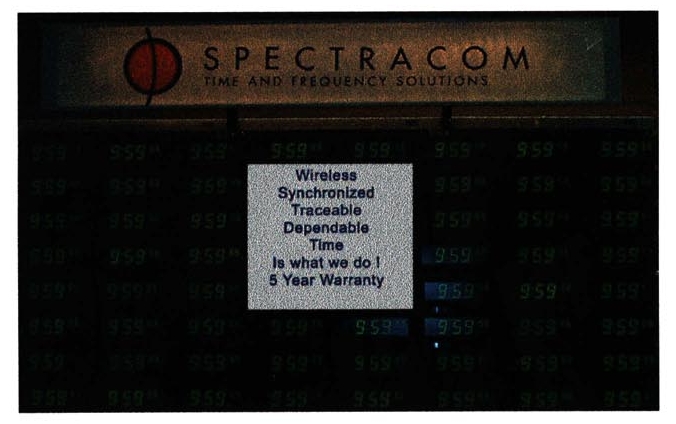

Spectracom Corp.    Rochester, NY 14623
Apr 23, 2002 TimeView(R) 210 Wireless Clock requires in house radio or paging system, Spectracom NetClock(R) Master Clock, and TimeBurst(R) to inject high accuracy burst of time data into radio broadcast. It is able to synchronize enterprise computer networks within every server and client, all within enterprise firewalls.

Selco Products Co.    Reno, NV 89521-5908
Apr 10, 2002 Super Teachme Model 2831 electronic timer has 2 programmable timing ranges with span of 0.05 sec to 54 min, timing resolution of 0.05 sec, and repeatability of 0.10 sec. Operation requires selecting desired timer range using SPST switch and pressing start button. Start button can be connected to AC power line for 110/220V activation or directly to board for low-voltage. Timer measures 3.6 x 2.35 x 1.5 in.
