Manncorp
Willow Grove, PA 19090
Sep 05, 2008 Suitable for prototyping, short runs, or full production, Economy Turnkey Line features 3 main components. MC384 pick-and-place machine, offering speeds of 4,000 cph, includes 128-lane feeder capacity and ability to mount 0201s, CFPs, and µBGAs in 14.5 x 13.4 in. placement area. Model 5500 Stencil Printer has independent, pressure-controlled dual squeegees and pneumatically controlled stencil frame. With 5 independent zones, CR5000 reflow oven attains lead-free-ideal temperatures to 300ºC.

David Weisman, LLC
Stamford, CT 06903
Aug 20, 2008 Conveyorized Parallel Chain Gas Fired and Electrically Heated Hot Air Convection Drying and Curing Oven System features temperature uniformity utilizing bottom up, horizontal, or top down air flow and controls, air recirculation and exhaust system, and energy efficient insulated oven enclosure. It is used to heat or dry product and/or cure liquid and powder coatings on wide range of products processed on parallel chain fixtures vertically up and down and horizontally.

Grieve Corporation, The
Round Lake, IL 60073-2898

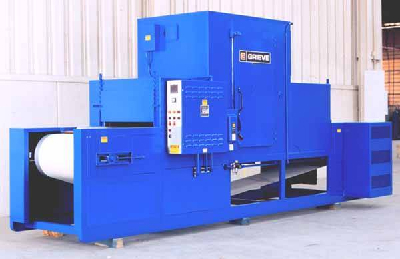

Jul 24, 2008 Offering workspace dimensions of 36 x 68 x 15 in., gas-heated, 500°F No. 937 is equipped with 175,000 btu/hr modulating natural gas burner and 3,300 cfm, 2 hp recirculating blower. It is constructed with 4 in. insulated walls, aluminized steel interior, stainless exterior, 6 in. open belt loading zone, and 60 in. insulated heating zone with recirculated airflow. Conveyor belt is 30 in. wide with ¼ hp motor drive, variable from 1-20 ipm.

Grieve Corporation, The
Round Lake, IL 60073-2898
Jul 22, 2008 In addition to air-operated crane access door, No. 1000 gas-fired, 500ºF walk-in oven measures 81 in. wide x 14 ft deep x 12 ft high and has 600,000 BTU modulating natural gas burner. Oven's 17,500 cfm, 15 hp recirculating blower provides combination horizontal/vertical airflow to load, and all appropriate safety equipment required by IRI, FM, and NFPA Standard 86 is included. Construction includes 4 in. insulated walls throughout as well as aluminized steel interior and exterior.

Cascade Tek
Hillsboro, OR 97124
Jul 09, 2008 Offering temperature uniformity to ±3% of user set point, 5 cu-ft Model SVO-501 features digital independent over-temperature control and protection as well as built-in serial communication outputs for temperature and vacuum. Push button execution and smart relay controls and alarms notify operator if required specifications are not being met. Fit with optional touch screen data logger, automated oven delivers real-time temperature, vacuum, and independent thermocouple data.

Manncorp
Willow Grove, PA 19090
May 13, 2008 Using mix of quartz infrared and hot air convection, Model T200A is capable of attaining lead-free temperatures to 300°C and offers ΔT performance envelope of only ±1°C across 14 x 9 in. processing area. Oven will precisely generate and store 20-40 sequential time and temperature settings. In addition to soldering microchips and other SM devices, oven can be used for curing and drying applications.

David Weisman, LLC
Stamford, CT 06903
Mar 28, 2008 Designed to dry or cure liquid and powder coatings on wide range of products, Horizontal Conveyorized Infrared with Air Drying System features electric infrared heaters with integral air plenums and controls; air supply and exhaust system; and insulated oven enclosure. System can be used as stand-alone complete horizontal conveyorized drying/curing system or in conjunction with coating application equipment and incoming/outgoing conveyors.

David Weisman, LLC
Stamford, CT 06903
Mar 28, 2008 With ability to heat, dry, and/or cure liquid or powder coatings on small, medium, and large 3D products, Heavy Duty Gas Fired or Electrically Heated Batch Oven systems feature air recirculation and exhaust system as well as insulated enclosure. They have digital timer, auto-shutdown, real-time clock, maintenance prompts/auto dialer, and hour meter. Bi-parting doors feature 12 ga exterior with supports, ball bearing hinges, and FM approved safety latches.

Wisconsin Oven Corp.
East Troy, WI 53120
Mar 10, 2008 With production rate of 600 lb of parts/hr, Electrically Heated Conveyor oven is designed to heat parts from 70-1,100°F, and features 1,250°F maximum operating temperature. Constructed with 10 in. thick insulation, 3/16 in. thick plate steel exterior, and 16 ga 304 SS interior, it has 30 in. wide, 9 ft long, and 1 ft high heating chamber. Heating system is rated for 180 kW of heat input, while recirculation blower is rated for 18,000 cfm at 15 hp.

Wisconsin Oven Corp.
East Troy, WI 53120
Feb 25, 2008 Along with 12 ft x 47 ft x 9 in. chamber rated to 500ºF max, bottom-flow conveyor oven features chain style conveyor with 10 strands of carbon steel chain spaced across width on 60 in. centers. Heating system features Eclipse 320 AH burner rated at 3,000,000 BTU/hr, and Allen-Bradley Powerflex VFD provides conveyor speed adjustability from 1.5-9 ipm. Oven is constructed with 4 in. thick tongue and groove panel assemblies, with interior and ductwork of aluminized steel.

Manncorp
Willow Grove, PA 19090
Jan 09, 2008 Forced hot air Pb-free CR reflow system, CR6000, is computer-controlled, measures 12.5 ft long model, and has 6 individually managed upper and lower heat zones. Designed to meet temperature and process control requirements of lead-free processes, system's large-oven capabilities include DT of ±2ºC edge-to-edge heating conformity integrated with 3-channel profiler and motor-adjustable 17.7 in. pin conveyor over 22.4 in. stainless steel mesh belt.

Grieve Corporation, The
Round Lake, IL 60073-2898
Dec 28, 2007 Offering workspace dimensions of 84 x 102 x 78 in., electrically heated No. 808 utilizes 420 kW Incoloy sheathed tubular elements and 17,500 cfm, 15 hp recirculating blower motor that provides combination airflow to workload. Oven includes 4 in. thick insulated walls throughout, two 30 x 24 x 6 in. stainless steel HEPA filters for exhaust air, and twelve 24 x 24 x 6 in. stainless steel 65% ASHRAE recirculating filters in air return ductwork.

BINDER GmbH
Tuttlingen D-78532  Germany
Dec 17, 2007 Providing safe drying through homogenous temperature distribution, Series VD for non-flammable solvents features expansion racks and individually programmable controller. VDL series is suited for drying flammable, organic solvents and includes interior chamber designed in accordance with ATEX Directive for Zone 2 while VDL series EX-Zone 2 is for operation in explosion hazard areas. Ovens provide drying with no residues, no danger of incrustation, and no oxidation.

Wisconsin Oven Corp.
East Troy, WI 53120
Nov 20, 2007 Built with 20 ft 4 in. x 2 ft 6 in. x 3 ft 6 in. work chamber, 300ºF oven performs 51 sec blow-off, 9 min drying at 250°F, and 1.8 min cool-down. Prior to entering oven, aluminum replacement coils are leak tested by placing coils in water bath and pressurized with air. Water load processing capability is 180 lb/hr, and coils are processed through drying system at 60 units/hr. Along with 4,000 fpm vertical angled supply nozzles, oven features 10,000 fpm blow-off nozzles.

Manncorp
Willow Grove, PA 19090
Nov 02, 2007 Computer-controlled CR 5000F features upper and lower zones, each maintained to within ±1ºC. It includes 3 thermocouple inputs as well as combination 22.4 in. SS mesh belt and pin-type conveyor with motor adjustable width from 1.97-17.7 in. Running on Microsoft® software, lead-free oven is also available in 6-, 8-, and 10-zone models to meet full range of production requirements.

Datapaq Inc.
Wilmington, MA 01887
Oct 23, 2007 Designed to facilitate profiling process, Surveyor consists of fixed sensors that eliminate variables associated with thermocouple attachment, adjustable frame that rides on oven's rail or mesh belt, and software that automatically stores profiles for analysis. Using sensors, Surveyor can identify out-of-tolerance conditions before they become problematic.

Manncorp
Willow Grove, PA 19090
Sep 27, 2007 Equipped with 10 reinforced PID temperature controllers in each of 5 upper and lower chambers, Model R-500 precisely profiles critical solder paste reflow parameters. Three thermocouple inputs are provided for real-time monitoring of component and PCB temperatures. Computer-controlled oven is available with 16 in. stainless steel mesh belt or combination mesh belt and stainless steel adjustable edge pin conveyor for double-sided boards.

Cascade Tek
Hillsboro, OR 97124
Sep 24, 2007 Providing capacity of 9 cu-ft, SVO-9 TURBO Vacuum Oven handles high vacuum levels in 1 x 10^-6 range and temperatures up to 220°C. Smart Relay Control automates vacuum valves, as well as backfill, purging, and vent sequences. Temperature is controlled via Watlow programmable ramp and soak controller. Both roughing and turbo vacuum pumps are integrated, and are appropriately sized for application.

Grieve Corporation, The
Round Lake, IL 60073-2898
Aug 22, 2007 Offering 54 x 72 x 72 in. workspace, No. 825 is equipped with 30 kW power installed in Incoloy sheathed tubular heating elements, and 6,000 cfm recirculating blower that delivers horizontal airflow across workload. Unit includes 4 in. thick insulated walls, 2 in. insulated floor with truck wheel guide tracks, aluminized steel exterior, and Type 304 2B stainless steel interior. For safety, oven features digital programming temperature controller and manual reset excess temperature controller.

David Weisman, LLC
Stamford, CT 06903
Jul 05, 2007 Fast Response Electric Infrared Boost Oven System lets users boost temperatures of liquid or powder coated on small, medium, and large 3D products prior to entrance to hot air/convection oven. Equipped with electric IR heaters and controls, modular design allows for addition of more heated height and/or air recirculation system. System can be used as stand-alone complete cure oven or as boost system in conjunction with existing hot air/convection oven.
