L.S. Starrett Company    Athol,, MA 01331
Jul 19, 2011 Used freestanding or bench-mounted with fixturing for batch measurement and laboratory applications, battery-powered Model SR200 can calculate and display results before traverse unit returns. Stylus lift mechanism allows vertical adjustment of 2 in. and rotation of pickup to different measuring positions, including right angle or inverted measurements. In addition to 100-reading memory capacity, tester includes RS232 port for export of measurement results.

Detroit Precision Hommel    Rochester Hills, MI 48309
Jul 18, 2011 Using array of probes and accessories, ergonomically designed Hommel-Etamic W5 can track 5 separate measurement programs, up to 100 separate profiles, with total storage capacity of up to 10,000 completed measurements. Integrated click wheel and color display with GUI facilitate operation, while support prism centers workpieces reliably on correct measuring position and protects probe for measurements in bores from 12 mm dia. All necessary connection are made via USB interface.

Mahr Federal Inc.    Providence, RI 02905
Jul 28, 2010 MMQ 200 Surface Finish option, available for MarForm MMQ 200 Formtester, measures surface finish parameters according to ISO, ASME, and JIS standards. Able to sample data with spacing down to 0.5 microns, option uses skidded diamond tipped PHT stylus and MarWin-based surface finish software. Stylus is mounted opposite ruby-tipped form probe on motorized T7W probe head. MMQ 200 automatically swivels probe to apply diamond stylus, and changes from horizontal to vertical measurement as needed.

Mountz, Inc.    San Jose, CA 95112
May 13, 2010 Designed to detect cross-threading, omissions, unfinished rundowns, and cycle completes, Scout Screw Counter ensures assembly process is done correctly. Unit operates jointly with Mountz electric screwdrivers and STC30 or STC40 power supply. With 4 ports on side, maximum of 4 screwdrivers can share one program with unit. Programmed via PC software or manually through keypad, Scout alerts operator with buzzer and red light if fastening error is detected.

RS Technologies, Ltd.    Farmington Hills, MI 48335
Mar 12, 2010 Suited for joint analysis torque-tension testing, LabMaster Portable Model 3210 analyzes threaded fasteners/bolted joints and evaluates fastener coatings, lubrication, finish, and plating. Including hard shell case enclosure; 4-channel DAQ card providing high-speed sampling; and signal conditioning card compatible with most strain gauge transducers, system can also certify power tools. Recorded data can be printed, plotted, and saved on computer or archived on network drive.

Mitutoyo America Corp.    Aurora, IL 60504
Mar 02, 2010 Featuring 2.4 in. color LCD display with backlighting, over-size fonts, and ability to re-orient screen content to be read vertically or horizontally left and right-handed, Surftest® SJ-210 has measurement speed of 0.75 mm/sec, max. Up to ten measurement conditions can be registered, while up to 10,000 results can be stored on micro-SD card. Offering self-timed measurement and selection of 9 exchangeable detector tips, tester displays evaluation curves and data in one of 16 languages.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Dec 30, 2009 Optimized for speed and accuracy by leveraging Direct Sampling Procedure (DSP), Bresle Chloride Test Kit includes all necessary equipment for assessing level of soluble salts on blast-cleaned surfaces prior to coating. It complies with ISO 8502-6 and ISO 8502-9 standards and is also suitable for determining contamination of blast-media in use as to prevent dissolved salts in recycled abrasive media or water from re-contaminating surface being cleaned.

Mountz, Inc.    San Jose, CA 95112
Sep 14, 2009 Taking control of assembly process, Scout Screw Counter verifies that all fasteners have been installed and seated to tool's preset torque setting. Unit detects cross-threading, omissions, unfinished rundowns, and cycle incompletes. Programmed manually through keypad, Scout alerts operator with buzzer sound and displays red light if fastening error is detected. It can be integrated with PLC system to activate other functions for line control.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jul 16, 2009 Novo-Gloss I.Q. DOI-Goniophotometer uses reflectance profiles to calculate gloss, haze, and Distinctness Of Image (DOI) values, allowing user to fully evaluate surface finish. By Pressing one button, operators retrieve gloss, Rspec, DOI, and Haze measurements at 20° or 60°. Instrument measures gloss in accordance with ISO 2813 and ASTM D523 standards, haze to ASTM E430 standard, and DOI value from 0-100 to ASTM D5767-A standard.

Mahr Federal Inc.    Providence, RI 02905
May 28, 2008 In addition to lazy susan-type staging table with customized tooling that accommodates up to 8 measuring stations, gage incorporates Perthometer M1 or M2 surface measuring instrument and supports DIN/ISO/ASME/SEP profile parameters. Self-contained, bench-type gage occupies 18 x 12 in. footprint and is equipped with calibration standard that has 3 separate roughness standards. Operation requires operator to rotate table, index measurement head to calibration standard, and press Start.

Olympus NDT    Waltham, MA 02453

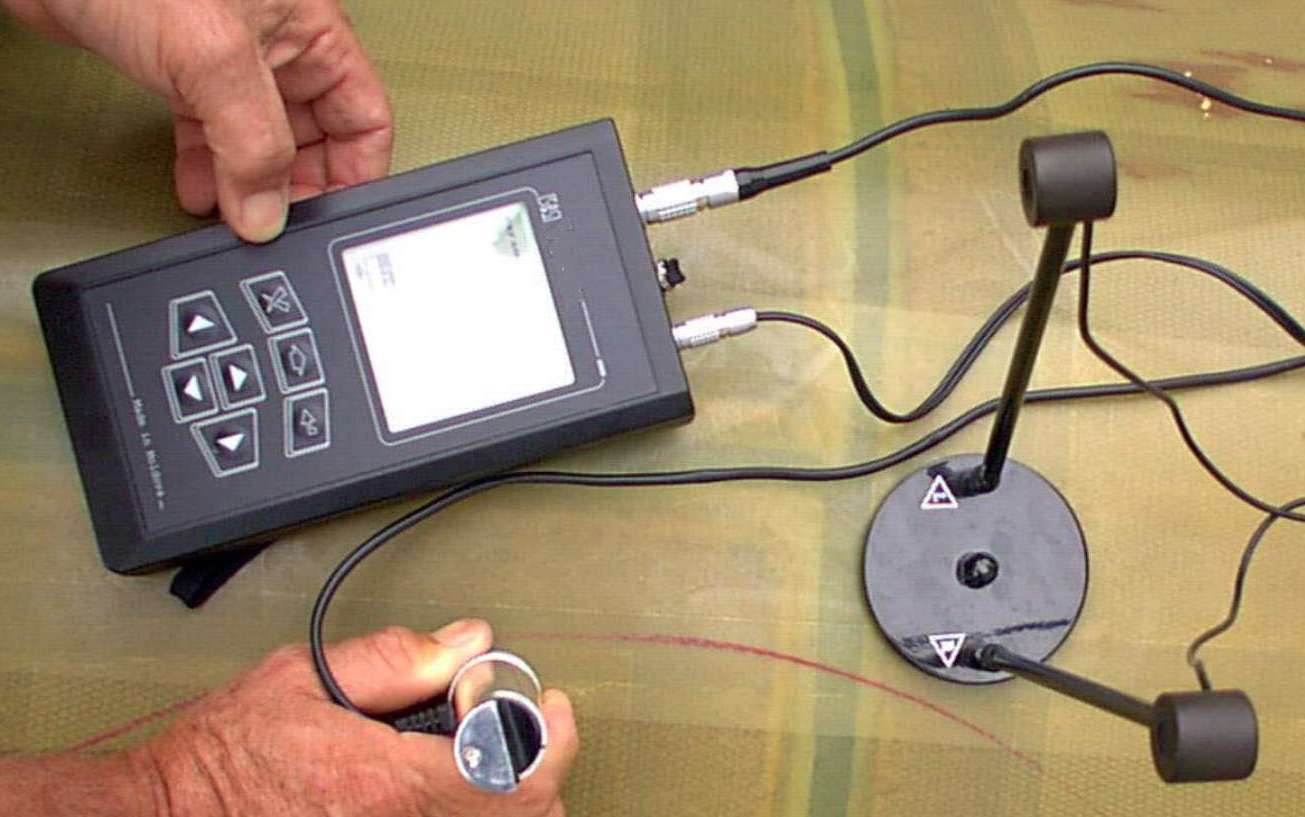

Oct 01, 2007 BondMaster 1000e+ is optimized to detect internal defects or delaminations in composite structures used for aerospace, marine, automotive, or manufacturing applications. In addition to sonic pitch-catch, mechanical impedance analysis, and resonance technologies, portable multimode instrument offers dual RUN2 displays that let operator monitor waveform data and flying dot display. Options are available for color and monochrome LCD or electroluminescent display.

GKS Inspection Services, Inc    Plymouth, MI 48170
Dec 21, 2006 Utilizing Mitutoyo Surfpak Series surface roughness analyzers and Surfpak software, service studies tiny irregularities on anything from medical and automotive parts to consumer and aerospace components. Tests use current international parameters and standards to measure and report surface roughness, ensuring roughness of specific surface is within customer parameters. Assessed profiles, calculation results, measuring conditions, and comments can be laid out and printed as reports.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
May 10, 2006 Designed to eliminate fastener-related assembly errors, TS III(TM) Qualifier can be used with brushless BL Series tools for error-proofing capability similar to angle encoding. When used with electric torque control driver, unit can determine if each screw has been inserted, driven to full depth, torqued to its designated value, cross threaded, or stripped. Automatic calibration allows monitor to learn on the job by monitoring and remembering proper fastener profiles.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Nov 03, 2005 Featuring traverse capability with 0.05 µm resolution, Surftest® SV-3000 CNC surface roughness measuring machine is designed for testing long workpieces. Machine has 800 x 500 x 200 mm measuring envelope, max traverse speed of 200 mm/sec, can comes with SURFPAK® software. Probe arm enables measurement of multiple cross sections and waviness over range, while I/O connection allows for use of transfer and safety devices as well as standard fixtures.

PPM, Inc.    Cleveland, OH 44122
Aug 10, 2004 Bearing ATEX directive, UL, CSA, and CE markings, Model R1L-E2 Ruggedized Ohmmeter/Bonding Meter provides safe measurement of mechanical and electrical bonds in explosive environments. Applications include diesel or jet-fuel storage units, fuel tanks and system components, and transport lines where explosive fumes might create hazard for operators using standard test instruments.

Mitutoyo America Corporation    Aurora, IL 60504 9176
Oct 01, 2003 CNC CV/CS/SV formtester is capable of automated contour/surface roughness measurements with independent/simultaneous multi-axis CNC control. Machine may be configured to take surface roughness measurements, contour measurements, or both simultaneously by changing detector heads. Tilting drive unit has +45° to -10° range, and power incline feature allows for measuring slanted surfaces. Unit can also auto-level itself for flat surface roughness measurements.

Mitutoyo America Corporation    Aurora, IL 60504 9176
Apr 02, 2003 Model SJ-201PR is comprised of two components: detachable detector/drive and display unit which can house detector drive. Unit provides functions to communicate Statistical Process Control (SPC) data with external devices via an RS-232C interface. Product is compatible with ISO, DIN, ANSI and JIS standards and supports optional printer for retrieving hard copies of profiles and parameters.

Mahr Federal Inc.    Providence, RI 02940
Dec 04, 2002 MarSurfâ„¢ XR 20 utilizes company's modular Perthometer Concept. System measures surface roughness contours and topography. Windows compatible, PC-based system has touchscreen monitor, drive unit, measuring stands, and touchscreen software. Multiple measurements can be made with up to 64 profiles. Additional features include dynamic calibration with PGN and PEN, automatic selection of standard filters and traversing lengths, and preset maintenance/calibration intervals.

NDT International, Inc.    West Chester, PA 19382 8013
Oct 09, 2002 Bondetectorâ„¢ provides C-Scan image of bond flaws in composite parts and honeycomb structure elements for aircraft, aerospace, automotive, appliance, and other manufacturers. Imaging/data acquisition feature allows for immediate visualization and interpretation of flawed areas. Bi-directional RS-232 communications port enables inspection results to be printed or transmitted to external PC.

SPX Corp.    Muskegon, MI 49443-3301
Aug 19, 2002 Mobile Fastening System II provides portable fastening and torque/angle auditing throughout assembly plant or testing laboratory. It includes 4-wheel cart, personal computer with fastening program, monitor, keyboard and cover, printer, controllers, plus compartments and hangers for fastening tools and cables. MFS II software is MS Windows NT® based, operates on touch screen monitor and enables saving of rundown, Tool Library or Sequence Library data in .mdb format.
