Pressure & Force Probes

Sensors, Monitors & Transducers, Test & Measuring Instruments

Machine Tool Touch Probe employs pressure sensor.

November 27, 2015

Offering accuracy of <±1 µm with repeatability of 2σ ¯ = 0.25 µm at probing velocity of 0.25 m/min, TS 740 facilitates machined part verification. Trigger pulse is obtained via force analysis, and forces acting during probing are processed electronically. This enables consistent probe accuracy over 360°. Offering precise trigger characteristics in all directions, stylus deflection is measured by several pressure sensors arranged between contact plate and probe housing. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Insertion Meter comes with or without data logger.

January 12, 2015

Designed to measure flow, pressure, and temperature, VPFlowScope is suitable for mobile measurements and fixed installations. Unit offers measuring ranges of 0–500 sfps, 0–250 or 0–500 psi, and up to 140°F. Software can rotate display by 180° and backlighting is adjustable. Basic configuration can be done via display, so laptop is not necessary. Providing Modbus RTU, 4–20 mA, and pulse outputs, meter is suited for compressed air usage measurements, cost allocation, and leakage measurements. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Probe Microphone suits high-temperature automotive testing.

January 22, 2014

Comprised of microphone, preamplifier, housing, and several probe tips in different lengths, Model 377B26 allows for sound pressure and resonant frequencies to be quantified in temperatures up to 800°C, for exhaust noise and engine analysis. Probe tip is 0.050 in. in diameter, allowing use in confined areas. Featuring prepolarized design powered by ICP® or any 2-20 mA constant current supply, probe has dynamic range of 45 dBA to 164 dB and usable frequency range of 2 Hz to 20 KHz. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Blast Pressure Sensor is optimized for durability, alignment.

October 26, 2012

Featuring microsecond response time with resonant frequencies to 500 kHz, Model 137B23 quartz blast pressure pencil probe measures blast pressure in free-field or closed bunker arenas to obtain peak pressure, total impulse, shockwave, and time-of-arrival measurements often used to study blast effects on structures, vehicles, and humans. Integrated ICP® technology features microelectronics, and 5 V output signal can drive cable runs, hundreds of feet long, to safe zone for data acquisition. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Temperature Pipe Probe Features Fast Response

February 3, 2012

Measurement Specialties, Inc. (NASDAQ: MEAS) is now bringing to the industrial, HVAC, electric automotive, process control and related marketplaces rugged, RoHS compliant, temperature pipe probes for measuring pipe surface temperatures. A metal clip is attached to the over-molded copper probe housing allowing the sensor to be easily installed or detached from the pipe. Various clip sizes are... Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Blast Pressure Sensors offer resonant frequencies to 500 kHz.

November 4, 2010

Series 137B quartz ICP® blast pressure pencil probes, featuring micro-second response time, offer high-level 5 V output signal capable of driving long cable runs hundreds of feet long to safe zone for data acquisition. Probe sensors can capture both peak pressure and total impulse calculations. Designed for range of explosion, blast, and shock wave testing, units are suited for applications like measuring blast pressure in free-field or closed bunker arenas. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Probes measure air flow at inlet section of fan.

November 28, 2008

Series FAFM Fan Inlet Air Flow Measuring Probes utilize evenly distributed total and static pressure measuring points to measure flows in fan inlet. Installed from outside of fan, lightweight, durable units can be ordered to fit inlets with diameters ranging from 6-96 in. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

All-In-One Probe measures 3 parameters simultaneously.

March 20, 2007

Utilizing 300, 400, or 600 mm long probe, VPFlowScope simultaneously measures mass flow from 80-150 mn/s, temperature up to 60°C, and pressure from 0-16 bar. Blue LCD display provides real-time information on all 3 parameters, while built-in datalogger enables user to store data. Mounted in pipe via 0.5 in. compression fitting, instrument provides 4-20 mA and RS485 outputs with accuracy of 2% of reading. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

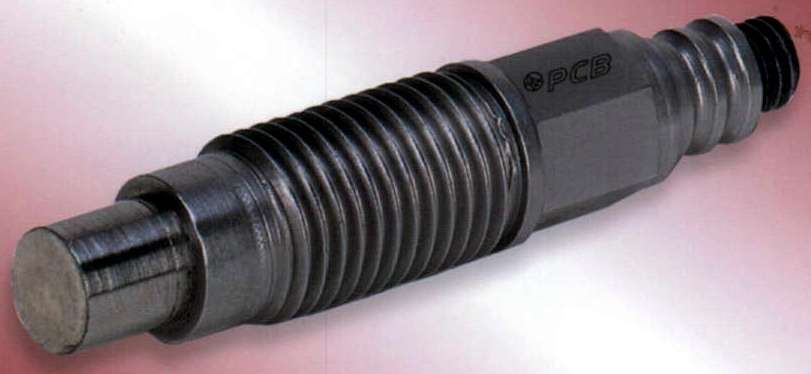

Pressure Probes handle pressure to 120,000 psi.

December 10, 2003

Series 109 and 119 feature acceleration-compensated quartz element and ceramic-coated integral diaphragm, and are offered with options for high-temperature and high-shock environments. Applications include measurement of shock and blast waves, combustion detonation and explosions, ballistics, projectile velocity, and squib lot acceptance. Read More
