Greenlee Textron, Inc.    Rockford, IL 61109

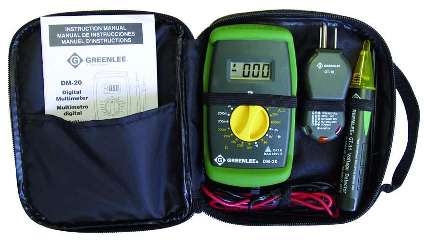

Aug 10, 2005 Electrical Kit TK-30 is comprised of DM-20 manual ranging multimeter, GT-11 voltage detector, and GT-10 polarity cube. Model DM-20 measures current of small electronic circuits, ac/dc voltage, dc amperage, resistance, and also checks 9 V batteries. Offering non-contact voltage detection, Model GT-11 provides LED and audible alarm if voltage is present. Model GT-10 troubleshoots 120 Vac grounded outlets and has light sequence that indicates correct or incorrect wiring.

Aries Electronics, Inc.    Bristol, PA 19007-6810

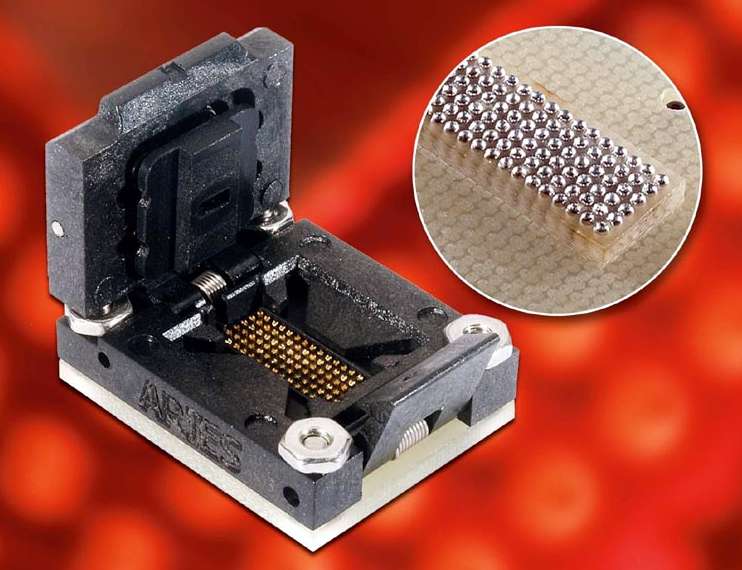

Jul 15, 2005 Measuring 3.507 x 2.750 x 1.759 in, RF Center Probe Test Socket offers manual testing of devices with pitches down to 0.50 mm, in applications with speeds from 1 GHz to over 18 GHz. Socket provides minimal signal loss via signal path of .077 in. Solderless, pressure-mount compression spring probes allow socket to be mounted to and removed from test board. Contact forces are 9-12 g per contact for 0.50-0.75 mm pitches and 17-20 g per contact for 0.80 mm pitches and larger.

esd electronics, Inc.    Hatfield, MA 01038
Jul 07, 2005 CAN-STEPCON (CANopen) starter kit enables PC users to gain experience with CANopen motion control in stepper motor applications. It contains CANopen stepper motor controller, CAN-STEPCON-1H; I/O wiring; 100-240 Vac/47–62 Hz power supply; and CAN network. Included CAN-USB-Mini interface module, with bit rate up to 1 Mbps, acts as CANopen Manager, while CAN-STEPCON-1H acts as slave. Provided with operator software for Windows, kit is fully programmable.

ELTA    Blagnac Cedex 31702  France
Jul 07, 2005 Argos High Accuracy Locator, Model HAL-2 pinpoints to accuracy of 1,000–1,300 ft, while Very High Accuracy Locator Model VHAL-2 is fitted with integrated GPS device for pinpointing to within a few feet. Products are virtually compatible and can be integrated into any data collecting system. They can pinpoint any mobile device fitted with transmitter, including devices at sea, on the ground, or in the air.

Hart Scientific, Inc.    American Fork, UT 84003 9775
Jul 06, 2005 Designed for calibration of thermometers and temperature sensors, Series 917X provides stability to ±0.005°C, axial uniformity to ±0.02°C, and radial uniformity to ±0.01°C. Units include LCD displays, numeric keypads, and menu-driven interface. Preprogrammed tasks such as ramp-and-soak routines can be saved in memory, while °C/°F button allows for switching of temperature units. Applications include food, petrochemical, pharmaceutical, semiconductor, and metrology labs.

Aries Electronics, Inc.    Bristol, PA 19007-6810

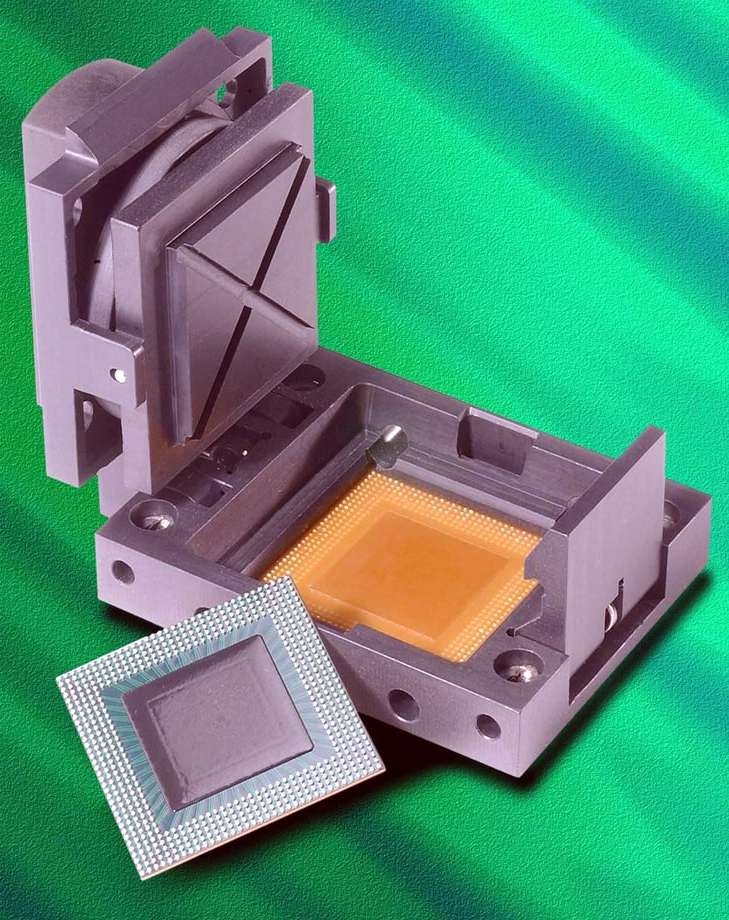

Jul 01, 2005 Test and Burn-In Socket accommodates devices from 41-55 mm² and lead pitches from 0.45-2.54 mm. Spring-loaded, cam-actuated pressure pad applies force against device after socket lid has been closed and latched. Reversing cam removes force prior to unlatching spring-loaded lid. With signal path of 1.92 mm during test, socket is suited for test and burn-in of IC devices such as SRAM, DRAM, DSP and Flash, as well as CSP, MicroBGA, LCC, LGA, QFP, QFN, and MLF packages.

Pomona Electronics    Pomona, CA 91766 3835
Jun 08, 2005 Designed to simplify transportation diagnostics, Insulation Piercing Clip Sets are offered in 3–24 in. sizes for connecting to sensor leads, controls leads, and circuit wires in congested or hard-to-reach places. Clips, available attached to test leads, attached to probe tip, and in test clip sets, also come in pre-configured accessory kit for automotive applications. Products are suited for automotive, marine, and aviation applications.

Altera Corp.    San Jose, CA 95134-1941
Jun 01, 2005 Based on Cycloneâ„¢ II FPGAs, development kits facilitate prototyping of Nios® II embedded processor, DSP, and PCI designs. Each kit includes Cyclone II development board, CD with documentation and reference designs, and power supply as well as necessary cables, Quartus® II design software, and suite of interface IP cores. Nios II Development Kit provides everything needed for system-on-a-programmable-chip development.

Neutronics, Inc.    Exton, PA 19341 2541
May 26, 2005 Suited for both R134A and R12 systems, QuickDetect A/C Sealant Detection Kit includes A/C coupler, hose, test cartridge, and flow meter. When connected to mobile A/C system, it mimics A/C leak. If sealant is present in system, it will quickly solidify in disposable test cartridge and cause flow meter to show no-flow. Except for test cartridges, all Quick Detect components are reusable. Additional cartridges are available separately.

Fiso Technologies Inc.    Quebec, QC G2E 5R9  Canada
May 19, 2005 Dynamic Multi-Parameter Test Kit comes with BUS Commander Software and variety of Fabry-Perot fiber optic sensors, including temperature, pressure, strain, and refractive index sensors. BUS signal conditioner and acquisition system is configured with 2 channels, offering simultaneous reading with sampling rate to 1,000 Hz. System is upgradeable to up 8 channels per chassis, can be cascaded, and can be controlled from remote computer.

Goal Semiconductor Inc.    Montreal, QC H3B 1H4  Canada
May 17, 2005 HVDAC DevKit, model UVK-HVDAC200-4, provides plug-and-play platform for evaluation and prototype development using HVDAC200-4 quad, 9-bit, serially configurable voltage/current DAC with outputs of up to 200 V. Kit comes with Windows®-based demo program and consists of Goal VERSA MIX 8051 MCU, onboard voltage reference, and 2 adjustment potentiometers. Kit also offers over-temperature and temperature-sensor-threshold adjustment, terminal block, and PLCC-44 socket.

New Wave Research    Fremont, CA 94539
May 17, 2005 Used to provides aerosol washout and transient signal analysis, SuperCellâ„¢ features 18.5 cm² work area that accommodates multiple samples and standards simultaneously. When analyzing single-pulse, transient signals, design reduces aerosol dispersion, compressing and amplifying analytical information. For steady-state acquisitions, when sample is continuously ablated, unit displays typical signal rise times and rinse times of less than few seconds each.

Cal Test Electronics    Yorba Linda, CA 92887-4604
May 04, 2005 General-purpose MiniProâ„¢ series test clips, suited for circuit and basic test interconnections, feature smooth, soft touch actuation and gold-plated beryllium copper hooks. Offered in 10 colors, series features secure, snap-lock assembly that withstands heavy use. EU- and RoHS-compliant products are available individually, with lead wires, or in 10-piece kit.

Pomona Electronic    Everett, WA 98204
Apr 06, 2005 Designed to connect component test leads, terminals, and integrated circuit leads, Grabber® and Minigrabber® clips connect precisely and securely to facilitate testing. They are offered in variety of sizes, tips, and configurations. Available types include Minigrabbers No. 4723 and 4555, rotating Micrograbbers No. 5790, 5929, and 5930; and Micro SMD Grabbers No. 6490 and 6311 for connections in tight spaces, such as electronics.

Emerson Process Management    Austin, TX 78754
Mar 28, 2005 Foundation fieldbus Model CSI 9210 acquires vibration, temperature, motor flux, and machine speed on ac motor-pump machine trains, analyzes measured data, calculates machinery health, issues alerts if necessary, and recommends action to be taken. Analysis engine identifies damaging conditions such as pump cavitation, bearing degradation, excessive synchronous vibration, and motor overloading and overheating. Results are communicated into process automation systems.

Altera Corp.    San Jose, CA 95134-1941
Mar 09, 2005 DSP Development Kit, Cyclone(TM) II Edition, allows users to design, prototype, and debug digital signal processing (DSP) co-processing applications for various applications. It includes Cyclone II FPGAs, Texas Instruments' (TI) ADS5500 ADCs, and interface to TI's DSP starter kits. Platform also supplies users with development board, Mathworks' Simulink software, DSP Builder, and Quartus® II design software.

Atmel Corp.    San Jose, CA 95131
Mar 04, 2005 Supporting AT91SAM7S-series ARM7®-based Flash microcontrollers, AT91SAM7S64-IAR Development Kit includes evaluation board and J-LINK USB-to-JTAG debug interface along with suite of development tools from IAR Systems. Tools include 20-state version of visualSTATE® for SAM7S and 32 kByte code limited KickStart version of IAR Embedded Workbench® for ARM®. Kit enables users to show proof of concept when designing in AT91SAM7S.

Waytek Inc.    Chanhassen, MN 55317
Feb 24, 2005 Models 25R and 25B are nickel silver test clips with 20° offset jaw that guards against shorting, and single piercing needle to penetrate insulation. Units are suited for testing integrity of electrical circuits, electronic equipment, prototypes, and electrical continuity.

Superior Solutions    Netanya 42140  Israel
Feb 24, 2005 Motion Control Evaluation Kit EVA-54300-D enables users to evaluate Series-5000 with software package that includes SuperiorCNC, Machine Operator Interface, Sequencer, Labview Drivers, HPGL Converter, and Experts API 32. It provides complete system sample of Series-5000 components in order to experience and understand its abilities. Kit also enables immediate integration and operation of system using pre-assembled cables between all items.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Dec 15, 2004 Solderable Center Probe Socket provides 1.52 mm clearance for 0.80 mm and higher package pitch. It pressure mounts to adapter, which is soldered to pre-existing PCB footprint via standard reflow process. Socket features insertion loss of 1 dB up to 5 GHz and cycle life of over 100,000 insertions and withdrawals. Useful for virtually all packages up to 13 mm square, unit is particularly suited for SRAM and DRAM packages.
