MTS Systems Corp. - Sensor Div.    Cary, NC 27513
Oct 29, 2008 Portable in design, M-Series CAN Test kit allows cylinder manufacturers to verify functionality of CAN protocol versions of M-series linear position sensors once installed in cylinders. It includes GUI and AC/DC converter that provides power directly to sensor, isolating it from rest of vehicle. Kit also includes test cable with M12 plug, which mates with M12 Integrated Connector System, and cable allowing customization to other connector systems.

Interconnect Devices, Inc.    Kansas City, KS 66106

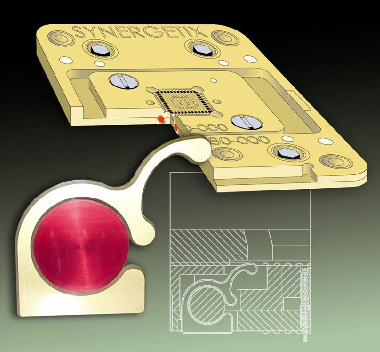

Oct 21, 2008 Consisting of plastic assembly containing semiconductor probe technology, Synergetix Test Socket Interposers facilitate testing of WLCSPs in vertical probing applications. Extremely linear compression against wafer helps maximize mechanical life. Suited for high-current applications, interposers feature average cleaning cycle of every 50,000 touchdowns, and contact replacement is rarely necessary before 500,000 tests.

Interconnect Devices, Inc.    Kansas City, KS 66106

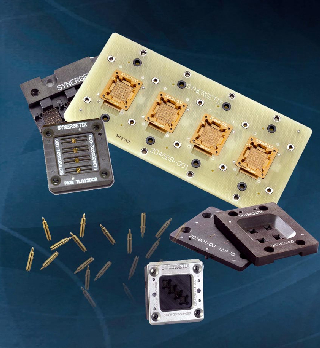

Oct 21, 2008 Suited for testing QFNs, MLFs, and other leadless devices, Synergetix Dyno Contact(TM) features monolithic design, which scrubs across surface of device lead, penetrating contaminants through hundreds of thousands of insertions. Unit is plated with Endura Plating process, which offers resistance to intermetallic contamination. Contact provides 500,000 mechanical life cycles and contact resistance under 20 mW when tested against matte-tin device.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Oct 02, 2008 Compliant with USEPA, EZ Coliform Cult - MUG Test consists of sterilized, ready-to-use 120 mL bottle containing premeasured amount of growth media. To run test, user adds water sample, caps bottle, and then incubates at 35°C for 24 hr. If coliforms are present, liquid sample will change from yellow to blue-green in color. If E. coli is present, sample will glow bright blue fluorescent color when illuminated with UV light.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Sep 22, 2008 Providing results in 4 minutes, LeadQUICK(TM) Home Paint Kit tests EPA recommended maximum level of lead in paint, which is 1 mg/per cm². Kit uses wedged paint chip that measures all paint layer for lead. Chemical reaction produces visible color change in presence of lead compounds. Supplied with 25 tests, kit provides following levels of detection: 0.05, 0.2, 0.4, 0.6, 0.8, 1.0, and 1.2 mg/cm².

Aries Electronics, Inc.    Bristol, PA 19007-6810
Sep 12, 2008 RF test sockets, for use with PCBs, and CSP/BGA test and burn-in sockets, for use with burn-in-boards (BIB), feature solderless, gold over nickel-plated pressure mount compression spring probes that are mounted with 4 SS screws, which allows for height variations in device thickness. Units also include 4-point spring probe crown to insure scrub on solder ball oxides. Signal path during test is 0.977 in. and units operate from -67 to +302°F and accommodate up to 500,000 cycles.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Sep 12, 2008 Designed for 11 x 11 mm, 0.65 mm pitch, 15 x 15 array 225 balls, ASE 225 LTFBGA SS-BGA225G-01 is 10 GHz high endurance socket that can be used for hand test and burn-in applications. With 16 g actuation force per ball and -40 to +150°C temperature range, spring pin contactor has self inductance of 1.3 nH, insertion loss of less than 0.25 dB at 4.5 GHz (less than 3dB at 10GHz), capacitance of 0.53 pF, and 2.5 A current capacity.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Sep 04, 2008 Including DLL software, YELLOWFIN(TM)-OEM kit allows developers to control receiver modules for customizable Mobile WiMAX surveys, interference detection, and packet traffic analysis. Calibrated Mobile WiMAX Receiver provides spectrum analysis between 2.0-5.9 GHz covering Wi-Fi, WiMAX, ISM, and Bluetooth wireless bands. Containing Ethernet and mini USB ports for PC connectivity and internal 12-channel/satellite GPS receiver, kit offers demodulation between 2.3-3.8 GHz.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Aug 28, 2008 Suited for use with test and burn-in of CSP, MicroBGA, DSP, LGA, SRAM, DRAM, and Flash devices, CSP/MicroBGA Test and Burn-In Socket accommodates up to 500,000 cycles and operates from -67 to 302°F. It offers solderless pressure mount compression spring probes which allow sockets to be mounted to and removed from burn-in-board (BIB). Unit also features pressure pad compression spring that provides proper force against device and allows for height variations in device thickness.

Industrial Test Systems, Inc.    Rock Hill, SC 29730

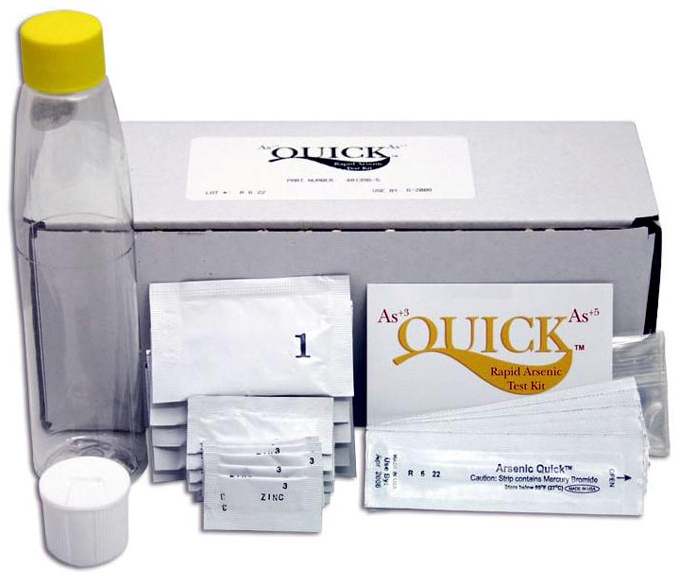

Aug 27, 2008 Arsenic Quick(TM) 481396-W confirms absence/presence of inorganic arsenic in any wood sample, including CCA-treated lumber, using safe reagents. Semi-quantitative test detects arsenic traces down to 1 µg via yellow to brown coloration of reactive test strip. Since presence of arsenic in aged wood cannot be detected at surface, it is recommended that ¼ in. drill bit be used to collect ½ in. drilled sample for analysis in reaction bottle.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Aug 05, 2008 Able to produce results within 3 min, WaterWorks(TM) Total Iron detects ferric as well as ferrous forms of iron without requiring meter. User adds contents of one iron powder pillow to supplied vial, fills vial with water sample, closes vial with screw cap, and shakes sample for 20 sec. Product meets National Secondary Drinking Water Regulations, set forth by USEPA, which recommend iron level of no more than 0.3 ppm. Detection levels for this visual test are 0, 0.3, 0.5, 1, 3, and 5 ppm.

Components Corp.    Denville, NJ 07834
Aug 04, 2008 Featuring 0.125 or 0.100 in. centers, TP-104, -105, and -106 test points can accommodate 0.062 in. thick PCBs. Provided precut to any of 30 positions, loop-style TP-104 and oval-loop style TP-106 test points feature 0.063 in. mounting holes, while TP-105 is available in up to 40 positions, has loop profile for positive loop retention, and fits into 0.035-0.042 in. hole. Devices are designed to ensure secure, non-slip grip of alligator clips, probes, J-hooks, tips, and grabbers.

Freewave Technologies, Inc.    Boulder, CO 80301
Aug 01, 2008 Allowing integrators and OEMs to modify and customize wireless radios for their specific industrial applications, developer kits include 2 fully tested radios, all required cabling, manuals, and documentation, and interface board that converts radios' native TTL data port to RS-232 mode for programming and connection to PC. Ethernet version also uses interface board to provide access to native port via standard RJ-45 connector.

Tecate Industries    Poway, CA 92064
Jul 28, 2008 Offered to facilitate packaging and integration of Maxwell Technologies' MC Power Series Boostcap® ultracapacitors, PowerBurst® MCI Integration Kits allow design engineers to create test modules for proof of concept testing. Interlocking end cap system enables modules to be assembled using snap-together feature. Provided with all hardware and instructions required to build 2-, 4-, or 6-cell modules, kits include PCBs with voltage management circuitry, buss bars, washers, and retaining nuts.

JDSU    San Jose, CA 95131
Jul 21, 2008 Suited for FTTx, LAN/WAN, and data centers found in cable and telecommunications networks, Fiber Optic Tests Kits provide tools necessary to inspect, clean, and perform power or attenuation measurements on fiber optic connections to avoid network damage during installation, qualification, and troubleshooting. Components include video fiber microscopes, optical cleaning tools, PocketClass(TM) or SMART optical light sources, optical power meters, and visual fault locator.

Octava    Norcross, GA 30071
Jul 14, 2008 HDMI to Ethernet Extender enables transmission of 1,080P HD HDMI digital video and audio over pair of standard Ethernet CAT 5/6 cables. It includes set of HDMI transmitter and receiver which has external power supply that does not require power from HD source. HDMI Ethernet converter features Active Drive and Compensation circuitry that ensures error free video transmission, and typical connection lengths of 300 ft (1,080i) and 150 ft (1,080p).

Ideal Industries, Inc.    Sycamore, IL 60178
Jul 11, 2008 IDEAL FiberMASTER offers portable, all-in-one solution to measure critical power and optical signal loss on standard wavelength windows, as well as on FTTx applications. It features 5-wavelength power meter with calibration function that stores reference power levels for dB loss measurements. When joined with 850 nm docking light source, power meter measures fiber optic power in mW and dBm, as well as fiber signal loss (dB) at 850, 1,300, 1,310, 1,490, and 1,550 nm wavelengths.

Network Technologies, Inc.    Aurora, OH 44202
Jul 03, 2008 Working at speeds of 400, 200, and 100 Mbps, Model ST-C51394-250 XTENDEX(TM) 1394 FireWire Extender via CAT5e/6 extends 1 FireWire device up to 250 ft using CAT6 cable and 150 ft using CAT5e cable. Each extender consists of local unit that connects to a computer and remote unit that connects to FireWire device, and local and remote units are connected via Cat5e/6 cable. It supports Plug-n-Play specifications and does not need any software or drivers.

Hennig, Inc.    Machesney Park, IL 61115
Jun 30, 2008 Designed to test telescopic machine tool covers, High-Speed Test Stand includes computerized controls that allow combinations of strokes, speeds, and acceleration/deceleration rates to simulate high speed machining centers. Speed is variable up to 1,312 ft/min, and acceleration can be adjusted to 4 G. Accelerated masses with forces up to 1,304 ft-lb can be tested.

Armstrong International, Inc.    Three Rivers, MI 49093
Jun 20, 2008 Designed for SteamEye® wireless steam trap monitoring system, SteamEye® Starter Kit helps in trialing wireless trap management technology on portion of trap population. It contains all components necessary to begin wirelessly monitoring critical applications, including 4 SteamEye URFC4700 transmitters, 1 SteamEye 4000 Series Gateway, 1 SteamEye 4000 Series repeater, and three ½ or ¾ in. Waveguides. Other components include one 1 in. Waveguide, 2 heat sinks, and 2 insulation wraps.
