Optical Meters

Test & Measuring Instruments, Laboratory and Research Supplies & Equipment

Interferometer suits large aperture form metrology.

June 26, 2015

Able to characterize flat surfaces up to 12 in. in diameter, Verifire™ XL Fizeau Interferometer is suitable for measuring large plano surfaces, such as mirrors, semiconductor wafers, or optical windows. Instrument features integrated reference optic with proprietary full area calibration, enabling metrology to better than 30 nm PV over full 300 mm aperture. Verifire™ XL comes with integrated TMC vibration isolation platform and ZYGO’s patented QPSI™ vibration-robust acquisition technology. Read More

Test & Measuring Instruments

Arc/Spark Optical Emission Spectrometers aid metal analysis.

June 18, 2015

Combining analog PMT detectors with digital CCD technology, hybrid SPECTROLAB metal analyzer allows simultaneous measurements in R&D, trace metal measurement, and precious metals analysis. All-CCD technology SPECTROLAB spectrometer for metal analysis provides speed, accuracy, and flexibility for process control and QC of fabricated and finished goods. Both models offer optimized light transmission stability, ability to ascertain single ppm trace values, and elemental flexibility. Read More

Test & Measuring Instruments

Raman Process Analyzer satisfies ATEX requirements.

June 16, 2015

With redesigned High Throughput Virtual Slit, HyperFlux P.R.O. Plus: Process Raman Online optimizes spectral throughput over conventional designs, providing maximum photon management. This permits process measurements to be done quickly, with sensitivity, and allows preservation of samples with use of lower power lasers. Designed for real-time, remote and unattended operations, analyzer minimizes material waste and optimizes sample efficiencies. Read More

Test & Measuring Instruments

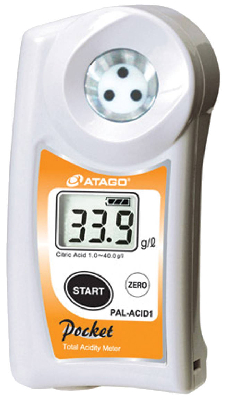

Pocket Refractometers measure both Brix and acidity.

June 9, 2015

Available in 16 different models, PAL-BX/ACID Series measures sugar and acidity level in fruit juices, milk, beer, yogurt, sake, or vinegar. Devices measure total acidity in sample and convert it into citric, tartaric, malic, acetic, or lactic acid concentrations, depending on unit. Unlike traditional titration method, PAL-BX/ACID Series requires no reagent. Measuring 55 x 31 x 109 mm, IP65-rated refractometers feature backlit screen and measurement time of 3 seconds.  Read More

Test & Measuring Instruments, Optics & Photonics

Deep UV Spectrophotometers offer long-life operation.

June 2, 2015

Designed to directly measure absolute transmission and variable angle reflectance, UV Spectrophotometers are suited for analyzing doped crystalline materials, deep UV optics, and coatings. VUVAS models, available for long-life purged or vacuum operation, provide direct optical measurements from 120–350 nm. Some systems are available with both options, allowing users to select operational mode for application. For deeper UV measurements below 120 nm, windowless metrology systems are available. Read More

Optics & Photonics, Test & Measuring Instruments

Photometer and Colorimeter uses 6 optical filters.

May 29, 2015

Offering precise color coordinate measurements, LumiCam 1300 Advanced is suitable for analyzing characteristics of displays, electronic panel graphics, and control panels used in automotive and aerospace industries. System features 1,370 x 1,020 effective pixels and measurement range of 0.0001 bis 100,000 cd/m².  In addition to luminance, luminous intensity, and contrast, LumiCam 1300 Advanced measures dominant wavelength, color saturation, and correlated color temperature. Read More

Laboratory and Research Supplies & Equipment, Test & Measuring Instruments, Optics & Photonics

Absorbance Spectrophotometer extends to deep ultraviolet.

April 17, 2015

Based on direct detection, ultraviolet-sensitive CCD detectors, VUVAS Spectrophotometer features open concept sample area, and works with commercial cryostats as well as sample cells having magnesium fluoride or other UV transmitting crystalline windows. Three-position sample mount for 1 in. diameter optical samples is standard. For absorbance measurements from 120–215 nm, users can collect entire range with better than 0.5 nm spectral resolution in milliseconds. Read More

Test & Measuring Instruments

Testing Kits measure craft brewer's water quality.

April 16, 2015

Using handheld eXact iDip® Smart Photometer System, Smart Brew™ Kit and Smart Brew Advanced™ Kit measure key parameters for making beer taste best, including calcium hardness, chloride, magnesium hardness, pH, sodium, sulfate, total alkalinity, and total hardness. Both integrate 2-way wireless communication with smartphone using multilingual app. Smart Brew Advanced™ kit additionally includes VisionPlus digital pH meter so brewers can monitor pH from start to finish. Read More

Test & Measuring Instruments, Optics & Photonics, Sensors, Monitors & Transducers

Monochromator System moves from 200 nm to 900 nm in 2 sec.

April 15, 2015

Consisting of diffraction grating, monochromatic 150 W xenon light source, and optical detector, Model SPG-120-REV targets high-accuracy optical spectroscopy. Grating is directly attached to 5-phase stepping motor with high reduction ratio harmonic drive gearing that enables wavelength positioning speed of 500 nm/s. With total area of 100 x 187 mm, SPG-120-REV is suited for 2D spectral mapping of solar cell materials and optical devices as well as in-line inspection of food. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Dual Channel TDR locates faults on metallic cables.

April 15, 2015

Designed to locate faults on all metallic cables, including twisted pair wires and coax cables, TDR2010 Time Domain Reflectometer features 800 x 400 pixel, backlit WVGA color LCD with user-definable tones. IP54-rated unit offers velocity factor of 0.20–0.99 and 5 output impedances of 25, 50, 75, 100, and 125 Ω. TDR has minimum resolution of 0.1 m and max range of 20 km, depending on velocity factor and cable type. With trace tagging function, user can maintain records of circuit details. Read More

Optics & Photonics, Test & Measuring Instruments

Microspectrophotometer works with large scale samples.

April 14, 2015

Applying non-destructive analysis to microscopic areas of large samples, such as 300 mm wafers, 20/30 XL™ measures thin film thickness as well as Raman spectra of microscopic sampling areas. Flexible design does not impose upper limit to sample size, and thickness of thin films can also be measured in both transmission and reflectance. Along with manual or automated operation, capabilities also include UV and NIR microscopy of semiconductor and other types of samples. Read More

Optics & Photonics, Test & Measuring Instruments

Circular Polarization Tools aid microscopic sample spectroscopy.

March 24, 2015

Available for CRAIC microspectrophotometers, circular polarization package, comprised of optics and hardware, lets users measure circular polarization spectra in either transmission or reflectance (incident illumination) modes. Flexible solution enables measurement in micron scale sample areas, promoting versatility in materials science, biological research, and experimental microspectroscopy. Read More

Test & Measuring Instruments

Atmospheric Gas Analyzer detects trace gases.

March 20, 2015

Available in benchtop and rack-mounted models, Cirrus™ 3-XD features patented V-lens™ Ion Optics Technology that eliminates baseline noise associated with effects of metastable neutrals, enabling users to achieve consistently low ppb level detection limits, irrespective of bulk gas present. Quadrupole mass spectrometer-based system incorporates internal oven and capillary inlet design that provides high temperature uniformity and stable response for qualitative and quantitative applications. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Ultrasound Bone Densitometry System features portable design.

March 13, 2015

Featuring compact, lightweight design, EggQus AOS 100E has large integrated handle that facilitates in-hospital rounds and house visits. System is powered by rechargeable batteries, but can use AC adapter accessory for continuous operation. Motor-controlled transducer unit moves automatically, minimizing manipulation by operator. With short measurement time, EggQus AOS 100E is suited for elderly examinees and for screening that requires rapid handling. Read More

Test & Measuring Instruments

Handheld EDXRF Spectrometers deliver on-site identification.

March 11, 2015

Available in 3 versions, SPECTRO xSORT Series provides onsite elemental analysis and spectrochemical testing. Entry-level SPECTRO xSORT Alloy, employing silicon PIN detector, delivers grade identification of metals without extensive analysis. Featuring silicon drift detector, SPECTRO xSORT AlloyPlus can perform metal grade analysis in only 2 seconds for most alloys. SPECTRO xSORT NonAlloy, also with silicon drift detector, delivers fast measurement and elemental analysis of nonmetallic materials. Read More

Test & Measuring Instruments

Miniature Spectrometer helps ensure product and food quality.

February 18, 2015

Fully configurable across 190–1100 nm wavelength, Flame Spectrometer is suited for use in absorbance, transmission, reflectance, irradiance, and color measurement applications. Unit has thermal stability of 0.05 nm/°C from 200-850 nm. Interchangeable slits enable user to adjust resolution and throughput on demand, while indicator LEDs show continuous power and data transfer status. With 89 x 63 x 34 mm footprint, Flame offers choice of USB or RS-232 communications. Read More

Optics & Photonics, Test & Measuring Instruments

Spectrophotometer offers auto-scanning capability.

February 16, 2015

Capable of automatically measuring color chart for profile creation in about 4 minutes, Model FD-9 can reduce scanning time and operator errors while optimizing measurement accuracy. LCD mounted on main body allows users to set up, operate, and monitor instrument. FD-9 can be used in network environment to serve multiple printers from all major manufacturers. With optional automatic sheet feeder, up to 100 charts can be loaded into feeder and measured continuously. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Viscosity Meter incorporates tuning fork design.

February 11, 2015

Providing accurate, fast-response viscosity and density monitoring, direct insertion Micro Motion® Fork Viscosity Meter is suited for demanding process applications such as oil-fired heater combustion control, HFO blending/production, and pump protection. Unit incorporates hazardous area approved head-mounted transmitter that can connect to control systems via digital and analog protocols. Meter is also capable of accepting and processing external signals from other field instrumentation. Read More

Test & Measuring Instruments

Hi-Res Spectrometer eliminates gas purging, external cooling.

January 26, 2015

Designed for elemental analysis in industry, science, and academic applications, SPECTRO ARCOS lets users select axial plasma or radial plasma observation in one instrument and without any optical compromise. CCD optic system with Paschen-Runge mount assembly delivers resolution of 8.5 picometer over 130–340 nm range. Along with air-cooled, solid-state power generator, features include UV-PLUS sealed optical chamber and air-cooled interface. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments, Optics & Photonics

Deep UV Luminescence Spectrophotometer extends research abilities.

January 23, 2015

Used for characterization of spectral measurements from vacuum ultraviolet (VUV) to NIR, VUV universal spectrophotometer can measure reflectance, transmission, and fluorescence emission over its complete working range of 120 nm to 2.2 microns. Test system includes sample chamber with toroidal optics, can operate purged or under vacuum, and interfaces to cryogenic and heated sample mounts. Other features include auxiliary ports in sample area and interchangeable 5-position sample holders. Read More
