Electric Meters

Test & Measuring Instruments

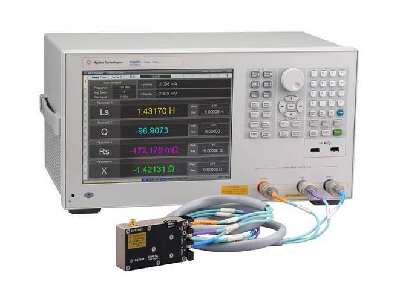

LCR Meter provides low-frequency impedance testing.

April 21, 2015

Used in passive component manufacturing, Model E4982A offers 3 options covering 1–300 MHz, 1–500 MHz, and 1 MHz to 1 GHz frequency ranges. Meter features 0.8% basic accuracy and wide impedance measurement range from 140 mΩ to 4.8 kW. Model E4982A is suited for RF inductor, coil, and EMI filter manufacturers that are required to perform impedance testing at various frequencies. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Conductivity Meter utilizes remote sensor.

April 9, 2015

Comprising inductive sensing element and transmitter with integrated CombiView display, CombiLyz AFI5 offers 14 selectable measurement ranges from 500 µS/cm to 1,000 mS/cm, including conductivity, concentration, temperature, current output, switching states, and device status. Sensing element and transmitter can be installed separately and connected via cable. With max deviation of <1%, sensor has response time of <0.3 sec for conductivity measurements and <15 sec for temperature. Read More

Test & Measuring Instruments

Precision L/C/R Meter tests electrical components.

April 1, 2015

Used for measuring inductance (L), capacitance (C), and resistance (R) of electrical components, Global Specialties LCR-600 offers operational frequency range of 100 Hz to 100 kHz, basic measurement accuracy of 0.3%, and measurement voltage fixed at 0.6 V. Open-/short-circuit compensation is standard along with dual LCD and auto range/detect and sorting functions. Uses include checking ESR values; sorting, selecting, and identifying components; and measuring general LCR values. Read More

Test & Measuring Instruments, Controls & Controllers

Conductivity Controllers offer online monitoring.

March 23, 2015

Providing online monitoring of industrial process conductivity, CDTX-111/CDTX-112 Series offers measurement range of 0–18 MΩ. CE-compliant panel instruments feature linearized data, automatic temperature compensation, maintenance-free cells, and selectable zero and span analog output. Housed in IP54-rated enclosure with temperature range of 14–131°F, controllers are suited for measurement and control of conductivity in water, electronics, chemical, and manufacturing processes. Read More

Safety & Security Equipment, Electrical Equipment & Systems, Test & Measuring Instruments

Safety Devices are designed for operation in hazardous areas.

March 11, 2015

Comprising pushbuttons, pilot lights, selector switches, and ammeters, EU2B safety devices comply with ATEX, C-UL, IEC, and UL/NEC safety standards for use in hazardous areas. Fully sealed construction, rated to IP65 and Type 4X for protection against water, prevents release of sufficient electrical energy which would otherwise ignite explosive gases or particles in surrounding environment. Designs are available with exposed or finger-safe IP20 screw terminals. Read More

Communication Systems & Equipment, Test & Measuring Instruments

Digital Multimeters include 6½- and 7½-digit models.

March 10, 2015

With graphical capabilities, such as trend and histogram charts, and 4.3 in. color display, 6½-digit Keysight 34465A and 7½-digit Keysight 34470A help engineers visualize measurement data in multiple ways, accelerate acquisition of actionable information, and document results. Features include 3 acquisition modes, auto calibration, digital direct sampling techniques, and ability to measure low current (1 µA range with pA resolution) to accommodate very low power devices. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Mini-Clamp Meter spot checks electrical systems.

March 3, 2015

Measuring 5.8 in. tall, pocket-sized AMP-25 AC/DC TRMS Mini-Clamp measures AC/DC load (60/300 A) and in-rush current for motor start-up monitoring, with features like True-RMS for accuracy in electrically noisy environments, non-contact voltage detection, and 300 A low pass filter for variable frequency drive testing. Meter is safety rated CAT III 600 V and features DCA zero and data hold functions, auto power off, 1 in. jaw opening, and backlit screen. Read More

Sensors, Monitors & Transducers, Test & Measuring Instruments

Strain Gauge Meters power up to 12 load cells.

March 2, 2015

Designed for weight, millivolt, and force measurement applications, Model PD6100 and explosion proof Model PD8-6100 feature 1-button zeroing of display, auto-zero adjustment to prevent drift, and panel-mounted or rugged, field-mounted enclosure. Tare/Reset Tare function enables meters to compensate for anomalies, such as sludge buildup at bottom of empty tank. Accepting mV input signals up to 300 mV (unipolar) and ±250 mV (bipolar), both meters are rated for max current of 350 mA at 10 V. Read More

Test & Measuring Instruments, Communication Systems & Equipment, Software

Digital Multimeter integrates data visualization.

February 2, 2015

Integrating digital multimeter, digitizer for waveform capture, and capacitive touchscreen user interface, 7 ½-digit DMM7510 Graphical Sampling Multimeter is suited for device characterization, debugging, and analysis as well as production test/ATE. Multimeter provides 14 ppm basic 1-year DCV accuracy and measurement ranges to 100 mV, 1 Ω, and 10 µA. With 1 MS/sec, 18-bit digitizer, user can view and analyze current and voltage waveforms and transients without need for PC. Read More

Test & Measuring Instruments, Communication Systems & Equipment

Digital Panel Meter measures voltage to 300 V and current to 5 A.

January 26, 2015

Able to measure voltage, current, and apparent power, ProVu® PD6400 is NEMA4X/IP65 rated for use in panel or field under harsh environmental conditions. Independent, field-selectable current and voltage inputs accept up to 300 V and 5 A (AC or DC), and 1/8 DIN size unit also accepts current transformer inputs for higher measurements. Dual-line display features LED digits and warning lights with adjustable brightness, and Modbus® capability (Slave) enables network integration. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers, Optics & Photonics

Analyzers with EMF Measurement ensure network safety compliance.

January 2, 2015

Spectrum Master™ MS271xE handheld spectrum analyzers and Cell Master™ MT8212E/MT8213E base station analyzers support electromagnetic field (EMF) radiation measurement option. With option installed and 0.7–6 GHz isotopic antenna attached, analyzers can be used to ensure wireless networks comply with personal safety standards. Total radiation from all sources can be measured over desired frequency band, and radiation measurements of demodulated signals can be conducted in specific bands. Read More

Test & Measuring Instruments

Panel Meters display measurements in feet and inches.

December 29, 2014

Suited for level applications, NEMA 4X-rated ProVu® PD6001 Feet & Inches 1/8 DIN Panel Meter has adjustable brightness display for optimal readability and is also available as ProtEX®-MAX PD8-6001 explosion-proof meter. Field-selectable inputs allow integration of 0–20/4–20 mA or ±10 V transmitters, and meters can be set up as Modbus RTU Slaves. Options include up to 4 relays, 4–20 mA analog output, and dual 24 Vdc power supplies. Expansion modules add 4 relays, two 4–20 mA outputs, and 8 DIO. Read More

Test & Measuring Instruments, Electronic Components & Devices

Mixed Signal Oscilloscope features fanless design.

September 18, 2014

Measuring analog and digital signals simultaneously, R&S HMO1002 offers 1 MPts of memory depth, 1 GSa/s real-time sampling rate, vertical sensitivity of 1 mV/div, and integrated 128 Kpoint FFT. Integrated pattern generator enables professional embedded developers to program protocol messages at up to 50 Mbps, while digital voltmeter makes it possible to perform voltage measurement simultaneously on both analog channels with 2 user-definable parameters each. Read More

Test & Measuring Instruments, Communication Systems & Equipment

Handheld Tweezer Meters are sized for one-hand operation on SMDs.

September 11, 2014

Offering 1%–3% basic accuracy, LCR-58 Tweezer LCR Meter offers functionality covering resistance, capacitance, inductance, ESR, DCR, and diode test. Standard features include Data Hold function, Auto Select mode, manually, and selectable frequency. Manual and auto range options are available. Covering resistance, capacitance, continuity, and diode test, PRO-57 Tweezer Digital Multimeter offers Data Hold function, Auto Select mode, and manually selectable range. Read More

Test & Measuring Instruments

Picoammeters and Electrometers operate from 2 pA to 20 mA.

September 9, 2014

With internal 1,000 V source, B2980A Series of femto/picoammeters and electrometers measure down to 0.01 fA and up to 10 PΩ. Battery operation mode eliminates effect of any AC power noise on measurements and enables detection of previously hidden signals, while time-domain view lets users capture transient signal effects as well as select desired measurement data. Previously only available on external PC, real-time histogram display enables statistical analysis of measurement data. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Tri-Axis RF Field Strength Meter can be used in field or lab.

September 4, 2014

Used for measuring and monitoring RF electromagnetic field strengths, E200 has high frequency radiation range of 50 MHz to 3.5 GHz. Instrument takes isotropic (non-directional) measurements of electromagnetic fields with three-channel measurement sensor and can store and recall up to 200 data sets. In addition to reports electrical and magnetic field strength and power density, tool offers adjustable alarm threshold and memory function as well as ruggedized construction.

Read More

Test & Measuring Instruments

Energy Management Submeter handles up to 3,000 A.

September 4, 2014

Utilizing split-core transformers or Rogowski coils, EZ Cube is available with single line LCD with status lights or full screen with Volts, Amps, etc. Auto-ranging design enables meter to support 120 V single phase up to 4-wire 277/480 V or 3-wire 480 V and everything in between. Automatic reading is possible through Modbus RTU via RS-485 or Ethernet connection. Ethernet version can download data directly to energy management system or users can access built-in web server for real-time data. Read More

Test & Measuring Instruments

Industrial-Class Smart Meters measure electrical usage.

August 26, 2014

Providing universal voltage and CE safety compliance, VerifEye™ Series 4000 ModBus Smart Meters measure and verify electrical usage across range of cost-allocation and energy-conservation applications. Units offer wall and DIN Rail mounting options, as well as advanced communications architecture for integration with building automation and energy management systems. Communicating via ModBus RTU open protocols, meters withstand temperatures from 22–158°F and voltage range of 90–600 V. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Clamp-On Current Sensor fits existing solid conductors.

August 5, 2014

Able to be clamped onto existing solid conductor without having to disconnect conductor, Sidewinder PA3828NL has linear current range of 0.1–200 A with 1.0% accuracy for precision power measuring applications at 50/60 Hz AC. This di/dt AC current sensor, with 6.2 mm ID, opens to 7.0 mm to clamp onto conductor. Clamp feature can be opened and closed multiple times. Another application for this core-less, RoHS-compliant product is arc fault AC current monitoring. Read More

Test & Measuring Instruments

Universal Meter operates on cellular and mesh AMI networks.

July 30, 2014

REXUniversal® meter incorporates point-to-point cellular communications technology, which expands number of rural and remote residential utility customers who can be served by smart meters and smart grid systems. Operating on Verizon (CDMA) and AT&T (GSM) cellular networks as well as mesh AMI networks, this integrated universal meter platform supports smart grid systems from diverse vendors.
