SBS Technologies, Inc. Industrial Computers    Carlsbad, CA 92008
May 31, 2005 COTS-based Model PIO-PMC1 combines multiple I/O functions on one PMC capable of meeting multiple functions within single slot. Conduction-cooled card can withstand environments where extreme shock, vibration, and temperatures are present. Through FPGA, unit can be configured with several different serial and discrete options. Up to 8 serial RS-422/485 RX/TX pairs, 16 analog TTL inputs and outputs, and 16 discrete inputs are available for programming.

Measurement Computing Corp.    Norton, MA 02766
May 20, 2005 Ethernet-based Measurement Advantage model E-PDISO16 offers PCI-based functionality with 16 isolated digital inputs, 500 Vdc isolation, and 16 form C relays with 6 A at 240 Vac/28 Vdc contact ratings. It can be distributed anywhere network connection and power exists. Users connect device to network at point of measurement and configure, monitor, and control device from anywhere else on network. Features include screw terminals, metal enclosure, and power supply.

Phoenix Contact    Harrisburg, PA 17111 0100
May 18, 2005 Multipoint-to-point Model RAD-ISM-900-BD-BUS brings multiple channels of I/O from up to 8 remote locations back to one master station. Bi-directional feature enables use of device in monitoring and control applications and eliminates cable and conduit for analog and digital signals in harsh industrial environments. Typical in-plant range is 600–1,000 ft with no line of sight. Transceivers and I/O modules are featured in 22.5 mm DIN-rail mount housing.

Acromag, Inc.    Wixom, MI 48393 7037
May 13, 2005 Model AVME9668 non-intelligent slave board interfaces IP modules to VMEbus. The 6U board holds 4 IP modules. Field I/O connections are made through front panel of carrier board. To accommodate rugged, high-performance applications, front-panel SCSI-2 connectors provide screw-down or spring latch connections that hold cables securely. With support for 8 and 32 MHz clocks, data can be processed at high speeds. Shielded SCSI-2 cable field I/O connections provide noise immunity.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
May 09, 2005 Suited for PC-based measurement, analysis, monitoring, and control, LPCI-A16-16A features dual 12-bit analog outputs, 16 digital I/O lines, and three 16-bit counter/timers. Board provides 500 kHz sampling rate with 16-bit resolution for 16 single-ended or 8 differential analog input channels while meeting MD2 Low Profile PCI Bus Specification. It also offers channel-by-channel programmable gain, 3 trigger modes, and 11 analog input ranges.

North Atlantic Industries, Inc.    Bohemia, NY 11716

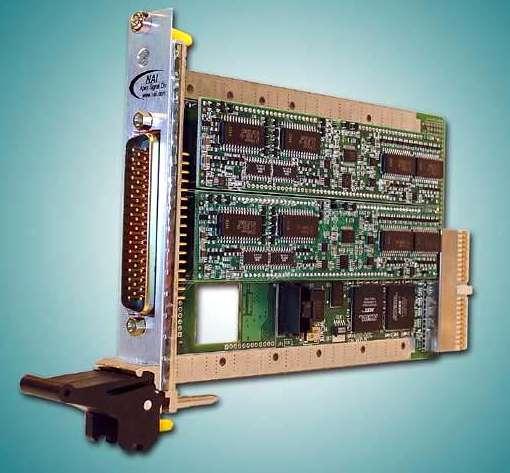

Jan 17, 2005 Model 75C1 2-module, single slot, 3U cPCI card can include functions of A/D, D/A, function generator, discrete I/O, TTL I/O, transceiver I/O, and RTD. Continuous background (BIT) testing is performed transparently on all functions and channels and does not interfere with normal operation. Cards are available with operating temperature ranges of -40 to +85°C and 0°C to +70°C. Conduction cooled versions with wedgelocks are also available.

Octagon Systems Corp.    Westminster, CO 80021
Jan 11, 2005 Measuring 1.65 x 3.55 in., XBLOK® modules provide expansion capabilities to PC/104 platforms by providing up to 2 functional additions, such as Ethernet and digital I/O. Unit increases stack height by 0.6 in. and is designed so that there is 0.75 in. gap between opposing modules, allowing true conduction cooling. Available XBLOKs include 10/100 Base Ethernet; quad USB 2.0; four 48-line DIO; dual serial port; and fail-safe, battery-backed static RAM disk.

Motion Engineering, Inc.    Santa Barbara, CA 93117
Dec 29, 2004 SQIO line is comprised of SynqNet Interface Device offering up to 256 digital I/O and 16 analog I/O, plus analog and digital add-on boards. Total of 32 SynqNet Interface Devices can be installed on SynqNet network. Diagnostic capabilities allow for firmware/configuration file upgrade on nodes from any remote host computer. All programming is under single API, and is supported by library of I/O configuration software, including MotionConsole, MotionScope, and VM3.

Rockwell Automation / Allen-Bradley/Industrial Automation Sy    Mayfield Heights, OH 44124
Oct 06, 2004 FLEX modular I/O products include 1797-IE8H HART and 1797-OE8H HART, respective 8-point input and output HART analog modules that allow for communication with smart field devices that support HART protocol. FLEX I/O digital diagnostic modules allow control system user to identify operating conditions that may result in system failure. FLEX I/O also offers conformal coating that consists of 1–2 mm thick polymeric film that encapsulates printed circuit assemblies.

Advantech Automation Corp.    Cincinnati, OH 45240
Sep 23, 2004 Models PCI-1758UDI and PCI-1758UDO are digital input/output cards with universal PCI bus, BoardID(TM) switch, and high-voltage isolation. PCI-1758UDI has interrupt function for each of 128 digital input channels and digital filter function, which provides de-bouncing for switches and relays. PCI-1758UDO features watchdog timer and user-configurable power-up states. Both cards support systems with 5 or 3.3 V signaling and can withstand up to 2,500 Vdc.

Advantech Automation Corp.    Cincinnati, OH 45240
Aug 20, 2004 Models ADAM-4056S and ADAM-4056SO are 12-channel sink and source type, isolated digital output modules with communication watchdog, support for Modbus RTU protocol, and fail-safe function that resets outputs to predefined values. Model ADAM-4056S offers max load of 200 mA making it suitable for devices having sink type digital inputs, while Model ADAM-4056SO provides 1 A per channel, making it suited for solenoid valve control in chemical plants.

Accutech Div., Adaptive Instruments Inc.    Hudson, MA 01749
Aug 09, 2004 Analog, Digital, and Analog/Digital Output Modules allow users to integrate wireless monitoring instrumentation into existing control systems. Base Radio accessories transmit analog or digital outputs from remote locations to data acquisition systems without external power or signal wire installation. Analog modules provide four 4-20 mA analog outputs, while digital modules offer 8 switch-closure outputs. Analog/digital modules provide capability of both.

United Electronic Industries    Canton, MA 02021
Jul 16, 2004 PCI-bus card, Model PD2-DIO-128i supplies 64 digital inputs and 64 digital outputs, each line with its own optoisolator. I/Os are configured in fixed banks of 16 lines. Each line runs at 10 kHz max and works from external supply voltage of 12-32 V. Outputs generate 500 mA/channel peak and 200 mA/channel continuous with max of 1 A/port. Operating on 3.3 or 5 V PCI-bus backplanes, board includes 33 MHz DSP that offloads host processor of supervisory duties.

RadiSys Corp.    Hillsboro, OR 97124
Jun 25, 2004 Based on 2 Intel® IXP28XX network processors, RadiSys Advanced Telecom Computing Architecture-compliant module includes interfaces for switch fabrics and physical media to receive, process, and forward data at 10 Gbps data rates. System offers physical interface implemented as Rear Transition Module (RTM), which provides rear I/O and flexibility of interface types. It also provides SPI-4 interface between main module and RTM via ATCA Zone 3 connector and supports 10 ports x 1 GbE.

Diamond Systems Corporation    Mountain View, CA 94043
Jun 22, 2004 Mercury PC/104-Plus module integrates Ethernet connectivity with digital I/O, eliminating need for additional board in embedded computing applications. It provides 2 PCI-based, NE2000-compatible, 10/100Mbps Ethernet ports utilizing National Semiconductor DP83815 Mac + Phy PCI controller chip. Its 24 digital I/O lines feature programmable direction in 4- and 8-bit groups. All I/O lines contain user-configurable 10 kohm pull-up resistors.

National Instruments Corp.    Austin, TX 78759-3504
Jun 09, 2004 Series NI 651x consists of optically-isolated, digital I/O devices for applications in discrete, batch, and process automation. Each includes watchdog timers, programmable power-up states, programmable input filters, change detection, and 24 V logic levels, which offer connection to sensors and actuators and are software programmable without jumpers. Series provides NI-DAQmx driver software technology on both Windows and LabVIEW operating systems.

Advantech Automation Corp.    Cincinnati, OH 45240
Jun 07, 2004 Controller card MIC-3318 is equipped with 400 MHz system bus, 512 Kb on-die L2 cache, support for DDR memory, and 2 Ultra ATA 33/66/100 high-speed IDE drives. Model MIC-3753 is a 72-bit digital I/O card for CompactPCI bus. I/O lines are divided into nine 8-bit I/O ports, allowing user to configure each port as input or output. General-purpose MIC-3780 is a multi-channel, counter/timer card for CompactPCI bus. It provides eight 16-bit counter channels, 8 digital outputs, and 8 digital inputs.

Selco Products Co.    Reno, NV 89521-5908
Jun 07, 2004 Configurable Controls 5000 Series incorporates processor, power source, and multiple input and outputs, depending on model. Front operator panel displays numbers, indicators, pushbuttons, switches, or pots. Controls feature onboard 10 A relay, 1 A solid-state relay, and external solid-state relay. Large output ports include onboard 30 A relay and 3 A solid-state relay. Other features include built-in thermistor temperature sensor circuit and up to 16 K program storage space.

PFU Systems, Inc.    Santa Clara, CA 95051-3501
May 25, 2004 Featuring Intel® Pentium® M and Celeron® M processors, Plug-N-Runâ„¢ G3 System-on-Modules provide building blocks for mobile and stationary medical diagnostic imaging solutions. Signatureâ„¢ Technology allows user to implement security features to meet HIPAA regulations. Digital video outputs for DVI or LVDS displays implement extended desktops and dual independent display buffers, while integrated MPEG-2 decoding provides real-time viewing of MPEG-2 compressed PACS images.

Mosaic Industries    Newark, CA 94560
May 11, 2004 QScreen Controllerâ„¢ is a C-programmable embedded computer powered by HC11 Motorola microprocessor. It features real-time multitasking operating system, hundreds of pre-coded device drivers, up to 1 M Flash, and 512 K RAM. Controller commands eight 8-bit A/D lines, 8 digital I/O lines, and 2 RS232/485 ports. It can host up to 7 stackable Wildcardâ„¢ I/O modules. Applications include scientific instruments, robotics, and portable data acquisition.
