Weidmuller, Inc.    Richmond, VA 23236
Jul 10, 2009 Designed to interface between field equipment and control systems, WAVEPak DC/DC isolator converts and isolates signals with accuracy exceeding 0.1%. User can select either current sink or loop-powered input mode, allowing module to be active or passive input circuit. Integrated test terminals allow testing of input/output current values without removing cables, while LED indicators display signal status. Supplied from 12-60 Vdc, unit can drive output current loads up to 1 KW.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Jul 10, 2009 Model P104-WDG-CSMA, PC/104-Plus board can monitor operation of application program/OS and initiates system reset in case of lockup. Also able to monitor and control various system hardware parameters, it features optically isolated input, 2 isolated digital outputs, 2 nonisolated digital outputs, 2 A/D inputs, and security light sensor. Incorporated software, compatible with DOS/Linux/Windows, has programs and source code in C, Visual Basic, Delphi, and Visual C++.

DVEO division of Computer Modules, Inc    San Diego, CA 92127
Jul 09, 2009 Available with both removable 120 GB hard drive and CF card storage, Millennia HD is real time, hardware based, H.264/AVC recorder in 8 x 6 x 3 in. system that records up to 11 hr of HD video at 20 Mbps, and up to 30 hr at lower bit rates. It encodes HD-SDI to H.264 and records it onto removable HDD or flash disk, and sends out H.264 signal in DVB-ASI. Unit also decodes stored HDD recordings and send them out as HD-SDI signal. Product operates on 12 or 120/240 V.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 08, 2009 Available in 64-pin QFN package, 18-bit ADS8284 and 16-bit ADS8254 combine SAR data converters and peripherals and help develop high performance ADC front ends for precision applications including high-speed data acquisition, automated test equipment, and medical imaging. They feature 4-channel multiplexer, input operational amplifier, 6 ppm/°C reference, and reference buffer.

Linear Technology Corp.    Milpitas, CA 95035
Jul 06, 2009 Supplied in 20-pin 4 x 5 mm QFN and TSSOP packages, LTC2656 offers combination of 0.1% (max) gain error and ±2 mV (max) offset error ensures accuracy near supply rails and optimizes effective output range. Integrated precision reference achieves 2 ppm/°C typ and 10 ppm/°C max temperature coefficient. Operating from 2.7-5.5 V supply, IC offers 8.5 µsec settling time for half-scale step and less than 1 nV/s crosstalk. Supply current is 375 µA per DAC with reference activated.

Murrelektronik, Inc.    Duluth, GA 30096
Jul 06, 2009 Available with Profibus, CanOpen, DeviceNet, EtherCat and EtherNet /IP bus protocols, IMPACT67 compact field bus I/O modules are designed for electrical engineers to maintain digital inputs and outputs. IP67 protected unit comes with predefined inputs and outputs, port-related cutoff and single channel diagnostics via LED. Modules are equipped with field bus group diagnostics to reduce machine outages and localize and rectify faults.

United Electronic Industries    Canton, MA 02021
Jul 06, 2009 Available for PPC Cubes, GigE Cubes, and RACKtangle Chassis, UEIPAC v2.0 I/O controller supports Xenomai Real-Time OS and Eclipse IDE. It offers independent 1G Ethernet and USB 2.0 ports for communication and diagnostics. Suited for high speed PID loops (8 channels > 20 kHz), device can be programmed in C in either Linux or Windows environments. Linux applications written using UEIPAC v2.0 can run fully standalone on any of UEI platforms without dedicated host PC.

AutomationDirect.com    Cumming, GA 30040-9905
Jul 03, 2009 ZIPport(TM) panel interface connectors mount on outside of electrical control panel boxes and act as pass-through connections, allowing operator to interface with PLCs and other programmable devices without opening control box. Units include standard reset 3 A circuit breaker and are available with single/duplex/GFCI power outlets as well as no-power option. Designed for frame sizes 6-48, communications connectors available include D-sub, RJ45, RJ12, USB, Ethernet, and Data Highway.

Linear Technology Corp.    Milpitas, CA 95035
Jul 03, 2009 Integrating precision reference (2 ppm/°C typ, 10 ppm/°C max) in 3 x 3 mm DFN and 4 x 5 mm MSOP packages, LTC2463 delta sigma ADC allows precise measurements without external reference. It operates from 2.7-5.5 V supply and measures ±1.25 V differential input range at output rates to 60 Hz, facilitating measurement of low-frequency sensor signals. Characteristics include 16-bit DC performance of 1 LSB (typ) integral nonlinearity error and 0.01% gain error (typ).

ICP DAS USA, Inc.    Harbor City, CA 90710
Jul 03, 2009 Comprised of analog and digital devices, I-7000, M-7000, and ET-7000 series offer data acquisition and control functionality designed to meet challenges of instantaneous feedback, remote control, and accurately synchronized communication networks. Models of I-7000 series utilize RS-485 communication, while M-7000 series use Modbus protocol. Each remote Ethernet I/O module of ET-7000 series integrates its own web server. All series interface with EZ Data Logger software.

ICP DAS USA, Inc.    Harbor City, CA 90710
Jul 03, 2009 Featuring 3,000 Vdc power isolation technology that ensures integrity of modulated signal and promotes optimized production, SG-3801 helps electrical instrumentation interact as current input to current/voltage output signal conditioner. It accepts and delivers unipolar current or delivers unipolar voltage at user-configurable settings. Support is included for Zero and Span types of voltage regulation for signal calibration, and modulations stay accurate to ±0.1% of full range.

Intelligent Appliance    Netanya, IL 42140
Jul 01, 2009 Controlled by daisy-chain RS-232 communication method, IA-3123-2 serves as building block for digital data collection of over 16,000 discrete points through single PC port. This intelligent 64-channel digital input module supports PNP and NPN devices as well as positive and negative logic. Automatic Report feature, which generates ASCII strings according to input status, eliminates need for polling data by software. Unit also incorporates stand-alone peer-to-peer operation.

Galil Motion Control    Rocklin, CA 95746
Jun 30, 2009 Enabling RIO to interface with thermocouples and RTDs (Resistive Temperature Device), SCB-48x06 signal conditioning boards connect directly to 26-pin d-sub connector of RIO-47120 and are oriented vertically from RIO connector. Model SCB-48206 interfaces to 6 RTDs and SCB-48306 interfaces to 6 thermocouples. Features include arithmetic and logical processing, data logging, process control loops, counters, and timers.

Linear Technology Corp.    Milpitas, CA 95035
Jun 29, 2009 Supplied in 7 x 8 mm QFN package, LTC2754-16 incorporates 4 DACs that can each be software-programmed or pin-strapped for 1 of 6 unipolar or bipolar output ranges via 4-wire serial interface. SoftSpan output voltage ranges include 2 unipolar ranges (0-5 V, 0-10 V) and 4 bipolar ranges (±10/±5/±2.5/-2.5 to +7.5 V). Along with 2 MHz multiplying bandwidth, features include voltage controlled offset and gain adjustment pins, settling time of 2 µsec, and glitch impulse of 0.26 or 1.25 nV/s.

Alligator Technologies    Costa Mesa, CA 92627
Jun 25, 2009 Compatible with all 12, 16, or 24-bit A/D devices, USB-controlled, single-channel Model USBPGF-S1(TM) consists of programmable signal conditioning instrumentation amplifier and low pass filter. Users can mix and match filter characteristics and independently select and program AC or DC coupling, corner frequency, and gain steps up to x1000 in single-ended or differential measurements. Each can be configured as 8-pole Butterworth, Bessel, elliptic, or linear phase filter.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891

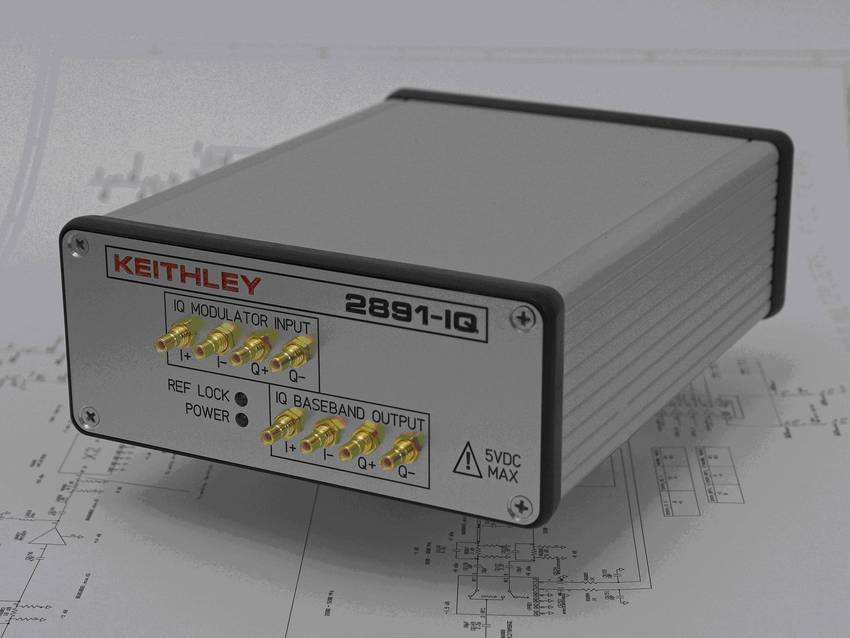

Jun 24, 2009 Model 2891-IQ Upconverter processes analog I and Q baseband signals for testing transceiver's transmitter and also processes output signals for testing its receiver. Able to interface with RF transceivers with single-ended or differential inputs, it provides EVM floor of 41 dB to optimize modulation measurements. Unit's gain adjustments interface with various wireless chipsets and devices. Compact system is controlled via USB connection and programmed with simplified SCPI command set.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
Jun 24, 2009 Fully HD-compatible, IDT PanelPort(TM) ViewXpand(TM) solution can be placed in notebook, on docking station, in stand-alone dongle, or on DisplayPort(TM)-compatible monitors to provide HD multi-monitor capability. Plug-and-play configuration supports multiple monitors from one digital output port for each application or dedication of each monitor to separate applications. Available in 11 x 11 mm QFN package, PanelPort(TM) VMM1300 is configurable to operate in hub (3-output) or daisy chain mode.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jun 23, 2009 Measuring 95 x 55 mm, MM1 ESMini boards are housed in rugged, shock- and vibration-resistant packages with EMC protection and feature Intel Atom processors offering frequencies of 1.1 or 1.6 GHz. Consuming 7 W maximum, unit features operating temperature range of -40 to +85°C, real-time clock, and board management controller. Offering 1 GB DDR2 SDRAM, boards incorportate 512 KB of L2 cache integrated into Intel Atom processor. Various serial I/O connection options are available.

Renishaw, Inc.    Hoffman Estates, IL 60192
Jun 23, 2009 Model AM4096 provides UVW outputs with 16 poles (8 pole pairs), incremental, absolute, linear, tacho generator, and sinusoidal outputs. Resolution is to 12-bit with programmable zero position. Low power device (3.3 or 5 V) offers sleep mode for battery operation and can be supplied pre-programmed or may be customer programmed with settings stored within on chip EEPROM. Capable of operation to 60,000 rpm, encoder can withstand temperatures from -40 to +125°C.

Exterity    Scotland   United Kingdom
Jun 23, 2009 Able to support widescreen encoding (16:9 aspect ratio), Exterity IPTV encoder allows content from digital camera, satellite set-top box or DVD player to be streamed as channel on building's IP network. Available in modular blade format, unit supports RGBS video, composite and S-Video inputs using phono and S-Video connectors. Channels can be viewed using IPTV receiver or networked PC using streaming video client application.
