Xicor, Inc.    Milpitas, CA 95035
Oct 06, 2003 Series X79000 integrates single channel, 12-bit non-volatile DAC, voltage reference with selectable gain and level shift, configurable output buffer, and 64 Bytes of general purpose EEPROM into single chip. Initial-value DAC-register restores values during power up. Push-Pot control allows for incrementing or decrementing from initial DAC value in either one LSB or byte or word steps. Converters are suited for bias and calibration applications.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Oct 02, 2003 Series RCN Encoders can be designed with one scanning unit on main track with 32,768 grating periods. Model RCN 827 comes with EnDat interface, Model 823 features Fanuc interface, and Model 823 includes Mitsubishi interface. All are 60 mm dia with hollow through shaft. Integral bearing and stator coupling make units suited for high-precision applications such as rotary tables and swivel heads on machine tools, telescopes, or spectrometers.

C & D Technologies    Mansfield, MA 02048-1151
Oct 01, 2003 Offered in 40-pin, ceramic TDIP package, ADSD-1402 includes 2 A/Ds that can be triggered simultaneously or independently. Each input channel has sample-hold amplifier, 2 MHz 14-bit A/D, and its own timing and control circuits. To ensure channel-to-channel matching, A/Ds operate from one precision reference, and there are 2 sets of offset and gain adjustments. Product offers 79 dB signal-to-noise ratio and -80 dB total harmonic distortion.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Oct 01, 2003 Model GX6062 PXI high-density RF multiplexer features 12 groups of 1:4 multiplexers that can be software-controlled to provide various multiplexer configurations, while maintaining full 200 MHz bandwidth. Measuring 6U, unit provides differential RF switching and may be configured as 12 x 1:4, 6 x 1:9, 2 x 1:29, 1 x 1:59, as well as other configurations. Applications include Automated Test Equipment, parametric measurements, and RF communications.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Oct 01, 2003 Series GX5152 PXI Digital Stimulus-Response Cards provide bus emulation and high-speed digital test. Model GX5152 6U Master includes DSR timing set and can control up to 15 GX5153 DSR slaves to expand dynamic digital I/O channels up to 512. Timing set within master card features Major Cycles running at 100 MHz and Minor Cycles running at 50 MHz. Model GX5152 includes trigger signal, 10 nS edge placement resolution, and 5 memory SIMMS for memory depth of 8 Mb.

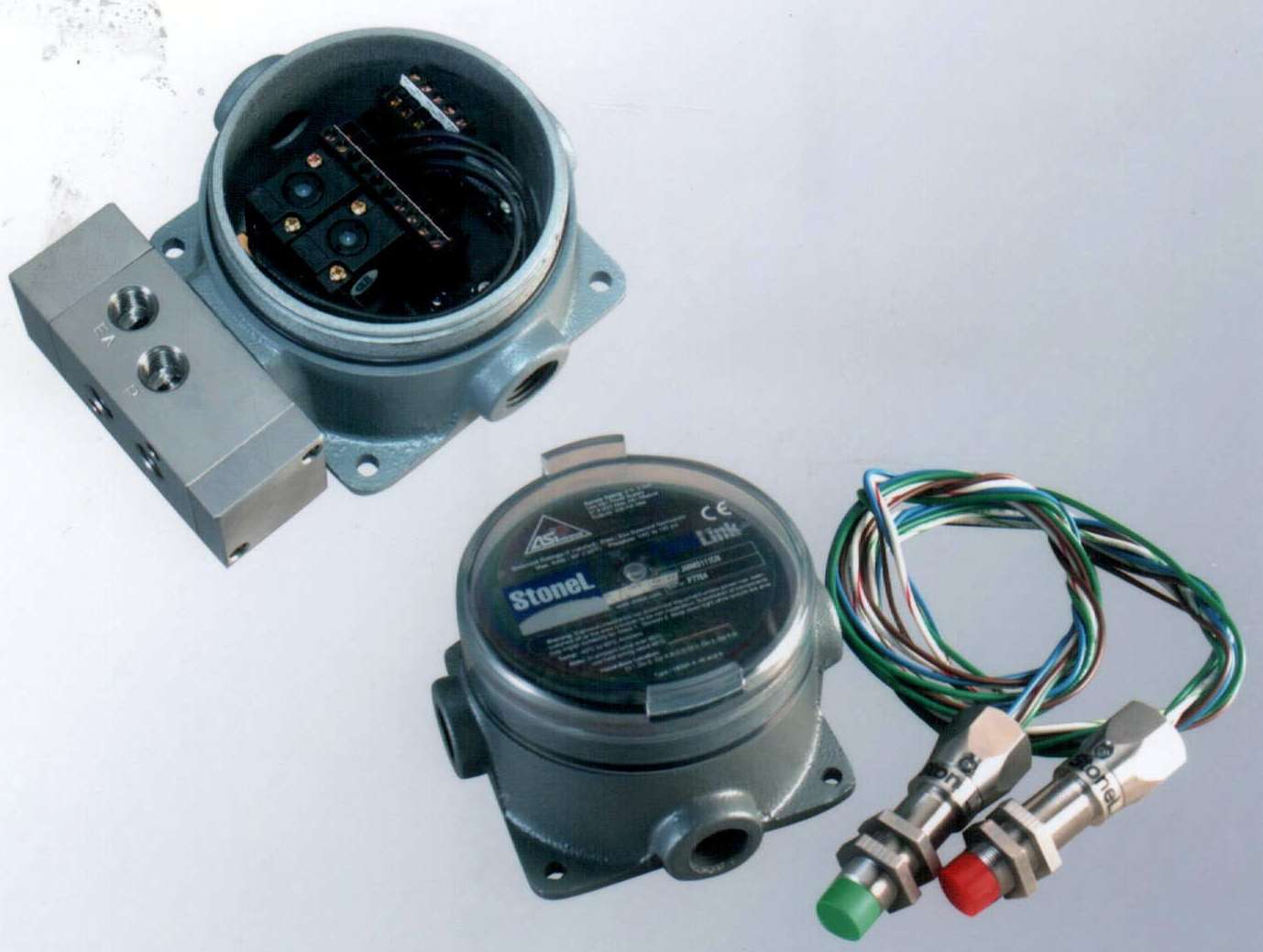

Stonel Corp.    Fergus Falls, MN 56571
Sep 30, 2003 Able to tie on-off knife gate, globe, and other linear valves into bus networks, modules consist of 2 Hawkeye linear position sensors and one JM I/O module with integral pneumatic valve. Red or green LEDs with NO or NC function may be selected. User may also select from low-power solenoid pneumatic valve or ultra low-power Piezo valve. Total power consumption with Piezo Foundation Fieldbus module is less than 16 mA.

Brentek International Inc.    York, PA 17406
Sep 26, 2003 Model IDC50-TB26 plugs into 50-pin header of 4, 8, 16, and 24 position I/O racks, eliminating need for mass termination connectors and ribbon cables. The 26-position terminal block accepts wire sizes from 24–16 AWG and provides wiring access to Vcc, Common, and up to 24 signal lines. Common applications requiring direct I/O module control include machine controls, control panels and systems, as well as I/O testing and troubleshooting applications.

Industrial Scientific Corp.    Oakdale, PA 15071 1500
Sep 26, 2003 With one central computer server, DS2 Docking Stationâ„¢ features automated instrument maintenance and diagnostics for up to 100 gas monitors. Instrument and data management system performs specified regimen of test, calibration, battery charging, and record-keeping functions. LAN-compatible database software supports unlimited number of instruments, allowing centralization of calibration records, gas exposure data, and customized instrument instructions.

E-Mon Corp.    Langhorne, PA 19047
Sep 24, 2003 Energy Translatorâ„¢ is an intelligent hardware interface that translates energy data from multiple meters, sensors, and other inputs into single output format that is compatible with energy management and distributed generation systems. Onboard Pentium-class CPU enables energy data to be uploaded to Internet. Energy Translator feature ruggedized steel enclosure, handles 0–70°C and 90% non-condensing RH, and requires 24 Vac for operation.

Metrobility Optical Systems    Merrimack, NH 03054
Sep 24, 2003 Radiance 4000 utilizes Gigabit Ethernet line card with wavelength-specific SFP pluggable optics based on ITU-T industry standard 20 nm spacing. Line card, available as copper-to-fiber or fiber-to-fiber, provides inline electrical conversion mechanism for monitoring optical power of every link. Scalable R4000 supports up to 12 wavelengths from 1350–1610 nm, and enables service providers to offer up to 12 Gigabits of bandwidth over single fiber link.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 17, 2003 Model DAC2932 dual, 12-bit, 40 MSPS converter features 29 mW power dissipation, 75 dB spurious-free dynamic range, 2.7–3.3 V single-supply operation, and integraton of four 12-bit voltage-output DACs for signal path control. Further optimization can be achieved by lowering output current with adjustable full-scale range of 0.5–2 mA. Power-down mode reduces power dissipation to only 25 µW. Converter is suited for transmit section of communications systems.

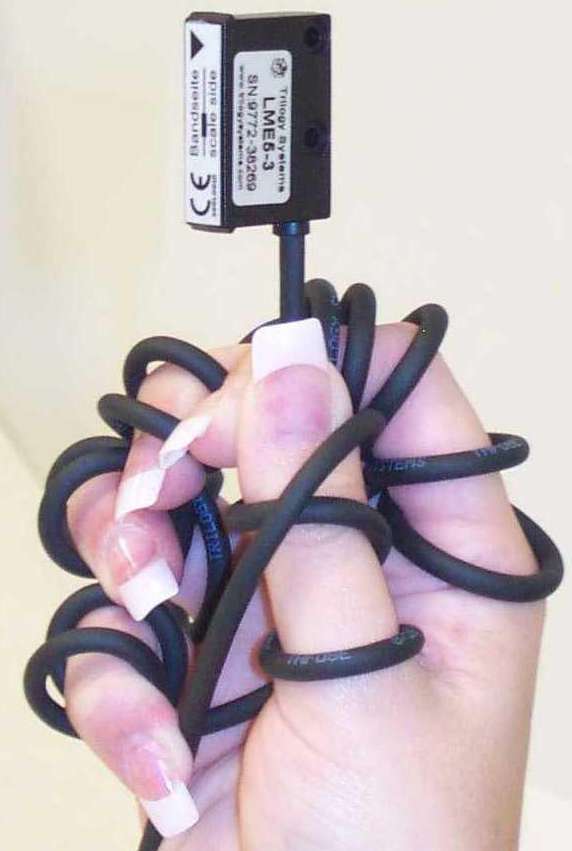

Trilogy Systems Corp.    Webster, TX 77598-5345
Sep 17, 2003 Linear Motor Encoder (LME), available in 1 and 5 µm resolutions, uses proven magnetic tape technology and is impervious to dirt, moisture, and grime. Read head includes interpolation circuitry and reference mark, and cable is direct to drive with no interpolation box or connector. Encoder installs with non-critical alignment and is offered on Trilogy linear motor positioners and actuators.

Sena U.S.A,    San Jose, CA 95134
Sep 11, 2003 Linux-based HelloDevice SS100 employs 32-bit processor, embedded web server, and open Linux platform. It supports RS232/422/485 serial communication, allowing most asynchronous serial devices to be accessed over network via its DB9 serial port. Converter handles serial data transfer rates up to 230 kbps, supports TCP/UDP-based communication modes, and includes modem emulation mode, status monitor, error log monitor, and IP address filtering.

Acton Research Corp.    Acton, MA 01720
Sep 10, 2003 SpectraHubâ„¢ interface is compatible with all proprietary PMT, silicon, and InGaAs single-channel detection systems. USB interface, SpectraSense® software, and SpectraPro 2000 Series imaging monochromators permit scanning spectroscopy and data acquisition through one connection to computer. Detectors connect directly to SpectraHub. Product also includes PMT high-voltage control as well as photon counting compatibility.

Baumer Ltd.    Southington, CT 06489 1534
Sep 10, 2003 ProCoder multi-turn, optical rotary encoder includes ProGeber software, allowing user to program resolution settings, zero points, direction, and bus ID nodes using Windows®-based PC. Featuring 200 G Shock protection and 29 programmable bits of resolution, ProCoder can be integrated into variety of bus systems including SSI, CANopen, DeviceNet, and Profibus via simply exchanged bus cover. Modular system measures 58 mm in dia x 89 mm in depth.

Eurotherm Controls    Leesburg, VA 20175
Sep 09, 2003 DIN rail mount model WV448 utilizes TouchCALâ„¢ technology and provides proportional, selectable DC output. Powered by 9–30 Vdc, unit is field configurable via DIP switches for bridge/strain gauge inputs from ±5 to ±200 mV. Excitation voltage range is 1–10 Vdc @ 120 mA, and outputs can be field-configured for DC signal ranges of 0–10 V, 0–20 mA, or 4–20 mA. All ranges have zero and span adjustability of up to 95% of range via pushbutton.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Sep 09, 2003 Series RDC-19229S-4XX Class K monolithic converters provide programmable 10, 12, 14, and 16-bit resolution, programmable bandwidth and tracking rates, +5 V only input power, and internal synthesized reference. Operating temperature is -55 to +125°C. Units come in 16 x 16 mm, 44-pin ceramic quad flat pack. Typical space applications include motor control, positioning, and reaction wheels.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 09, 2003 OnRAMP lets consumers network legacy audio and video devices such as PCs, A/V receivers, and DVD players to FireWire(TM)-enabled home electronics without upgrading existing equipment. Streaming audio can be transferred from network of FireWire devices to S/PDIF and analog audio connections. OnRAMP can send A/V entertainment and IP data via IEEE 1394b over standard CAT5 cabling. It supports infrared repeating and includes LCD display for status and mode selection.

Sena U.S.A,    San Jose, CA 95134
Sep 08, 2003 Wireless HelloDevice Super Series manages RS232/422/485 based serial devices over network with features such as PCMCIA interface, flexible host mode, security, and event handling. Units present modem interface to serial device in modem emulation mode, accept AT modem commands, and make raw RS-232/422/485 data travel across local LAN. They run embedded Linux OS and support SSLv2, SSLv3, and TLSv1 for secure data communication.

Sena U.S.A,    San Jose, CA 95134
Sep 08, 2003 HelloDevice Pro Series manages RS232/422/485-based serial devices over network. It provides IP address filtering to protect unintentional data streams from being transmitted to serial device. Static key-based 3DES data encryption promises secure data communication. Series supports open network protocols such as TCP/IP, UDP, and PPPoE allowing serial devices to be accessed over DSL-based broadband network or LAN environment. Units transfer serial data up to 115 kbps.
