National Instruments Corp.    Austin, TX 78759-3504
Sep 09, 2005 In addition to 24-bit output channels, Dynamic Signal Acquisition board, Model PCI-4461, offers 24-bit input channels, making it suited for stimulus response applications. Input-only version, Model PCI-4462, provides four 24-bit input channels and 118 dB dynamic range. Engineers can synchronize multiple PCI-4461 and PCI-4462 boards to attain 4-input and 4-output systems or 6-input and 2-output systems. Both boards feature IEEE 1451.4 TEDS capability.

Rockwell Automation / Allen-Bradley/Industrial Automation Sy    Mayfield Heights, OH 44124
Sep 09, 2005 Featuring 16-bit resolution, Flex I/O 12-point analog modules have filtered inputs and are available as input, output, and combination input-output. Eight-point HART analog I/O modules allow Flex I/O to communicate with smart field devices that support HART protocol. They also can access HART digital signal in parallel to 4""20 mA analog signal. Flex I/O bases with D-Shell connectors and optional expansion boards facilitate connection and termination.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Sep 09, 2005 Manufactured with 3U form factor, GX5641 PXI card is used for data acquisition, process control, automatic test equipment and functional test, and factory automation. It consists of 64 Bi-Directional TTL-Differential channels and supports 128 individual digital inputs or outputs. Operated independently or controlled by software, card channels can be predefined to convert TTL to Differential and vice versa.

Pentek Inc.    Upper Saddle River, NJ 07458
Sep 07, 2005 Designed for Xilinx's Virtex II, Virtex II Pro, or Virtex 4 FPGAs, 256-channel Model 4954-430 handles 16-bit real or complex input data at up to 185 MHz. Channelizer stage generates 1,024 fixed adjacent frequency channels with alias-free performance greater than 75 dB across passband of each channel. Each of 256 DDCs has programmable numerically controlled oscillator to implement independent fine-tuning for each channel, and mixer to translate signal of interest to baseband.

Swann Industries Corp.    Live Oak, FL 32060

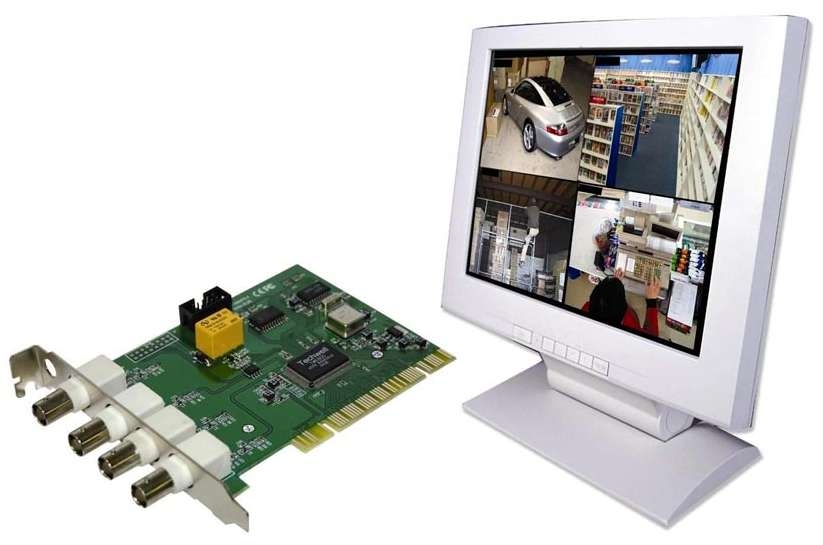

Sep 02, 2005 Offering digital video recording and remote-view capabilities, PC DVR-4 NET turns any home or office PC into digital video security monitoring system where users can simultaneously view up to 4 camera feeds. PCI security card can also email still picture of feed when breach of security has occurred. For installation, user inserts card into PC, installs plug and play software, and connects up to 4 cameras (upgradeable to 16 cameras).

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

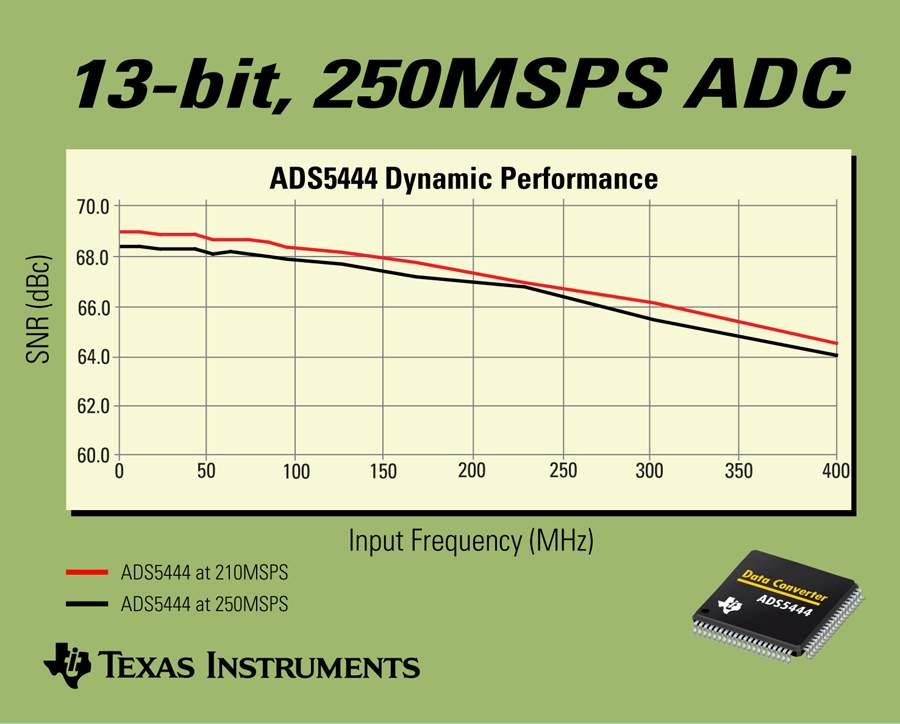

Sep 02, 2005 Manufactured in 80-pin TQFP PowerPadâ„¢ package, ADS5444 incorporates high-bandwidth input buffer, linear track-and-hold stage, and internal reference. Analog-to-digital converter (ADC) operates from 5 V supply and provides LVDS-compatible digital outputs from 3.3 V supply. Specified over -40 to +85°C temperature range, product offers 68 dB SNR and 75 dB spurious-free dynamic range at max sample rate of 250 MSPS and input frequency of 230 MHz.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

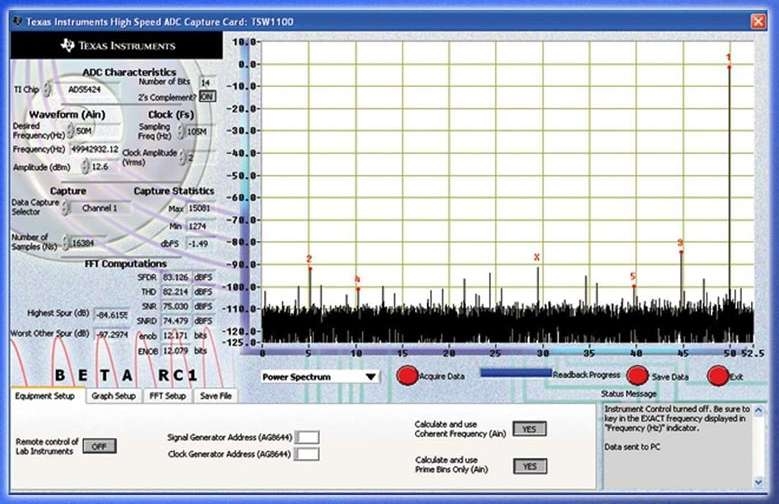

Sep 02, 2005 Enabling digital data capture from high-speed, high-resolution ADCs, TSW1100 card and software allow user to evaluate ADC performance. Card can operate in single- or dual-channel mode with data capture speeds to 170 MSPS, resolution to 16-bits, and data capture depths up to 1 million points. Data is transferred via USB interface, and software ENABLES users to compute ADC performance metrics such as SNR and SFDR as well as save raw data set or performance graphs.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Sep 02, 2005 Designed for users in facilities without fieldbus I/O, Rosemount® 3420 Fieldbus Interface Module enables installation of FOUNDATIONâ„¢ fieldbus devices with any host system. It provides access to predictive diagnostic information, enabling asset management and performance optimization within AMSâ„¢ Suite. Module uses web server technology to facilitate commissioning, configuration, and maintenance tasks.

Creative Labs, Inc.    Milpitas, CA 95035
Sep 02, 2005 Standalone, self-powered Home Theater Connect DTS-610 connects media center or standard PC to multi-channel consumer electronics receiver. All audio from PC, including multi-channel and DRM-protected content, can be sent through sound card's analog outputs. Content is then encoded in real-time with DTS Interactive and digitally output for playback on surround-sound home theater system.

Atmel Corp.    San Jose, CA 95131
Sep 01, 2005 Featuring embedded 1:4 LVDS demultiplexer for direct interface with standard FPGAs, 10-bit AT84AS004TP has clock frequency of 2 GSps and SNR of 51 dB @ 2 GSps in first Nyquist conditions. Gain flatness remains flat at ±0.2 dB from dc to 1.5 GHz. Offered in EBGA317 package, product operates over commercial and industrial temperature ranges. It suits high-speed digitization applications such as broadband test and measurement equipment and high-speed DAQ.

Astro-Med, Inc.    West Warwick, RI 02893

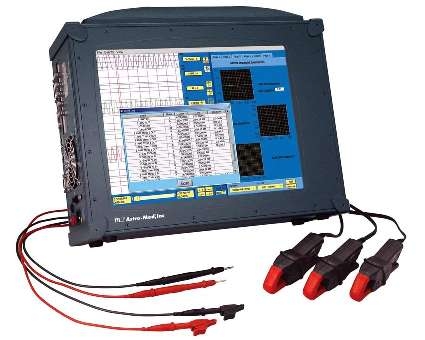

Aug 30, 2005 Portable data acquisition and analysis recorder, Dash 8Xe, captures 8 channels of data to 36 Gb internal drive at fixed sample rate of 6,250 Hz. In transient mode, high-speed glitches and other anomalies are captured at sample rate of 200 kHz/channel. Utilizing AstroPower(TM) Monitoring Software, various power events, such as interrupts, swells, sags, harmonics, unbalance, and power factor can be recorded and reviewed with real-time and post-capture data analysis.

Weidmuller, Inc.    Richmond, VA 23236

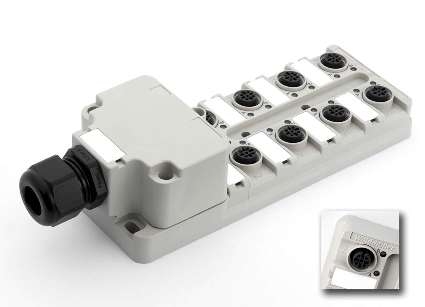

Aug 26, 2005 Available with 4, 6, or 8 M12 ports, ECO SAI Blocks are designed with pluggable connection hood for bus lines. In case of defective cable, only cable needs to be exchanged, not entire distributor. Screw connection technology connects bus line across terminal range of 0.1–1.5 mm². Captive fixing screws are steel with slotted and cross-recessed heads. Housings are plastic Pocan, a self-extinguishing material with flammability class of UL 94 VO.

Computer Conversions Corp.    East Northport, NY 11731

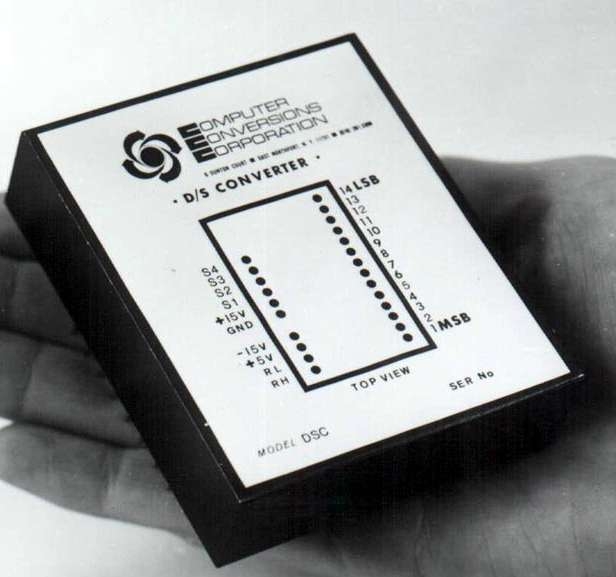

Aug 24, 2005 Measuring 2.6 x 3.1 x .60 in., Digital to Synchro Converter Modules accept 14-bit natural binary angle and convert it into 3-wire synchro or 4-wire resolver signal. Standard output voltages are 90 or 11.8 V RMS L-L, 60 or 400 Hz. Output is short circuit protected and loading of 1.5 Va is available. Digital inputs are TTL/DTL compatible, and synchro output and reference is fully transformer isolated. Operating temperature is 0–70°C or -55 to 85°C.

Computer Conversions Corp.    East Northport, NY 11731
Aug 24, 2005 Offering output power of 1.5, 2, or 5 Va, STB/DSC Series consists of single-slot STD Bus converters that will accept up to 16-bit natural binary information and convert it to 11.8 or 90 V synchro or resolver information from 50 Hz to 5 KHz. Data is addressable in 2 byte format over STD backplane. Outputs are short circuit proof and current limited. Only 60 Hz units require external transformer. Operating temperature is 0–70°C or -55 to +105°C.

Computer Conversions Corp.    East Northport, NY 11731

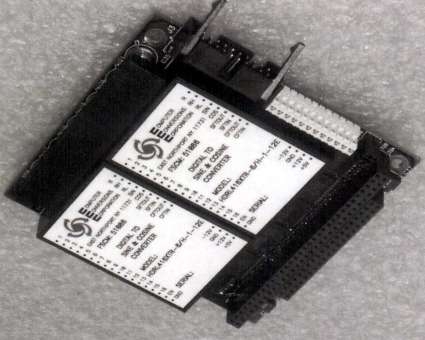

Aug 24, 2005 Series PC104-DS offers 2 channels of Digital to Synchro and Digital to Resolver conversion in standard stack-through PC 104 footprint. Units feature 16-bit resolution, transformer isolated reference inputs, and completely short-circuit proof outputs capable of driving up to 1.2 Va load/channel. Reference inputs are 2-115 Vac at 57–3,000 Hz, and external output transformers are available for driving 90 V L-L signals on 60 Hz applications.

Two Technologies, Inc.    Horsham, PA 19044

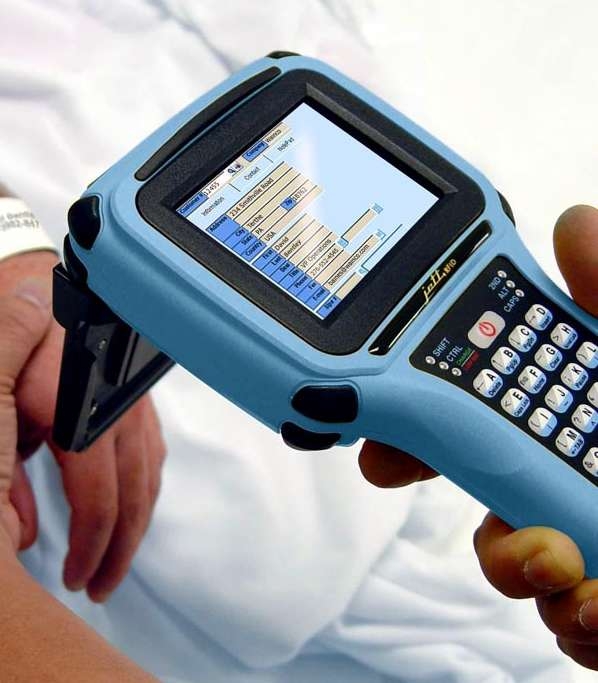

Aug 24, 2005 Featuring field-upgradeable Software Defined Radio (SDR) architecture, customizable JETT®â€¢RFID+ is provided with Microsoft® Windows® CE .NET v4.2 OS and Intel® XScaleâ„¢ Technology processor. Its HF 13.56 MHz reader/writer enables unit to read tag IDs, read and write data blocks, as well as authenticate and encrypt data to and from compatible tags. Adjustable antenna allows for reading 13.56 MHz tags in any orientation.

Computer Conversions Corp.    East Northport, NY 11731

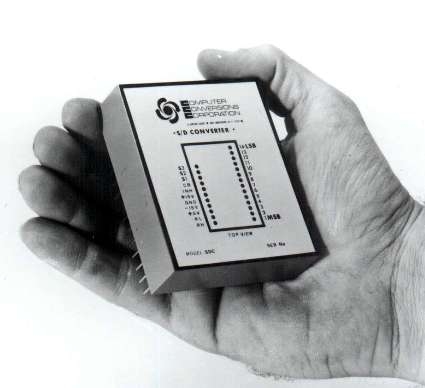

Aug 23, 2005 Synchro-to-Digital Converters provide DC voltage output proportional to velocity, in addition to 10, 12, or 14-bit digital output. Velocity output of ±10 Vdc can be used as feedback signals in closed loop servo systems and also to replace tachometers. Mounted to PCBs, 2.6 x 3.1 x 0.82 in. modules convert synchro or resolver inputs of 11.8 or 90 V/400 Hz or 90 V/60 Hz into parallel binary outputs representing angle with accuracy up to ±4 min of arc.

Red Lion Controls    York, PA 17406 9428

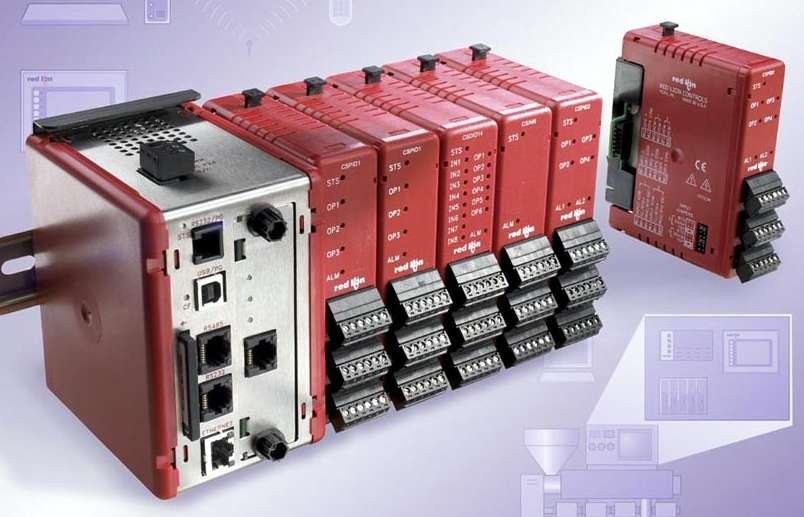

Aug 22, 2005 Master Controller module lets users create virtual HMI, allowing machines to be controlled and monitored via any networked PC and standard Web browser. Able to log system data directly to CompactFlash, module provides platform for data acquisition and management as well as multi-zone PID control. Downloadable PLC drivers eliminate need to write PLC protocols. Integrated gateway web-enables all connected devices, and built-in web server offers access to variables via web pages.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Aug 19, 2005 Engineered for operation in hazardous environments, IP65-rated PT100 temperature module includes 4 inputs for PT100 RTDs. Unit is field-mountable with connection to outputs established through PG cable glands and cage tension spring terminals. Users may pre-address module by plugging it onto adapter of hand-held programming device. Various bases are available for connection to AS-Interface flat cable, or to round cable.

Rockwell Automation    Milwaukee, WI 53204
Aug 19, 2005 Offering scalable functionality, Enpac 2500 provides condition monitoring and analysis for rotating equipment to help identify and correct problems before they impact production and safety. It uses Spike Energy and ESP technology for early bearing wear detection and includes internal laser tachometer to take speed and phase measurements. Along with icon-driven menu system and 1/4 VGA color display, product delivers 2-plane balancing and 2-channel functionality.
