Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

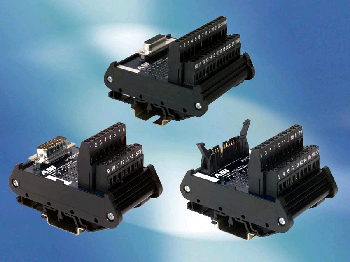

Apr 21, 2006 Models IMDS15 and IMDS25F are screw terminal to D-sub connector modules that feature component holes on PCB, screw-lock connectors, clearly marked terminal blocks, and position on board for labeling module. Model IMRC50 screw terminal to 50-position ribbon cable connector includes all features as listed on D-sub I/O interface modules. Sharing same dimensions, all modules come in similar black housing with blue printed circuit board.

Pericom Semiconductor Corp.    San Jose, CA 95131
Apr 21, 2006 Models PI3HDMI412-A, PI3HDMI412-B, PI3HDMI412FT, and PI3HDMI413 High-Definition Multimedia Interface (HDMI) switches are suited for multi-source/multi-sink video applications including TV, monitor, set-top box, switch box, and KVM. High-bandwidth differential switch devices are used to transfer HDMI and DVI digital video signals from source to display. Housed in lead-free package, switches offer low signal degradation and are ESD tolerant.

Microstar Laboratories, Inc.    Bellevue, WA 98004-3039

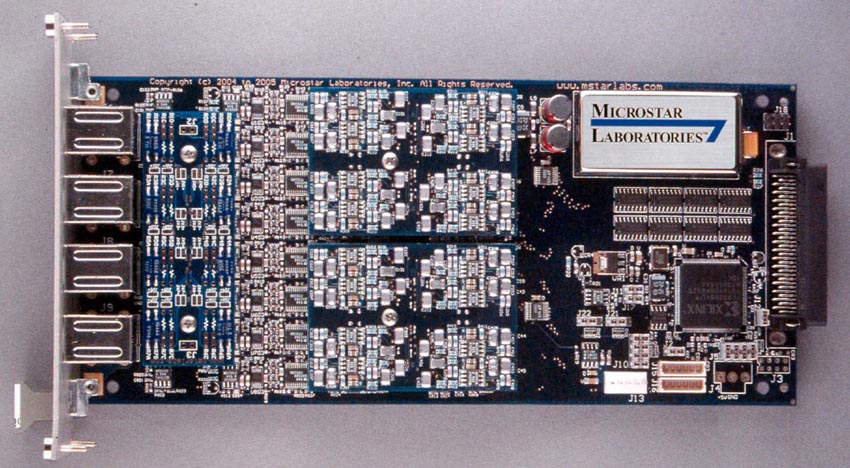

Apr 18, 2006 Providing analog signal conditioning for strain gauges, load cells, RTDs, and other resistive sensors, MSXB 066 and MSXB 067 offer interface for quarter-bridge, half-bridge, and full-bridge sensors, with 2-6 wires for each sensor, with or without voltage sense feedback. MSXB 067 board includes a fourth-order lowpass filter on each channel to ensure that sampled data contains no alias errors. Boards have 8 differential input channels and 16 differential outputs on backplane connector.

Electro Standards Laboratories    Cranston, RI 02921 3403
Apr 18, 2006 CellMite Quad, Model 4336, is 4-channel instrument that connects directly to 2 ac LVDT transducers and 2 dc strain gage force transducers and provides direct digital data input into PC serial port. Precision ac sine wave excitation voltages to power LVDTs and precision dc excitation voltages to power force strain gage bridges are generated by unit. System features CellView Multi-Unit GUI software and applies internal signal conditioning with filtering to all channels.

C & D Technologies, Inc., Powercom Div.    Blue Bell, PA 19422

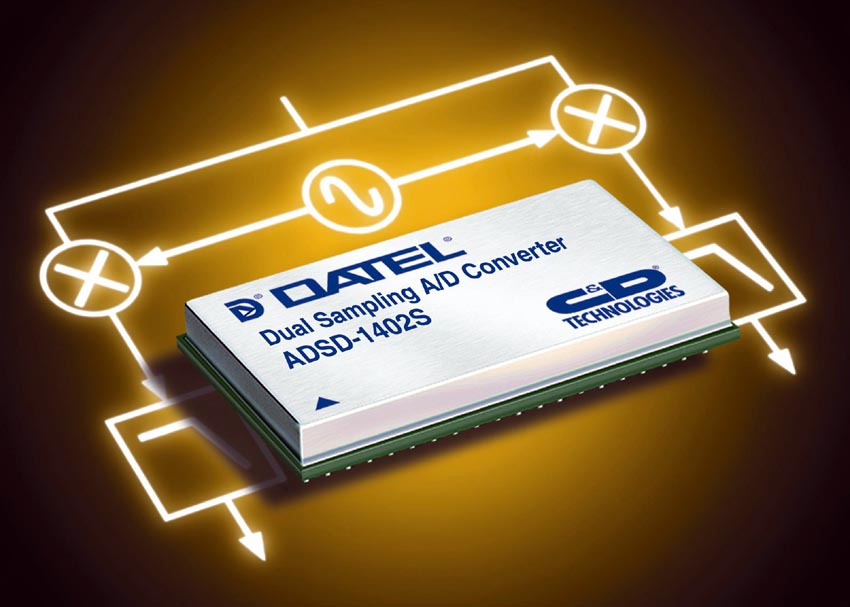

Apr 17, 2006 Available with commercial and military temperature range options, dual-channel 14-bit DATEL ADSD-1402S delivers 2 MS/sec sampling rate. SMT 40-pin TDIP package incorporates out-of-range indicator and all timing and control logic necessary to operate from single edge-triggered start convert pulse. Characteristics include low noise of 250 µV rms, 79 dB SNR, -80 dB THD, and 12 MHz input bandwidth. Device operates from ±5 V supply with power consumption of 600 mW.

Advantech Co. Ltd    Irvine, CA 92618
Apr 17, 2006 Featuring 8 differential and independently configurable channels, Model ADAM-4117 DAQ Module offers input range of +10-48 Vdc and supports unipolar and bipolar inputs. Encased in industrial-grade ABS plastic, built-in microprocessor provides intelligent signal conditioning, analog I/O, digital I/O, LED data display, and address mode. Module includes 1 kV surge protection on power input, 3 kV ETF, and 8 kV ESD protection. It supports Modbus/RTU protocol as well as ASCII-based protocol.

Atmel Corp.    San Jose, CA 95131
Apr 14, 2006 Monolithic Model AT84AS001TP enables system designers to digitize signals with frequencies up to 250 MHz at 12-bit resolution. With 0.5 dB band flatness from DC-250 MHz, unit provides 62 dBc SNR, 75 dBc SFDR, and 10 ENOB at 500 Msps over first Nyquist zone with 2-tone inter-modulation distortion limited to -70 dB. Required analog input signal amplitude is 1.1 Vpp, and can be ac or dc coupled. Three-wire serial interface offers software control of ADC gain and offset.

RC Electronics Inc.    Santa Barbara, CA 93117 3110
Apr 12, 2006 Designed for data acquisition applications requiring large channel counts and varying sensor types, DTX-5000 line of Programmable Signal Conditioning Systems features 64 channel 5U chassis. Plug-in 4-channel signal conditioning modules are fully shielded, have 16-bit ADC and DSP for each channel, and are available for measurement of voltage, strain, temperature, acceleration, and frequency to voltage conversion. Systems are powered by onboard Pentium® IV processor running Windows(TM).

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Apr 11, 2006 Suited for inventory, part ID, routing, and error tracking applications, IDENT Control comes in cast aluminum housing and features graphical display and configuration keys that facilitate setup and operation. Data collection solution enables short range and long range RFID read/write data carriers to operate simultaneously, reading data up to 120 mm and 2 m away respectively. Interfaces are provided for Ethernet, PROFIBUS, and RS232 serial communication bus systems.

Diamond Systems Corporation    Mountain View, CA 94043
Apr 11, 2006 GPIO-MM uses Xilinx Spartan II FPGA to implement digital I/O (DIO) logic, allowing unit's hardware to be reprogrammed to serve multiple PC/104 I/O applications with different DIO requirements. Along with on-board flash memory and 100 I/O pins, product includes FPGA code to configure unit with 48 programmable-direction DIO pins based on 8255 cores, 8 fixed-input signals, 8 fixed-output signals, and ten 16-bit counter/timers based on 9513 cores, supported by 40 MHz clock.

WAGO Corp.    Germantown, WI 53022

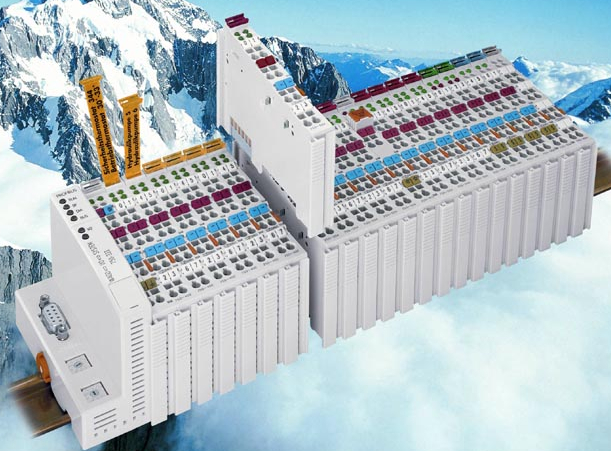

Apr 07, 2006 WAGO-I/O-SYSTEM 750 Series includes fieldbus couplers for CANopen, Modbus, and Ethernet; digital I/O modules; analog I/O modules; and special function modules such as serial communication modules. Modules feature 2, 4, or 8 channel granularity in 12 x 64 x 100 package size, and support applications that typically reside outdoors, such as pump stations, electrical sub-stations, and temperature controlled containers.

KineticSystems Co., LLC    Lockport, IL 60441-2200
Apr 06, 2006 Octopus(TM) Digitizer Cards combine 10-125 MS/s sampling per channel and up to 4 GB on-board acquisition memory on single-slot PCI card. For large channel-count test systems, several Octopus cards can be combined to provide up to 128 digitizing channels. Each card can have different number of channels, sampling speeds, and on-board memory. Units are compatible with GageScope® oscilloscope software, which allows users to acquire and analyze signals without writing programming code.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 06, 2006 DSP-based TNETV1061 provides complete software and silicon solution, anchored by dual-processor architecture, suited for simultaneous voice processing and data traffic under heavy-load conditions. It integrates Telogy Software(TM) for VoIP with strength of DSPs for real-time signal processing. Along with security features such as Secure RTP and SIP TLS, solution supports voice and network protocols, call features, XML-based configuration, and remote management.

Cal Test Electronics, Inc.    Yorba Linda, CA 92887
Apr 05, 2006 Sized for standard .012-.031 in. contact pins, PRO 555 Solderless Breadboard contains 2 side-by-side zones of 5 contacts by 43 rows for IC's and components, plus 5 lines of 5 x 5 contacts for power and grounding. Clear polycarbonate rear plate allows easy view of contacts. Board has 25,000 cycle contact life. Designed to work with standard and sheathed banana plugs, 5 binding posts facilitate user power, ground, and signal connections.

Measurement Computing Corp.    Norton, MA 02766

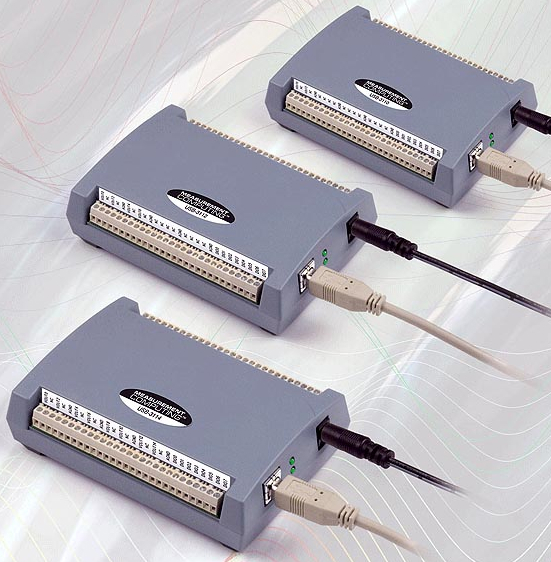

Apr 04, 2006 Compatible with USB 1.1 and 2.0 ports, 16-bit USB-3100 series integrates high-drive voltage outputs that eliminate need for external high-drive amplifiers. Each voltage output is capable of sinking/sourcing up to 40 mA of load current, and bidirectional synchronization pin lets users update DAC outputs simultaneously on multiple devices. Respectively, USB-3110, -3112, and -3114 are 4-, 8-, and 16-channel units with 8 DIO connections and one 32-bit event counter.

Pericom Semiconductor Corp.    San Jose, CA 95131
Apr 04, 2006 Signal Conditioning Re-Drivers, models PI2EQX3201, PI2EQX3202, PI2EQX4501, and PI2EQX4502, are designed to manage high-speed protocols like SATA, SAS, XAUI, Fibre Channel, and PCI Express. Operating up to 4.5 Gbps bandwidth, units solve high-speed signal integrity problems occurring on PCB boards or through cables and multiple connector points. Device boosts signals by combining programmable equalization and de-emphasis techniques at Transmit and Receive points.

4Wave, Inc.    Sterling, VA 20166
Apr 03, 2006 Small form factor receive optical sub-assembly, Quad LX4 ROSA multi-filter chip is a 4-channel CWDM optical component consisting of 4 optical filters deposited on single piece of fused silica and used to demultiplex the 10Gbps data into 4 separate 2.5 Gbps channels. Each channel is fitted with its own high-speed photo detector and transimpedance amplifier. Product is designed for use in X2/XPACK transceiver modules.

Woodhead Industries Inc.    Deerfield, IL 60015
Mar 31, 2006 Family of 60 mm wide IP67 BradControl(TM) discrete I/O modules for PROFIBUS® come in 8-port 16-channel format with 4 I/O configurations supporting both PNP and NPN input devices. Modules are equipped with diagnostic LEDs to provide status information on network, power, inputs, and outputs, while Ultra-Lock(TM) system provides push-to-lock mechanism for secure connections between I/O module and I/O devices. Machine mountable modules are suited for automated assembly equipment.

National Instruments Corp.    Austin, TX 78759-3504
Mar 31, 2006 Enabling engineers to integrate more than 30 Compact FieldPoint I/O modules into systems, 4-slot Model cFP-1804 and 8-slot Model cFP-1808 natively communicate with variety of protocols running on RS232 serial or Ethernet, including Modbus RTU, Modbus TCP, Modbus ASCII, Optomux, and NI's event-driven protocol. Operating from -40 to 70°C, Compact FieldPoint platform provides Class I, Div 2 industrial ratings and contains built-in diagnostics for network failures.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Mar 29, 2006 Model WM-IIRO-8 intelligent 8-bit parallel digital I/O unit features 8 Form C SPDT electromechanical relays and 8 optically isolated digital inputs with change-of-state interrupt generation. Unit communicates with wireless serial modem via 900 MHz connection at distances up to 7 miles line-of-sight, 20 miles with optional antenna. The 8 isolated inputs are driven by dc sources of 3-28 V or ac sources at frequencies of 40 Hz to 10 kHz, and are not polarity sensitive.
