Balluff, Inc.    Florence, KY 41042-0937

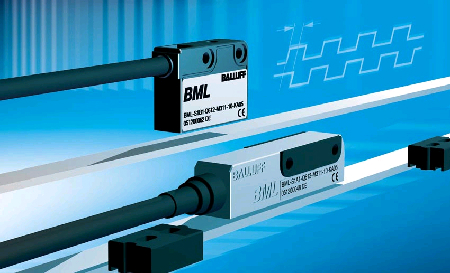

Aug 01, 2006 Featuring sensing head that floats above precision-encoded magnetic band, Series BML monitors linear load position, independent of actuator drive employed, eliminating incorrect position information due to backlash. Configuration delivers up to 24 m of non-contact, wear-free position tracking at up to 10 m/s with no signal degradation. Model S1A offers max resolution of 1 µm and system accuracy of ±10 µm, while Model S1B provides 5 µm resolution and ±50 µm accuracy.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Aug 01, 2006 Supplied as 16-bit devices, dsPIC® digital signal controllers (DSCs) and PIC24H microcontrollers (MCUs) allow multiple parties in collaborative system design to share memory, interrupts, and peripherals of single chip without compromising their intellectual property (IP). CodeGuard(TM) security lets OEMs divide and share 3 segments of on-chip memory with tiered levels of access. Features also enable secure field upgrades of product firmware.

Rockwell Automation    Milwaukee, WI 53204

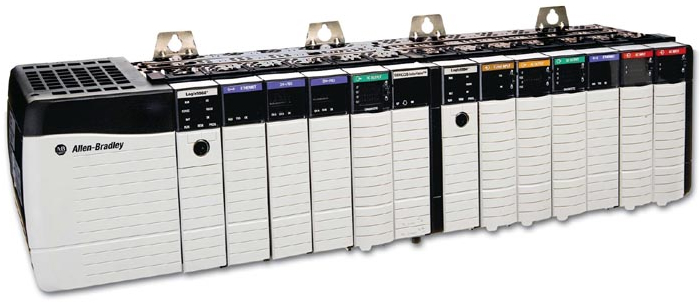

Jul 28, 2006 ControlLogix controller 1756-L64 provides speed and processing capabilities that meet plant floor application demands. Memory is used to store and execute recipe data or handle projects and applications with intensive data requirements. Also included, CompactFlash memory socket provides removable and portable nonvolatile storage for user programs and tag data. Controller firmware is also stored on CompactFlash card.

Wilkerson Instrument Co., Inc.    Lakeland, FL 33811
Jul 28, 2006 Control unit, DR9050, interfaces to Modbus RTU RS485 network and allows user's Modbus® Controller to access 1-247 remote units (DR9051), which are available with dual 4-20 mA inputs, RTD input, or strain gauge input. Each DR9051 also has 4 discrete inputs for monitoring switch status. RF connection can be 900 MHz or 2.4 GHz, where former provides communications over line of sight distances up to 20 miles. Both wireless RF systems use spread spectrum frequency hopping technology.

Linear Technology Corp.    Milpitas, CA 95035
Jul 27, 2006 With power dissipation of 395 mW per channel, 14-bit, 125 Msps Model LTC2285 features integrated bypass capacitance and 50 ohm series output matching. Users can choose between 2 input spans of 1 or 2 Vp-p. Housed in 9 x 9 mm QFN package, converter offers data-ready clock-out pin for latching output data buses. It is optimized for undersampling signals up to 140 MHz, has analog input bandwidth of 640 MHz, and provides low crosstalk of -110 dB between channels.

Symbol Technologies, Inc.    Holtsville, NY 11742
Jul 27, 2006 Built to industrial and military grade specifications for vibration, shock, temperature, and sealing, VC5090 vehicle-/fixed-mount mobile computer enables data access and collection on forklifts used in harsh environments. Along with real-time processing and seamless connectivity to wireless LAN via 802.11a/b/g, RFID-ready product also offers touchscreen for data input, wireless scanning and printing via Bluetooth, and push-to-talk handset.

Visteon    Dearborn, MI 48126
Jul 27, 2006 Available as aftermarket option for wide range of Volkswagen vehicles, USB Audio Interface Module allows users to connect USB sticks and portable media players to vehicle's audio system and listen to music without carrying CDs in car. Mounted in center console, plug-and-play system supports MP3 and other common digital music formats, and allows music to be selected and controlled via audio interface or optional multifunction steering wheel.

CyberResearch, Inc.    Branford, CT 06405 2932

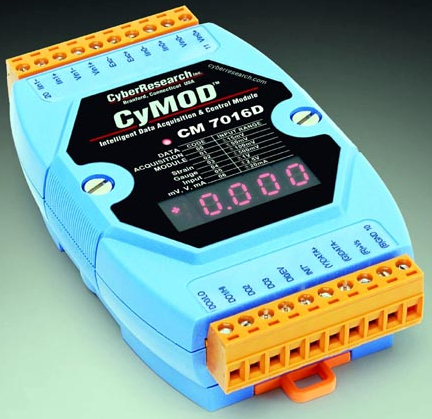

Jul 26, 2006 Smart remote CyMOD 7000 data acquisition (DAQ) modules communicate over Ethernet, USB, and RS-232/422/485 networks. While analog input models include two 8-input models with strain-gauge support, 2 analog output modules feature programmable power-on values and output slopes. Also available, 12 digital I/O modules have inputs that can also be used as 16-bit counters, outputs that support up to 100 mA per channel, and LEDs for I/O and relay status.

Accu-Sort Systems, Inc.    Telford, PA 18969 1196

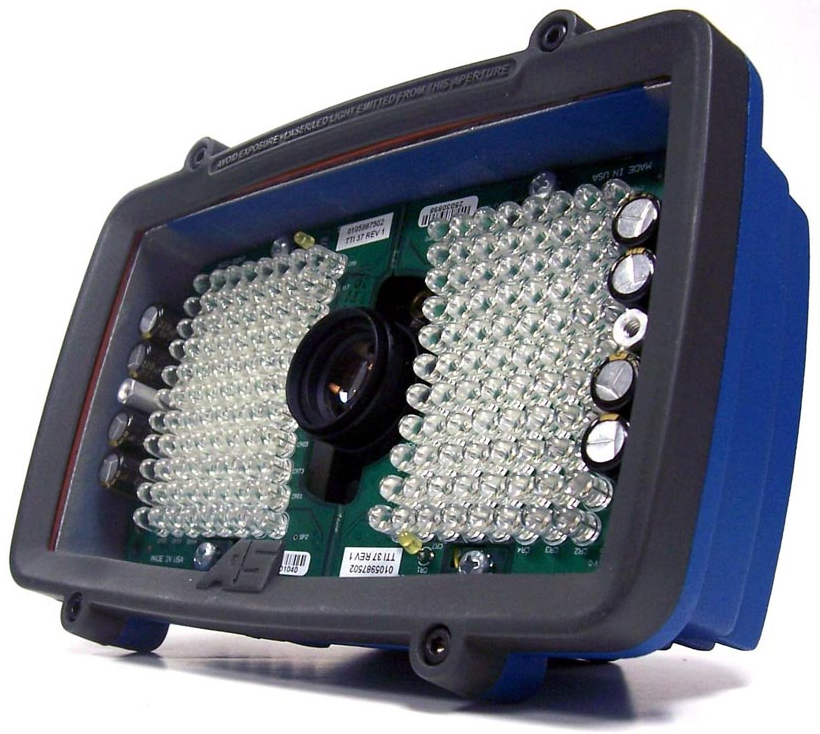

Jul 26, 2006 Able to fit on production line or hand picking area, AccuVision® HandsFree(TM) CCD camera and decoder offers first pass read rate of over 99%. Its decode software reads 2D and linear bar codes on stationary or moving objects. Along with integrated LED illumination, product features laser targeting system and browser-based setup and interface software. Decoder can differentiate between codes in camera's field of view or decode multiple codes simultaneously.

Admotec, Inc.    Lebanon, NH 03766 1500

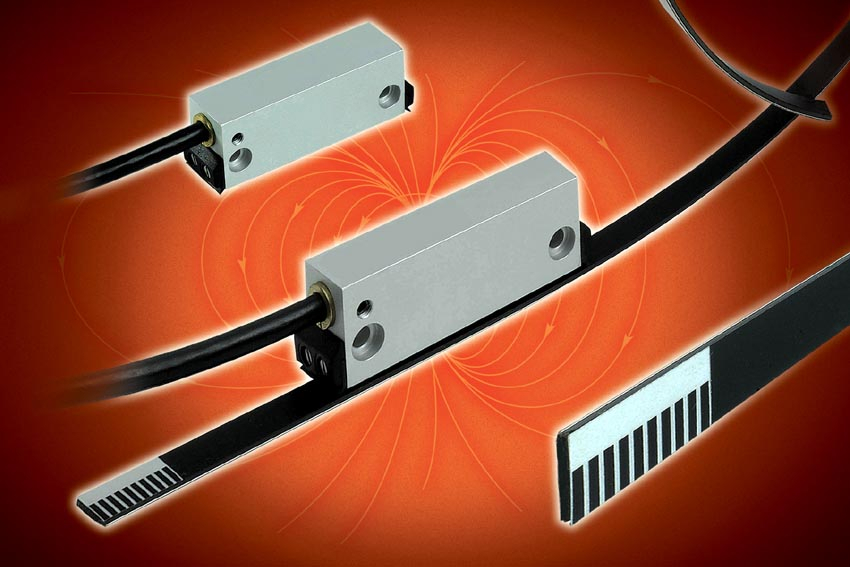

Jul 25, 2006 E Series linear magnetic encoders consist of self-adhesive stainless steel backed magnetic tape and magnetoresistive sensor with resolution enhancing interpolator. Resolutions of 0.5-200 µm/edge can be chosen. Sensors feature CE approved IP67-rated aluminum housing with stainless steel bottom and 2 adjustable wipers at each end for cleaning while sensor moves. Encoder systems are suitable for textile, woodworking, packaging, plastics, machine tool, and marking machinery.

C & D Technologies    Mansfield, MA 02048-1151

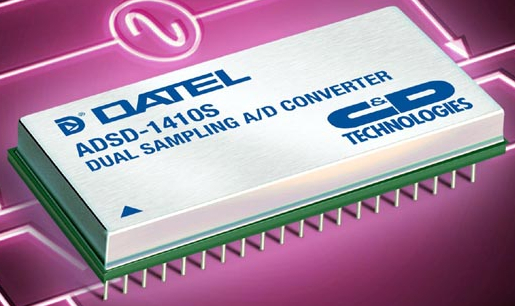

Jul 21, 2006 Rated for 10 Msamples/sec operation, ADSD-1410S offers functionally complete module in 40-pin, triple-wide SMT DIP. It comes in two versions rated for use in ambient temperature ranges of 0 to +70ºC and -55 to +125ºC (ADSD-1410S-EX) and delivers no-missing-code performance. Fully integrated product features 2 fast-settling sample/hold amplifiers, dual 14-bit ADCs, multiplexed output buffers, precision reference, edge triggering, and all necessary timing and control logic.

GE Intelligent Platforms    Charlottesville, VA 22911
Jul 18, 2006 With connections made using spring-loaded terminal strips, Terminal Type I/O speeds up wiring process and ensures that wires will not become loose due to vibration. Each module provides 24 inputs and 16 outputs, and each group can have maximum of 4 modules. Rated 24 V, products do not require distribution boards. Connection to CNC is made with high-speed I/O bus, FANUC I/O Link. Along with LED status indicators for each I/O device, modules feature optically isolated output circuit.

BEI Sensors (BEI Industrial Encoders)    Goleta, CA 93117

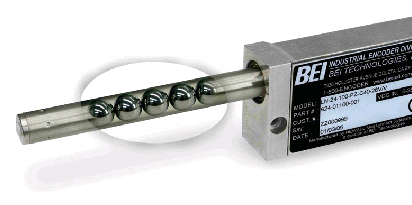

Jul 12, 2006 Designed with stainless steel scale, sealed read head, and IP67 rating, LN Series offers resistance to shock, vibration, and contaminants. Encoders provide repeatable position feedback and can function in harsh industrial environments with no air purging system required. Operating from 5-28 Vdc, units offer measuring resolutions of 0.5-10 µm and scale measuring lengths from 2-36 ft. They are equipped with line driver or open collector outputs and universal mounting adapters.

Motorola, Inc.    Schaumburg, IL 60196 4041
Jul 12, 2006 Motorola Home Hub HH1620 DSL VoIP Wireless Gateway includes 802.11 b/g wireless access point, four-port router, USB 2.0 Host Connection, and USB 1.1 slave connection. Connection is maintained during ADSL signal loss or power outage with PSTN fail-over protection. Session Initiation Protocol (SIP)-based VoIP adapter allows HH1620 to run wired and wireless home networks and power standard telephones with VoIP service.

Omega Engineering, Inc.    Stamford, CT 06907

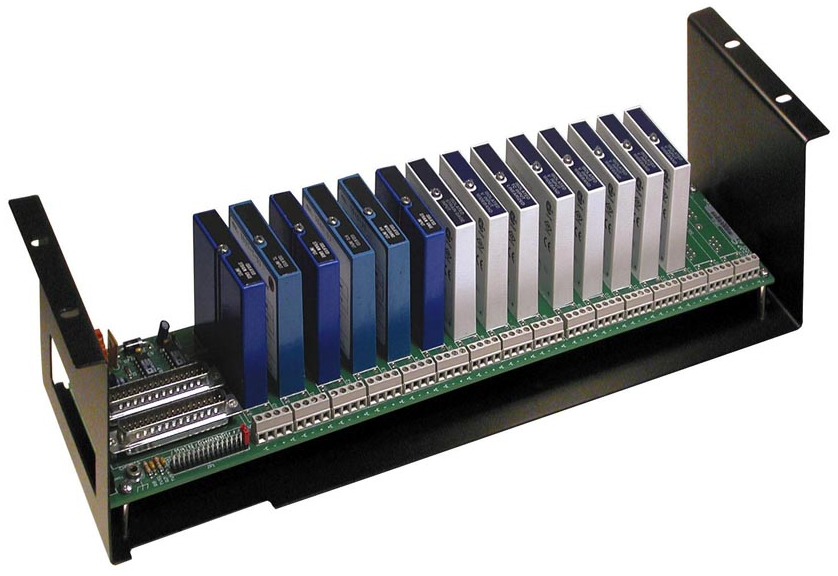

Jul 11, 2006 Each channel of OMB-DBK207 and OMB-DBK207/CJC accepts OM5 (5B) isolated analog input module. With DaqView software, any channel can be configured to measure temperature, strain, voltage, current, or frequency. Up to 16 cards can be daisy-chained together for maximum capacity. Model OMB-DBK207/CJC has cold junction compensation for obtaining linearized and compensated values from OM5 (5B) thermocouple modules. Both cards use 5 Vdc power supply.

LI-COR, Inc.    Lincoln, NE 68504
Jul 10, 2006 Available in 8- or 16-port configurations, LI-8150 Multiplexer is capable of assessing spatial and temporal variability in CO2 flux. It allows up to 16 chambers to be controlled by single LI-8100 Analyzer Control Unit, which can monitor total coverage area of up to 30 m dia. Weatherproof case protects internal solenoid valves, control electronics, LED indicator panel, and filter assemblies. Flash memory or Compact Flash cards can be used for storing readings.

Phoenix Contact    Harrisburg, PA 17111 0100
Jul 06, 2006 Compatible with wireless BD, XD and Data BD Bus radios, Pulse Input/Output Expansion Modules allow direct pulse information to be transmitted wirelessly from remote locations. Digital pulse input module, which includes back-up power supply, accepts pulse/frequency signals, while output module reproduces pulse counts or frequency outputs. Devices are addressed with 8-position rotary dial, and selectable dip switch allows user to choose between frequency or counter modes.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

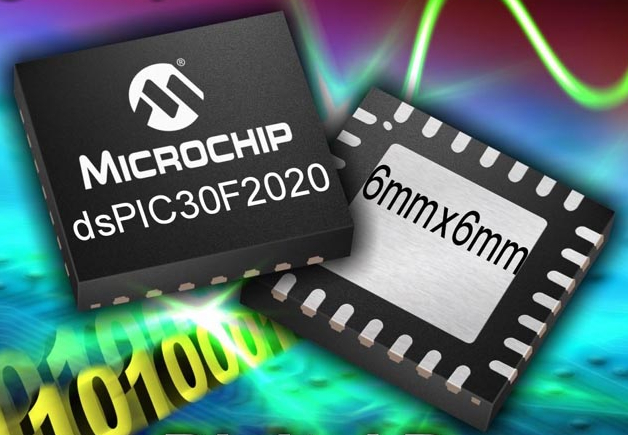

Jul 05, 2006 Used in multi-loop switch-mode power supplies, 16-bit dsPIC® Digital Signal Controllers (DSCs) enable full control of power conversion process. Models dsPIC30F1010 and dsPIC30F2020/2023 have onboard PWM with 1 nsec resolution and 7 modes of operation. Onboard, 10-bit ADC enables complete digital loop control and has up to 12 input channels and 2 MSPS sample rate. While dsPIC30F1010 devices have 6 KB Flash and 2 PWM generators, dsPIC30F202X devices have 12 KB Flash and 4 PWM generators.

Adtran Inc.    Huntsville, AL 35806 2807
Jul 05, 2006 Positioned to address any access or metro ring application, OPTI-6100 Multi-Service Provisioning Platform (MSPP) enables delivery of Ethernet, DS1, DS3, and optical services directly from OC-48 rings. Ethernet in the First Mile (EFM) capabilities provide carriers with means to host multiple bonded circuits and aggregate said circuits into single element. Unit provides scalability from OC-3 to OC-48 and offers flexibility to add additional network bandwidth.

B & R Industrial Automation Corp.    Roswell, GA 30076

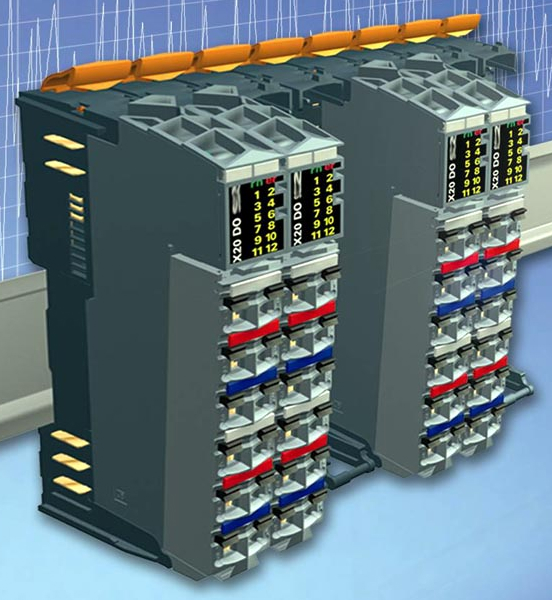

Jul 03, 2006 Offered in 2- and 4-channel versions, 16-bit X20 modules enable configuration for software filters as well as measurement function of individual channels for current or voltage. Min and Max values are continually resaved to 12 KB memory, independently of bus or CPU clock, and can be read by CPU at any time. Along with 50 µs conversion time, modules offer various sampling methods that can be configured using definable trigger conditions or direct start from CPU.
