North Atlantic Industries, Inc.    Bohemia, NY 11716
Jun 18, 2008 DSP-based 73LD4 includes 6 independent, isolated, programmable LVDT/RVDT tracking converter measurement channels, each featuring 16-bit resolution, 0.025% FS accuracy, 150 strokes/sec max tracking rate, digital velocity output, incremental encoder outputs, and wrap-around self-test. Operating over 360 Hz to 10 KHz range, each unit also has 2-28 Vrms auto-ranging input, 16 programmable TTL DIO channels, and latch feature for simultaneous channel measurement.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

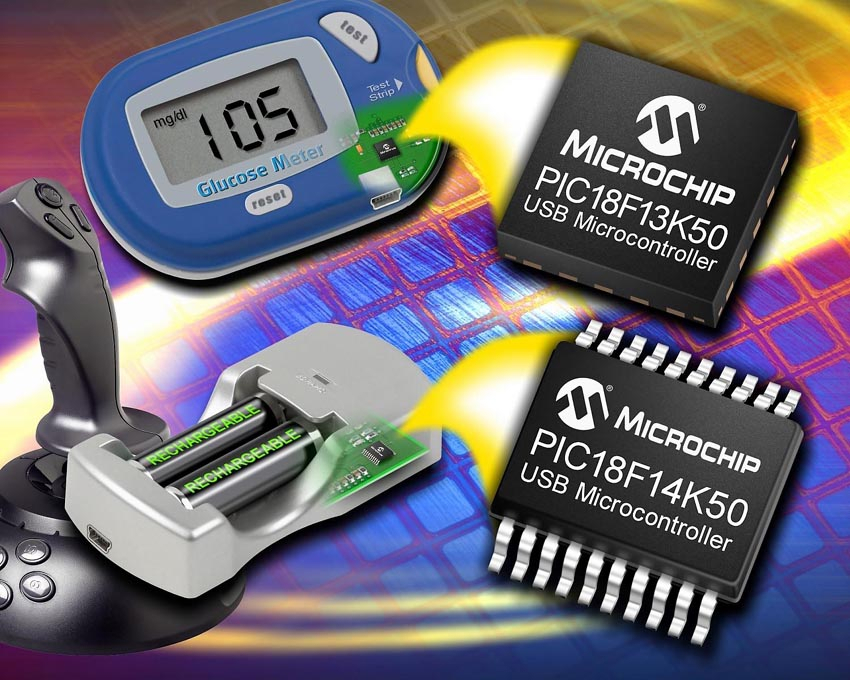

Jun 18, 2008 Including Models PIC18F13K50 and PIC18F14K50, Series PIC18F1XK50 8-bit PIC® microcontrollers include host of serial communication interfaces, such as USB 2.0, I2C(TM), SPI, and USART, enabling them to transfer data between USB and other embedded serial networks. They also provide 10-bit, 9-channel ADC and dual comparators with S/R Latch. Model PIC18F13K50 has 8 Kb Flash and 512 Bytes of RAM memory, while PIC18F14K50 has 16 Kb Flash and 768 Bytes of RAM.

Microstar Laboratories, Inc.    Bellevue, WA 98004-3039

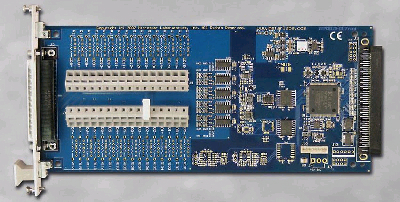

Jun 16, 2008 With Model MSXB 084, users can implement signal conditioning in data acquisition systems. Board acquires data at 333 ksamples/sec and includes 16 differential analog inputs, with isolation from PC ground. Analog-to-digital conversion to 16-bit resolution takes place on board itself, minimizing exposure to noise from other circuits in system. Board can fit into backplane in standard industrial enclosure, or into DAPserver to form networked, isolated instrument.

austriamicrosystems AG    Premstatten   Austria

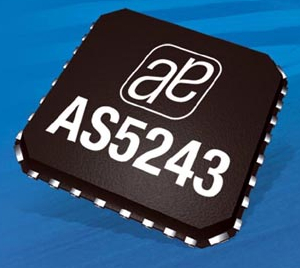

Jun 16, 2008 Combining integrated Hall elements, analog front end, and digital signal processing in 7 x 7 mm QFN package, Model AS5243 10-bit contactless magnetic angle position sensor offers accurate measurement up to 360°. It can detect 1,024 absolute positions over full turn, 180 and 90° which correspond to resolution of minimum 0.087°. Unit provides 2 separate programmable analog outputs including angular range, output voltage range, and voltage/current output.

Micronor    Newbury Park, CA 91320

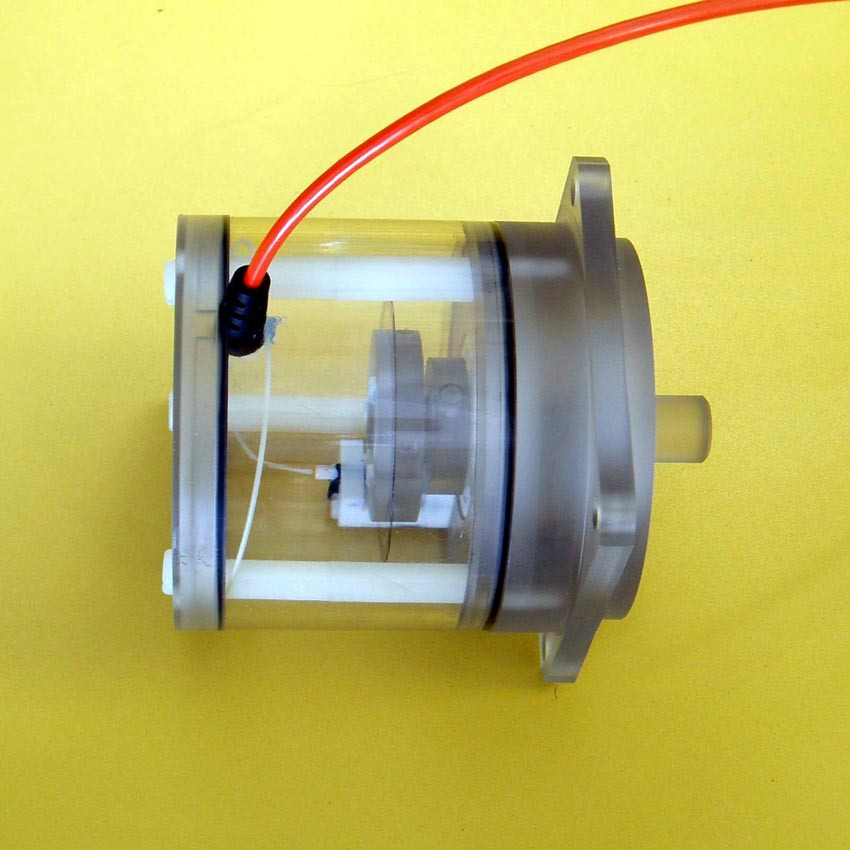

Jun 16, 2008 Designed for use in motion control systems operating in electromagnetic fields, TD5207 Non-Metallic Fiber Optic Rotary Encoder offers 200 ppr resolution in 3.0 in. square flange housing. In operation, TD5207 Sensor links to MR310 Remote Encoder Interface Module via simplex fiber link, which can be up to 1,000 m long. Based on ZapFREE(TM) Fiber Optic Rotary Encoder technology, unit serves as control feedback for pneumatic or hydraulic drive systems.

Avago Technologies    San Jose, CA 95131
Jun 16, 2008 Suited for office and industrial automation applications, optical incremental encoders of HEDM-5540 series offer resolutions up to 1,000 counts/revolution and accurate position control with use of index as reference point. Units are constructed with lensed LED source, IC with detectors and output circuitry, and Mylar codewheel. In addition to 2-channel quadrature output, 30 x 41.1 x 18.3 mm encoder features third channel index output and up to 100 kHz frequency response.

Avago Technologies    San Jose, CA 95131
Jun 16, 2008 Suited for industrial automation applications, AEDx-8xxx series is bearing-less and has integrated 2-channel quadrature outputs as well as third channel index output. RoHS-compliant solution includes RS422 line driver, codewheel, LED light source, and detector IC enclosed in plastic, 20 x 18 mm package. Offering up to 500 cycles/revolution, encoders work with 2-5 mm shaft diameter motors. Collimated light source and photo detector array design promote mounting misalignment tolerance.

Avago Technologies    San Jose, CA 95131
Jun 13, 2008 Offered with various counts/revolution and shaft diameter options, AEDT-9140 Optical Encoder Modules feature 2 channel quadrature outputs plus third channel index output. They are designed for use with codewheel that has optical radius of 0.433 in. for 100-512 counts/rev and 0.460 in. for 1,000 counts/rev. Including lensed LED source and detector IC enclosed in plastic package, units operate in temperatures from -40 to 115°C.

BEI Kimco Magnetics    Vista, CA 92081

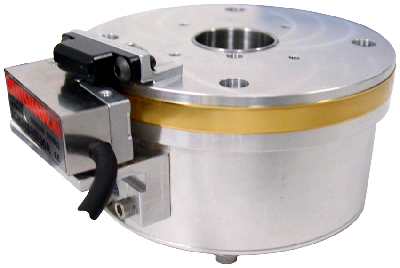

Jun 10, 2008 Featuring large diameter clear aperture with high-resolution encoder that supports up to 0.02 arc-sec, Integrated Motor Encoder Assembly is suited for specialty machine applications where high acceleration point-to-point motion is required. Assembly incorporates ABEC7 class precision ball bearings, hollow shaft configuration, and hall-based commutation scheme for seamless connectivity with standard motion controllers.

Xilinx, Inc.    San Jose, CA 95124 3400
Jun 10, 2008 Programmable Xilinx 3GPP LTE Turbo Encoder and Decoder LogiCORE(TM) offerings deliver throughput speeds to 200 Mbps with embedded DSP capabilities of Spartan® and Virtex® FPGAs to meet voice and data communications demands of long-term evolution (LTE) standard. Along with complete interleaver function, decoder features full 3GPP LTE block size range, dynamically selectable number of iterations (1-15), and 2/4/8 processing units with intelligent scheduler function.

Composite Software, Inc.    San Mateo, CA 94403
Jun 10, 2008 Leveraging key elements of BI and enterprise search, Composite Discovery(TM) empowers users to get to and work with source data and intermediate stores such as warehouses and marts. Data relationship discovery reveals relationships among information contained in disparate sources and delivers this context with data, so users can identify what is relevant. Integration with LDAP and Active Directory ensures compliance with IT data security and governance mandates.

Gray Electronics    Kyle, TX 78640
Jun 10, 2008 Comprised of software, server, and client, INTELLIGENT SELECTION(TM) INTERNET PROTOCOL (IsIp) system utilizes TCP Network and IP technology to intelligently select megapixel-resolution pictures and store them in servers/databases on PC HDDs. Software processes pictures from unlimited number of IP cameras and supports range of alarm inputs/scripts. Server collects pictures from software and saves them in database as internal hidden format that cannot be opened with standard viewers.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Jun 10, 2008 Used whenever crank angle is needed for calculating combustion analysis parameters, Crank Angle Encoder Set Type 2614A enables measurement of cold starting in test vehicles and on low-temperature test stands. Sensor offers resolution of 0.5° CA at LVDS output, while processor offers resolution down to 0.1° CA and second angle mark signal with 1° resolution, for engine control.

Intelligent Instrumentation, Inc.    Tucson, AZ 85706
Jun 05, 2008 LANpoint® PLUS, LANpoint TIME, LANpoint CE.NET, and LANpoint 7 are available with choice of Windows CE.NET v4.2 or Windows CE v5.0, promoting programmability, database accessibility, and communications. Supplied in NEMA 12 and NEMA 4 cases, these WiFi Ethernet IEEE802.11b/g LANpoint AutoID computers feature onboard non-volatile storage, expandable to 1 GB or more, along with networking and utility software, terminal emulation interfaces, serial ports, and DIO.

TURCK, Inc.    Plymouth, MN 55441
Jun 04, 2008 Supplied in die-cast housings with 12-bit analog and 14-bit CANopen outputs, Sendix® magnetic encoders feature IP 69k protection rating, are resistant to humidity and condensation, and are suitable for outdoor use. Non-contact devices have 36 mm dia and use Sensor-Protect(TM) technology, where electronics are fully encapsulated and mechanical assembly is separated for shock resistance in excess of 500 g and vibration resistance over 30 g. Various parameters are programmable via bus.

Sangoma Technologies Corp.    Markham, ON L3R 9R6  Canada
Jun 03, 2008 Providing error-free faxing, FlexBRI Hybrid Telephony Card enables customers to combine analog and digital signals on one interface card. Designed to support fax machine/other analog device, it fits in 1U server, and supports up to 4 ports of BRI and 2 ports of FXO/FXS analog.

Beta Dyne Inc.    Bridgewater, MA 02324
Jun 03, 2008 Incorporating low switching noise techniques at input and output section, EAL50 Series of 50 W single output converters have 2:1 input voltage range and offer up to 91% efficiency. Features include 150 mV dropout linear regulator and control circuit that maintains minimum constant dropout voltage over line, load, adjust range, and temperature. Converter is packaged in 2 x 2 x .5 in. metal case with 6-sided shielding and operates in -40 to +72°C range without de-rating.

Harting KGaA      Germany

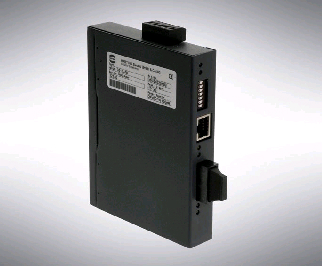

Jun 02, 2008 Designed for industrial environments, eCon 3011 performs signal conversion between shielded twisted pair cable and multi-mode or single-mode fiber optic cable. In PoE mode, power can be distributed directly to node on network such as PoE camera. Converter can also work in store and forward switching mode similar to unmanaged Ethernet switch. In converter mode, device runs at 100 Mbit/s with minimal latency.

Omega Engineering, Inc.    Stamford, CT 06907
Jun 02, 2008 Mountable and compatible with 35 mm DIN rails, DRF Series of signal conditioners provide up to 3,500 Veff isolation between input, output, and power. They accept broad range of input signals such as ac and dc voltage and current, frequency, temperature (thermocouple and RTD), and process transducers. Each model is available with standard process outputs of either 4-20 mA or 0-10 Vdc. CE compliant units are suited for chemical, water, and petroleum industries.

Atlona Technologies    San Jose, CA 95131

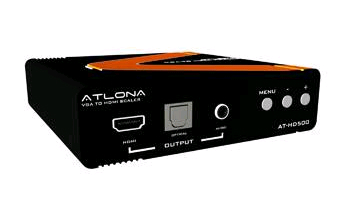

May 30, 2008 Featuring VGA inputs and HDMI outputs, Models AT-HDMI500 and AT-HDMI510VGA will take any PC resolution up to WUXGA and Mac and scale it to HD resolution up to 1,080 p. Units can also take Component connections using VGA breakout cable. With local monitor loop out, Model AT-HDMI510 enables user to connect computer monitor and HDTV, even if there is only one VGA output on computer.
