GOEPEL electronics LLC    Austin, TX 78759
Aug 04, 2008 Able to completely test PCI Express Standard V2.0 compliant slots via dot1/dot6 for correct pin contacting, IEEE Std. 1149.6 compliant CION Module(TM)/PCIe-x(1/4) interface cards are plugged directly into x1 or x4 PCI Express slot and controlled by TAP (Test Access Port). With on-board IEEE 1149.1 and IEEE 1149.6 test channels, all high speed signal pins, low speed signal pins, and voltage supply pin of PCI Express compliant connectors can be tested structurally.

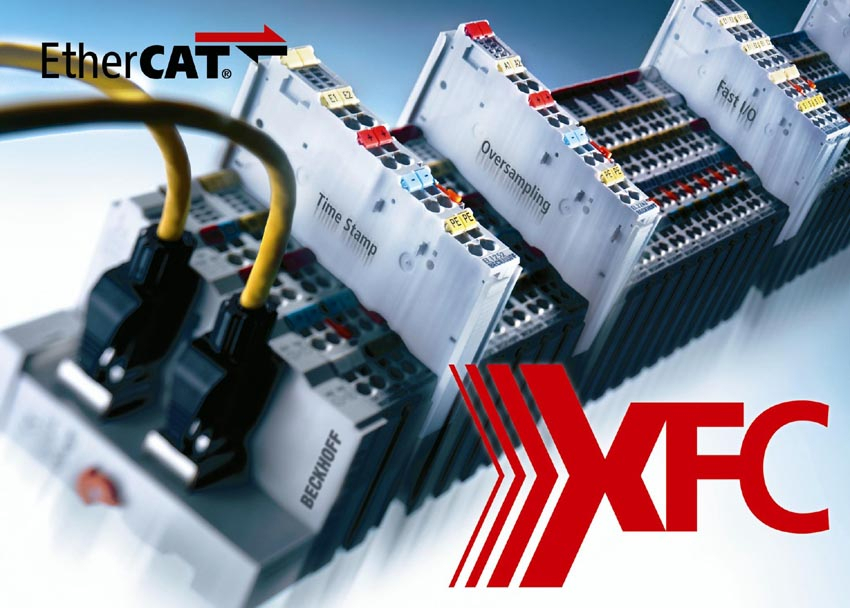

Beckhoff Automation LLC    Minneapolis, MN 55337
Aug 01, 2008 EtherCAT® I/O terminals with time stamping latch exact system time at which edge changes occur; digital value output can occur at predefined times. Terminals with oversampling enable actual value acquisition or set value output with higher time resolution than communication cycle time. Distributed clocks with less than 1 µsec jitter and 1 µsec resolution are used for time synchronization across entire system. Fast I/O-enabled terminals offer input delays/switching times under 1 µsec.

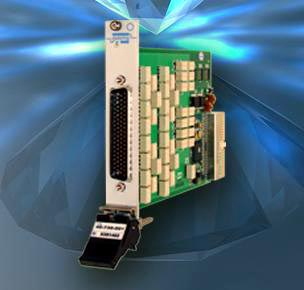

Pickering Interfaces    Wobum, MA 01801
Aug 01, 2008 With POTS, USB 2.0, AFDX, and Gigabit Ethernet capability, Model 40-736 can switch communications signals carried on 100 W differential pair cables. It is configured as 8:1 or 16:1 multiplexer for GbE and 100BaseT/AFDX applications, respectively. I/O signals are carried on 78 way D Type connector, while interface adaptor card converts signals to 8:1 Ethernet MUX on RJ45 connectors for direct connection to Ethernet cable.

Micrel Semiconductor Inc.    San Jose, CA 95131
Aug 01, 2008 Series SY54xxx includes 7 low voltage CML output products with core power supply of 2.5 V that can interface directly to devices powered by 1.2/1.8 V supply. Products include 1:2 fanout buffer, differential line driver/receiver, 2:1 multiplexer, and 2 x 2 crosspoint switch. AC performance is guaranteed from dc through 2.5-3.2 GHz or 3.2 Gbps, with rise and fall times of less than 95 ps. Jitter performance is less than 10 ps p-p over temperature and voltage.

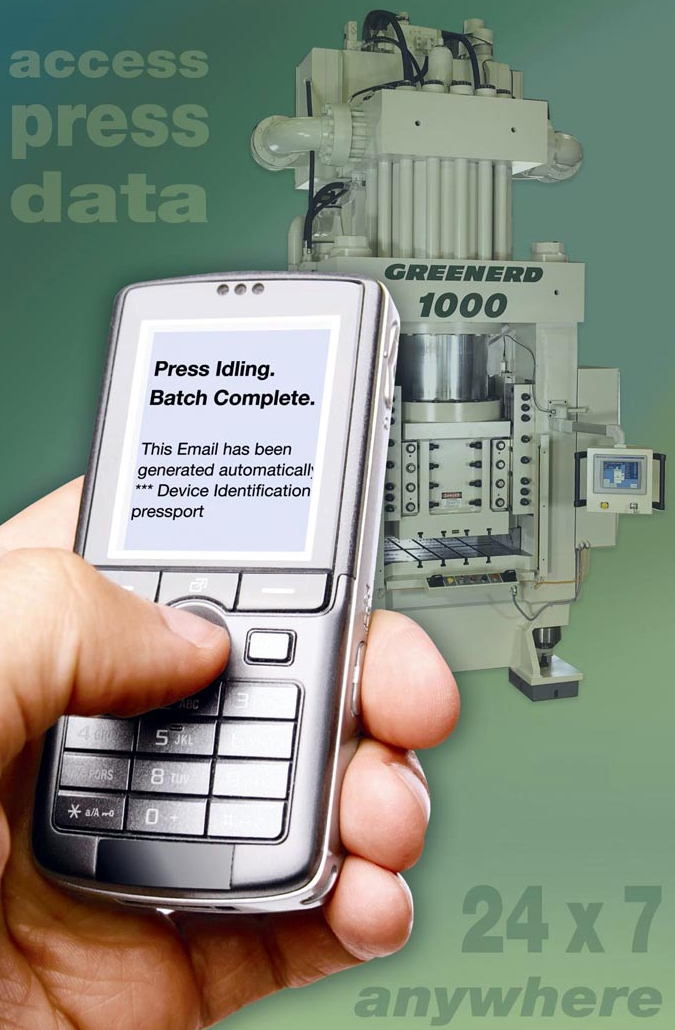

Greenerd Press & Machine Co., Inc.    Nashua, NH 03061
Jul 31, 2008 Using pressport private online network, customers can obtain real-time status of hydraulic press operations and view data by logging in via Ethernet connection. Customers can also receive status/alarm notifications on internet-enabled devices such as cell phones, smart phones, or PCs. Anywhere, 24/7 access promotes immediate response to any problems with manufacturing process, and FTP feature offers ability to send/receive data from pressport and customize data structure.

Wilkerson Instrument Co., Inc.    Lakeland, FL 33811
Jul 31, 2008 System provides analog and contact inputs with analog and discrete outputs for point to point data acquisition. Wireless transmitter (DR9011) sends analog and contact closure data to companion DR9021, where it is recovered as two 4-20 mA outputs, and switch data is provided by optically isolated NPN transistors outputs. RF choices - 2 in 915 MHz ISM band and 1 in 2.4 GHz band - all use spread spectrum frequency hopping technology. Each RF module has choice of 7 Hop sequences.

Linear Technology Corp.    Milpitas, CA 95035
Jul 30, 2008 Supplied in 8-pin TSOT-23 package, LTC2631 I²C DACs are suited for fine tuning bias voltages. They incorporate 10 ppm/°C reference output, available to drive reference inputs for all other data converters on board. Also available, LTC2640 SPI DACs offer choice of 2.5 or 4.096 V FS output range. External reference can be applied if more accuracy or non-standard voltage range is required. Both series include 8-, 10-, and 12-bit models that draw 180 µA supply current at 3 V.

Saelig Co., Inc.    Pittsford, NY 14534
Jul 30, 2008 With 4 analog inputs, EmbedRF(TM) can directly interface with voltage-output sensors and transmit information up to 50 ft. Miniature wireless board offers bi-directional transmit/receive point-to-point and point-to-multipoint capabilities. Measuring 0.8 x 0.7 in. and less than 0.2 in. thick, module provides output power up to 5 dBm at frequencies from 400-928 MHz. It includes on-board antenna, intelligent search, and 24-bit security capabilities.

Vertilon Corporation    Westford, MA 01886
Jul 28, 2008 Model SIB164 provides mechanical and electrical interface between Hamamatsu H7546B 64-anode photomultiplier tube (PMT) and 64 channel DAQ system. Charge signals from high-speed events are detected by PMT mounted on SIB164 and sent over specialized cables to DAQ system. When used with IQSP582 PhotoniQ system, SIB164 achieves single photon sensitivity at rates exceeding 200,000 events/sec. Board also incorporates last dynode preamplifier and 3 types of on-board pulse discriminators.

Pacific Instruments, Inc.    Concord, CA 94520
Jul 28, 2008 Powered via DC or battery, Model 6005 has 10-slot enclosure that accepts Series 6000 transducer signal conditioning and DAQ modules. Connectors and controls are located on front to promote access in tight spaces, while USB 2.0 and Ethernet interfaces promote data throughput rates to 4 MSPS. Solution plugs into laptop computer with Windows XP/Vista and PI660 acquisition and display software. Optional on-board rotating or solid-state drive is also available.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Jul 28, 2008 Model 3724 Dual 1X30 FET Relay Multiplexer Card offers scanning speeds over 1,000 channels/sec, including measurement, and switch-only scan rates over 1,200 channels/sec. Solid state relays can be automatically configured into dual 1 x 30 or 1 x 60 multiplexer. Gated with 1 MHz input rate, Model 3750 Multifunction I/O Card features 40 DIO channels with high-current driver outputs that sink up to 300 mA. Other features include 2 programmable analog outputs and 4 totalizers/counters.

Emerson Process Management    Austin, TX 78754
Jul 24, 2008 Optimizing airflow and thermal management, DeltaV(TM) VerticalPlus I/O Carriers support simplex and redundant DeltaV SIS modules that communicate via redundant safety bus, which is separate from basic process control system communications. Carriers can also communicate secure SIS data via redundant SISNet Repeaters to other DeltaV SIS nodes on vertical and horizontal carriers. Featuring modular design, carriers can be added as needed and only require T-type DIN rail for mounting.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Jul 23, 2008 On one 3U cPCI card, DSP-based 75DS2 includes up to 4 independent, isolated, programmable Synchro/Resolver or LVDT/RVDT simulation channels. Each has 16-bit resolution, ±1 arc-min accuracy, and short circuit protected output with 1.5, 2.2, or 3.0 VA drive capability. Requiring +5 and ±12 Vdc power supplies, product operates over 47 Hz to 10 kHz range. Each unit also includes wrap-around self-test, programmable output angle rotation, and optional 3 VA programmable reference supply.

BEI Sensors (BEI Industrial Encoders)    Goleta, CA 93117
Jul 23, 2008 Housed in 1.8 in. servo package with all-metal housing, optically based Model L18 contains field-proven ASIC electronics, sealed bearings, and accurate code disk. Unit is suited for space or weight limited applications requiring high accuracy, including semiconductor fabrication, industrial robotics, and mobile platforms.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 23, 2008 Suited for precision instrumentation applications, DGxxx Series includes 4 analog multiplexers and 4 analog switches that combine charge current from 0.5-1.0 pC, switch capacitance of 2 and 3 pF, leakage currents from 0.25-5 nA, and typical on-resistance from 66-72 W. All operate from 2.7-12 V single supply or from ±2.5 to ±5.0 V dual supplies. Available in variety of packages, devices feature extended operating temperature of -40 to +125°C.

Elco Enterprises, Inc.    Jackson, MI 49201
Jul 21, 2008 Utilizing wire feed sensor and controller, Wizard View(TM) Wire Central DAQ System monitors critical welding wire usage information - quantity left in drum, speed of travel - measured in US or metric units. Elimination of constant manual inspections automates weld wire usage information monitoring. Alerts notify operator when wire has stopped moving, when pre-set amount of wire is left in drum, and when wire is not within programmable wire feed speed window limits.

Spirent Communications plc    Crawley   United Kingdom
Jul 21, 2008 Suited for demanding applications, Spirent GSS8000 supports up to 20,000 G signal dynamics, up to 120,000 m/s velocity, and 50 Hz processing rates. Motion data can be generated via on-board vehicle models or real-time high-rate host vehicle trajectory data over remote interface. Low-latency hardware-in-the-loop capability is standard with synchronization and timing facilitated via 1 PPS in/out and 10 MHz clock inputs. Implementation supports full 6 degrees-of-freedom trajectory data.

Contemporary Controls Ltd    Coventry West Midla CV4 7EZ  United Kingdom
Jul 17, 2008 BASR-8M BAS Remote Expansion Modules can be daisy-chained together to BAS Remote Master (BASR-8M) to meet specific I/O requirements, and BASR-8M can be expanded to total of 32 Universal I/O points and 8 relay contacts to suit any building automation installation. Configurable Universal I/O can support BACnet®/IP or Modbus/TCP points, and digital inputs can accept pulse trains in range of 0-40 Hz at 50% duty cycle to measure flow rates.

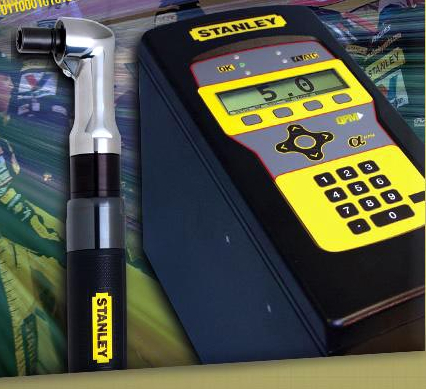

Stanley Assembly Technologies    Cleveland, OH 44143-2328
Jul 16, 2008 Compatible with Stanley® QPM DC electric tools from 0.6-2,000 nm, QA Alpha can link multiple parameter sets in sequence for tightening different fasteners in workstation. It features Embedded Toolbox software, Ethernet for message-based protocols and fieldbus I/O mapping USB Port, and 2 COM ports, one connecting computer and enabling remote configuration, and one for adding barcode reader, printer, or other serial device. I/O controller options include 24 V, fieldbus, and Modbus TCP.

Vega CNC    Troy, MI 48083
Jul 16, 2008 Model 2790504 is resolver to SSI converter board that converts resolver position into 24-bit absolute SSI data format with 12 bits of resolution per cycle (4,096 counts) and 12 bits of turn counter (4,096 turns). It writes the current position to on-board flash during power fail and recovers position upon power up. Unit also provides Count Reset for establishing reference position, and includes loss of phase detection circuit and fail safe fault interface.
