Implicit Monitoring Solutions, L.P.    Farmers Branch, TX 75234
Aug 18, 2008 Encompassing Frac and Well Test monitoring services, Intellisite RTViewer delivers second-by-second data in real-time to users anywhere via Internet. Frac Monitoring Service offers up to 40 channels of data and records entire frac operation, allowing users to review different timeframes and look at different information. Well Testing Monitoring Service lets user select preferred interval range in readings, from 1-60 sec. This information is transmitted on scheduled basis.

National Instruments Corp.    Austin, TX 78759-3504
Aug 18, 2008 Used as integrated hardware option for deploying embedded control and DAQ applications, sbRIO-96xx devices combine industrial 266 or 400 MHz Freescale MPC5200 embedded, real-time processor; Wind River VxWorks RTOS; and reconfigurable Xilinx Spartan-3 FPGA on one PCB. They also integrate analog and digital I/O as well as 3 expansion slots. LabVIEW graphical system design platform can be used to customize Single-Board RIO hardware as well as develop all aspects of embedded systems.

Pinpoint Laser Systems    Peabody, MA 01960
Aug 15, 2008 Computer Interface Module, designed for Laser Microgage 2D Alignment System, can be added or removed at anytime by disconnecting interface cable. Pinpoint Capture software is included for selecting and collecting data. It lets users scale measurement readings, apply offsets, change preferred measurement units, and view readings in numerical or graphic formats. Limit settings and indicators are also available, and measurement recording can be done via continuous or trigger modes.

TURCK, Inc.    Plymouth, MN 55441
Aug 15, 2008 Measuring 6.2 mm wide, IMS interface modules convert current and voltage signals from wide range of applications with analog signal transmitter that achieves 0.1% of full scale. Featuring 2, 3, or 4 wire connections, modules are also available for transferring temperature signals from thermocouple, RTD, and other devices using Pt-100 technology, achieving 0.3% of full scale. Units provide complete galvanic isolation and up to 2.5 kV for input, output, and power supply.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089
Aug 14, 2008 Compatible with Fujitsu 2, 3, and 4 in. 5 V thermal printer mechanisms, FTP-628DSL600 series lends support for thermal print speeds up to 80 mm/sec, USB 2.0 and high-speed (460 kbps) RS232-C serial connectivity, as well as OCR extended numeric characters. Boards measure 2.73 x 2.05 in., incorporate flash memory and near-end detection, and have 4.2-8.5 V head/motor operating voltage range. User-programmable features include multi-language fonts and bar code or image rotation.

Parker Hannifin Corp.    Oxford, MI 48371
Aug 14, 2008 Featuring TFT XGA display and touch-screen, TS8015 is 15 in. operator interface panel that offers 4 RS232/422/485 communication ports and one Ethernet 10/100 Base-TX port. It also includes USB port and DSI8000 software for accelerated downloads of configuration files as well as access to trending and data logging. While data can be collected and stored on standard CompactFlash card, built-in web server and FTP server/client facilitate remote communications.

DAQTron Inc.    Roswell, GA 30075
Aug 14, 2008 Offered as 3U cPCI module, 3410 Packet Processor offers four 10/100/1000 Mbps ports for performing layer 1-3, throughput, and packet loss tests on 10/100/1000 Mbps devices. Use of cPCI standard allows additional test functionality to be integrated in same chassis. Although data cannot be streamed/captured across cPCI backplane at full line rates, those rates are achievable between embedded processor and unit under test. Onboard RAM can then be used to capture up to limits of RAM size.

Conduant Corp.    Longmont, CO 80501
Aug 14, 2008 StreamStor® Amazon Express Storage Controller features data interface system for PCI Express bus based on modular mezzanine architecture. Full-size PCI Express card can be installed in any PC with open PCI Express slots and can support up to 16 SerialATA disk drives for total capacity of 16 TB. Operating independently of PC, it has 7 hr recording/playback capacity as well as simultaneous streaming, data forking, and wrap-mode recording.

Seiko Epson Corporation    Suwa, Nagano   Japan
Aug 14, 2008 Supporting portable media players and in-vehicle applications, S1R72V27 includes USB host functions enabling control, bulk, interrupt, and isochronous transfer at 1.5, 12, and 480 Mbps. Device operates from -40 to +105°C and supports 1 endpoint for control transfer in addition to 5 general endpoints. It also includes 1 shared port for both host and device functions. Typical power supply voltages include 3.3 V for USB, 1.8 V for internal, and 1.8-3.3 V for CPU Bus.

National Instruments Corp.    Austin, TX 78759-3504
Aug 14, 2008 Using IEEE 802.11 standard for wireless networks, NI Wi-Fi DAQ devices stream data on each channel at more than 50 kS/s with 24 bits of resolution. Featuring built-in signal conditioning and direct sensor connectivity, units deliver measurement data to host PC instantaneously for real-time viewing and in-line analysis of dynamic sensor signals. Built-in network authentication and 128-bit AES encryption offer network security and meet NIST standards for use in U.S. government facilities.

Saelig Co., Inc.    Pittsford, NY 14534

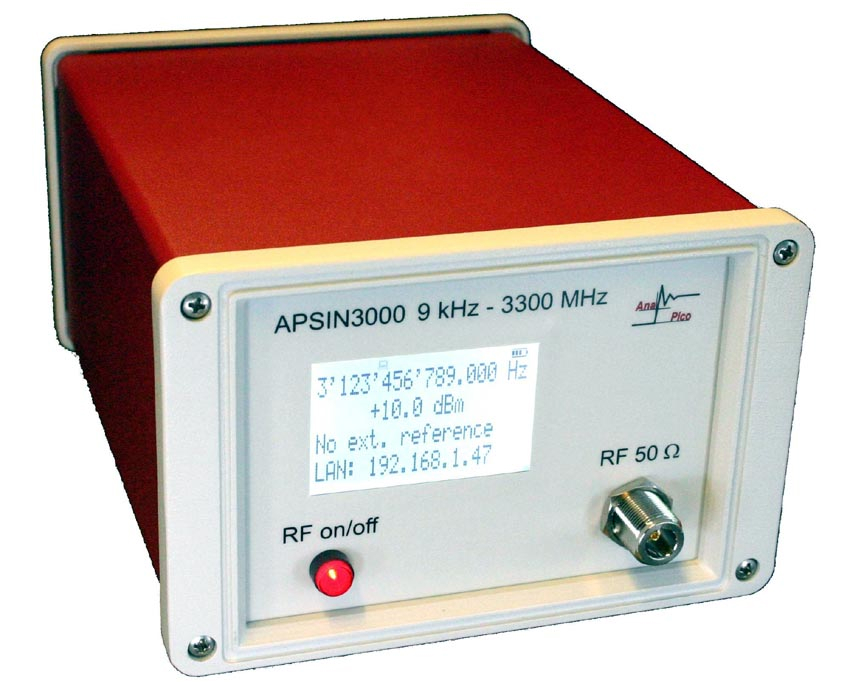

Aug 13, 2008 Suitable for automated test environments, Model APSIN3000 offers resolution of 0.001 Hz from 9 kHz up to 3.3 GHz. It weighs less than 6 lb and is packaged in 6.7 x 4.7 x 8.7 in. enclosure. Broadband generator features remote access capability via RJ-45 LAN interface, configuration from provided GUI software or standard web browser, and integration into larger automated test systems. Options include internal rechargeable batteries for more than 3 hr of portable use.

Spectracom Corp.    Rochester, NY 14623
Aug 13, 2008 Suited for ultra low latency computer architectures, TPRO-PCI-66U and TSAT-PCI-66U bus-level timing boards offer zero latency time reads of precise time stamps. Model TPRO-PCI-66U synchronizes to master clock through IRIG and other time codes, while TSAT-PCI-66U uses GPS satellite system to synchronize to coordinated universal time without need of any local source of official time. PCI-X compliant boards run at 66 MHz bus speed with 32-bit data interface.

Red Lion Controls    York, PA 17406 9428

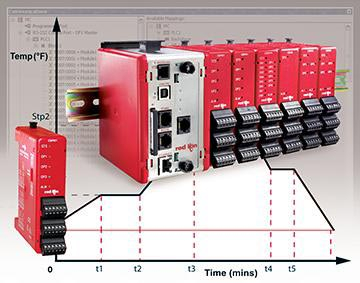

Aug 12, 2008 Modular Controller Series PID modules provide multi-zone PID control, data acquisition, and I/O for PC, DCS, or PLC control systems, while integrating data logging and advanced alarm management. With Crimson® 2.0 software, users can integrate multi-segment temperature profiling for complex processes. Unit has ramp/soak functionality that consists of profile or succession of setpoint ramp and soak periods, built-in protocol conversion facility, and multiple-protocol Ethernet port.

Absopulse Electronics, Ltd.    Carp, ON K0A1L0  Canada
Aug 12, 2008 Suited for mass transit vehicles and mining locomotives, HVI 300 Series 300 W converter accepts 750 Vdc input voltage (525 V-975 Vdc range), and delivers 12, 24, 36 V, or 48 Vdc. Optional redundancy diode allows for multiple units to be connected in parallel to achieve higher output power or N+1 redundancy, while ruggedizing and conformal coating provides immunity to shock, vibration, humidity, and moisture. Unit is fan cooled and rated for -25 to 55°C for full specification.

Beckhoff Automation LLC    Minneapolis, MN 55337
Aug 11, 2008 Model EL3602 EtherCAT® I/O terminal samples measurement readings with 24-bit resolution and accuracy within ±0.01% at 25°C. Measuring signals directly in standard I/O system, analog 2-channel input terminal handles signals ranging between -10 and +10 V. Device is capable of executing high-precision measuring tasks on machine or for test rig automation.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Aug 11, 2008 Including 4 models, USB-DIO-16H port-powered USB 2.0 device features 16 high-speed buffered digital inputs or outputs at continuous, sustained streaming speeds up to 16 MB/sec for unlimited waveform length. Capable of 80 MB/sec bursts with handshaking signals for synchronizing communications and additional 18 bits of general purpose digital I/O, it offers hot swapping functionality for quick connect/disconnect whenever users need additional I/O on their USB port.

CyberResearch, Inc.    Branford, CT 06405 2932
Aug 06, 2008 With up to 2 GHz Pentium® M CPUs, 4 USB ports, and 2 COM ports, PXI CXDC Controller Boards offer vibration resistance, withstand shocks up to 30 g, and operate at temperatures up to 131°F. PXIC Series Chassis includes two 3U 8-slot benchtop chassis and portable 3U 14-slot chassis with 15 in. touchscreen LCD. PXI Expansion Boards include 7 multifunction A/D boards with 2-64 channels, 2 multifunction D/A boards with 4 or 8 channels, and 4 DIO boards with 32 or 48 channels.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Aug 06, 2008 Including programmable features such as resolution, bandwidth, and tracking rate for configurability, RD-19240FS-100 resolver-to-digital converter operates in temperature range of -55 to +125°C and is repeatable to 1 LSB in 14-bit mode. Offered in 10 x 10 mm MQFP package, unit has built-in-test output which monitors for loss of signal, reference frequency, or tracking.

VXI Technology Inc.    Irvine, CA 92614
Aug 06, 2008 LXI Class A compliant EX1000A Series instruments integrate signal conditioning, digitization, and software to offer complete DAQ solution for precision temperature and voltage measurements. Open-architecture 1U modules also incorporate complete end-to-end self-calibration, and support sampling rates of up to 1,000 Sa/sec/ch with typical accuracies of ±0.2°C (temperature) or 0.05% + 10 µV (voltage). Thermocouple and voltage channels can be combined in 16, 32, or 48 channel configurations.

BitWise Controls, LLC    Larkspur, CO 80118

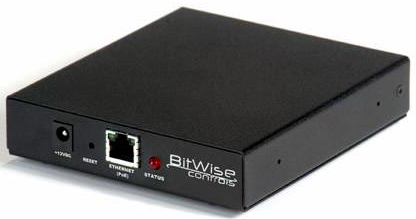

Aug 05, 2008 Suited for A/V integrators, BC4 standards-based control system network interface allows IP-based software and control systems to monitor and control hardware devices. Modularity enables matching of base units and expansion modules to fit any application. Powered by 802.3af PoE or 12 Vdc wall supply, system is comprised of base unit and various plug-in expansion I/O modules housed in 4.5 x 5 x 1 in. steel enclosure, which also contains network adaptor and temperature sensor.
