Phoenix Contact    Harrisburg, PA 17111 0100

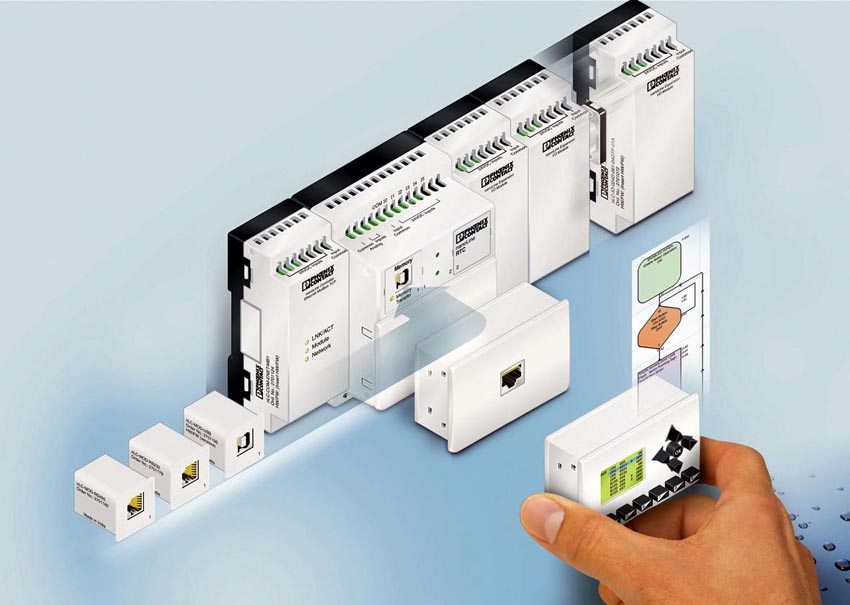

Sep 10, 2008 Accommodating up to 3 I/O expansion modules, nanoLine® comes with Ethernet connectivity, removable operator display, and nanoNavigator software for flow chart programming and hardware configuration. Base controller stations are offered in 24 Vdc, 24 Vac/Vdc, and 115 Vac versions. Unit offers variety of optional expansion modules such as communication modules for Ethernet, RS-232, RS-485, and USB for data exchange with Modbus TCP/RTU, and pluggable memory and real-time clock modules.

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Sep 10, 2008 Using Model WM8903, designers can extend audio playback time up to 40 hr for portable devices. SmartDAC(TM) technology enables DAC-to-headphone power consumption of 4.4 mW, while Class W amplifier tracks music signal level and uses adaptive dual drive charge pump to optimize power dissipation. SilentSwitch(TM) technology, incorporating clamp and sequencer circuitry, extends pop and click suppression. When in record mode, WM8903 implements dynamic range controller to optimize recorded sound quality.

IMO Precision Controls Ltd    London   United Kingdom
Sep 10, 2008 With analog (4 inputs, 2 outputs) and digital (24 inputs, 16 outputs) I/O control capabilities, which are expandable by interfacing to iOS remote I/O modules, Model i3 is suited for both process control and factory automation applications. HMI capability integrates 128 x 64 LCD display featuring programmable IP65 function keys or high contrast touch screen 160 x 128 LCD and 4 programmable function keys. Case design allows either panel or DIN rail mounting.

Rohde & Schwarz GmbH & Co      Germany
Sep 10, 2008 Intended for 50-75 and 220-325 GHz ranges, Models R&S ZVA-Z325 and R&S ZVA-Z75 millimeter-wave converters connect directly to 4-port R&S ZVA series network analyzers, eliminating need for any extra hardware. Converters for V, W, and J bands can be operated as part of base unit, and exceed 90 dB at 75 GHz and 60 dB (typ. 80 dB) at 325 GHz, allowing even high-blocking filters to be analyzed. Adjustable output power facilitates tests on amplifiers in development stage.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 05, 2008 TOIM5232 miniature encoder/decoder provides pulse shaping of RS-232 data signals for serial infrared IrDA® transceivers and supports data rates from 1.2-115.2 kbit/sec. Operating voltage range is 2.7-3.6 V with 5 V tolerant inputs and max current consumption in standby mode is 1 µA. Programmable baud clock generator gives designers choice of 13 baud rates from 1,200 Hz to 115 kHz, or external clock may be used. Device is available in 4 x 4 x 0.75 mm QFN package.

Measurement Computing Corp.    Norton, MA 02766
Sep 04, 2008 PCIe-DIO24 features 24 channels of digital I/O with selectable 3.3 and 5 V logic levels. High-density PCIe-DIO96H offers 96 channels of 5 V compatible digital I/O with 64 mA sink, 15 mA source capability. Both offer software selectable pull-up and pull-down resistor configurations and ship with TracerDAQ®data logging, viewing, and analysis application; InstaCal(TM) installation, calibration, and test utility software; as well as programming libriaries compatible with various languages.

AAEON Technology Inc    Taipei   Taiwan

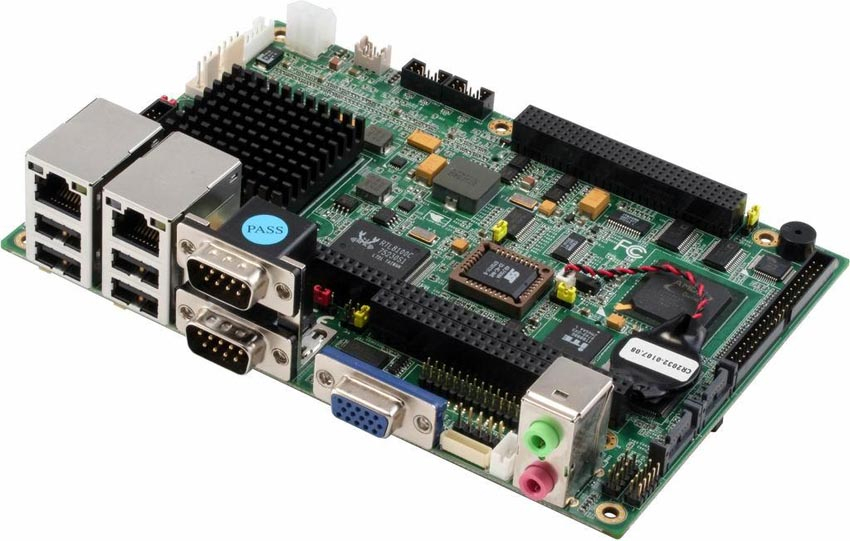

Sep 03, 2008 Supporting onboard AMD Geode(TM) LX800/900 or optional LX700 processor, Model EPIC-5536 offers 200-pin DDR SODIMM and system memory up to 1 Gb for DDR 333 or 512 Mb for DDR 400. It adopts Realtek 8100C 10/100Base-TX chip that deploys two RJ-45 ports or optional RTL8110S gigabit LAN to provide flexible network connections. With power consumption of less than 10 W, unit accommodates 1 IDE, 2 SATA I with RAID 0.1 functions, and 1 Type II CompactFlash(TM) for applying to storage of old/new systems.

Pickering Interfaces    Wobum, MA 01801
Sep 03, 2008 Six-channel fault insertion switches 40-192/40-191 each have 2 fault busses capable of hot switching signals up to 10 A, 200 V and 30 A, 40 V, respectively. As 6-channel SPST switches, 40-182/40-183 carry ratings of 10 A, 200 V and 30 A, 40 V, respectively. Multiplexers 40-666/40-667 come in dual 3-channel or single 6-channel configurations with 10 A, 200 V and 30 A, 40 V ratings, respectively. Also, 40-553/40-554 are 6 x 2 matrices with respective rating of 10 A, 200 V and 30 A, 40 V.

R. Stahl, Inc    Houston, TX 77054
Sep 03, 2008 Complementing ISpac Isolator System, Type 9170 Switching Repeater and Type 9175 Digital Output modules provide safety while transferring intrinsically safe binary signals. Available in 1- or 2-channel versions, Model 9170/x0-14-12 emulates Namur signal at control system output, while Model 9175/10-1x-12 detects short circuits and wire breaks in field. Units ensure consistent error monitoring of every channel from field to control level despite isolator in between.

Rohde & Schwarz GmbH & Co      Germany
Sep 02, 2008 R&S EX-IQ-Box enables select Rohde & Schwarz instruments to analyze DUTs over digital I/Q interfaces. When equipped with this module, vector signal generators deliver realistic digital baseband signals for testing transceivers or other components. Interface also enables signal analyzers to assess digital baseband components. Adaptable to device under test (DUT), module offers set of breakout boards as well as user-selectable data rates, formats, and logic levels.

Microstar Laboratories, Inc.    Bellevue, WA 98004-3039
Sep 02, 2008 Providing 16 differential isolated analog inputs and 2 isolated analog outputs, Model MSXB 085 isolated analog expansion and termination board can sample signal inputs at 333 k samples/sec and can update both signal outputs at 500 k updates/sec. It fits into backplane in standard industrial enclosure or directly into DAPserver to form networked, isolated instrument. Up to 8 boards can be supported by single DAP board, controlled from PC or network-ready DAPserver.

Access Control Group    Mountainside, NJ 07092
Aug 29, 2008 Eliminating manual data collection and human error, non-invasive CellTrac Monitor provides crucial battery performance data such as voltage, amp hours available/used, temperature, water level, and alarms. System does not require shunt for current measurement, and can interface with Proactive fleet management system as well. CellTrac and complementary CellVue real-time battery gauge enable preemptive battery maintenance to optimize forklift fleet performance.

KORENIX Technologies    Taipei 231  Taiwan
Aug 27, 2008 Incorporating 16-bit, 100 MHz RISC-based processor, watchdog timer, and real time clock, Jet I/O 6500 Series DIN rail-mounted modules enable users to monitor and control I/O devices and integrate them with SCADA/HMI software applications. Equipped with one RJ-45 Ethernet port, multiple analog/digital I/O channels, as well as temperature measurement connectors, units support Modbus/TCP protocol, measure 120 x 55 x 75 mm, and operate in temperatures from -20 to +70°C.

Acromag, Inc.    Wixom, MI 48393 7037
Aug 25, 2008 Suited for distributed I/O and SCADA applications, EtherStax(TM) ES2161 and ES2162 accept 32 differential DC current or voltage inputs, respectively, and interface signals to Ethernet devices/controllers with Modbus TCP/IP or UDP/IP protocol. Also, ES2162 units accept signals from 8B signal conditioning module racks through 2 DB25 ports to monitor temperature, frequency, and load cell sensors. Scanning updates all channels in less than 5 msec, and embedded Web page eliminates programming.

United Electronic Industries    Canton, MA 02021
Aug 25, 2008 Available in 2 models for use with PowerDNA Cube and PowerDNR RACKtangle chassis, DNx-AI-254 LVDT/RVDT Boards each feature 4 fully isolated LVDT/RVDT channels with independent A/D converters. Each channel offers 16-bit resolution, 0.1% accuracy, and scan rates up to 500 Hz. Boards can operate as LVDT/RVDT input interface or as simulation output device, on per channel basis. Multiple operating modes ensure compatibility with all standard sensor wiring and excitation configurations.

GE Intelligent Platforms    Charlottesville, VA 22911
Aug 25, 2008 Housed in 3U, 16-slot, rack-mountable chassis, DSC-2300 Series accepts plug-in signal conditioning modules for static strain, dynamic strain, charge, ICP®, and voltage inputs. Solution offers signal bandwidths to 150 kHz, and Ethernet-based controller allows for integration within any DAQ environment. System supports up to 32 sensor channels of input, other features include 2 programmable levels of over-range detection; reference bus input; channel output monitor; and 2 buffered analog outputs.

Icron® Technologies Corp.    Burnaby BC V5C 5T5  Canada
Aug 22, 2008 ExtremeUSB® 2.0 Core 2100 Module daughter boards enable true 480 Mbps USB 2.0 connectivity/extension over distances up to 100 m for Cat5 and up to 10 km for fibre optics. Supporting USB 2.0 and classic 1.1 host controllers without requiring additional software drivers, these SFF embedded modules let users locate USB 2.0 devices remotely from PC Host. Areas of use include embedded medical, industrial automation, and KVM applications.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Aug 21, 2008 Featuring DIN rail mounting, coil and contact lead isolation, and voltage kick-back protection, IMRL electro-mechanical relay interface modules come in 1, 2, and 4 pole versions, each carrying maximum load of 10 A. They are available in control voltages of 5, 12, and 24 Vdc and 24, 120, and 230 Vac. Interface modules are offered with fixed relays pre-soldered to printed circuit board, relay socket only, or pluggable relays pre-installed into relay socket.

National Instruments Corp.    Austin, TX 78759-3504
Aug 20, 2008 Offering 2 Gigabit Ethernet ports with up to 1,000 Mb/s transfer speeds per port, NI 8234 features x4 PCI Express interconnect, providing up to 1 Gb/s bandwidth for real-time data streaming from single PXI Express slot. Compatible with GigE Vision camera interface for machine vision applications, NI 8234 delivers high-speed image transmission for standard cabling at distances up to 100 m. Module is also suited for LAN and LXI instrument control applications using dedicated private networks.

DVEO division of Computer Modules, Inc    San Diego, CA 92127
Aug 20, 2008 Model VGA2DVB-T(TM) converts VGA graphics and text from any computer to a frequency agile digital DVB-T modulated signal, and then sends that signal to multiple HD monitors. Unit features 1,280 x 720 full screen or 1,280 x 1,024 VGA input with shrunken viewport and 720p at 16:9 output resolution. Able to be mixed with analog channels with passive mixing via RF mixer, it can be used with existing analog/digital CCTV systems and coaxial cable.
