Position Indicators

Test & Measuring Instruments, Sensors, Monitors & Transducers

Indoor Location Detection Infrastructure delivers high accuracy.

June 22, 2012

Available in various shapes, sizes, and colors. Guidepost Cell(TM) supplies positional data with resolution of 3-10 ft to smartphones and other mobile devices to determine user's location in interior areas using IEEE 802.11-compliant wireless beacon protocol. Wireless protocol ensures compatibility with such devices, while energy-harvesting dye-sensitized solar cell (DSC) technology, generating 48 µW/cm² under 1,000 lux from indoor lights, eliminates need for external power. Read More

Test & Measuring Instruments

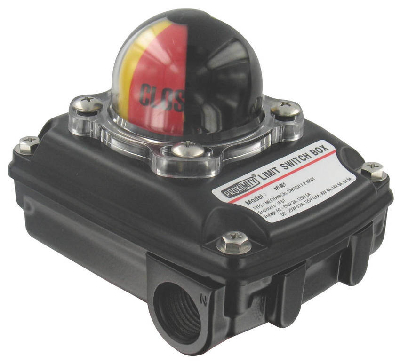

Rotary Valve Position Indicators operate in severe locations.

July 29, 2010

Housed in aluminum die-cast enclosure, Series VPI has NEMA 6/IP67 rating, ensuring protection against ingress of liquids and debris. Units feature spring-loaded splined cams, which require no tools for precise adjustment. Offering 60-360° rotation, mechanical models are designed with 2 SPDT limit switches, while proximity models feature 2 solid-state inductive limit switches, eliminating need for cams to make contact with switches. Read More

Test & Measuring Instruments

Electronic Handwheel simplifies setup of automation systems.

May 25, 2010

Used in association with machine control, HR 1120 provides mechanical detent with 100 positions per revolution, permitting precise and exact control of movement. Electrical signal output at TTL levels with differential signals as per RS422 allows connection to many standard PLCs and PC slot cards. Compact electronic handwheel is suited for both portable and stationary housings. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Smart Indicator features 2 LVDT channels.

April 28, 2010

Designed for measurement and control of dual-channel LVDT measurement fixtures, Model 4215-LVDT combines 2 LVDT channels, print capabilities, and RS232/485 serial communication. Unit is also capable of mixed transducer interfacing, including LVDT, DC Strain Extensometer, and Quadrature encoder-based position measurement devices. Electrically compatible with TEDS, Model 4215-LVDT interfaces with dataView-LVDT software for intuitive graphing, exporting, and archiving. Read More

Test & Measuring Instruments

Rudder Position Meter has backlit design.

November 5, 2009

Based on input signal from position transducer, RM3 Rudder Position Meter provides continuous analog indication of rudder position of boat/ship with ±2.5° accuracy. Construction includes anodized aluminum can, brass hardware, and 3.1 in. dia indicator face with white pointer. Waterproof from front of panel and dust proof from back of panel, meter offers ±125° element/pointer movement, span adjustment for voltage input, as well as span and zero adjustment for resistance bridge input. Read More

Test & Measuring Instruments, Controls & Controllers

Control System is designed for dairy palletizer operators.

May 7, 2008

Utilizing full-color touch-screen technology, Smart Screen control system offers wide spectrum of indicators to help operators and maintenance personnel diagnose line problems, minimize downtime, and increase productivity. System maintains detailed history of machine uptime and downtime. It includes diagnostic indicators for waiting for product, pallet not in position, full pallet at discharge, pusher not back, pallet jam at magazine, E-Stop pushed, and bander jam. Read More

Test & Measuring Instruments

Light Strip provides mobile order picking solution.

August 10, 2007

QPi indicates information for Remstar horizontal carousels directly in front of exact storage tote or container. It moves vertically and positions itself above or below shelf level and indicates correct container by flashing arrows. Showing tote position and required transaction quantity, indicator moves to correct shelf height with positioning accuracy of 1/10 in. in vertical axis, indicating up to 26 positions along face of shelf. Read More

Test & Measuring Instruments, Electrical Equipment & Systems

Moving Light Strip streamlines order picking process.

July 25, 2007

QuickPick® Position Indicator (QPi) indicates order picking information for Remstar horizontal carousels directly in front of exact storage tote or container. QPi moves vertically, positions itself above or below shelf level, and indicates correct container by flashing arrows. It shows the operator tote position, as well as the required transaction quantity, resulting in more efficient and accurate order picking. Read More

Test & Measuring Instruments, Controls & Controllers

LVDT Controllers/Indicators feature GUI interface.

March 6, 2007

Suited for applications utilizing ac and dc operated LVDT inputs, microprocessor-based, dual-channel Series DMC provides digital position indication and cross-channel math and control functions for monitoring, measuring, and control requirements. Units offer programmable input averaging, digital filtering, and HI/LO limit detection. GUI enables operators to calibrate and set up sensors, retrieve or send programs, and view and collect data remotely through RS-232 or Ethernet. Read More

Test & Measuring Instruments, Computer Hardware & Peripherals, Sensors, Monitors & Transducers

Visualization Module suits press fitting applications.

October 24, 2005

Designed to analyze positional accuracy during assembly, Model DT85 allows user to view press fitting process results and measurement curves independently on up to 32 MP85 or MP85DP amplifiers by using CANbus. Measurement mode is used to gain global statistical information on complete process run. Parameter control mode allows transducer and amplifier parameters to be zeroed, checked, and adjusted, and can only be accessed using password-activated function key. Read More

Test & Measuring Instruments

Position Reference System tracks materials and vehicles.

January 12, 2005

Installed overhead in ceilings in warehouses and factories, Sky-Marx(TM) Position Reference System enables tracking of materials and vehicles. Position marking system consists of roll of netting fabric to which array of position markers are pre-attached. Each position marker contains bar code and/or human readable text that identifies corresponding floor area below it. Sizes range from 4-15 ft wide and 50-300 ft long. Read More

Test & Measuring Instruments

Digital Display reads out linear measurements.

December 11, 2001

Dual channel C55 displays readings from LVDT and half bridge position transducers. It features alphanumeric display, bar graph, tracking and peak functions, and RS232 output for connection to computer or printer. Display also has built-in range lamps, analog voltage and current output, relay outputs, and mathematical functions, including A+B, A-B, (A+B)/2 and (A-B)/2. It can be used as bench top or panel mounted gauging/measuring unit. Read More
