Mass Flow Meter incorporates AGA-8 equations.
Sierra Instruments, Inc.
Monterey, CA 93940
Oct 09, 2002 HART-compliant Innova-Mass® multivariable vortex mass flow meter provides outputs for mass and volumetric flow rate, temperature, pressure, and fluid density. Diagnostics module includes fault log and forcing function. Available in ˝ to 8 in. sizes, Innova-Mass is also available as insertion-type meter with flanged packing-gland or compression-fitting process connections. It uses 3 primary sensing elements to measure gases, liquids, and steam.
Alarm Communicator sends point-specific event data.
Waltham, MA 02154
Oct 01, 2002
Serial Digital Alarm Communicator Transmitter (SDACT) accepts RS232 data from intelligent, addressable Fire Alarm Control Panels (FACPs) and serial data sources. SDACT accepts data, dials Digital Alarm Communicator Receiver, and sends addressable point and event specific data for annunciation. Unit provides four EOL resistor supervised hard wired zone inputs. SIA format facilitates annunciation of account number, point or zone number, and event or detector type at receiver.
Weld Pad Gages suit ASME code installations.
L.J. Star, Inc.
Twinsburg, OH 44087
Sep 20, 2002 Obround Weld Pad Gages consist of weld pad, glass window, gaskets, cover flange, and bolting. Standard materials of construction include 316L stainless steel and carbon steel, with gasket materials of EPDM and Viton®. Glass window is tempered borosilicate glass, which is resistant to chemical attack, and thermal and mechanical shock. Models provide visible glass sizes ranging from 1 in. wide x 6 in. long to 4 in. wide x 24 in. long. They are designed for working pressure of 150 psi at 500°F.

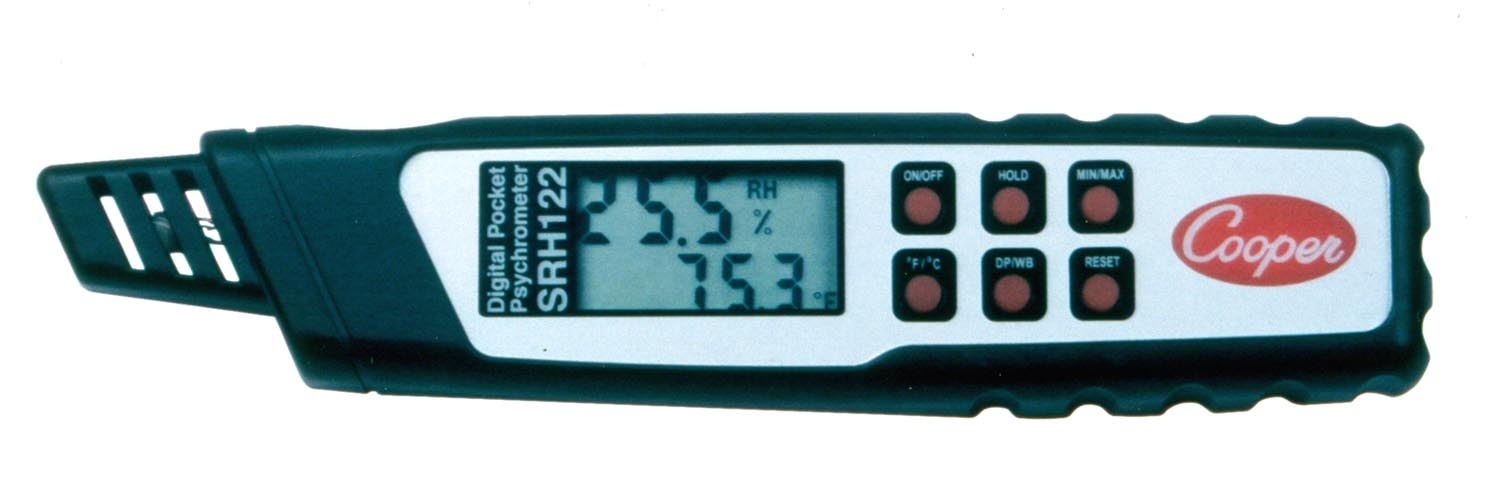

Pocket Psychrometer reads temperature and humidity.
Cooper Instrument Corp.
Middlefield, CT 06455
Sep 19, 2002 Compact Model SRH122 measures wet bulb, dew point, temperature, and humidity. Temperature range is -4 to +122°F and humidity range is 0 to 100%RH, with resolution of 0.1°F and 0.1%RH, respectively. It has min/max memory, data hold, auto shut off, and °F/°C switch. HVAC/R service technicians can use instrument for applications such as setting cooling systems at specific superheat or sub-cooling temperatures, using actual wet-bulb measurements.
Voltage Monitor protects three phase equipment.
Baldwinsville, NY 13027
Sep 18, 2002 PLM Series voltage monitor meets or exceeds NEMA Standards for phase loss, unbalance, and undervoltage protection. It provides motor protection even when regenerative voltages are present. Monitor is available for operating voltages of 240, 380, and 480 Vac, 50-100 Hz, and with 35 mm DIN rail or surface mountable sockets rated 600 V. PLM Series is tested to IEEE C62.41-1991 Level B surge protection and is UL recognized, CSA certified, and CE approved.
Initiating Devices function like fire alarm pull stations.
Federal Signal Corp., Signal Div./Electrical Products
University Park, IL 60466
Sep 16, 2002 Push Button Stations provide contact closure to activate emergency equipment, audible and visual signals, and alarm panels. Red Emergency and Yellow Evacuation units have push-and-turn reset button. Red Fire units feature key lock reset button. Tamper-resistant polycarbonate cover prevents false alarms without restricting use in emergency situations and protects against physical damage. Piezo horn sounds when cover is lifted and is powered by 9 Vdc battery.
Status Indicator Display holds indication without power.
L-3 Communications, Electrodynamics, Inc.
Rolling Meadows, IL 60008
Sep 12, 2002 Large-display Model CI 75 features highly visible, dual-color, internal flag. When indicator coil is energized by 50 msec pulse, flag display flips 180° and stays magnetically locked. Available in single- and dual-coil models, .75 in. display requires no bulbs or power when latched in either position. Reset to black is accomplished electrically by pulsing separate reset coil or by reversing polarity in single coil unit.

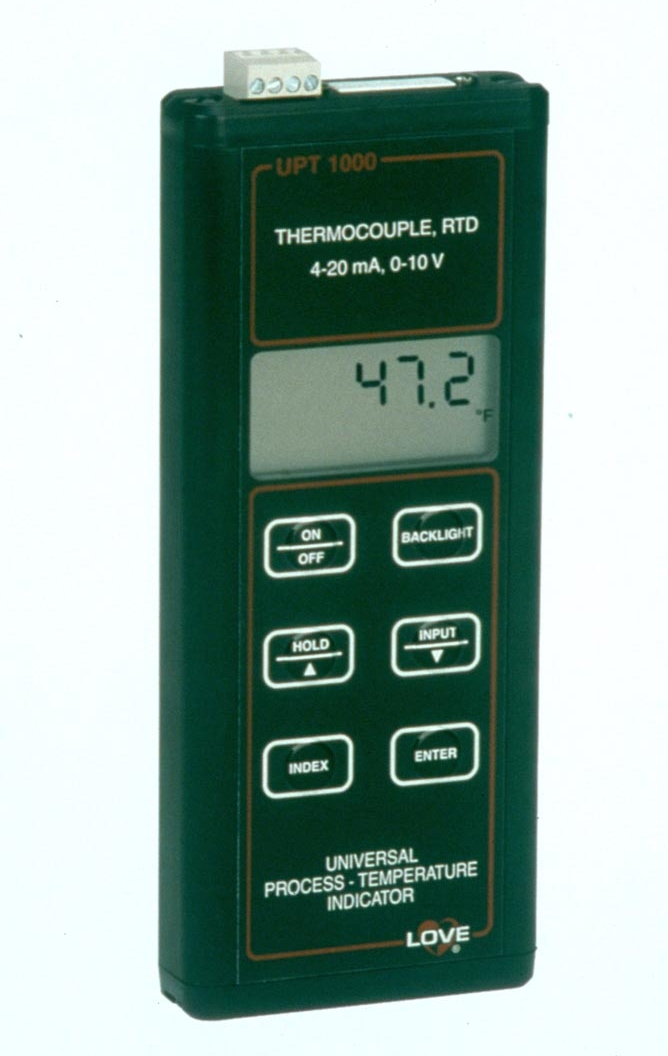

Handheld Indicator accepts multiple inputs.
Michigan City, IN 46361
Sep 11, 2002
Model UPT1000 portable indicator accepts 8 different thermocouple inputs, 3 different RTD inputs, as well as current and voltage inputs in one handheld instrument. It includes ANSI mini-plug and screw type connector. Housed in extruded aluminum case, indicator can display 18 user selectable engineering units on 4˝-digit backlit LCD display and offers 0.25% full scale accuracy.

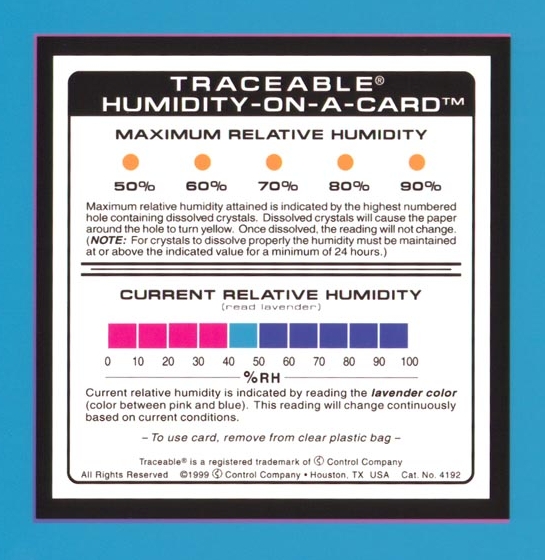

Humidity Card displays moisture level in color.
Houston, TX 77258 8307
Aug 27, 2002
Traceable® Humidity-On-A-Card indicates both current humidity and maximum humidity attained over 24 hr period. Color changes from blue to bright pink in increments of 10% RH over range of 0-100% RH, with accuracy of ±5% RH traceable to NIST. Reversible indicator changes color as humidity increases and decreases. Applications include monitoring humidity levels in shipments, optics, and packaging. Card measures 4 x 4 in.

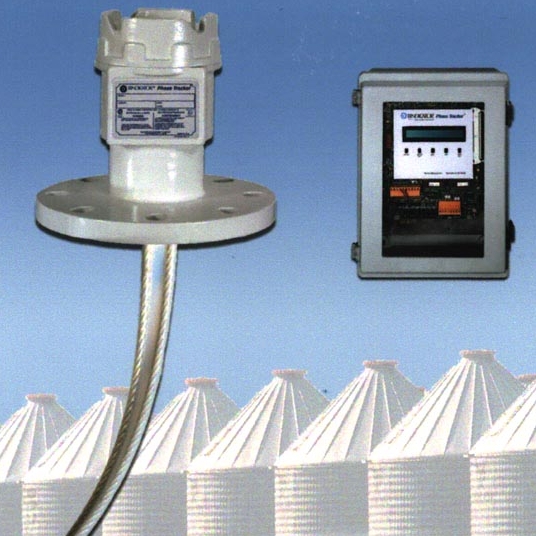

Level Sensor works where other sensors fail.
Spartanburg, SC 29306
Aug 13, 2002 Phase Tracker® uses an electromagnetic field that senses mass of material in 6 in. diameter area around sensor. It is not affected by signals reflecting off tank sidewalls, cannot be blinded by dust, and can reliably measure product when cross members and irregular structures are present. It works in dust, foam, non-air vapor, fumes, changing and low dielectric constants, abrasives and corrosives, corrugated bins, and tall, narrow silos.
Moisture Detection Instruments reveal hidden mold.
GE Measurement & Sensing Technologies / GE Protimeter
Woburn, MA 01801
Aug 05, 2002 Protimeter moisture detection instruments offer LCD or LED displays that detect moisture from fire control, storm, water, or other damage. Instruments include 3-in-1 MMS for assessing moisture levels in air, wood, cement, and tile. Surveymaster SM dual-mode moisture meters use pin electrodes, deep wall probes, or non-invasive Search Mode. Hygromaster instruments use Hygrostick probes to measure relative humidity of wall cavities, floors, and ambient conditions.
Weighing System includes load cell and conditioner.
Temecula, CA 92590
Jul 08, 2002 TRA/TM0-1 system includes TH Series thru-hole load cell and TM0-1 12 Vdc powered amplifier/conditioner module. Compression-type load cell is constructed from stainless steel and is available in ranges from 50 to 50,000 lb. Balance and span pots are low tempco metal film for long-term stability and good resolution. System is suitable for industrial and OEM force measurement and weighing applications. Several units can be powered from common power supply.

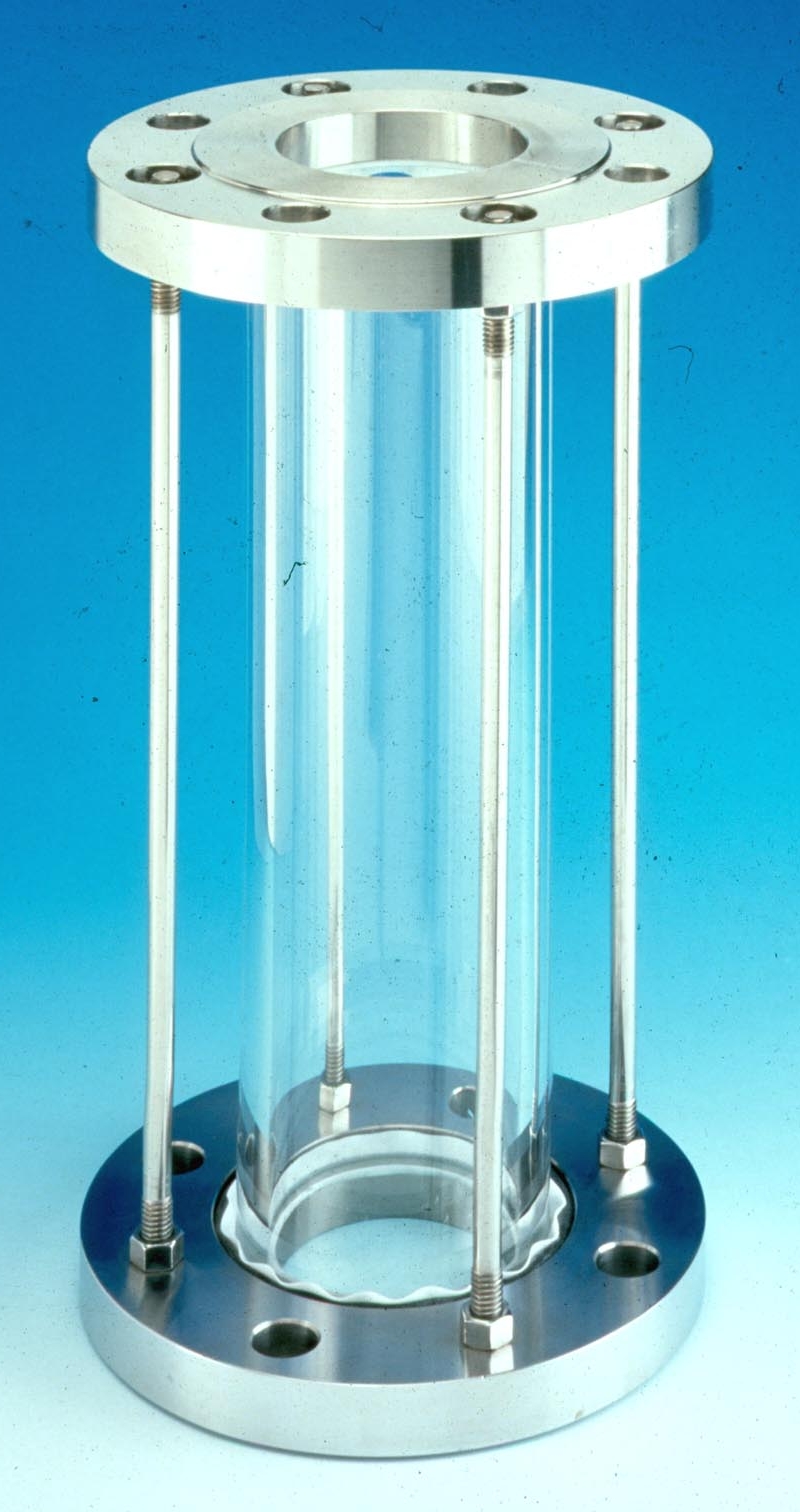

Sight Flow Indicators provide full view of media.
Papailias, J. G., Co., Inc.
Northvale, NJ 07647
Jul 02, 2002 LIF Series is designed for visually observing flow of media. Available in pipe sizes from 1/2 to 6 in., indicators offer flanged ends faced and drilled to mate with ANSI Class 150 connections. LIS Series is furnished with NPTF threaded ends. LIG Series is available with flanged ends drilled to mate with ANSI Class 150 connections. Materials of construction include carbon or stainless steel, annealed borosilicate glass cylinders, and neoprene seals.

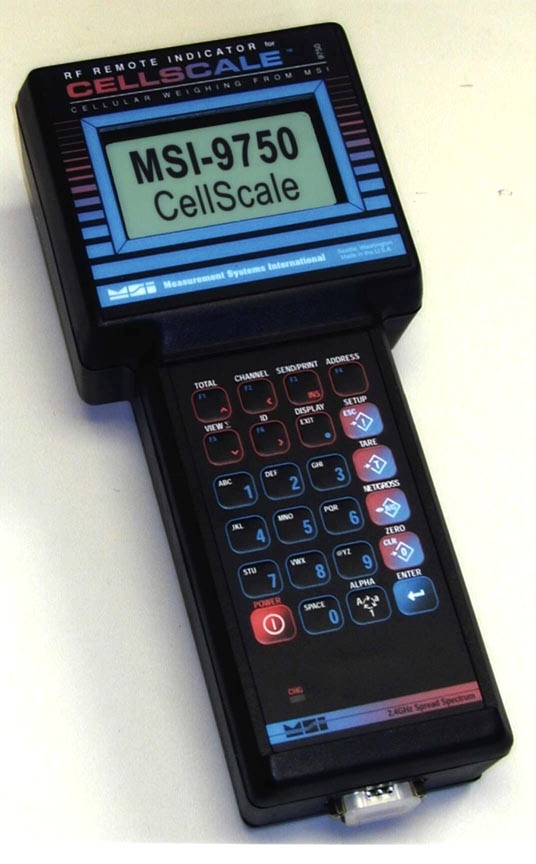

Remote Weight Indicator serves up to 32 load-cell networks.
Measurement Systems International, Inc. (MSI)
Seattle, WA 98168 4660
Jul 01, 2002 Handheld MSI-9750 RF Remote Digital Weight Indicator logs on to CellScale® networks with simple one-button network and/or channel changes. It works as full-featured terminal, providing direct access to weight and user entered data. It has backlit, transflective LCD, alphanumeric keypad with 7 control and 6 user-programmable keys, antenna with effective range of 500 ft indoor and 1,000 ft outdoor, comm port, audible alarm, and real-time clock that supports date/time stamping.

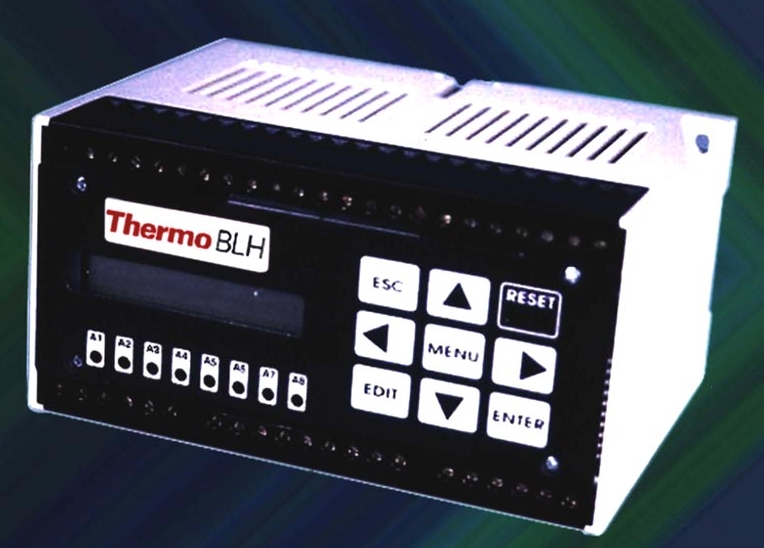

Weight Controller features DIN rail mount design.
Canton, MA 02021
Jun 24, 2002
PS-2010W Indicator/Transmitter/Controller provides weight measurement, communication, and setpoint control. It includes Plug-n-Weigh® software, Dynamic Digital Filtering, and 8 discrete setpoint outputs. Internal ramping software simulates live weighing cycles for testing communication interface, setpoint closures, and analog output signals. Hardware features include 750,000 count resolution, and RS-485 full duplex communication port with ASCII protocol.

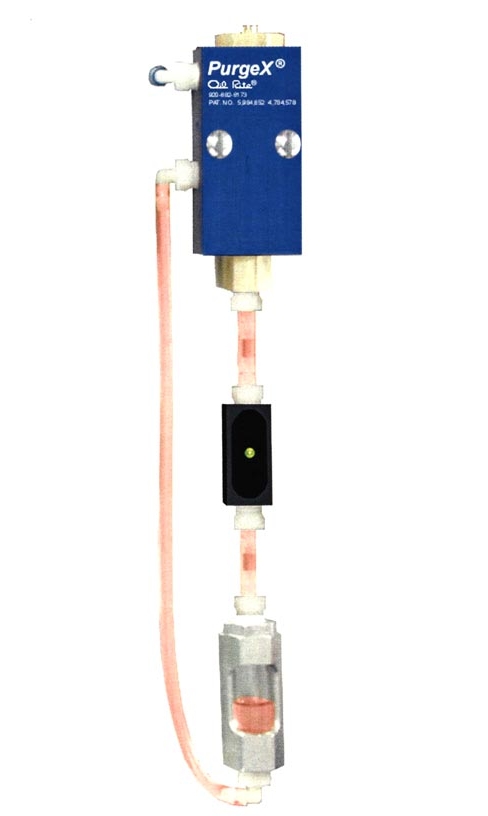

Flow Indicator shows pulses with green LED.
Manitowoc, WI 54221 1207
Jun 20, 2002 Sight-Riteâ„˘ flow indicator may be used for any lubrication or process equipment that carries pulse of fluid less than 0.012 cu in. Each pulse activates indicator light. Indicator body is epoxy and acetyl to resist chemicals and solvents, while internal mechanisms are stainless steel to resist rust and corrosion. Indicator detects flow for fluid viscosities from SAE 10W through 50W oils. Green LED is daylight visible and powered by button cell battery.

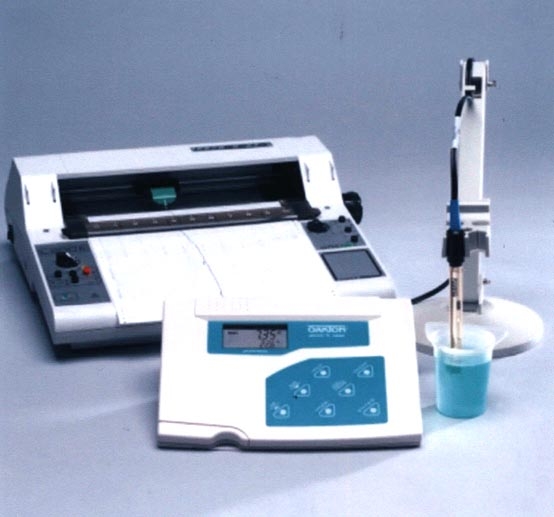

pH Meter offers pH, ORP, and temperature measurement.
Cole Parmer Instrument Co.
Vernon Hills, IL 60061
Jun 17, 2002
Less sensitive to electronic noise, OAKTON pH 510 benchtop meter provides stable, repeatable readings. It includes quick reference, slide out instruction card, dual display/hold function that freezes readings, and memory storage that stores and recalls up to 50 measurements. Water-resistant membrane keypad protects meter from accidental spills. Meter is available with manual or automatic temperature compensation.
Ph/Ion Meter suits GLP-compliant research laboratories.
Cole Parmer Instrument Co.
Vernon Hills, IL 60061
Jun 17, 2002
OAKTON pH/Ion 2100 meter handles pH, ion concentration, mV, and temperature measurements. It features selectable 0.001/0.01 pH resolution with ±0.002/0.01 pH accuracy. Real-time clock marks calibration and stored data with date and time stamps. Users can calibrate pH and conductivity to up to five points and define schedules for recalibration. Nonvolatile memory stores up to 50 data sets, and meter's RS-232 output sends readings to printer or PC.
Measuring Instruments accurately read part features.
Minneapolis, MN 55421
Jun 13, 2002 Outside Micrometers are offered in 0 to 1, 1 to 2, and 2 to 3 in. measuring ranges. Dial Calipers, available in 6, 8, and 12 in. range, provide outside, inside, depth, and step measurements in graduations of .001 in. Also offered: 1 and 0.5 in. Dial Indicator with +/-.001 in. accuracy. Test Indicators have range of 0.008 and 0.03 in. and graduations of 0.0001 and 0.0005 in. respectively. Digital Height Gage (12 in.) provides .001 in. graduations with accuracy to +/-.0015 in.

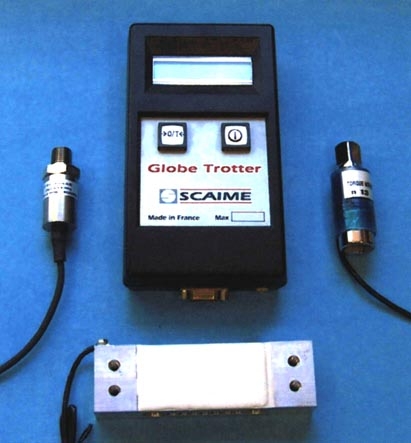

Digital Indicator suits unamplified strain-gage devices.
Wyckoff, NJ 07481
Jun 13, 2002 Housed in ABS case, GlobeTrotter provides complete programming and set-up via 2 buttons on front panel. Weighing functions are displayed on 16 alphanumeric LCD characters. Dual 9V alkaline batteries power up to 8 strain-gage sensors with bridge impedances of 350 ohms. Standard functions include dead weight (zero offset) up to 1.5 mV/V, Maximum full scale 2.5 mV/V, minimum value of 1 microvolt, linearization, and auto-adaptive filtering. Unit is approved to 1500 d OIML, certificate EN45501.
