Dresser Instrument    Stratford, CT 06614-5145
May 23, 2003 Equipped with temperature-compensated probe, ebroâ„¢ PHT 3140 measures from 0–14 pH, with resolution of 0.01 pH% and 0.02 pH accuracy. Temperature measurements from -10 to +100°C, with resolution of 0.1°C and ±0.3°C accuracy, can also be made. Instrument offers min/max memory feature, self-calibration function, touch-pad panel, and 4½-digit LCD. Model PHT 1495 is offered with manual temperature compensation.

Yokogawa Corp. Of America, Meter & Instrument Div.    Newnan, GA 30265
May 21, 2003 Portable Models CW120 and CW121 measure up to 3P3W and 3P4W, respectively. They offer large backlit LCD display and measure V, A, W, VAR, PF, Hz, WH, and VARH. Memory is compatible with 128 MB compact flash memory cards. Sample rates include 1-30 sec, 1-30 min, and 1 hr. Parameter setting software for PC is included. External current clamps are available in 50, 200, 500, 700, and 1000-3000 A.

Garner Industries    Lincoln, NE 68504
May 07, 2003 Offering abrasion resistance, heat and cold resistance, and low moisture absorption, BinMaster Diaphragm is constructed with Hypalon, Nylon, and Neoprene for use in harsh environments. Unit operates by sensing material pressing against diaphragm, which actuates sensitive micro switch that can be wired to actuate visual or audible alarms or start/stop processes. Product is suited for grain and aggregate storage.

Lumex Inc.    Carol Stream, IL 60188
May 06, 2003 Model LPF-C041304S Right Angle Quad LED Fault Indicator snaps into standard circuit board, fitting over 4 SMT LEDs. Right-angle design carries light from LEDs to front panel. Unit is made of clear UL 94V-0 rated polycarbonate and has 4 round 0.110 in. indicators, on 0.200 in. centers. Distance from center line of LEDs to faces of each indicator is 0.630 in. Passive light guide can be stacked with mate, providing up to 8 front-panel indicators.

Extech Instruments Corp.    Nashua, NH 03063
Apr 30, 2003 Non-Contact Model DA30 detects AC current from 200 mA to 1000 A through shielded wires, conduit, metal circuit breakers, and junction boxes. Sensitivity adjustments help to locate wires and conduits through walls. Detector, with audible and visual indication, includes 4 LR44 button batteries and pocket clip.

Square D Co.    Raleigh, NC 27611
Apr 23, 2003 POWERLOGIC® Power Meter 800 allows user to view current or voltage of all 3 phases, plus neutral at one time. Logging functions capture power equipment data using 80-800 k memory. Combining data collection capabilities with firmware, PM800 can automatically forecast power usage. Users can access information such as real time trend plots, averages, and demand metering so that power control, load curtailments, and load preservation programs can be developed.

KSR Kuebler Of America, Inc.    Raleigh, NC 27613
Apr 21, 2003 Model TM Magnetic Sight Glass level indicators are top-mounted on underground tanks and other tanks with top entry. Standard unit fits tanks with depths of 1–10 ft. Built from 316L or 1.4571 stainless steel, unit chambers handle temperatures from -22 to +840°F and operate with continuous outputs from 4–20 mA. Roller type magnetic indicator provides consistent performance in extreme conditions. Display indicators detect incremental changes in process fluid levels.

Lumex Inc.    Carol Stream, IL 60188

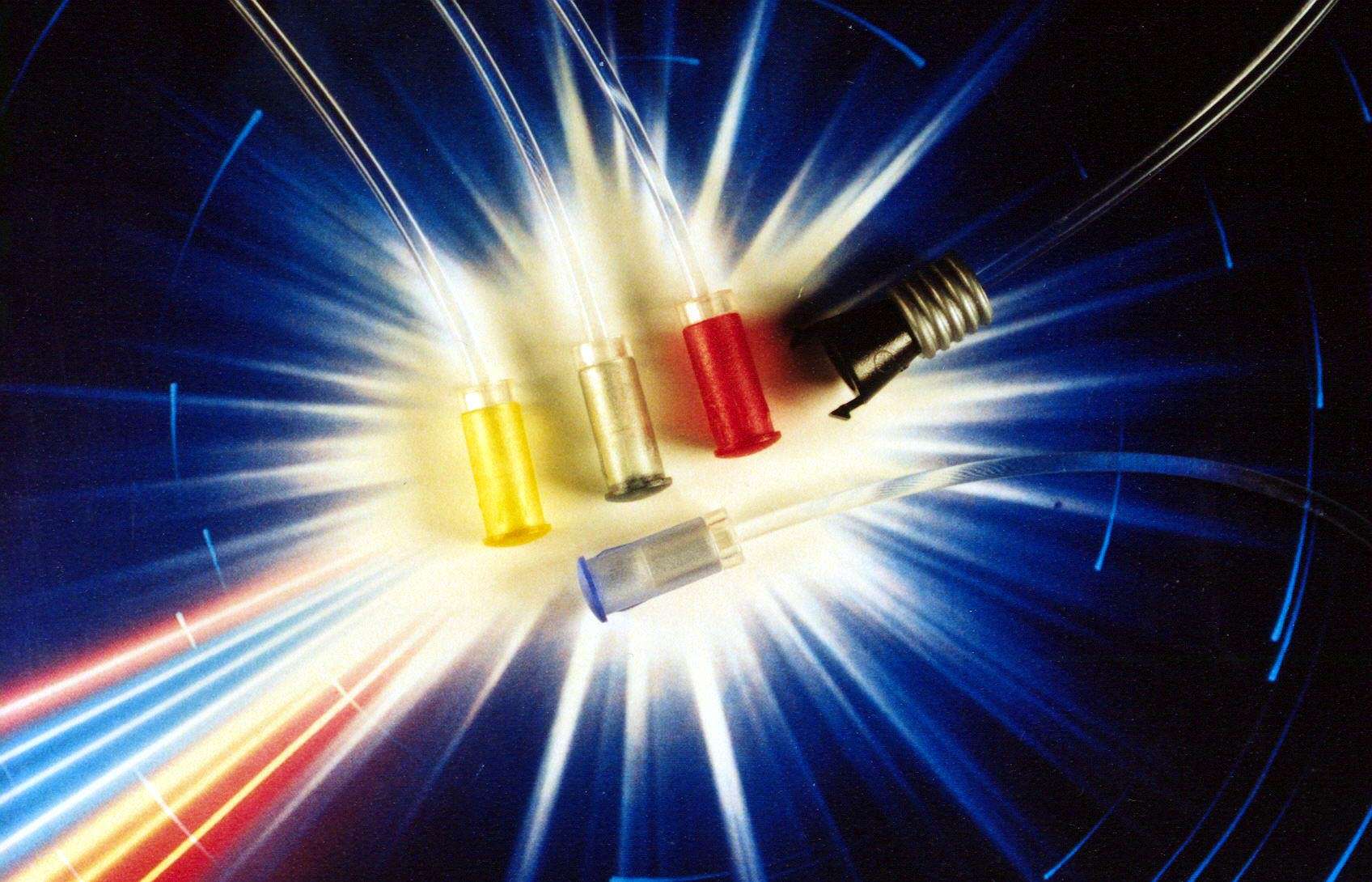

Apr 21, 2003 Series LPI-C011701S passive light guide carries light from LED source to front panel, display, or switch. Made of UL 94V-O clear polycarbonate, one end includes 0.28 in. round lens which mounts through any front panel of 0.071-0.189 in. Other end fits over LED and snaps into PCB. Flexible light transporter in middle accommodates any bend or curve allowing plane of front panel to be at any angle or offset, relative to plane of PCB containing LED.

Weigh-Tronix, Inc.    Fairmont, MN 56031
Apr 17, 2003 Offered in IP65 rated, polycarbonate enclosure that seals out dust and moisture, models 1040 and 1040XL offer 1.1 and 2.0 in. digits, respectively. With backlit LCD display, units promote clear viewing, even in light-restricted conditions. Alpha-numeric keypad allows users to spell out names of ingredients, recipes, and pens for identification, while Automatic Ration Adjustment feature provides proper ration balance for remainder of ration.

Transducer Techniques    Temecula, CA 92590
Apr 04, 2003 TLL Tension Load Cell and PHM-100 Portable Hand-Held Transducer Indicator system is for industrial and OEM force measurement and weighing applications. PHM-100 has Peak Hold feature that captures at less than 1 msec and operates on 9 V battery for 60 hr. Inline TLL is constructed from stainless and offered in ranges from 5,000 to 50,000 lb.

Bindicator    Spartanburg, SC 29306
Mar 28, 2003 Model GP-4 Yo-Yo Inventory Management System consists of GP-4 weight-and-cable level-measurement sensor and NEMA 4x Remote Display. Sensor has 4–20 mA output with adjustable span, RS-485 communication, and optional integral telephone modem. Silos up to 100 ft can be measured with resolution of 0.39 in. With Remote Display, up to 99 GP-4 sensors can be remotely set-up and configured, and measurement can be requested and displayed.

Unitek Miyachi Lasers    Monrovia, CA 91017 7133
Mar 27, 2003 Offered in 3 models, compact, color, digital Series MG3 measures and monitors current, voltage, and displacement. Configurable to meet user requirements, product provides 2 channels of current and voltage monitoring (standard) plus one or 2 channels of displacement monitoring, depending on model. Features include flexible, full color run screen, zoom function, and built-in SPC capabilities, including histograms and run charts.

Sierra Monitor Corp.    Milpitas, CA 95035 6825
Mar 27, 2003 Sentry WebServer provides graphical display of hazardous gas conditions using Microsoftâ„¢ web-browser. Safety data is presented visually on any PC, located anywhere in plant or remotely. Product enables users to web-browse to system data from LAN, WAN, or over Internet. Configurable graphic color changes are displayed as events, and all current alarms are displayed and updated on one web page. Event log provides access to history.

Rice Lake Weighing Systems    Rice Lake, WI 54868
Mar 27, 2003 SURVIVOR® LaserLightâ„¢ uses IntelliBrightâ„¢ sensing feature that provides optimal intensity for viewing under all ambient lighting conditions. Viewable from distances over 220 ft, LED display provides image of weight values, while non-glare lens prevents wash-out in direct sunlight. Displays are available in 4 or 6 in. digit sizes with annunciators for gross, net, lb, and kg. Heat-resistant enclosure opens from bottom to allow access to electronic components.

Power Measurement Ltd.    Saanichton, BC V8M 2A5  Canada
Mar 26, 2003 ION 6200â„¢ panel-mount meter, when equipped with Megawatt option, can measure electricity in megawatt/kilovolt range and offers solution for utility-management applications such as energy-cost tracking, load profiling, and substation panel metering. Bright LED display allows readability in adverse lighting conditions. Unit provides 4-quadrant power, demand, energy, power factor, and frequency measurements.

EHM, Inc., Ergonomics & Occupational Health    Sterling, VA 20165-0848

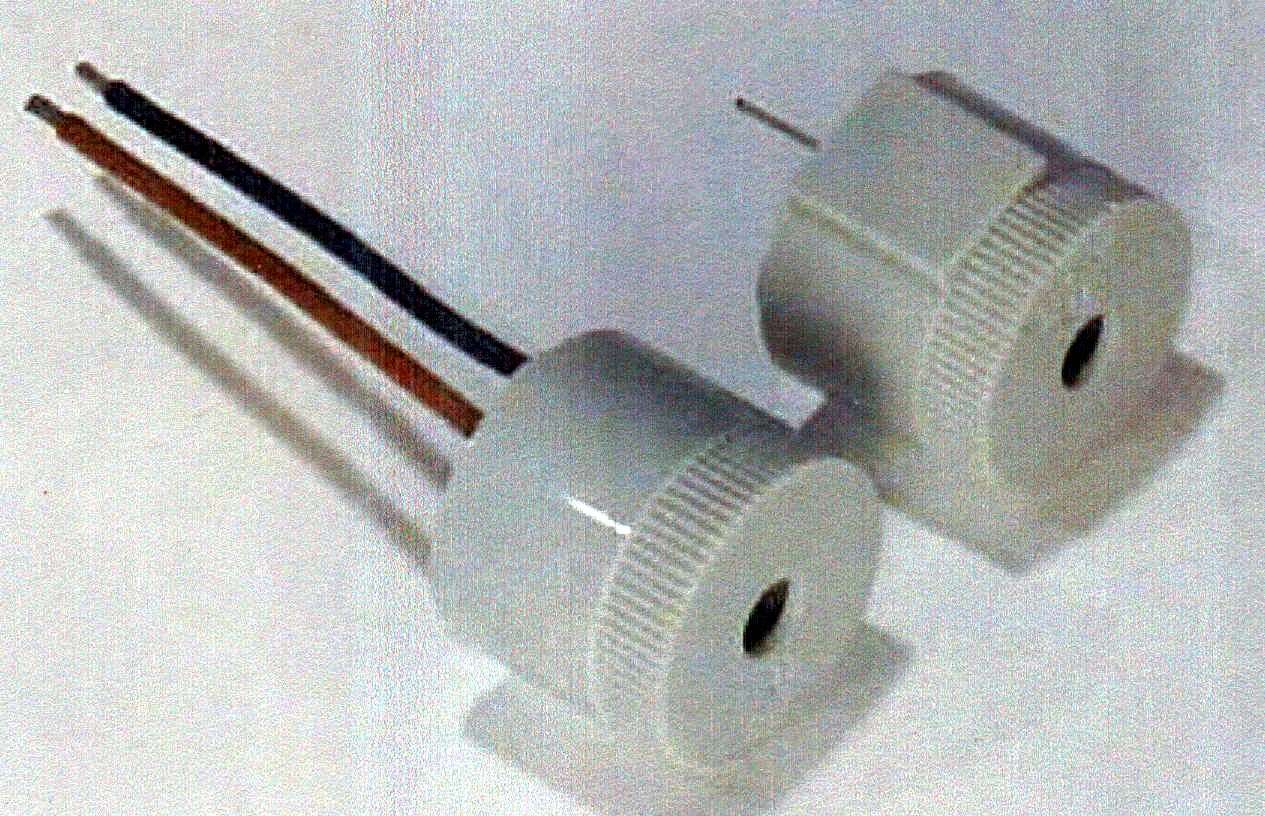

Mar 17, 2003 Model KPI-800 Piezo Audio Indicator is 26 mm in diameter and 22 mm high with lead pitch of 15 mm. Parts are epoxy sealed at base and are available in both PC-mount and wire-lead versions. Standard operating voltage is 6–18 Vdc.

IQ Scientific Instruments, Inc.    San Diego, CA 92127
Mar 10, 2003 Model IQ140 pH meter offers Automatic Temperature Compensation (ATC) and reads pH, mV, Temperature, and ORP. Protected by shock-resistant yellow holster, meter is rugged enough to sustain 6 ft drop without damage. Product is covered by 3 year warranty on meter and 6 months on glass electrode, including glass breakage.

ABB Metals Systems    New Berlin, WI 53151 2840
Mar 05, 2003 Offered in surface-mount package, TVW Series/The Net™ continuously measures voltage from each of three phases. Unit uses microcomputer circuit design that senses undervoltage, overvoltage, voltage unbalance, phase loss, and phase reversal. TVW trip delay, factory fixed from 0.2–100 sec, prevents nuisance tripping, while restart delay, factory fixed from 0.4 sec to 999 min, prevents short cycling after momentary power outage. Unit comes with bi-color LED indicator.

Electro Industries/Gaugetech    Westbury, NY 11590
Feb 07, 2003 With digital sampling architecture, SBM100 and SBM300 are suited for sub-metering and cost allocation applications. Standard Modbus Protocol via RS485 (up to 32 units daisy chained) or KYZ energy pulses simplify data acquisition and control. Housed in NEMA 4 outdoor rated enclosure, units interface with Energy Management Systems and Building Automation Systems. They mount to any surface and wire to existing or new circuits.

Transducer Techniques    Temecula, CA 92590
Feb 04, 2003 System GS0/DPM-3 combines GS0 Precision Gram Sensor and Model DPM-3 Panel Mount Meter. DPM-3 can be scaled to 5 digits, samples 60 readings per second, and features analog output and true peak reading capability. GS0 tension and compresssion sensor is offered in ranges from 10–1,000 g. Accuracies are consistent with strain gage based load cells.
