IQ Scientific Instruments, Inc.    San Diego, CA 92127
Aug 02, 2005 Equipped with non-glass pH probe and solid-state conductivity electrode, NEMA 4X-rated Model IQ170 measures pH, mV, temperature, ORP, conductivity, TDS, and salinity. It includes LCD display with LED backlight, automatic temperature compensation, automatic pH buffer recognition, automatic conductivity cell constant recognition with auto-ranging, and up to 3-point pH calibration. Stainless steel pH probe includes sensor that is virtually unbreakable.

Mid-West Instrument    Sterling Heights, MI 48314
Jul 26, 2005 Featuring complete high to low side isolation, diaphragm type Model 522 is offered with body materials of aluminum or 316/316L stainless steel and 316 SS, ceramic, and acetal moving parts. It comes with one or 2 field-adjustable, 40–100% FS, hermetically sealed reed switches in SPST (3 A) configuration. Max static pressure is 1,000 psig, max differential over-range pressure is 200 psid, and DP ranges include 0–5 and 0–50 psid with ±5% FS accuracy.

K-Tek    Prairieville, LA 70769
Jul 19, 2005 Suited for corrosive, flammable, and toxic environments, Magnetic Bargraph Model KM26 features 316 stainless steel housing and true hermetic seal that prevents moisture ingress or build-up. Bargraph magnetically couples to float through wall of float chamber, avoiding direct contact with process fluid. Unit withstands extreme temperatures such as boiler and heater applications as high as 1,000°F and cryogenic applications as low as -320°F.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Jul 13, 2005 Able to take 802.11b/a/g Wi-Fi frequency and power measurements, Caterpillar(TM) sweeping analyzer features built-in backlit display and keypad menu navigation. Receiver attaches directly to Access Point, bridger, or Network Interface Card via included SMA antenna connection kit. Triggering capability enables unit to measure 2.4 and 5 GHz frequency bands to verify and analyze output power levels, report channel and frequency, and create 802.11 power profile.

Lumex Inc.    Carol Stream, IL 60188

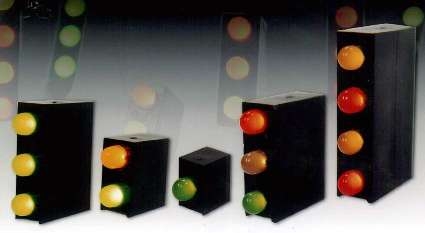

Jun 29, 2005 Featuring 1-piece design, LED Fault Indicators integrate LED light sources, holders, and mounting pins through injection molding process. Units are available in single, dual, triple, and quad LED versions, furnished with T-3 LEDs in unlimited range of colors and intensities. Typical green unit has peak wavelength of 565 nm, with axial intensity of 50 mcd at forward current of 20 mA. Applications include communications equipment, power management, and control systems.

Fredericks Company, The    Huntingdon Valley, PA 19006-6232

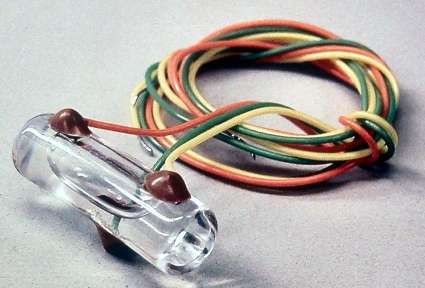

Jun 21, 2005 Single Axis Linear Output Electrolytic Tilt Sensor features ±30 arc minimum angle range, <0.05 arc second resolution, and <0.5 arc second null repeatability. Hermetic glass-to-metal construction and platinum electrodes ensure stable operation. Sensor is suited for construction laser instruments and transits, aircraft avionics, geophysical monitoring, machine tool leveling, and medical positioning or monitoring.

Papailias, J. G., Co., Inc.    Northvale, NJ 07647
Jun 17, 2005 Provided with flanged ends per ANSI B16.5 and B16.24, Series FIF is rated at 150 psig and may be configured with flapper, drip tube, or rotary flow indicators. Units are available in ½â€“20 in. sizes with bronze, carbon steel, or 316 steel body; carbon steel or ductile iron lens retainer; carbon steel fasteners; neoprene or Teflon® gaskets; and borosilicate glass lenses. Options include DIN flange connections and double window assemblies.

Doran Scales Inc.    Batavia, IL 60510 1460
Jun 03, 2005 Made of heavy gauge, painted mild steel, Model DS100 is 2 in. deep with red LED display that can be read from up to 25 ft away. Weight can be displayed in lb, kg, g, oz, or lb and oz. Zero, Tare, Gross/Net, Units, and Print function buttons are clearly labeled. U-bracket allows indicator to be placed in variety of locations such as wall, shelf, or table. Power is supplied by UL-listed, wall-mount transformer. External DC/Vehicle DC Power supply is optional.

Danaher Industrial Controls    Gurnee, IL 60031
May 26, 2005 Plus Series features 1/16 and 1/8 DIN digital panel indicators for Partlow and West brand controllers. Configurable via plug-in output boards, units feature numerical LED display that changes from green to red during alarm condition. They incorporate universal input and include latching alarms, multipoint scaling, tare function, auto detection of installed output modules, PC configuration software, 10 V SSR driver output, and transmitter power supply option.

J. W. Winco, Inc.    New Berlin, WI 53151
May 26, 2005 Oil Level Sight Glass is made of aluminum with NBR synthetic rubber seal, natural glass sight glass, and heat-resistant, technopolymer plastic reflector. Scratchproof sight glass offers leak-tight seal that is not affected by axial pressure. Seal resists heat to 212°F, and sight glasses are available in metric pipe and BSPP parallel threads. ESG Glass Oil Level Sight Glasses use ESG glass and Viton rubber seal for heat resistance to 356°F.

ADM Tronics Unlimited, Inc.    Northvale, NJ 07647 1904
May 20, 2005 Surface Energy Test Kit, VU-DYNE allows user to determine dyne levels of any film or substrate surface. Indicator solutions in kit are those commonly used for ink, coating, and adhesive wettability tests on films, especially for water-based products. Kit includes test board, test sheet, 2 wire-wound draw-down rods, 6 bottles of VU-Dyne Indicator Solution, and 6 dropper bottles.

Trek, Inc.    Medina, NY 14103 9710
May 17, 2005 Built to measure and monitor electrostatic charge, Model 400 incorporates vibrating reed probe sensor and noise null control potentiometer. It can be used with single chopper probe or dual chopper probe, which provides response time of less than 200 µsec for 1 kV step response with zero phase lag. There is no overshoot or undershoot when measuring step voltage changes, and measurement accuracy is better than ±0.05% of reading ±0.5 V at monitor output.

Rice Lake Weighing Systems    Rice Lake, WI 54868

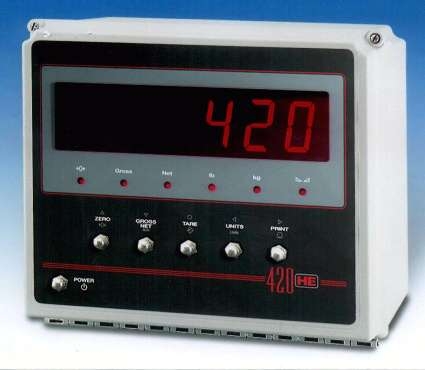

May 16, 2005 Constructed of Fiberglass Reinforced Polyester with NEMA 4X enclosure, SURVIVOR 420HE is non-condensing and inert to most chemicals, oils, and solvents. Watertight front panel switches are covered with silicone rubber polymer membrane for additional protection. Capable of driving up to eight 350 ohm load cells, unit offers speeds up to 60 updates/sec and RATTLETRAPâ„¢ 3-stage digital filtering. Two setpoint outputs can activate alarms or buzzers.

Norbar Torque Tools, Inc.    Willoughby, OH 44094
May 16, 2005 USM-2 Ultrasonic Bolt Meter with operating software v1.6 provides precise measurement of elongation and load in threaded fasteners from 1 in. to 50 ft long made of any metal material. Field-portable unit features onboard flash memory that stores up to 5 elongation and load measurements for each bolt to verify multiple pass tightening procedures. Integral data recorder stores bolt information and makes it available for download through RS232 port.

HD Electric Co.    Waukegan, IL 60085
May 13, 2005 Direct contact DVI Digital Voltage Indicator reads voltage on conductors rated up to 99 kV line-to-ground. Its 2.5 in. tall LED display is positioned on end of long hotstick and can be used on overhead lines or in underground applications by contacting conductor and reading display. Compact instrument provides audible indication of voltage detected and allows user to distinguish between nominal and induced voltages.

Mark-10 Corp.    Copiague, NY 11726

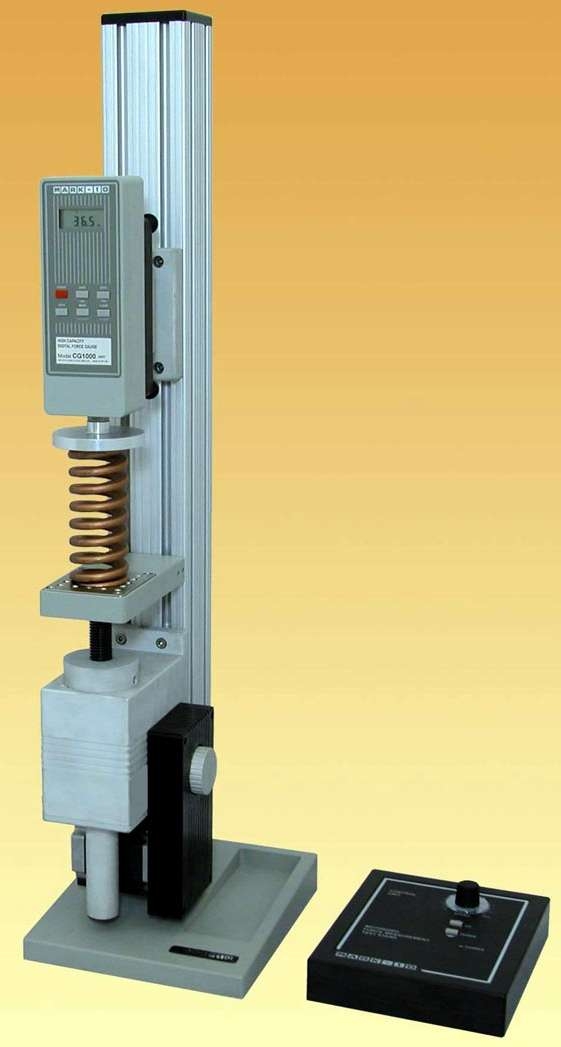

May 10, 2005 Utilizing rigid column that minimizes bend, TSFM500 is designed for compression and tension testing of springs, packaging, metals, and fabrics. Clearance and throat depth accommodate variety of sample shapes and sizes, and remote control unit adds to testing safety. Along with 0.2-5.5 ipm user-selectable speed range, product has stepper motor design that eliminates speed variation with load. Digital travel display and set of limit switches are options.

K-Tek    Prairieville, LA 70769
May 06, 2005 MagWave incorporates dual-chamber design that includes magnetic level gauge for level indication and guided wave radar transmitter. Unit offers accurate level measurements with pressures up to 3000 psi or temperatures to 800°F. Custom configuration is available with second chamber fitted for guided wave radar, magnetostrictive, or capacitance transmitters. Unit provides independent, redundant measurements in oil, gas, petrochemical, and power applications.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Apr 28, 2005 With common mode input of -16 to +80 V, Series InA19x measures high-side current in automotive, motor control, power management, and battery charging applications. Units feature single supply voltage of +2.7 to +18 V, with 400 kHz bandwidth, quiescent current of 700 µA max per channel, and temperature range of -40 to +125°C. Three output voltage transfer functions of 20, 50, and 100 V/V are offered.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Apr 27, 2005 Series 7200-PT provides audible alarm if door is not closed within specified time period or is forced open, and can also output alarm condition to other monitoring systems. Door open time can be preset from 5 sec to 90 min and local warning tone can be preset from 0 sec to 5 min. Unit includes dual voltage power lock that accepts 12 or 24 Vdc, programmable features that allow custom configuration, and LED indicator for instant status verification.

Dortronics Systems, Inc.    Sag Harbor, NY 11963

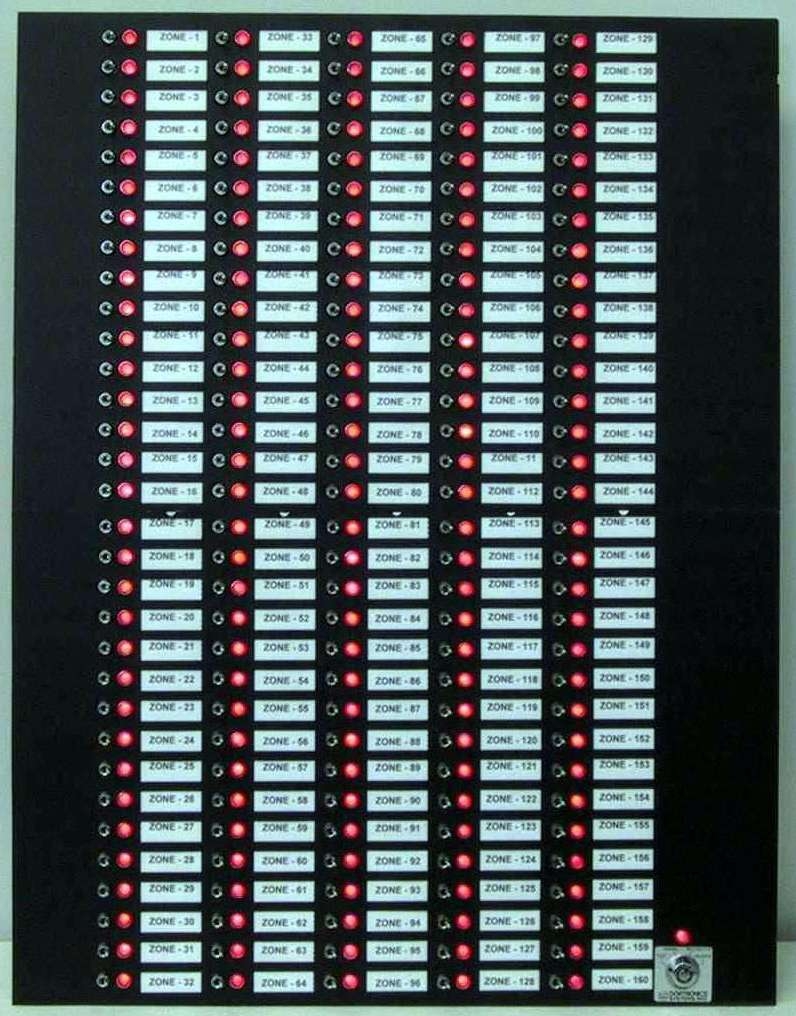

Apr 27, 2005 Suited for complex access control applications, Series 7600 Annunciators constantly display status of each zone with tri-state LEDs that report 6 door conditions. Modular system, expandable in 4 and 8 zone increments, lets users remotely unlock doors from console or perform authorized entry and egress operations via access control system or REX device. Unauthorized exit attempts, tampering, and magnetic bond failures create alarm condition.
