Teseq, Inc.    Edison, NJ 08837
May 22, 2012 Compliant with CISPR 16-1-1 and IEC-EN standards, Model PMM 9010F is suited for conducted and radiated emissions testing of appliances, power tools, and machinery. Unit has standard frequency range of 10 Hz to 30 MHz and is expandable to 18 GHz using external modules. Scan time can be performed in less than 25 sec when device is adjusted to CISPR setting. With low noise floor of less than -24 dBµV in band A and less than -7 dBµV in band B, receiver eliminates need for external pre-amplifiers.

MKS    Andover, MA 01810 2449
May 14, 2012 Quadrupole monitors HPQ3 and HPQ3S are PVD chamber sensors that do not require differential pumping. Able to detect single figure ppm air leaks during PVD process while simultaneously monitoring all gas species in mass range of 1-100 amu, analyzers feature ion source with dual filaments to ensure failure backup and continuous uninterrupted operation. Respectively, HPQ3 and HPQ3S provide data for processes up to total pressure of 1.3e-3 and 1e-2mbar.

Oxford Instruments Analytical    High Wycombe HP12 3SE  United Kingdom
Apr 20, 2012 Meeting ASTM B568 and ISO 3497 international test methods, X-Strata920 x-ray fluorescence (XRF) analyzer offers coating thickness measurement and materials analysis for industrial markets such as electronics, metal finishing, alloys, and precious metals assay. Combining large area proportional detector and micro-focus x-ray tube, providing high-intensity, small spot x-ray beam for sample excitation. If problem area is identified, operator can return to specific points for detailed investigation.

NETZSCH, Inc.    Exton, PA 19341
Mar 22, 2012 Providing comprehensive characterization of materials, TG 209 F1 Libra operates across extended temperature range. BeFlat function automatically compensates for any external factors influencing measurement. Calculated DTA signal, c-DTA, yields valuable information on phase transitions, making instrument suitable for polymer analysis. Vacuum-tight design not only allows for creation of pure inert atmosphere via evacuating and filling, but also for execution of measurements under vacuum conditions.

Nanion Technologies GmbH    Munchen   Germany
Feb 29, 2012 Used for analysis of bilayer-reconstituted ion channels and nanopores, Orbit 16 allows automated formation of, and recordings from, 16 bilayers in parallel. System accelerates process via simultaneous formation of micrometer-sized bilayers and allows subsequent parallel recordings, fostering efficient data generation. For experimental flexibility, 2 recording chips are available: Ionera microelectrode cavity array (MECA) or proprietary recording chips for work on (proteo-) liposomes.

Saelig Co., Inc.    Pittsford, NY 14534
Feb 24, 2012 Measuring 3.3 x 1.75 in., Xminilab combines 8-bit arbitrary waveform generator, protocol sniffer, and mixed signal oscilloscope that provides simultaneous 2 MSPS sampling of 2 analog signals. Unit is based on Atmel's ATXMEGA32A4 MCU, with 32 KB Flash, 4 KB SRAM, and 1 KB EEPROM. It can be mounted on breadboard or PCB for in-situ testing and verification. Graphic 2.4 in. 128 x 64 pixel OLED display indicates monitored signals with automatic measurements, adjustable persistence, cursors, and grids.

Anritsu Co.    Morgan Hill, CA 95046
Dec 06, 2011 Covering 900 MHz band to address passive intermodulation (PIM) measurement needs in E-GSM networks, MW8209A PIM Master(TM) employs Distance-to-PIM technology to determine if cause of PIM is at base station or in surrounding environment. Field personnel can generate 2 high-power tones in transmit band of base station and use any compatible Anritsu handheld analyzers to measure third, fifth, or seventh order intermodulation products in receive band that travel down same cable.

Oxford Instruments Analytical    High Wycombe HP12 3SE  United Kingdom

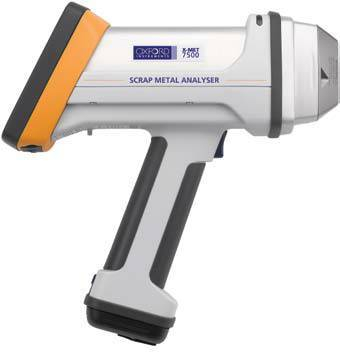

Nov 22, 2011 Equipped with 4.3 in. Blanview® transmissive LCD touchscreen for outdoor viewing, X MET7000 delivers professional materials analysis, verification, and screening. Unit can be loaded with variety of analysis methods to meet strict compliance regulations. Result screen can be user-customized for individual needs, and history view allows for browsing of older results and spectra. Available in 13 languages, analyzer is suited for PMI, metals and alloys, scrap sorting, and precious metals analysis.

Qualitest International Inc    Fort Lauderdale, FL 33308
Nov 16, 2011 Featuring ergonomic, portable design, EDXpert operates at 40 kV, but can also be set up for 50 kV. Unit has detectable range of Cl to U and offers option to expand range to light elements, resulting in detectable range of Mg to U. Operating for full 8 hours before charging is required, EDXpert includes onboard touchscreen, and can be combined with laptop or PC to offer laboratory grade instrument.

Spectro Analytical Instruments Inc.    Marlborough, MA 01752
Oct 19, 2011 SPECTRO xSORT energy dispersive X-ray fluorescence (EDXRF) spectrometer enables in-field elemental testing and spectro-chemical analysis of metals and other materials. Available with integrated video camera and GPS, instrument provides grade identification and material verification for metals and most alloys within 2 sec of clicking trigger; light-metal alloys require 12 sec to process. Other features include grade libraries, SDD detector, and detection limits down to ppm range.

Doble Engineering Company    Watertown, MA 02472
Sep 16, 2011 Designed for continuous monitoring of dissolved gas in oil, Doble Delphi delivers critical information in real-time, providing power transformer substation engineers with intelligent alerts and trend analysis for asset management. Device is available as hydrogen monitor or composite gas monitor and can be mounted directly to transformer valve. Using fuel cell technology and optional micro-pump circulation, instrument provides accurate measurements with alarms that appear on display and software.

Thermo Electron Corporation / Molecular Spectroscopy    Madison, WI 53711-4495
Aug 23, 2011 Able to analyze multiple components simultaneously without consumables or chemicals, Antaris(TM) II FT-NIR Analyzers are suited for feed and ingredient analysis in agriculture and flour and milling analysis in food processing industry. Systems consist of FT-NIR analyzer with integrating sphere module and 5 or 12 cm sample cup spinner accessory, RESULT and TQ Analyst software packages, and INGOT calibration package. Providing internal, automatic sample collection, analyzers eliminate operator error.

Emerson Process Management / Process Liquid Division / Uniloc Division    Irvine, CA 92606
Aug 22, 2011 Featuring 4 independent 4-20 mA outputs that can be configured for measurements or PID control, dual-channel Model 56 uses full-color screen for process measurement data, diagnostics information, and trend graphics. Data and event logging capability provides on-board data storage that captures measurement data for both channels every 30 sec for 30 days. To transmit data to PLCs, SCADA, or DCS systems, Model 56 is supplied with HART or PROFIBUS DP digital communications.

Servomex Group Ltd    Crowborough East Su TN6 3DU  United Kingdom
Aug 04, 2011 Available in bench top, panel, or 19 in. rackmount options, SERVOPRO MultiExact uses TruRef technology to eliminate distorting effects of changing thermal mass and thermal convection. Thermal conductivity measurement is fully supported, with control optimized via RS232 serial communications, Ethernet connectivity, or Modbus via RS485. MultiExact also offers NAMUR-compliant fault relay functions, allowing alarms, maintenance, and service-in-progress messages to be communicated remotely.

Edwards Lifesciences    Irvine, CA 92614
Jul 20, 2011 With touchscreen monitor and 510(k) clearance from FDA, EV1000 clinical monitoring platform simplifies decision-making in hospital OR and ICU facilities. Platform allows patient data to be displayed on choice of several different screens, which use color-coding and physiologic representation of cardiovascular circulation to reflect patient status and aid decision-making. Functionality facilitates display and retrieval of hemodynamic information and expands its applicability.

KLA-Tencor Corp.    San Jose, CA 95134
Jul 19, 2011 Leveraging DUV wavelength, special apertures, and multiple illumination and collection channels, Surfscan SP3 addresses stringent 28 nm node requirements for defect detection and classification on blanket films at production speeds. System helps manufacture substrates for 28 nm devices and below that are nearly atomically smooth and free from polish marks, crystalline pits, terracing, voids, or other defects that disrupt electrical integrity of transistor.

Mettler-Toledo AutoChem    Millersville, MD 21108
Jun 07, 2011 Certified for safe use in Class I, Division 1 hazardous manufacturing environments, ReactIR(TM) 247 HL-UL employs Fourier Transform Infrared (FTIR) analysis to characterize array of process chemistry reactions. Specific compliances include UL 1203, Fourth Edition, Explosion-Proof and Dust-Ignition-Proof Electrical Equipment for Use in Hazardous (Classified) Locations; C22.2 No. 30-M1986, Explosion-Proof Enclosures for Use in Class I Hazardous Locations; and UL 61010-1/CSA C22.2 No. 61010-1.

Gleason Corp.    Rochester, NY 14692 2970
May 25, 2011 Comprised of 6-axis, CNC gear testers, Gleason 1000T/1600T/2000T/2500T series can perform roll testing and single flank testing of bevel, angular bevel, and parallel-axis gears with diameters up to 2,500 mm. CNC-controlled pivoting gearhead can swing from 0°-180°, enabling it to precisely mesh pinion and ring gears of varying angles and types as well as cylindrical gears - both parallel axis and off-angle. Functionality facilitates relation to machine via virtual gear set axes.

Thermo Fisher Scientific    Waltham, MA 02454
Mar 23, 2011 Able to analyze any solid or liquid sample, ARL PERFORM'X integrates bulk elemental analysis with mapping and small spot analysis. X-ray fluorescence (XRF) spectrometer, designed for analytical laboratories, offers choice of analyzed area size from 35-0.5 mm. X-ray mapping and sample visualization capabilities enable users to identify and characterize inhomogeneities, while dual sample loading enables processing of 60+ samples/hr and analysis of up to 84 elements.

Coulbourn Instruments    Allentown, PA 18106
Feb 23, 2011 Modular in design, M3 Metabolic Measurement and Mapping System integrates respiratory metabolism, food and drink intake, and activity monitoring in specially adapted cages. Users can collect precise and reproducible data with laser sensors, which eliminate effects of humidity and temperature on measurements. Simultaneous experiments with multiple animals of different sizes can be conducted with independent air flow control, up to 20 lpm total, per cage.
