GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 07, 2011 Intended for field use, Model 8385 measures CATV TITL, C/N, and trunk cable voltage, facilitating installation of CATV systems. Unit tests CATV signal levels in both channel (SCAN) and frequency (SPECTURM) modes. In SCAN mode, analyzer scans all channels and records signal levels in internal memory for later analysis. In SPECTRUM mode, device displays spectrum tests within frequency range of 5-870 MHz. Portable handheld unit can store 24 groups of scanned data and offers 2 RF F-type input ports.

Renishaw, Inc.    Hoffman Estates, IL 60192
Mar 07, 2011 RenDx(TM) RUO multiplex assay system, configurable to individual research requirements, features reagents kit with materials needed to process 100 assays, and robotic sample processor with touchscreen interface. It also includes analyzer that uses surface enhanced resonance Raman scattering (SERRS) to detect and analyze range of samples. Analysis is direct from sample and product is suited for clinical research, pharmaceutical, food and drink, and environmental applications.

Saelig Co., Inc.    Pittsford, NY 14534
Mar 07, 2011 Based on Atmel ATXMEGA32A4 MCU, with 32 KB Flash, 4 KB SRAM, and 1 KB EEPROM, Xprotolab offers 44 kHz arbitrary waveform generator capabilities and can be mounted on breadboard/PCB for in-situ testing/verification. Integrated 128 x 64 pixel OLED display provides functions of 8-bit mixed-signal oscilloscope with simultaneous sampling of analog/digital signals, providing 2 analog and 8 digital channels. Max input is ±10 V with 2 MS/sec max sampling rate, resulting in 320 kHz analog bandwidth.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 01, 2011 Incorporating 4,000 count auto-range True RMS digital multimeter and handheld digital storage oscilloscope, Model 6102 measures AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, power output, and continuity. Unit features full auto set up for volt/div and time/div, and provides DSO auto measurement as well as DSO cursor readout. Operating for up to 16 hr on single charge, meter offers 4 Mbps real-time sampling rate and can save and recall up to 100 waveforms and data.

GAO RFID Inc.    Toronto   Canada
Mar 01, 2011 Integrating functionality of Time Domain Reflectometer (TDR) and Digital Multi-Meter (DMM), model 321 portable network tester is suited for installation and maintenance of xDSL networks. Functionality encompasses network layer testing, cable length/break testing to 150 m, PPPoE dialing, DMM tests, and wiring diagram testing. Additional tests include AC/DC voltage, line capacitance, and line insulation. Memory capacity is 20 M, and users can download test results to computer or USB drive.

Syrris Ltd.    Royston SG8 5HW  United Kingdom

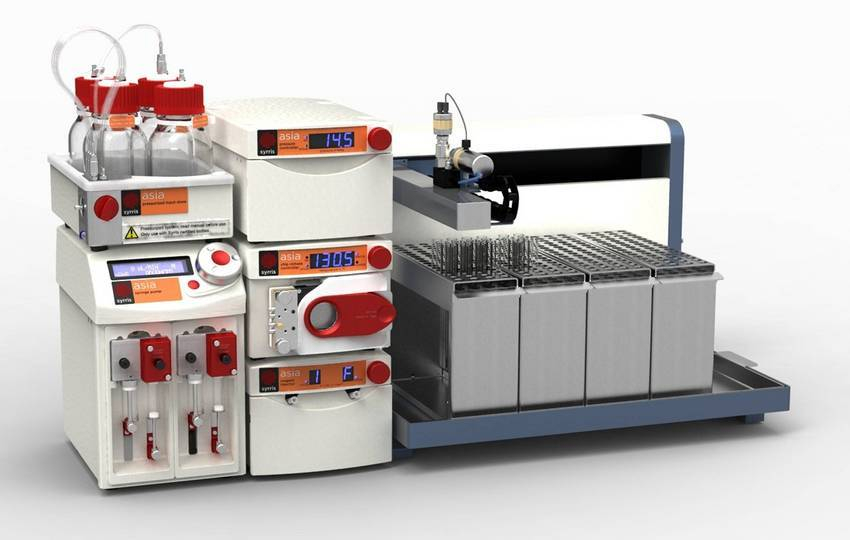

Feb 25, 2011 Asia 1-series modular flow chemistry systems are manually operated, while Asia 2-series systems can automatically perform one experiment at time, with automated parameters such as reaction temperature, pressure, and collection timings. Fully-automated for process optimization, Asia 3-series can perform synthesis, work-up, and analysis of hundreds of experiments. All 3 products have -15 to 250°C temperature range and 0-20 bar pressure range, as well as microgram to kilogram scalability.

National Instruments Corp.    Austin, TX 78759-3504
Feb 25, 2011 Featuring MIMO architecture, Model PXIe-5665 combines NI PXIe-5603 downconverter with NI PXIe-5653 local oscillator synthesizer and NI PXIe-5622 150 MS/s IF digitizer. Analyzer provides spectrum and wideband vector signal measurements over frequency range of 20 Hz to 3.6 GHz with analysis bandwidths up to 50 MHz. Unit features low phase noise of -129 dBc/Hz at 10 kHz offset at 800 MHz, average noise level of -165 dBm/Hz, and absolute amplitude accuracy of ±0.10 dB.

Dwyer Instruments, Inc.    Michigan City, IN 46361

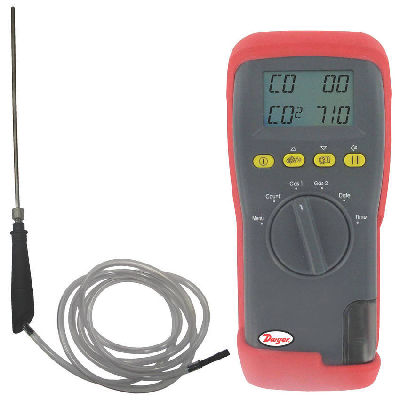

Feb 24, 2011 Designed to measure indoor air quality, Model 1205B displays measurements on 2-line digital LCD with backlight. Unit's memory stores up to 255 sets of readings that are logged manually or auto-logged with 1-10 min intervals. In addition to measurement recording, analyzer can provide summary of average and max levels reached, which can then be printed via optional IR printer. Batteries, 120 V power supply, protective rubber boot, sampling probe, and canvas carrying case are included.

Coulbourn Instruments    Allentown, PA 18106

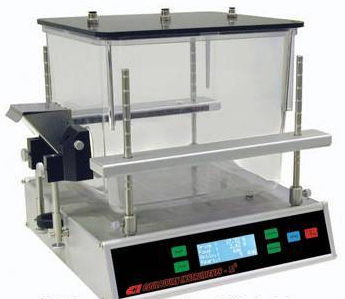

Feb 23, 2011 Modular in design, M3 Metabolic Measurement and Mapping System integrates respiratory metabolism, food and drink intake, and activity monitoring in specially adapted cages. Users can collect precise and reproducible data with laser sensors, which eliminate effects of humidity and temperature on measurements. Simultaneous experiments with multiple animals of different sizes can be conducted with independent air flow control, up to 20 lpm total, per cage.

Saelig Co., Inc.    Pittsford, NY 14534
Feb 23, 2011 Controlled from PC via USB interface, SPI Storm can access ASICs, SoCs, FPGAs, and other digital embedded systems that use serial protocols at speeds of up to 100 MHz at I/O lines. Various serial protocols can be chosen from standard library: SPI, variants of SPI on 3 wires, as well as dual- and quad-SPI protocols. SPI Storm Studio software, included, allows user-specific definition of custom protocols, including those requiring bi-directional signal lines. Other features include 32 MB memory, 100 MHz operation, and 3 specialized ports: flexible serial, 8-bit GPO, and 8-bit input trigger.

GL Communications Inc.    Gaithersburg, MD 20877

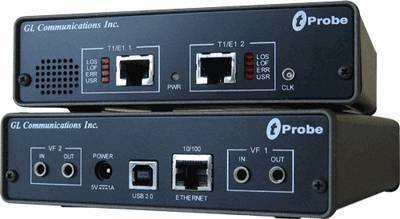

Feb 22, 2011 Equipped with USB and Ethernet interfaces, tProbe(TM) T1 E1 VF and Serial Data Analysis and Emulation Hardware provides T1 E1 pulse shape and jitter measurement analysis, VF Drop and VF Insert capabilities, and optimized circuitry for accurate Digital Line Level measurements. Cross-port Through and Cross-port Transmit modes facilitate Drop/Insert and Fail-Safe Inline monitoring. Measuring 6.05 x 5.55 x 1.60 in., system supports both Windows XP and Windows 7 operating systems.

GL Communications Inc.    Gaithersburg, MD 20877

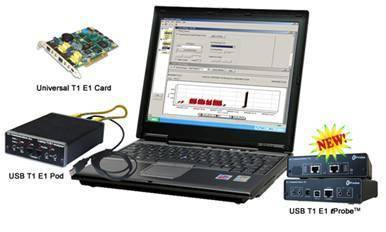

Feb 16, 2011 The tProbe(TM) E1 T1 Analyzer incorporates USB interface along with features for remote accessibility and scripting, basic testing software, and a set of optional applications. T1 E1 Analysis suite v6.0 delivers analysis and emulation capabilities for voiceband analysis and signaling protocol analysis. Software applications include ATM BERT, Simplified Audio Client (SAC), WCS - Client Data Tx Rx, and ASCII-TS Display Application to accommodate more complex applications.

Fluid Imaging Technologies    Yarmouth, ME 04096
Feb 16, 2011 FlowCAM Front-Fill Illumination(TM) particle imaging and analysis system features bidirectional front and back lighting, which illuminates surfaces of opaque particles and reveals their true colors and textures. Delivering 3D images, system combines bright and dark field microscopy in one unit to determine actual size and shape of particle detected while automatically measuring, recognizing, characterizing, and identifying every particle.

COMPRION GmbH    Paderborn 33100  Germany

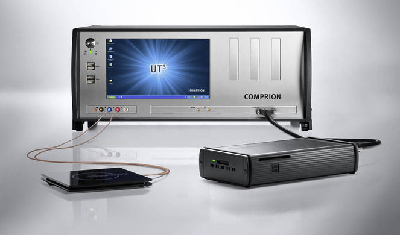

Feb 15, 2011 Providing universal terminal test tool for conformance testing of both contact-based and NFC-related smart card interfaces, UT³ Platform is suited for testing mobile phones, contactless terminals, NFC chips and devices, M2M modules, and laptops. Platform offers both analog and digital simulation of all interfaces. Integrated oscilloscope ensures that analog signal behavior is not influenced by additional parasitic effected caused by connection of external measurement equipment.

Malvern Instruments Inc.    Westborough, MA 01581
Feb 15, 2011 Used as standalone detector for analyzing samples in cuvette or as modular chromatography detector, Zetasizer µV offers dual dynamic light scattering and SLS static light scattering capabilities. OmniFACE provides necessary connection for linking Zetasizer µV to any third party size exclusion chromatography system and detectors so that output signals can be used by OmniSEC software for results calculation. Also standard, 8 µL flow cell minimizes band broadening.

Rohde & Schwarz GmbH & Co      Germany
Feb 11, 2011 Suited for AESA radar equipment manufacturers, Model TS6710 characterizes 25,000 measurement results of transmitter-receiver module in less than 4 min. Turnkey system, featuring frequency range of 1 Hz to 24 GHz, consists of ZVA network analyzer for RF measurements, OSP-TRM control platform for RF signal switching/conditioning, and TSVP test platform for TRM control and supply. System can measure S-parameters for all phase attenuation combinations, noise factor, output power, and intermodulation.

GAO Tek Inc.    Toronto M1B2K4  Canada
Feb 10, 2011 Operating from 5-870 MHz, model 1285B is suited for testing analog, digital, and FM channels as well as dual audio channel testing. Functions cover digital TV (QAM) power analysis and spectrum analysis as well as tilt testing, limit testing, trunk voltage testing, and auto test. Used in troubleshooting network problems and monitoring potential network security attacks, meter incorporates data port that allows connection to computer or printer for saving/printing test data reports.

LeCroy Corp.    Chestnut Ridge, NY 10977
Feb 09, 2011 WaveRunner 6 Zi series oscilloscopes are available in 6 models, including industrial model with 4 GHz bandwidth and 40 GS/sec per channel sample rates as well as serial-data and probing features. Series also includes WaveRunner HRO (High-Resolution-Oscilloscope) models at 400 and 600 MHz bandwidths with 12 bits of vertical resolution. All models have pivoting display that lets users view signals vertically as well as horizontally, and offer optimal signal fidelity with low electrical noise.

LeCroy Corp.    Chestnut Ridge, NY 10977
Feb 09, 2011 Summit(TM) T28 Protocol Analyzer supports PCIe® data transmission rates up to 5 GT/sec and data lane widths up to x8. Measuring 10.9 x 7.7 x 2.2 in., product weighs 2.65 lb and includes real-time statistics, protocol traffic summaries, and ability to create user-defined test reports. It supports PCIe 1.0 and 2.0 application-specific interposers and probes for connection to various physical designs, and integrates PETracer(TM) Software that includes multiple data analysis views.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Feb 09, 2011 Suited for testing and debugging electronic designs, Infiniium Oscilloscopes offer bandwidths from 600 MHz to 32 GHz and deliver 20 Mpts of memory standard. Infiniium 9000 and 90000 Series scopes offer 1 Gpt memory option, while Infiniium 90000 X-Series scopes provide memory options up to 2 Gpts. With optimum deep-memory update rate, oscilloscopes eliminate unresponsive controls with deep memory turned on, and long dead times that prevent scopes from capturing anomalies.
