Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 15, 2012 Comprised of 2-channel models with 50/70/100/150 MHz bandwidths and up to 16 kpts of memory per channel, 1000B Series can display 23 automatic measurements, including those made with built-in frequency counter, and offers 1 GSPS sample rate. Color LCD promotes readability and go/no-go mask testing capability allows even inexperienced users to perform precise parametric tests. Also included, sequence mode lets users record and replay up to 1,000 occurrences of trigger.

E Instruments International LLC    Langhorne, PA 19047

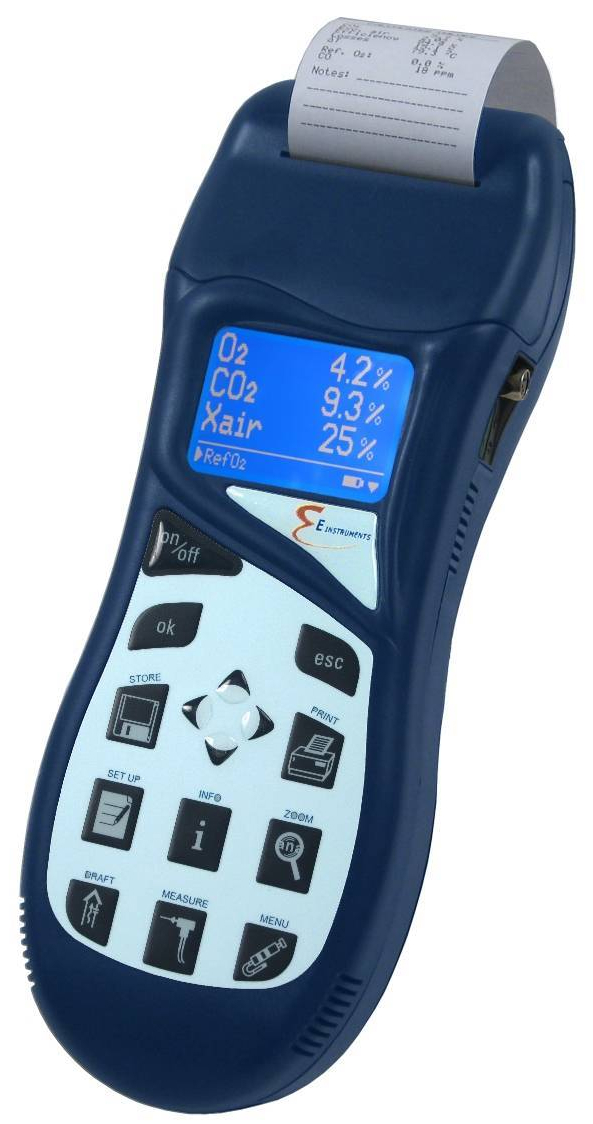

Jun 13, 2012 With incoming air smart probe and support for field-replaceable sensors, BTU1100-HE Portable Combustion Analyzer High Efficiency Kit meets needs of mechanical contractors, plumbers, and boiler technicians monitoring/installing condensing and 90%+ efficiency systems. Unit has built-in printer, manometer, thermometer (ambient and flue gas), and CO leak detector. Rechargeable battery and AC charger come standard, along with dual hose (9 ft) and 12 in. probe (gas and draft simultaneously).

Audon Electronics    Nottingham NG9 4AT  United Kingdom
Jun 08, 2012 Designed with 5 MHz bandwidth front-end and 12 MSPS sample rate, iMSO-104 can simultaneously analyze one analog and 4 digital signals for time-synchronized troubleshooting. Portable unit is based on PSoC 3, which handles Apple's proprietary dock interface for iOS devices - iPod touch, iPhone, iPad - while simultaneously processing incoming analog and digital signals. Solution comes with various standard input, trigger, and math features as well as ability to instantly email screen captures.

Fluke Networks    Camarillo, CA 93010
Jun 07, 2012 Providing data center visibility, OptiView XG helps identify issues and root causes in minutes. One-Click Test finds connection path in single screen view. Once analysis is complete, engineers can provide consolidated summary report which indicates whether problem is with network or server. If not a network problem, Automated Multi-Segment Analysis feature can be used with another OptiView XG to capture and merge trace files from multiple segments to find where loss and latency are occurring.

Supercritical Fluid Technologies, Inc.    Newark, DE 19711
Jun 06, 2012 Designed to determine solubility of various compounds and mixtures in supercritical and high-pressure fluids, SFT Phase Monitor II provides direct, visual observation of dissolution, precipitation, and crystallization of materials under conditions precisely controlled by researcher. Effect of co-solvents on solubility of compounds of interest may be investigated as well. Monitor can perform experiments at pressures up to 10,000 psi and from ambient temperature to 150°C.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887
Jun 04, 2012 With accuracy of up to 2% of reading or 5 NTU, Triton® TR6 measures turbidity or suspended solids; 4 selectable dual ranges feature preset lows/highs from 0-4,000 NTU. Sensor can also be combined with 2-channel C22 analyzer to monitor pH, ORP, DO, conductivity, pIon, and more. Emitting 850 nm beam, temperature-compensated sensor provides turbidity measurement in mg/L, ppm, and percent solids to volume. Unit can be installed in inline flow cell and is submersible up to 500 m.

Berkeley Nucleonics Corp.    San Rafael, CA 94901
May 31, 2012 Supplied in Pelican-Style hard wheeled case, Model 971 Food-SSAFE Kit utilizes NaI detector and software algorithm to measure and report nuclear radiation found in fish and meat products, liquids, and soil samples. Food products are placed in Marinelli beaker then insulated with lead shield. Data is collected in Model 970 Multi-Channel Analyzer and then processed with NOMAD micro-PC. In addition to displaying results in real-time, kit can store results for future analysis.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 30, 2012 With eye-diagram mask testing capability, 3000 X-Series oscilloscopes let engineers perform composite signal-integrity measurement of differential CAN serial bus. CAN eye-diagram test randomly captures and overlays every differential bit of every CAN frame based on clock-recovery algorithm that emulates worst-case CAN receiver hard synchronization, resynchronization, and sampling. This provides insight into overall signal integrity of CAN's physical layer.

Tektronix Communications    Plano, TX 75075
May 24, 2012 With auto-scripting and raw media injection, laptop-based Spectra2 v8.0 helps operators transition to LTE, IMS, and IP networks and ensure end-to-end quality. It characterizes and tests networks, subsystems, and new network elements to ensure all operate properly and within specification under loaded conditions. Able to test IMS, NGN, VoIP, and legacy PSTN technologies, integrated solution can achieve signaling load of 100,000 CPS for diameter or 10-million open calls for ISUP.

Teseq, Inc.    Edison, NJ 08837
May 22, 2012 Compliant with CISPR 16-1-1 and IEC-EN standards, Model PMM 9010F is suited for conducted and radiated emissions testing of appliances, power tools, and machinery. Unit has standard frequency range of 10 Hz to 30 MHz and is expandable to 18 GHz using external modules. Scan time can be performed in less than 25 sec when device is adjusted to CISPR setting. With low noise floor of less than -24 dBµV in band A and less than -7 dBµV in band B, receiver eliminates need for external pre-amplifiers.

EXFO    Quebec G1M 2K2  Canada
May 21, 2012 Housed in FTB-1 platform, NetBlazer Series includes Fibre Channel and multiprotocol label switching test capabilities. With 1, 2, 4, 8, and 10 X interfaces, Fibre Channel function extends testers' reach to include storage area networks for cloud-based applications, data centers, and financial communities. Fibre Channel capabilities can be enabled on existing field units via on-site software upgrade.

Mettler Toledo, Inc.    Columbus, OH 43240
May 21, 2012 Carrying all required safety certification for global use, ReactIR(TM) 45P HL allows reaction scale-up to be studied under actual process conditions. Instrument lets manufacturers maintain critical factors such as yield, product purity, operator safety, and compliance during scale-up of sensitive chemical processes. In-situ monitoring is used to study formation and consumption of starting materials, intermediates, and other species in reaction.

Anritsu Co.    Richardson, TX 75081

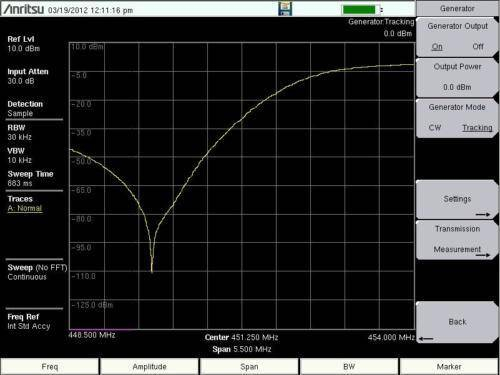

May 18, 2012 Configured with tracking generator, Spectrum Master(TM) MS2711E, MS2712E, and MS2713E are designed with CW generator and respectively cover frequency ranges of 500 kHz to 3, 4, and 6 GHz to aid field technicians with network deployment, installation, and maintenance. Power accuracy procedure removes inaccuracies caused by temperature variations, while touchscreen-enabled UI simplifies measurement process. Also, dedicated routines are included for various one-button measurements.

MKS    Andover, MA 01810 2449
May 14, 2012 Quadrupole monitors HPQ3 and HPQ3S are PVD chamber sensors that do not require differential pumping. Able to detect single figure ppm air leaks during PVD process while simultaneously monitoring all gas species in mass range of 1-100 amu, analyzers feature ion source with dual filaments to ensure failure backup and continuous uninterrupted operation. Respectively, HPQ3 and HPQ3S provide data for processes up to total pressure of 1.3e-3 and 1e-2mbar.

LumaSense Technologies, Inc.    Santa Clara, CA 95054
May 14, 2012 Used to enhance grid reliability, SmartDGA(TM) Guide helps electric utilities augment condition-based maintenance for transformer and load tap changer (LTC) fleets. System can monitor all 9 gases used in dissolved gas analysis (DGA) as well as moisture, and optional integration with LumaSMART fiber optics technology, which directly measures winding hot-spot temperatures within transformers, lets utilities monitor temperature and gas. Also, design reduces installation time to hours.

Audio Precision, Inc.    Beaverton, OR 97075
May 11, 2012 APx Audio Analyzer is available with PDM option, which supports 4th and 5th order modulation, analysis of undecimated PDM bistream, and interpolation ratios of 32, 64, 128, and 256. Option contains built-in power supply for DUT, and can measure PSR in PDM devices. With PESQ software option, analyzer can provide fully automated testing of speech quality with any audio interface, generating Mean Opinion Score results. APx500 v3.0 software optimizes DSIO with support for 16 channels of TDM at 96 kHz.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 11, 2012 With pulse down to 10 µsec, B1505A Power Device Analyzer/Curve Tracer measures device characteristics from sub-pA up to 10 kV/1,500 A. Standard test fixture (N1265A) enables safe packaged-device testing, secure on-wafer testing over 200 A, and oscilloscope view for real-time verification of I/V waveforms on multiple device terminals. Preconfigured version, B1505AP, includes all modules, cables, and accessories necessary for accelerated startup.

Detroit Precision Hommel    Rochester Hills, MI 48309
May 10, 2012 With up to 7 CNC axes, Jenoptik Wavemove measures and evaluates complex shaft or prismatic parts. Workpieces are positioned in tilt fixture mounted on rotary table on granite base. With traverse length of 120 or 200 mm, system performs roughness and contour measurement using intelligent arrangement of probing systems. Detailed, exportable analyses of measuring results provide exact statements about quality of production process, based on many parameters from automotive industry.

Servomex Group Ltd    Crowborough East Su TN6 3DU  United Kingdom
May 10, 2012 With concentrations provided as 4-20 mA outputs (Ethernet optional), SERVOTOUGH LaserExact uses Tuneable Diode Laser (TDL) Technology and can detect diverse range of gases and hydrocarbons. Unit combines multipass long path length cell with High Frequency (HF), Frequency Modulated (FM) signal processing, resulting in ppb detection limits suited for measurement of trace gases offline. Also included, peak-locking technology eliminates drift over extended operational periods.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 07, 2012 Available for FieldFox N9912A and N9923A RF Analyzers, time-domain analysis Option 010 enables engineers to determine individual frequency response of one of series of reflections. Gating function can be used to remove unwanted responses such as connector mismatch or cable discontinuities. Channel-power meter Option 311, geared toward engineers/technicians in wireless installation and maintenance arena, enables channelized average power measurements, without requiring external USB power sensor.
