Aeroflex Laboratories    Plainview, NY 11803
Sep 25, 2007 Configured for cellular, wireless data, RFIC, and general purpose wireless test applications, RF measurement system is comprised of PXI 3000 Series hardware modules, PXI Studio software with measurement plug-ins, and PXI instrument chassis. PXI modules offer frequency range coverage to include HF, VHF, and UHF, while PXI Studio can be used to simultaneously generate and analyze complex modulated signals. Measurement plug-ins help PXI Studio analyze WiMAX OFDMA signals.

Abaxis, Inc.    Union City, CA 94587
Sep 24, 2007 VetScan HM5 provides 22-parameter complete blood count and 4 cellular histograms for cat, dog, and horse. It also offers 3-part mode for 7 other species. For operation, this fully automated, 5-part differential cell counter requires operator to enter appropriate patient information, insert well-mixed blood sample, and press Start button. Device requires minimal maintenance and also offers capabilities for database management.

Colasoft Co., Ltd.    Chengdu 610041  China
Sep 24, 2007 Designed to locate and troubleshoot network problems, Capsa v6.5 Windows packet and protocol analyzer performs network analysis, packet sniffing, packet decoding, network monitoring, and protocol analysis. It lets user directly monitor real-time activities and message details for MSN, AIM, ICQ, and Yahoo Messenger. User Wizard tests selected adapters, ensuring that software is correctly installed and deployed. Software monitors traffic transmitted over local host and local network.

Anritsu Co.    Richardson, TX 75081
Sep 21, 2007 Designed for CMA5000 platform, Universal Transport Analysis (UTA) module is suited for 10 GigE and OC-192/STM-64 applications. Ethernet application provides LAN-PHY and WAN-PHY test solutions including traffic monitoring and generation, RFC2544-based performance analysis, continuity check (PING), and loop back tests in switched networks. UTA for OC-192/STM-64 application checks virtual concatenation, LCAS protocol, and differential delay in NGN networks.

Quest Technologies Inc.    Oconomowoc, WI 53066 4828
Sep 14, 2007 Designed for measuring personal noise exposure, The Edge is powered via rechargeable lithium polymer battery and offered with 1 or 5 bay docking stations. Shoulder-mount instrument conforms to worker's body and maintains upward orientation for ¼ in. microphone with screw-on windscreen. Device supports automatic downloading, via docking station, to QuestSuite Professional II for analysis of measurement data. Datalogging and time history is also available via integral LCD.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 14, 2007 PNA Series is available with embedded local oscillator (LO) measurement feature, which provides ability to test frequency converters without directly accessing common reference signal. Suited for RF and microwave test engineers and technicians working on wireless and satellite communications systems, LO measurement capability can be used with arbitrarily narrow bandwidth devices. On typical Ka band satellite converter, delay accuracy as small as 125 ps is possible.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 14, 2007 Agilent N8300A Wireless Networking Test Set and OFDMA measurement application software provides complete one-box transmitter and receiver test solution for Mobile WiMAX devices. It is based on architecture that integrates Vector Signal Analysis and Vector Signal Generator hardware and features front panel GUI and SCPI command set. Measurement algorithms and software from WiMAX R&D test tools allows measurement traceability through product lifecycle.

Aeroflex Laboratories    Plainview, NY 11803
Sep 13, 2007 Offering single-box radar testing solution, 6810 Series Microwave Signal Generators and 6820 Series Microwave Scalar Analyzers with Internal Pulse Modulator perform radar testing, calibration, maintenance, and repair in coax or waveguide media. Systems with modulator allow sensitivity and range measurements for radar receivers and enable user to test pulsed amplifiers under pulsed conditions. Option is available in 50 MHz to 18 GHz and 50 MHz to 40 GHz ranges.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 10, 2007 Integrating range of standards-based measurements with 89600 vector signal analysis software, EXA Signal Analyzer covers signal demodulation analysis and troubleshooting of 50+ formats. Optional measurement application software provides preconfigured test routines, and all measurement features and functions are accessible from front panel or USB keyboard/mouse. Solution returns marker peak search result in under 5 ms and supports multiple frequency ranges from 9 kHz to 26.5 GHz.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 10, 2007 Featuring source-corrected noise-figure measurement option, PNA-X provides single-connection, multiple-measurement package for engineers working with low-noise transistors, amplifiers, and T/R modules to 26.5 GHz. Built-in option provides solution for S-parameter and noise-figure measurements as well as harmonics, compression, and intermodulation distortion measurements. Offered as 2- or 4-port analyzer, unit is built upon integrated, vector-error-corrected cold-source technique.

Schroeder Industries LLC    Leetsdale, PA 15056-1025
Sep 07, 2007 Patch Test Kit offers necessary tools for determining levels of water and solid particulate contamination present in fluid samples. Along with Schroeder vacuum pump, kit features membrane patch that collects residual dirt for examination under microscope. Sample can be compared to photos of known contamination levels in included Contamination Handbook for visual assessment. Included water sensing device consists of aluminum mixing vessel with built-in LCD and microprocessor.

Cemtrex Inc.    Farmingdale, NY 11735
Sep 05, 2007 Eliminating need for transferring measuring gas to analyzer through chiller sampling system, Model ZSS Tunable Diode Laser (TDL) based laser gas analyzer facilitates continuous measurements of ammonia, hydrogen chloride, and nitrogen oxides in flue gases emitted from power plants and incinerators. It comes in dust-resistant construction and can be installed before bag filter where gas sampling could not be conducted previously.

Thermo Fisher Scientific    Waltham, MA 02454

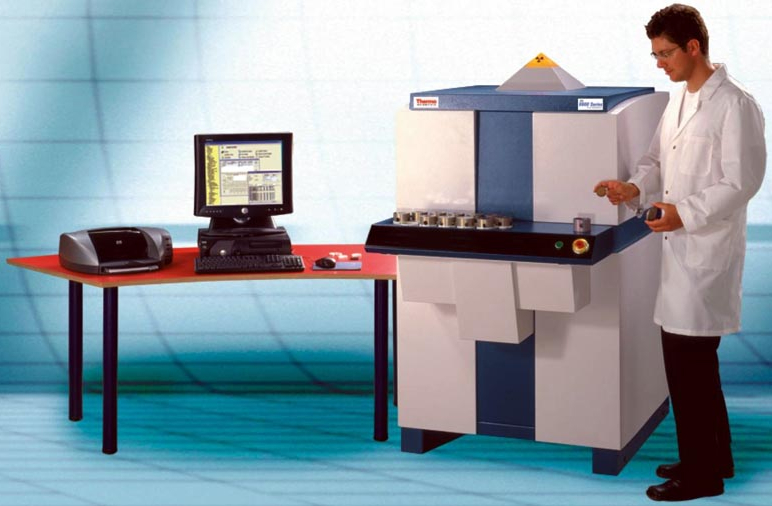

Sep 04, 2007 ARL 9900 Series combines X-ray Diffraction (XRD) and X-ray Fluorescence (XRF), making it possible to perform complete elemental analysis and determine mineral or structural composition on same sample under vacuum with one instrument. Offering analytical capability for all kinds of materials, system enables chemical data from XRF to be used for processing XRD data or vice versa. System also supports fully automated control analysis of any unknown material.

Varolii Corporation    Seattle, WA 98104
Sep 04, 2007 ImageStream® is offered with multilaser capability that lets users add 2 lasers, including 405 and 658 nm lasers, that promote experimental flexibility and complexity by expanding available fluorescent dye selection. Additionally, optical system has feature that provides chromatic correction for lower-wavelength dyes excited by 405 nm laser. This enables hi-res imagery, resulting from fluorescence excitation from all 3 lasers, to be simultaneously captured across visible spectrum.

Thermo Fisher Scientific    Waltham, MA 02454

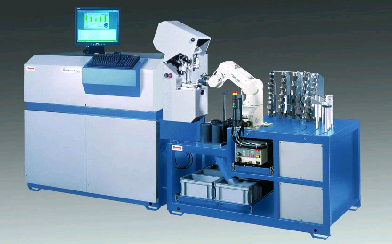

Aug 31, 2007 Targeting smaller metal processors, entry-level ARL SMS-2000 EL provides automatic sample introduction and handling, as well as automated analysis and distribution of results with no user intervention required. System is available with several options for expansion, including customized and flexible sample registration, monitoring of instrument performance with automatic correction in case of drift, vision system, sample marking, and automatic sample preparation.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Aug 30, 2007 Offering unrestricted choice of dual measurements, Model 1056 multiparameter analyzer can address turbidity, flow, pH/ORP/ISE, resistivity/conductivity, percent concentration, chlorine, oxygen, ozone, and temperature. Quick-start screens, auto-recognition of each measurement board installed within device, and sensor configuration prompts aid setup, while LCD displays measurement diagnostics and facilitates multilingual, menu-based operation.

Aspectrics Inc.    Pleasanton, CA 94566
Aug 30, 2007 Developed for air monitoring industries, Models EP-NIR 2750 and EP-NIR 2750i offer 100 scans/sec scanning rate while achieving spectral range of 128 photometric channels. Model EP-NIR 2750i features eCalTransfer ability that enables calibration carried out on one system to be transferred to another without need to recalibrate. Model EP-NIR 2750 analyzer provides quality control measurements of methanol, water, and total glycerine content in biodiesel, and water content in ethanol.

Promia    Princeton, NJ 08540
Aug 29, 2007 Designed as defensive units, Raven(TM) appliances protect data and communication networks in standalone mode or interconnected in larger enterprise information grids. They analyze low-level traffic in addition to performing asset monitoring and management as well as asset visualization of all network devices. While Raven 1100 can collect and analyze host and device logs from various sources, Raven UTM includes active Intrusion Prevention System/active firewall capability.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 29, 2007 Agilent DisplayPort solution offers manual and automated DisplayPort physical layer compliance test capability in addition to features that assist in debugging and characterizing DisplayPort designs. Pre-certification testing kit includes Infiniium DSO80000 Series oscilloscopes, U7232A DisplayPort compliance test software, and W2641A DisplayPort test point access adaptor. It supports DisplayPort tests as specified in DisplayPort specification 1.1 as well as upcoming requirements.

Servomex Group Ltd    Crowborough East Su TN6 3DU  United Kingdom
Aug 23, 2007 Operated via keypad-driven user interface, 1900IR covers measurement ranges of 0-1%, 0-2.5%, 0-5%, and 0-50% for CO2 and 0-5% for CH4 and CO. Solvent-resistant variants are available for CO2 measurement ranges of 0-1%, 0-2.5%, 0-5%, and 0-10%, enabling analysis in natural gas. Suitable for use with flammable samples in Zone 1 hazardous areas without need for purge, gas analyzer utilizes intrinsically safe IR sensing technology that yields results with accuracy better than 1% FSR.
