B & K Precision Corp.    Yorba Linda, CA 92887

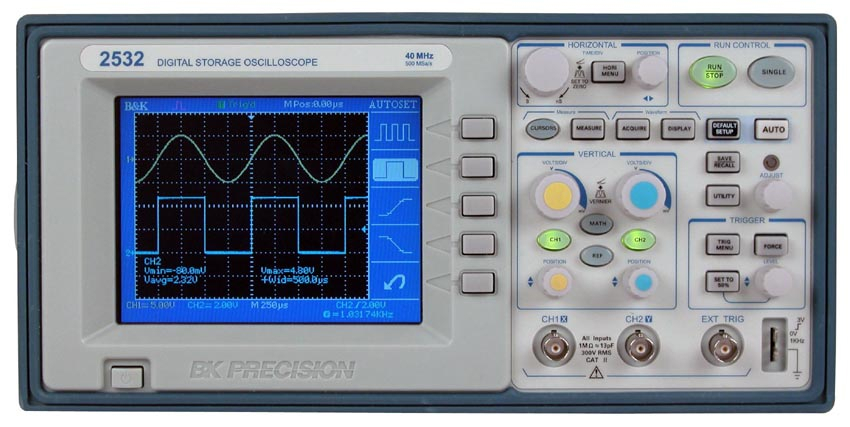

Aug 19, 2008 Offering 40 MHz bandwidth and 500 MS/sec sample rate, model 2532 Dual-Channel Digital Storage Oscilloscope offers triggering capabilities such as pulse width and line-selectable video trigger, 11 automatic measurements, and FFT functions for debugging circuits. Measuring 11.4 x 11.8 x 5.9 in., 10 lb benchtop unit includes analog-style knobs and controls, color LCD, and USB port. It has 4,000 point record length for each channel and software to capture, save, and analyze waveform data.

Anritsu Co.    Richardson, TX 75081
Aug 19, 2008 Covering 9 kHz to 7.1, 13, and 20 GHz ranges, MS271xB Series has 10 MHz demodulation bandwidth and supports GSM, CDMA, W-CDMA, W-CDMA/HSDPA, EVDO, and WiMAX measurements. RF measurement option includes TD-SCDMA signal measurement suite with Channel Spectrum view and demodulator option. Both 100 dB dynamic range and phase noise of -110 dBc/Hz at 10 kHz offset provide measurement accuracy. Software combines multiple swept measurements into summary displays of phase noise performance.

JDSU    San Jose, CA 95131
Aug 19, 2008 NetComplete helps operators migrate from TDM switched circuit environment to Ethernet/IP technology as well as meet backhaul provider service performance requirements. Solution is comprised of OSS software, QT-600 Ethernet probe, and CENTEST 650 as well as other Ethernet test portables. Standards-compliant, end-to-end service turn-up and performance monitoring are also included to help eliminate potential issues related to network element interoperability and upgrades.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 19, 2008 Available with single or dual wavelength options at 1,310 or 1,550 nm, Agilent N4374B lightwave component analyzer (LCA) offers accurate and traceable electro-optical S-parameter for transmitter and receiver test. Along with integrated optical average power meter, it features accurate responsivity test with less than 0.8 dB uncertainty, specified absolute accuracy of absolute responsivity, and 75 W support with minimum loss pad for CATV applications.

Anritsu Co.    Richardson, TX 75081
Aug 15, 2008 With MU181020A-013 option, MP1800A/MT1810A Signal Quality Analyzer/Pulse Pattern Generator can accurately evaluate optical modulators. MU181020A-013 generates 0.5-3.5 Vp-p waveforms and has built-in variable crosspoint function that addresses disparity in which rising and falling signals cross in optical modulator waveform caused by transient voltage drops and wavelength temperature. Analyzer provides bit error rate and quality analysis for digital signals from 100 Mbit/s to 12.5 Gbit/s.

Anritsu Co.    Richardson, TX 75081
Aug 15, 2008 Single slot CMA5710 module for CMA 5000 enables testing of 10/100/1000 Mbps Ethernet networks. Module provides 2 optical (SFP) and 2 electrical (RJ45) ports, and is designed to facilitate installation and maintenance of Ethernet networks. RFC2544 test functions include: throughput, latency, and frame loss. For maintenance and troubleshooting, module provides non-intrusive monitoring capabilities and presents comprehensive statistics for insight into network health and status.

National Instruments Corp.    Austin, TX 78759-3504
Aug 14, 2008 Complemented by NI PXIe-1075 18-slot high-bandwidth chassis, NI PXIe-5663 can perform signal analysis from 10 MHz to 6.6 GHz with up to 50 MHz of instantaneous bandwidth, while NI PXIe-5673 delivers signal generation from 85 MHz to 6.6 GHz and up to 100 MHz of instantaneous bandwidth. Offering operating range of 0-50°C, PXI Express chassis has PCI Express lanes routed to every slot providing up to 1 Gb/s per-slot bandwidth and up to 4 Gb/s total system bandwidth.

Midtronics, Inc.    Willowbrook, IL 60521
Aug 14, 2008 Battery conductance and electrical system analyzers of MDX-600 Series utilize industry standard conductance technology and offer user interface that promotes accurate analysis. All feature backlit screen and removable cable design and are offered with integrated printer option. Models 650/650P offer quick starter analysis, without disabling ignition, and menu-driven interface for complete charging system analysis.

PerkinElmer, Inc., Life Sciences Headquarters    Boston, MA 02118
Aug 13, 2008 Based on PerkinElmer® Clarus® Gas Chromatograph, Models 1117 and 1317 incorporate column sets to accommodate use of hydrogen carrier gas to optimize throughput. Using 2 thermal conductivity detectors and flame ionization detector, Model 1117 provides analysis of helium, hydrogen, oxygen, nitrogen, CO2, CO, H2S, and C1 through C5 hydrocarbons in approximately 7.5 min. Model 1317 offers additional capability of sampling pressurized liquids through use of liquid sampling valve.

Thermo Fisher Scientific    Waltham, MA 02454
Aug 12, 2008 Model ARL 4460 OES metal analyzer features OXSAS software that provides one-click routine analysis launch as well as access to recent analyses for on-screen comparison and full traceability. It also features on-line Spark-DAT option which integrates into OXSAS, enabling cleanness statements and inclusion determinations to be performed quickly during metals production. Unit can be coupled to ARL SMS-2000 automation system for fully automated sample preparation, sample handling, and analysis.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 12, 2008 Enabling monitoring, troubleshooting, and quality assurance of MS Mediaroom-based IPTV networks, Agilent J6900A Triple Play Analyzer provides specific measurement and KPIs including analysis of instant channel changing bursts and respective timing parameters, analysis of A/V packet rates with correlation to transport events, and detection of critical network performance losses. It helps communication service providers proactively identify customer issues to ensure QoS.

ABB Instrumentation    Warminster, PA 18974
Aug 11, 2008 Navigator 600 Phosphate analyzer features comprehensive on-board diagnostics and predictive maintenance functions, offering 3 months of unattended operation. It comes in single or multi-stream configurations, enabling sequential monitoring of up to 6 streams, and can be programmed for continuous or sampled measurements. Remotely manageable unit offers output signals of 4-20 mA, Ethernet, and optional Profibus DP V1, and comes with 2 GB removable SD card.

AMETEK, Advanced Measurement Technology, Inc.    Oak Ridge, TN 37831-0895
Aug 11, 2008 Available in 2K or 8K versions, EASY-MCA multichannel analyzer is suitable for PCs that no longer support Plug in MCA cards. Units are conveniently stackable when multiple MCAs are required to be controlled by single PC. Analyzer features dead-time correction logic inputs, and MAESTRO-32 MCA emulation software to provide control spectral display and analysis as well as ability to view up to 8 detectors and windows simultaneously.

GAO Tek Inc.    Toronto M1B2K4  Canada
Aug 08, 2008 Featuring sampling rate of 250 MS/sec in dual channel mode, Model HOS260C can be used as digital multimeter to analyze several signals simultaneously, allowing engineers and technicians to easily tackle complex on-site systems. Handheld oscilloscope comes equipped with color LCD panel and flexible control software, which features multi-language display. Unit weighs 645 g and operates on rechargeable Li-ion batteries for up to 6 hr.

IOtech, Inc.    Bedford Heights, OH 44146-1833
Aug 08, 2008 With DASYLab driver support, IOtech 652u Dynamic Signal Analyzer is 10-channel, 24-bit, simultaneous sampling USB 2.0 device that offers 4 mA IEPE per channel. Allowing for connection to any eZ-TOMAS system accessible on user's plant's network, eZ-TOMAS Remote software enables single remote client to connect to multiple eZ-TOMAS systems for simultaneous remote monitoring. Additionally, single eZ-TOMAS system can serve data to multiple remote clients.

National Instruments Corp.    Austin, TX 78759-3504
Aug 08, 2008 Suited for automated test and data streaming applications in consumer electronics, semiconductor, aerospace/defense, and life sciences industries, NI PXI-5154 digitizer/PC-based oscilloscope offers up to a 2 GS/sec real-time sample rate (20 GS/sec equivalent-time sample rate for repetitive signals). It has up to 256 MB/channel onboard memory. Digitizer works with range of development environments including LabVIEW and LabWindows(TM)/CVI as well as ANSI C, Microsoft C++, and Visual Basic.

GE Sensing    Billerica, MA 01821
Aug 07, 2008 Phasec 3 is single-frequency instrument for crack and corrosion detection and conductivity and coating measurements, while Phasec 3s adds dynamic rotating inspection capability and Phasec 3d adds dual-frequency capability to 3s for inspection at 2 different depths. Devices feature ¼ VGA TFT display with choice of 8 color combinations to differentiate between stored and active signals. Units have onboard memory for 200 setups and 200 traces, USB connectivity, and battery life up to 6 hr.

GAO Tek Inc.    Toronto M1B2K4  Canada
Aug 04, 2008 With ability to run on any USB1.1 or USB2.0 equipped PC using Windows OS (98/2000/XP/Vista), GAO2150 connects to any PC with included USB cable for both data transfer and power recharges. It combines functions of spectrum analyzer, voltmeter, frequency meter, and logic analyzer all within single instrument with up to 100 MS/sec real-time sampling rate and 50 MHz bandwidth. Two-channel, PC based USB oscilloscope features point-and-click PC software interface for controlling functions.

GAO Tek Inc.    Toronto M1B2K4  Canada
Aug 04, 2008 Model GAO2250 8-bit, two-channel digital storage oscilloscope connects to any USB1.1 or USB2.0 equipped PC using Windows OS through USB for data transfer and power recharge. It combines functionality of spectrum analyzers, waveform recorders, signal generators, cymometers, voltmeters, acoustic analysis graphic instruments, mathematical related graphic instruments, and voltage meters. Measuring 190 x 100 x 35 mm, unit features 100 MS/sec real-time sampling and 40 MHz bandwidth.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887
Aug 01, 2008 FCA-22 Analyzer System monitors free chlorine in drinking water, rinse water, cooling water, and other fresh water samples from 0.05-20.0 ppm Cl2, 5-9 pH, and at temperatures from 32- 122°F. Constant head flow control device maintains optimum water flow past sensor over 10-80 gph incoming flows. Incorporated pH sensor provides compensation for samples from 6.5-9 pH, and Cl2 sensor's polarographic, gold/silver PFTE membrane construction extends sensor life.
