SICK STEGMANN, INC.    Dayton, OH 45413
Jun 08, 2006 Available with IP65-rated housing, Model DGS66 incremental encoders are offered in blind and through hollow shaft configurations for 6, 8, 10, 12, and 14 mm, or 3/8 and ½ in. shafts. With either TTL or HTL electrical interfaces, encoders suit applications in machine tool, textile, woodworking, and packaging.

Control Company    Friendswood, TX 77546
Jun 08, 2006 Displaying current, minimum, and maximum levels, Traceable® Monitor activates settable high/low alarm for all 4 readings. With range of 1-99% RH and resolution of 0.1%, unit offers accuracy of ±4% between 20-80% RH. Temperature range is -40 to 70°C with resolution of 0.1° below 100 and accuracy of ±1°C. Measuring 4 1/8 x 4 1/8 x 1 in. and weighing 4¼ oz, monitor is supplied in high impact, chemical-resistant ABS plastic case.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jun 08, 2006 Designed for direct in-line installation, Model ST75 direct mass flow instrument services line sizes from 0.25-2.0 in. and flow ranges from 0.008-839 scfm. Suited for low- and high-flow applications, unit offers up to 100:1 turndown ratio, accuracy of ±2% of reading, and ±0.5% repeatability. Meter features wireless IR technology that allows user to remotely monitor measurements, make setting changes, and read trouble-shooting codes.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
Jun 08, 2006 Designed for measuring melting points, Model SMP3 features max temperature of 360°C, programmable heating rates, and automatic cooling. Heating block incorporates platinum resistance sensor for responsive temperature control. Membrane keypad allows setting of desired start temperature and heating ramp rates, which are fully adjustable from 0.5-10°C/min in 0.1°C increments. Backlit alphanumeric LCD display indicates temperature and stage of operation.

Omega Engineering, Inc.    Stamford, CT 06907
Jun 08, 2006 Offered in 8-, 16-, and 32-channel models, Series OMET-USB-73T features 24 digital inputs and outputs, which let user control external contacts and relays in case of alarm or other event requiring action. Units offer USB 2.0 compatibility, ±2°C accuracy, and max sampling of 200 readings/sec. They are suited for environmental applications such as monitoring of furnaces, cold storage, and computer rooms.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 08, 2006 With 18 picoseconds of jitter performance, Models DS15MB200, SCAN15MB200, and DS08MB200 extend reach of LVDS signals across cables and backplanes in point-to-point applications. Dual mux-buffer configuration manages redundant differential data streams at speeds up to 1.5 Gbps. Each half of device provides 1:2 buffer and 2:1 multiplexer for duplicating one signal into 2 output streams or selecting from 2 alternate input data sources. Each unit is housed in 48-pin LLP® package.

Rabun Labs, Inc.    Mason, TX 76856
Jun 07, 2006 Solid-state GMMS Ground Monitoring System continuously monitors integrity of electrical grounding system. When it senses moisture in soil has reached unacceptable level, it automatically activates solenoid valve, allowing water or resistance lowering material to be applied to area. Once soil resistivity reaches acceptable level, unit automatically resets and resumes monitoring. Unit also monitors connection of AC outlets and equipment to electrical grounding system.

Hoyt Electrical Instrument Works, Inc.    Penacook, NH 03303 8798
Jun 07, 2006 Designed to read measurements in harsh environments, SEW 4103 IN and 4104 IN meters have built-in and integral guard circuitry to eliminate measurement errors introduced by surface leakage current. They are controlled by CMOS microprocessor and feature digital calibration, auto-off function, and smart auto ranging (5 current ranges x 4 voltage range). Along with visual and acoustic indication of voltage, products feature color-coded leads and sockets.

Setra Systems, Inc.    Boxborough, MA 01719
Jun 06, 2006 Suited for automated weather systems, Model 260 features user-selectable pressure ranges and analog outputs, standard LCD, and AC/DC excitation on voltage output operation. With configure-on-the-fly ability, unit offers pressure ranges from 0.1-10 in. WC full scale, and may be field-configured as unidirectional or bi-directional. External push button for field zeroing provides fast, accurate zero, without compromising full-scale performance.

STMicroelectronics    Lexington, MA 02421
Jun 06, 2006 Utilizing Windows CE 5.0 Networked Media Device Feature Pack, STB Reference Design accelerates development cycle of set-top boxes, HD-DVD players, and digital video recorders. It integrates STB7109 high-definition decoder, USB 2.0 host port, SATA port and Ethernet interface, which enables STB to be central part of home network. Digital copy-protected HDMI allows digital connection to any HD-ready flat panel display.

ADMET    Norwood, MA 02062
Jun 06, 2006 Offered in tabletop configurations from 2,250-10,000 lbf and floor-standing models from 10,000-30,000 lbf, dual-column electromechanical eXpert 26xx Series provides compression, tension, and flexure testing of biomaterial, elastomer, film, foil, metal, packaging, plastics textile, and wire components. Units features fast-acting servo motor and twin ball-screws for axial alignment, stiffness, and crosshead guidance. Three different controllers are available.

HBM, Inc.    Marlborough, MA 01752 3014
Jun 06, 2006 Utilizing principle of axial shear, Model TB2 is designed for non-rotating use in static and dynamic measurements. It is available in 6 nominal measuring ranges of 500 Nm, 1 kNm, 2 kNm, 3 kNm, 5kNm, and 10 kNm. Standard system is quasi-hermetically sealed and can optionally be provided protected to IP67 as defined by EN 60529. Relative standard deviation of repeatability is less than ±0.01%, and linearity deviation including hysteresis is less than ±0.03%.

SensComp, Inc.    Livonia, MI 48150
Jun 05, 2006 As matched component pair, Series 9000 Ultrasonic Ranging Module and Piezoelectric Transducer provide distance measurement and proximity detection from 1-18 ft. Piezoelectric sensor emits only minimally audible clicking sound. Also available, Series 9000 OEM Kit offers 2 Series 9000 Transducers, 2 supporting Ranging Modules, as well as theory and operation booklets, making it suited for prototype and feasibility studies or for classroom use.

Zetec, Inc.    Issaquah, WA 98027 0140

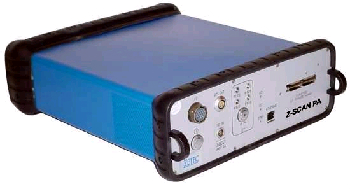

Jun 02, 2006 Featuring up to 64 simultaneously active phased array channels, Z-Scan PA allows for real-time data compression, signal averaging, high pulsing rate, and Dynamic Depth Focusing. It is driven by UltraVision® software from desktop or notebook PC through 100BaseT Ethernet link. By supporting 64 channels for acoustic beam forming, unit allows for design of UT inspection solutions in complex geometries where simultaneous variation of refracted and skew angle are required.

Ideal Industries, Inc.    Sycamore, IL 60178

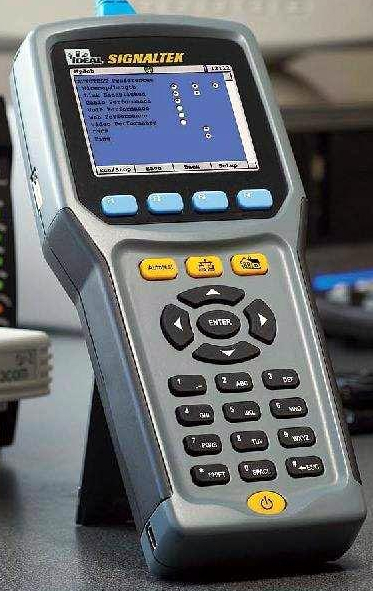

Jun 02, 2006 Used to verify that installed cabling will support voice, video, and data applications, SIGNALTEK offers Gigabit performance testing by transmitting 10/100/1000 Mbps Ethernet packets and measuring errors on link in accordance with IEEE 802.3ab Gigabit Ethernet standard. Handheld device also supports Bit Error Rate Testing (BERT) and integrates time domain reflectometer. Along with monitoring mode, unit features intelligent autotest function and 32 MB internal memory for data storage.

GL Communications Inc.    Gaithersburg, MD 20877
Jun 02, 2006 Compatible with any notebook PC, USB-based T1 E1 Analyzer performs analysis and emulation of various signal types such as voice, digits, and tones as well as analysis of protocols including HDLC, ISDN, SS7, CAS, Frame Relay, GSM, GPRS, CDMA, and UMTS. User can capture and transmit entire raw T1 or E1 signal simultaneously on 2 full duplex ports, and analyze echo and voice quality on voiceband channels. With remoting or scripting software, user can control and monitor remotely.

Garmin International, Inc.    Olathe, KS 66062
Jun 02, 2006 StreetPilot 2820 makes it possible for automotive and motorcycle consumers to utilize hands-free calling with full user interface. Numbers can be retrieved and dialed using phone's contact list or from phone's call history log. Calls can also be made from point-of-interest database that includes hotels, restaurants, and stores. For longer trips, waterproof device includes MP3 player and audiobook player. Optional real-time traffic is available.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
Jun 01, 2006 Featuring AST's Krystal Bond(TM) Technology, Model 5000 safely measures differential pressure (DP) of hydrogen and other gases. It does not contain internal O-rings or fluid-filled cavities, and diaphragm is constructed of 316L stainless steel wetted materials. Offered in bi-directional and uni-directional pressure ranges for applications with line pressures up to 1,000 psi, design provides over-range and burst protection to 5x rated line pressure or 2,000 psi.

VIP Sensors    San Juan Capistrano, CA 92675
Jun 01, 2006 Accepting piezoelectric, piezoelectric with integral electronics (IEPE), or voltage transducer types, Model 5005 vibration signal conditioner has double integration stage that allows output voltage to be proportional to acceleration, velocity, or displacement. Input signals are processed through low-noise amplifiers with programmable gains for different sensitivities and full scale settings. Device is capable of reading IEEE 1451.4 compliant TEDS provided with IEPE transducers.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 01, 2006 Used in combination with Signal Source Analyzer, SSA-J Software provides data-independent clock-jitter evaluation with femto-second resolution in digital communication systems and for high-speed clock device design in semiconductor industry. Real-time jitter spectrum analysis from 1 Hz to 40 MHz offers designers accurate evaluation on random jitter and periodic jitter within user-definable observation bandwidth in seconds.
