Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Aug 31, 2006 Suited for monitoring conditions in laboratories, storage areas, and other controlled environment settings, Humidity Alert Meter provides dew point temperature, humidity from 10.0-99.0%, and temperature from 14-140°F with basic accuracy of ±4% RH and ±1.8°F. Probe clips onto meter or extends on 18 ft cable, allowing for measurements behind walls or in difficult-to-access locations. Unit can identify and warn when conditions for mold growth or static electricity exist.

Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 31, 2006 Suited for wastewater aeration treatment applications in line sizes from 2-24 in., ST50 has built-in wireless IR technology for obtaining measurements, making setting changes, and reading trouble shooting codes from PDA. It comes with interface software for download into any Palm-OS based PDA and utilizes temperature-compensated, thermal dispersion flow sensing element. Along with various I/O features, solid-state meter has single-tap point inserted design.

Extech Instruments Corp.    Nashua, NH 03063

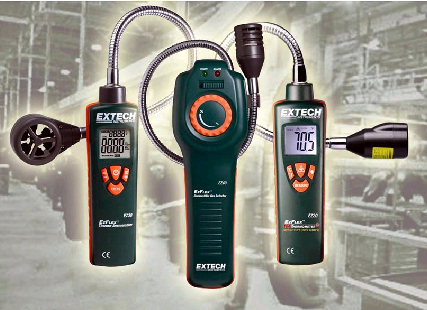

Aug 31, 2006 Delivering non-contact surface temperature measurements from -58 to 1,100°F, EZ20 InfraRed Thermometer features 16 in. flexible probe, backlit LCD display, and laser pointer. Designed to measure air velocity in air ducts and other HVAC applications, EZ30 Thermo-Anemometer includes 16 in. gooseneck, dual 9,999 count backlit display, and selectable air velocity units. EZ40 Combustible Gas Detector identifies leaks of natural gas, methane, ethane, propane, butane, and LPG.

Dwyer Instruments, Inc.    Michigan City, IN 46361

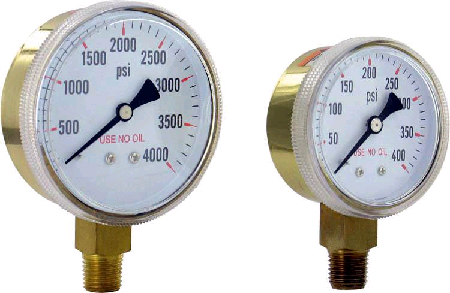

Aug 31, 2006 Available in 2 or 2.5 in. models, Series UNOG Use No Oil Gages possess psi scales with variety of ranges from 30-4,000 psi and 2.5% FS accuracy. Units feature polished brass housings and copper alloy wetted parts. Able to withstand ambient temperatures of -4 to 140°F, gauges come with ¼ in. male NPT bottom connection and are suited for indicating compressed gas cylinder pressures of non-corrosive gases, which will oxidize with oil-based compounds.

Dwyer Instruments, Inc.    Michigan City, IN 46361

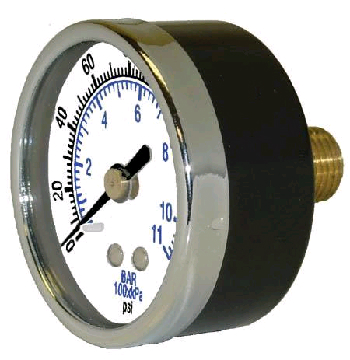

Aug 31, 2006 Designed with black steel housings and chrome bezels, 2.5 in. UGF Series provides dual psi and bar scales with 3-2-3% ANSI B40.1 Grade B accuracy. Wetted parts include brass socket and phosphor bronze bourdon tube. Able to withstand temperatures of -50 to 160°F, units come in variety of ranges from full vacuum to 1,000 psi.

Airmar Technology Corp.    Milford, NH 03055
Aug 31, 2006 Equipped with ultrasonic transducers, internal compass, and built-in GPS, Model LB100 can turn any compatible Windows-based computer into professional-quality weather station. Unit measures and calculates apparent wind speed and direction, barometric pressure, air and dew point temperatures, relative humidity, and wind chill temperature. Device provides real-time, site specific weather information and, with no moving parts, provides accuracy and longevity in the field.

RAE Systems    San Jose, CA 95134
Aug 31, 2006 GammaRAE II Responder radiation detector and dosimeter features Cesium Iodide sensor for detecting low level gamma radiation. It is rated IP67 for decontamination in water and concussion-proof case provides shock protection. Intrinsically safe Class 1, Division 1, Groups A, B, C, and D device delivers 2 sec response time, and features multiple alarm modes with flashing LEDs and loud audible and vibration alerts. Alarm information is recorded in 30,000-point datalog.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 31, 2006 Helping embedded control designers make transition to 32-bit DSP-based controllers, TMS320F280x Series features 32-bit wide data path and mixed 16/32-bit instruction set. With 150 ps resolution, pulse width modulator provides 16 bits of accuracy in 100 KHz control loop and 12 bits at 1.5 MHz. Depending on device, communication interfaces include CAN, I2C, UART, and SPI ports. Applications include motor control, digital power conversion, and intelligent sensor control.

TamoSoft Ltd.    Christchurch 8053  New Zealand
Aug 31, 2006 Functioning as network monitors, analyzers, and protocol decoders, CommView® v5.3 for wired networks and CommView® for WiFi v5.3 for 802.11 a/b/g networks help network professionals maintain efficient data transmission, test firewalls and intrusion detection systems, and identify problems with network-based applications. Geolocation technology provides real-time IP-to-location mapping for analyzing application connections and security incidents.

Emerson Process Management    Austin, TX 78754
Aug 31, 2006 Equipped with heat-tolerant components throughout sensor body, Micro Motion® Coriolis flow meters have temperature rating of up to 800°F. Transmitters are remotely located from sensor at end of flexible conduit/cable. Units are used in high temperature applications such as petrochemical processing, refining and upstream oil and gas processing, and custody transfer applications such as asphalt loading.

VIP Sensors    San Juan Capistrano, CA 92675
Aug 31, 2006 Model 5900 accelerometer calibrator measures and displays output of piezoelectric (PE), piezoelectric with integral electronics (IEPE, constant current), and voltage accelerometer types when subjected to known excitation. Vibration amplitude is adjustable from 0.02-2 g and is shown in 4-digit display. Users have option of using internal sinusoidal oscillator set at 100 Hz, or external oscillator with frequency between 50 Hz and 2 KHz can also be utilized.

Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 30, 2006 Designed for use in wastewater lines from 2-24 in., ST50 offers wireless IR option that allows technicians with PDA to obtain measurements, make setting changes, and read troubleshooting codes without opening instrument. Housed in epoxy-coated enclosure, it withstands operational pressures up to 500 psig and media temperatures up to 250°F. Unit measures air flow from 1-125 SFPS, nitrogen from 1-150 SFPS, and compressed air from 4-400 SFPS.

Rockwell Automation    Milwaukee, WI 53204

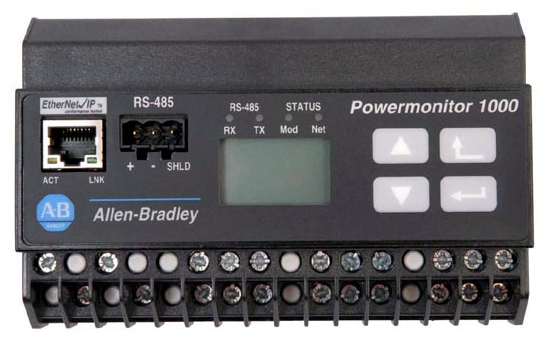

Aug 30, 2006 Available in 5 models, Powermonitor 1000 profiles plant's energy consumption and utilization data and can be applied independently for collecting and charting energy information or integrated into existing energy monitoring systems. Transducer models TR1 and TR2 provide power factor monitoring and measure voltage, current, and power-related tags. Energy-monitor models EM1, EM2, and EM3 measure consumption related tags such as real, reactive, and apparent energy.

Koyo Encoder, Inc.    Hoffman Estates, IL 60195
Aug 30, 2006 Featuring 0.002 in., 50 micron, 0.001 in., or 0.0005 in. resolution, Linear Encoders are available as modules and strips, or fully enclosed versions with NEMA 12/IP-56 construction. Stroke is available up to 34 in. for Strips and up to 2 in. for fully-enclosed versions.

Dymax Corp.    Torrington, CT 06790
Aug 29, 2006 Used to validate and monitor UV curing process, ACCU-CAL(TM) 50 performs repeatable measurements in UVA spectrum (320-395 nm) from 1 mW/cm² to 40.0 W/cm². It can also confirm that UV curing process complies with ACGIH safety guidelines for UV exposure. Featuring 12 month calibration period and photo-sensor assembly that protects against high temperatures, unit measures UV intensity as well as peak intensity and dose.

Castrol Industrial North America Inc.    Downers Grove, IL 60515
Aug 29, 2006 Suited for large industrial environments, Castrol SystemRT is capable of monitoring fluid concentration, pH, conductivity, temperature, and real-time biologic activity in water-based metalworking fluids. Data generated from unit is charted automatically, permitting user to monitor fluid trends and tighten control of fluid parameters. Unit self-calibrates, verifies with internal diagnostics, reports errors, and has Internet capabilities.

WinSystems, Inc.    Arlington, TX 76011
Aug 29, 2006 Operating from -40 to +85°C, RoHS-compliant Model PCM-COM8-G is suited for embedded applications requiring large number of serial I/O ports. Each channel supports RS-232, RS-485, and RS-422 electrical levels to interface with variety of serial communications devices such as modems, data collection equipment, and distributed I/O terminals. Serving as serial communication controller, 16C854 UART has ESD rating of 15 kV and will support data rates up to 115,200 bps.

Rockwell Automation / Allen-Bradley/Industrial Automation Sy    Mayfield Heights, OH 44124
Aug 29, 2006 Designed for factory automation environments, 1769-Boolean module works with Allen-Bradley CompactLogix and MicroLogix 1500 controllers and uses Boolean logic to support demanding control applications. It has intelligence to activate outputs based on Boolean logic, programmed by the user, and offers 24 Vdc inputs and outputs. Along with front removal and insertion, module features high density I/O termination and built-in removable terminal block with finger-safe cover.

Garmin International, Inc.    Olathe, KS 66062
Aug 28, 2006 Full-color GPSMAP 496 incorporates SafeTaxi(TM) airport diagrams, Smart Airspace(TM), AOPA's Airport Directory data, high-resolution terrain database, aviation database with private airports and heliports, as well as pre-loaded automotive maps of North America or Europe and optional XM WX Satellite Weather(TM). On road, unit serves as in-car navigation system with automatic route calculation to any destination and turn-by-turn voice-prompted directions.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

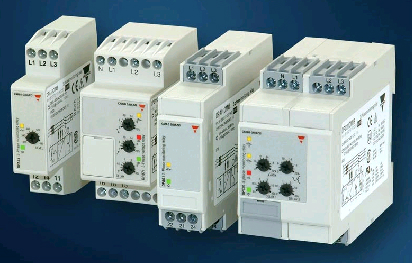

Aug 25, 2006 Provided in 177-275 Vac and 323-550 Vac ranges, DIN rail mount Series DPB71 monitors for overvoltage, undervoltage, phase sequence, and phase loss situations on 3 phase and 3 phase+ neutral systems. Capable of monitoring 50-60 Hz, Series DPC01 is available in ranges from 115 Vac delta voltage through 690 Vac delta or star voltage. Units provide True RMS monitoring for over and under voltage, phase sequence, phase loss, and symmetry on 3 phase and 3 phase+ neutral systems.
