RAM Optical Instrumentation, Inc.    Tempe, AZ 85281-7215

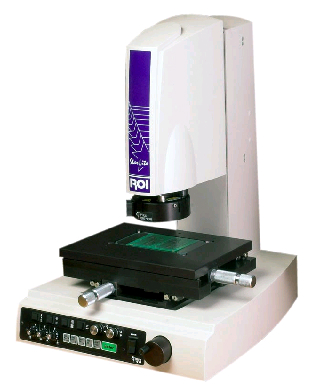

Sep 12, 2006 Featuring built-in electronics, motorized zoom optics, and high-resolution color camera, self-contained StarLite(TM) System provides 6 x 3 x 5 in. XYZ capacity to accommodate critical parts and tooling. System has cast aluminum base and column, and uses white light LED VectorLight(TM) and backlight illuminators for optimal imaging. Additional features include 1 micron resolution linear scales, coarse/fine manual stage positioning, and electronic edge detection and focus indicators.

Renishaw, Inc.    Hoffman Estates, IL 60192

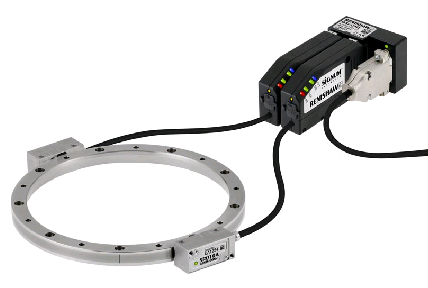

Sep 12, 2006 Offering better than ±1 arc second total installed accuracy, Dual SiGNUM interface Rotary Encoder combines two IP64-sealed SiGNUM SR readheads on RESM ring. It provides customer-selectable propoZ(TM) reference output, which is completely unaffected by bearing wander or power cycling. Encoder is capable of operating at speeds up to 4,500 rpm and temperatures to 85°C. SiGNUM(TM) software enables set-up and real-time diagnostics via PC's USB port.

Renishaw, Inc.    Hoffman Estates, IL 60192
Sep 12, 2006 With future-proof design, 2-axis GYRO(TM) offers 3 levels of functionality: touch-trigger, 3-axis scanning, and 5-axis scanning. Adaptability makes this infinitely positioning dynamic measuring head suitable for small and large DCC coordinate measuring machines (CMMs). It allows use of laser-tip sense technology, where laser light system is used to measure exact position of probe tip, and has hollow stylus designed to bend. Product is available with UCC2 universal CMM controller.

View Engineering Inc.    Simi Valley, CA 93063 3348

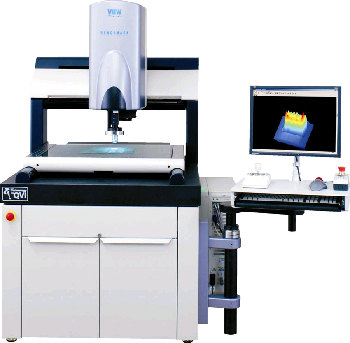

Sep 12, 2006 Equipped with digital megapixel cameras, 450 x 450 mm stage, and CAD-driven Elements software, non-contact Benchmark 450 provides electronic assembly process verification. BLAZE(TM) continuous image capture feature captures multiple images as part continually moves beneath system optics. Using library of pre-configured component routines to automatically create measurement programs from CAD files, Elements software enables part changeovers to be set up in minutes.

Vision Engineering Inc.    New Milford, CT 06776

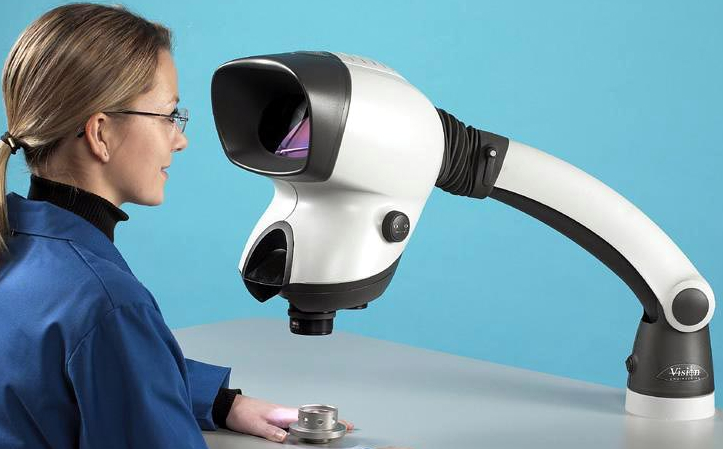

Sep 12, 2006 Mantis Elite® is designed to promote user comfort with eyepieceless technology, which provides freedom of head movement and ability to wear glasses or contact lenses. Optimal color rendition and working distance are optimized for deburring and micro welding. Able to be used with optics up to 20x, product is suited for detailed inspection and can view defects as fine as hairline cracks.

Measurement Specialties, Inc.    Hampton, VA 23666
Sep 12, 2006 Available in ±5, ±15, and ±30° measurement ranges with resolution of 0.001°, D Series is housed in IP67 rated rugged aluminum package. Sensors are supplied with digital RS232C output and one additional output choice including analog voltage, analog current, PWM, or switch. CE-approved tilt sensor is shock and vibration resistant and can be used in mobile and stationary cranes, lifting platforms, boom and scissor lifts, road grading, and satellite antenna, and mobile weighing systems.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 12, 2006 With input bandwidth of 3 GHz and power consumption of 1.8 W, Model ADC083000 can digitize input signals into 8 bits at sampling speeds up to 3 GS/sec. Adjustable sampling clock phase allows designers to interleave multiple ADCs without external clock-adjustment circuits. It offers 1:4 de-multiplexed outputs standard for simplified data capture or 1:2 output mode for reduced pin count when interfacing with ASIC or FPGA. Both output modes use low-voltage differential signaling.

Novera Optics Inc.    SantaClara, CA 95054
Sep 12, 2006 TurboLIGHT(TM)16 dense wavelength division multiplexing (DWDM) fiber-to-the-x (FTTx) optical access transport platform acts as passive optical network (PON) system that delivers 20 Gbps of symmetrical bandwidth over single feeder fiber. Based on Lambda-PON(TM) automatic wavelength-locking technology, product carries 16, 125 Mbps to 1.25 Gbps bidirectional data streams using 32 independent wavelengths. System comes in modular and complete system forms, both with mixed-mode capabilities.

Analytical Spectral Devices, Inc.    Boulder, CO 80301
Sep 12, 2006 Addressing raw and in-process materials through to final product, QualitySpec® iP provides continuous, on-line analysis of key parameters. Measurement tool is designed for compatibility and full integration into existing plant IT systems, enabling uninterrupted real-time analysis. Non-destructive, post-dispersive style system has NEMA 4X housing and offers NIR Cooled InGaAs TurboScanner(TM) technology. It also provides capability to remotely monitor and trouble-shoot via Internet.

Strategic Test Corporation    Woburn, MA 01801-1915
Sep 12, 2006 UltraFast(TM) digitizer cards use multiple 8-bit ADCs with max sampling rate of 100 MS/s, or 200 MS/s in interleave mode. Cards utilize PCI-X (66 MHz/32-bit PCI) bus that can continuously transfer data to host PC at up to 225 MS/sec. With 64 MB signal memory expandable to 4GB using DIMM module, signals can be recorded to onboard memory and off-loaded later. Each channel on card can be programmed with edge, window, slope, and pulsewidth triggers.

Emerson Process Management / Process Liquid Division / Uniloc Division    Irvine, CA 92606
Sep 11, 2006 Models 3300HT and 3400HT pH sensors handle pressures of 100 psig at 145°C or 250 psig at 100°C. Model 3400HT retractable design allows removal for calibration and maintenance without process shutdown, while 3300HT insertion/submersion design allows variable insertion depths and removal without twisting. Sensors feature pH-resistant glass formulations, replaceable Teflon® reference junction, and chemically resistant Ryton(TM) body. Several mounting and cabling options are available.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Sep 11, 2006 Using low-power, low-EMI CTL(TM) technology, µSerDes(TM) Model FIN224AC reduces 24 or 12 parallel LVTTL signals typically required in ultra-portables to single differential serial signal, eliminating number of wires in application while also removing problematic electromagnetic radiation from data paths. Lead-free device eliminates need for EMI shielding and filters to facilitate design of high-resolution HVGA displays and multi-megapixel cameras.

Avery Weigh-Tronix    Fairmont, MN 56031
Sep 11, 2006 Comprised of 3 programmable models, 640 Series indicates gross and net weights and has pushbutton tare function for temporary zeroing. Backlit LCD displays (1.1 in. for 640 and 640M and 2 in. for 640XL) feature 10 adjustable brightness levels. Capable of manual or automatic accumulation, products store data in 100+ memory channels as alpha or numeric symbols. Additional features include motion filtering device, Auto-LOC function, and optional RS-232 bi-directional serial port.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Maple Grove, MN 55369
Sep 11, 2006 Suited for production and progress inspection of single processing stages, CONTURA® G2 direkt coordinate measuring machine (CMM) utilizes VAST® XXT scanning sensor for measuring geometry, form, and position of small parts with normal, squared geometries. Plastic and metal parts can also be measured. Machine is available with CAD-based Calypso scanning software, which facilitates generation of measuring runs with object-oriented programming.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Maple Grove, MN 55369
Sep 11, 2006 Based on traditional roughness sensor, Surfcom 2000 has probing range of ±2.5 mm, while laser-controlled detector and stylus system on Surfcom 5000 delivers probing range up to ±6.5 mm at resolution of 0.31 nm. Surfcom 2000 can be reconfigured into fully automatic CNC measuring station with CNC table modules. Modular design of Surfcom 5000 permits expansion to topography measuring instrument that allows recording of surfaces in 3D mode.

AR Worldwide    Souderton, PA 18964

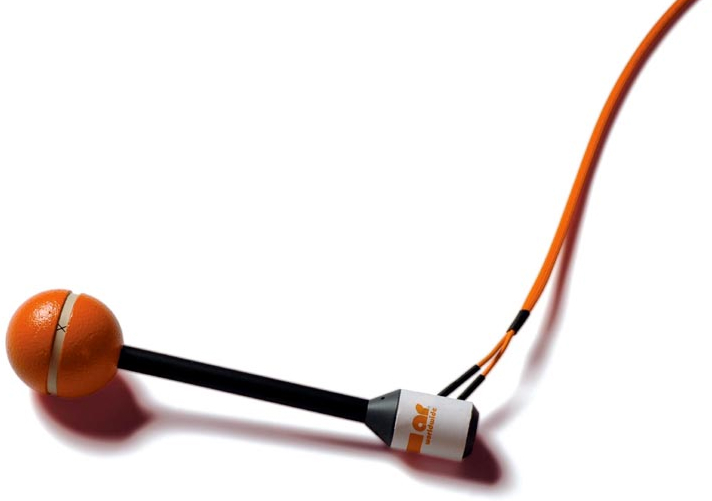

Sep 11, 2006 Capable of noise reduction and temperature compensation, Model FL7018 (3 MHz-18 GHz / 1-1,000 V/m) 18 GHz laser-powered probe delivers isotropic response of ±1.0 dB to 8 GHz. Internal microprocessor enables probe to adapt to its environment, which provides optimal linearization, temperature compensation, control, and communications functions.

Tektronix, Inc.    Beaverton, OR 97077
Sep 11, 2006 MPEG Transport Stream Monitor, MTM400, comes with IP/GigE Option for viewing multi or single program transport streams over Gigabit Ethernet (GigE) networks, identifying signal degradation issues, and correcting problems. Monitoring quality of broadcast at any network access point, unit provides 24/7, real-time operation. It comes with integrated IP metrics and MPEG tests, dual threshold alarms, as well as time-correlated IP and MPEG error log.

EFD Inc., Solder Paste Group    Lincoln, RI 02865
Sep 11, 2006 PrintPlus® P530 printing series and SolderPlus® D550 dispensing series consist of lead-free solder pastes with clear, colorless, no-clean flux residue that allows solder joints to be used in applications requiring shiny, cosmetic finish. Easing inspection and optimizing wetting capabilities, products are suited for SMT, mechanical, electronic, and electro-mechanical soldering applications.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 11, 2006 Models ADS8413 and ADS8410 use serial LVDS outputs to provide up to 200 Mbps data transfer. Devices offer low power dissipation of 290 mW at 2 MSPS with 2 additional power-saving modes. With pseudo-bipolar, differential input ADS8413 features -107 dB total harmonic distortion (THD), 92 dB signal-to-noise ratio (SNR), and ±1 LSB integral nonlinearity (INL). ADS8410 has unipolar, single-ended input and features -98 dB THD, 87.5dB SNR, and ±1 LSB INL.

McCrometer, Inc.    Hemet, CA 92545
Sep 08, 2006 Utilizing electromagnetic technology, Marsh Single-Mag(TM) Flow Meter serves in pressurized line applications from 2-96 in. and operates over flow range of -5 to +20 fps. Product can also measure pressure to 250 psi and temperatures to 160ºF in stainless steel pipes. While sensors are designed with polyurethane insertion tubes standard, stainless steel tubes are offered for harsh environments. Features include 4-20 mA analog output signal and dual alarms.
