Mid-West Instrument    Sterling Heights, MI 48314
Sep 29, 2006 Utilizing convoluted elastomer diaphragm to separate high and low pressures, Models 140-142 are available with loop-powered, 8-28 Vdc, 2-wire, 4-20 mA transmitter. Differential pressure ranges from 0-20 in. H₂O to 0-100 psid with accuracy of ±2% from 20-100% FS. Gauge fronts are corrosion-resistant plastic, and pressure containing elements are available in aluminum, brass, or 316 SS. Safe working pressure is 3,000 psig for aluminum and 316 SS and 1,500 psig for brass.

Swann Industries Corp.    Live Oak, FL 32060
Sep 29, 2006 Portable Micro DVR video recording and monitoring system features built-in color camera, 128 MB of memory, and LCD screen for viewing and playback. Recording can be programmed into DVR through on-screen menus or triggered through video motion or sound detection. Software exports recordings to PC in AVI and JPEG formats. Unit is powered by Li-Ion rechargeable battery, which lasts up to 24 hr, or by ac adapter. USB memory stick, providing additional 20 hr of data, can be added.

AdvancedIO Systems, Inc.    British Columbia V6C 2T5  Canada
Sep 29, 2006 Based on VITA 42.3 XMC form factor, Model V1020 Intelligent 10 GbE XMC Module supports VxWorks and Linux operating systems. When combined with high-end embedded computing systems, module provides 10 GbE packet processing at line-speed for applications such as Signal Intelligence (SIGINT), Radar/Sonar, Electronic Warfare (EW), and wireless infrastructure.

McPherson, Inc.    Chelmsford, MA 01824
Sep 29, 2006 Available for 325 to 830 nm lasers, single stage Raman Workstation features research grade 350 nm, f/4.8 spectrometer with CCD and software. System includes solid-state laser, specialty filters, sample chamber with laser focusing, and signal collection optics. Used for detection of Raman shifted above 300 wavenumbers from Raleigh scatter, open architecture solution is suited for research, analytical, and teaching laboratories.

Analytical Spectral Devices, Inc.    Boulder, CO 80301
Sep 28, 2006 Featuring integrated light source, LabSpec® 5000/5100 series post-dispersive spectrometers combine 350-2,500 nm spectral range with Ethernet and optional wireless functionality. They come with ASD Indico(TM) Pro software and offer compatibility with LabVIEW® software for autonomous spectrometer control. Suited for qualitative and quantitative applications, products offer remote diagnostics, embedded Remote Trigger port, and NIR Cooled InGaAs TurboScanner(TM) technology.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Sep 28, 2006 Constructed with black steel housings, Series AAG Agricultural Ammonia Gauges feature psi scale with 3-2-3% ANSI B40.1 Grade B accuracy. Wetted parts include steel socket and Bourdon tube, and process connection on gages is bottom ¼ in. male NPT. Able to withstand temperatures of -40 to 160°F, units are available in ranges of 60, 160, and 400 psi.

Mahr Federal Inc.    Providence, RI 02905
Sep 28, 2006 Including data connection cables, 7-port industrial model USB hub, and MarCom data transmission software, MarConnect USB Interface Kits enable universal assembly of multiple measuring systems for data transmission. With additional hubs, up to 100 measuring devices can be connected using USB interface, and software can transfer measure values directly Excel spreadsheets or text files. Measuring sequences can be activated either at gauge, on PC, or via a foot switch.

Zwick USA    Kennesaw, GA 30152
Sep 28, 2006 Model videoXtens extensometer is capable of simultaneously measuring longitudinal and transverse strain and is used for measurement of r and n values to ISO 10113 and ISO 10275, respectively, on sheet steel. It is utilized in materials testing applications where contact with specimen is impractical and includes software to record real-time video stream of test. Extensometer complies with Class 1 of ISO 9513 and B2 of ASTM E83.

Optotherm, Inc.    Sewickley, PA 15143
Sep 28, 2006 Thermalyze v4.5 creates videos that can display thermal images, 3D thermal images, strip charts, line profiles, histograms, and temperature statistical data from images. Videos can be emailed, incorporated into reports, and used for training and marketing. Thermal imaging analysis software enables users to locate position of thermal anomalies with respect to reference point.

Advantech Automation Corp.    Cincinnati, OH 45240
Sep 28, 2006 With operating temperature range of -40 to 85°C, ADAM-4510I isolated RS-422/485 repeater and ADAM-4520I isolated RS-232 to RS-422/485 converter feature automatic RS-485 data flow control, 3,000 Vdc isolation protection, surge protection RS-485 data line, transmission speed up to 115.2 Kbps, and networking up to 1,200 m. Mountable on DIN-rail, panel, or piggyback, they have space for termination resistors and power and data flow indicator for troubleshooting.

Thompson Scale Co.    Houston, TX 77055
Sep 28, 2006 Designed for industrial and institutional packaging applications, Model 4693-R Heavy-Duty Checkweigher features pneumatically operated heavy-duty reject ram that is located directly off side of weigh station conveyor to reject off-spec packages. Weigh station conveyors are 4-5 ft long and run at speeds up to 100 ft/min. System offers production rate of up to 30 units/min and handles weight ranges from 1-110 lb.

Sensor System Solutions Inc.    Irvine, CA 92618
Sep 28, 2006 Designed for Semiconductor Industry gas cabinets and gas cylinder applications, Model 2000S Gas Cylinder Scale communicates measured-weight-readings to electronic instrument through RS232 or multi-drop R485 communications port, which can network up to 8 scales. Resistant to chemicals and corrosive gases, scale is accurate to within 0.25% full scale, with load capacity of 50 or 300 lb. Optional BlueWeigh module allows wireless connectivity to Bluetooth-enabled device.

Radcom Equipment Inc.    Paramus, NJ 07652
Sep 28, 2006 Omni-Q lets 3G operators and their vendors monitor and troubleshoot data services provisioned over 3G HSUPA (High-Speed Uplink Packet Access) broadband data networks. It provides full visibility into behavior of UMTS network traffic in lab and over production networks, enabling users to track performance of all network elements as well as quality of service experienced by subscribers. Solution also tests inter-system handovers from GPRS (2.5G) to UMTS (3G) networks.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 28, 2006 Suited for next-generation base station architectures, SCAN25100 CPRI® (common public radio interface) serializer/deserializer (SerDes) exceeds all CPRI interface signal voltage and jitter requirements. It uses dual on-board phase lock loops (PLLs) to synchronize remote radio heads to digital processing base station. Along with delay calibration measurement circuitry, product integrates high-speed, mixed-signal, as well as clock management and conditioning features.

4D Technology Corporation    Tucson, AZ 85706

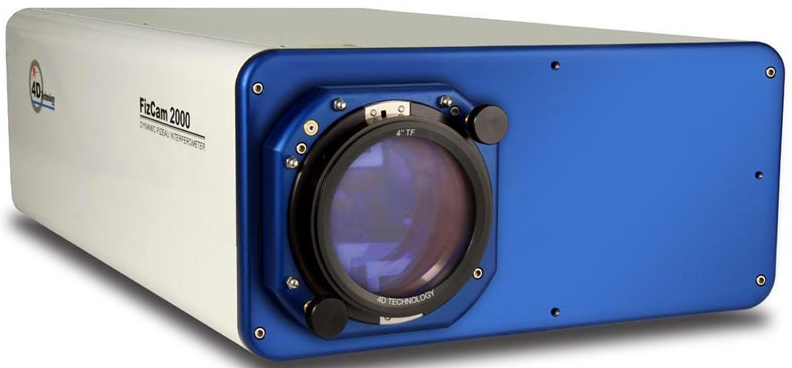

Sep 27, 2006 FizCam 2000 incorporates single-camera, high-speed optical phase sensor that makes wavefront measurement in as little as 30 µsec. With short coherence length source, this on-axis, vibration-insensitive Fizeau instrument isolates and measures only desired surface of transparent samples and assemblies. Uses include measuring remote cavities, thin optics, and parallel optical grade surfaces; testing index homogeneity; and separating and measuring surfaces within optical assembly.

Hexagon Metrology Inc.    North Kingstown, RI 02852

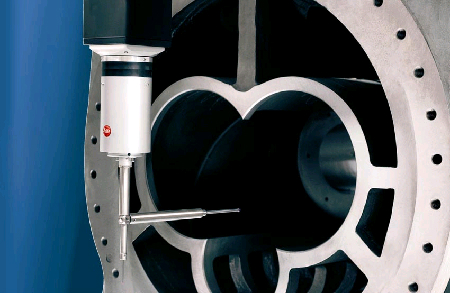

Sep 27, 2006 Available on Brown and Sharpe Global Advantage model CMMs, Model LSP-X5 can carry styli up to 500 mm long and weighing up to 500 g. Probe includes additional anti-collision system for extra protection of head in event of crash. Model LSP-X3 allows use of probe extensions up to 360 mm long and 150 g of weight. Automatic tool changing with Leitz Tool Rack allows styli changes within measurement program without need for recalibration.

Hexagon Metrology Inc.    North Kingstown, RI 02852

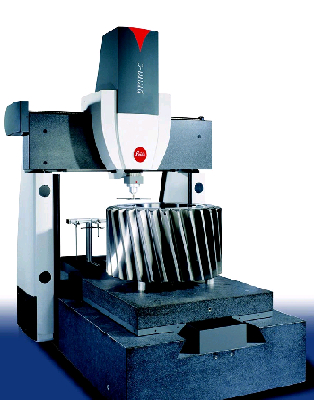

Sep 27, 2006 Employing stiff, closed-frame structure with moving table, Leitz PMM-C Infinity provides repeatability of 0.1 micron. Machine uses LSP-S4 3D scanning probe for precise form and profile measurements. With probing force of 0.5-0.16 N, Model LSP-S4 allows use of small diameter probing styli or probing of soft or delicate materials without damage. Glass ceramic scales provide 4 nm resolution, while servo drives with recirculating ball-screws achieve positioning accuracy of ±50 nm.

Malvern Instruments Inc.    Westborough, MA 01581

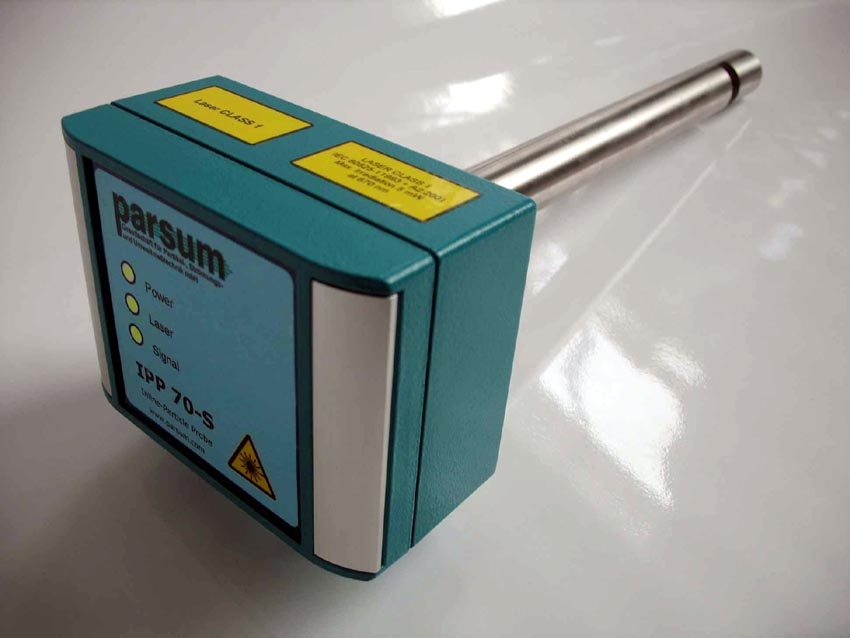

Sep 27, 2006 Based on spatial filter velocimetry theory, Model IPP70 in-line particle size analyzer provides measurement rate of up to 15,000 particles/sec. Probe is inserted directly into process line or vessel for monitoring batch and continuous processes. Featuring rugged outer design, instrument uses series of LEDs to detect contamination or material build up on probe. Analyzer is suited for monitoring of operations such as wet and dry granulation, coating, and spray drying.

Mobile Metrics    Dallas, TX 75254
Sep 27, 2006 Torrent 5100 GGSN Test System Release 2 mobile traffic simulation system exercises GGSNs, IMS platforms, and application servers. System features simulation of Blackberry Always-On behavior, virus injection capabilities, built-in comprehensive traffic test cases, remote debugging, and ability to turn PC into mobile station. Test results are characterized with histograms and over 450 hierarchically organized statistics.

Mountz, Inc.    San Jose, CA 95112
Sep 27, 2006 Offering EZ-Plug and Play as well as auto-recognition with Mountz transducers, hand-held PTT expedites process of setting up and running tool tests as well as transfer, analysis, and storage of test data for ISO/SPC documentation. LCD lets operator select desired filter, unit, mode, and set-up from and graphical menu. Torque controlling, monitoring, and documentation solution stores readings with up to 2,500 data points in flash memory and can share data with PC via USB interface.
