KLA-Tencor Corp.    San Jose, CA 95134
Oct 02, 2006 With spatial bandwidth coverage from 0.22-2,000 microns and noise floor below 0.5 angstroms, Candela Optical Surface Analyzer 6300 Series delivers metrology and inspection capabilities for data storage substrates and finished media in both radial and circumferential directions. Multi-channel optics, combined with laser stability management technology, delivers measurement capabilities for edge roll-off and texture/polish uniformity, as well as scratch and particle inspection.

Tektronix, Inc.    Beaverton, OR 97077
Oct 02, 2006 Featuring 2 GS/s maximum sample rate/channel, 2- and 4- channel TDS1000B and TDS2000B Series oscilloscopes include OpenChoice(TM) PC communication software and NI SignalExpress(TM) interactive measurement software. Front panel USB host port allows use of USB flash drive on job site to capture waveform data, waveform images, and instrument setups; while oscilloscope-to-PC connectivity simplifies capturing, analyzing, and sharing measurements. USB device port can also be used for printing.

Varian, Inc.    Palo Alto, CA 94304
Oct 02, 2006 Designed for molecular characterization and quantization, Model 400-MR magnetic resonance spectrometer offers compact footprint for use in pharmaceutical, biotech, chemical, and academic laboratories. NMR system features workstation software with local language support capability to provide data processing and acquisition tools. Spectrometer offers detection and quantification of minor components in mixtures and cell extracts.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030

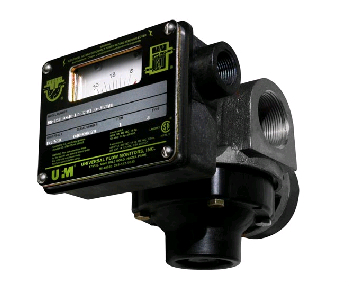

Sep 29, 2006 Able to monitor petroleum or synthetic oil flows from 5 gph to 160 gpm, Lube Oil Flowmeters help keep gears, bearings, drills, and mills functional. Mechanical flow switches can be wired to trigger equipment shutdown for protection against damage. Series includes LL piston-style meters, as well as SN and MN vane-style meters. Units mount in-line, in any orientation, and are rated for all classes, divisions, and groups of hazardous locations.

SICK STEGMANN, INC.    Dayton, OH 45413
Sep 29, 2006 Resistant to shock and vibration, SinCos® SRM 64 Motor Feedback Systems with Hiperface® interface operate in temperatures from -20 to +110ºC and carry IP65 rating. Multi-turn products have industrial housing suitable for mounting externally to servo motor and are available with hollow shaft bores for up to 14 mm shafts. They provide precise absolute positioning with 32,768 steps per revolution over 4,096 revolutions and offer 1,024 sine/cosine cycles per turn.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Sep 29, 2006 Designed with phenolic safety-case that has solid front and blow-out back, 4.5 in. Series 763 and 764 feature internal overload and under-load protection as well as removable bezel for access to adjustable needle pointer. Ranges are available from full vacuum, compound to 20,000 psi with 0.5% FS ANSI B40.1 Grade 2A accuracy. Shipped dry, Series 763 can be liquid-filled in field. Glycerin-filled Series 764 is suited for high-vibration applications.

Mid-West Instrument    Sterling Heights, MI 48314
Sep 29, 2006 Utilizing convoluted elastomer diaphragm to separate high and low pressures, Models 140-142 are available with loop-powered, 8-28 Vdc, 2-wire, 4-20 mA transmitter. Differential pressure ranges from 0-20 in. H₂O to 0-100 psid with accuracy of ±2% from 20-100% FS. Gauge fronts are corrosion-resistant plastic, and pressure containing elements are available in aluminum, brass, or 316 SS. Safe working pressure is 3,000 psig for aluminum and 316 SS and 1,500 psig for brass.

Swann Industries Corp.    Live Oak, FL 32060

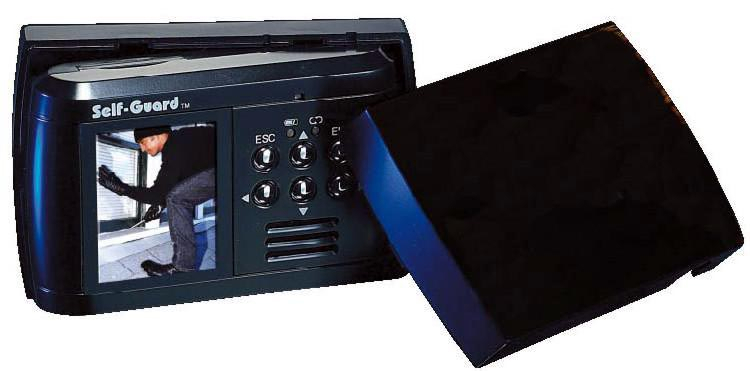

Sep 29, 2006 Portable Micro DVR video recording and monitoring system features built-in color camera, 128 MB of memory, and LCD screen for viewing and playback. Recording can be programmed into DVR through on-screen menus or triggered through video motion or sound detection. Software exports recordings to PC in AVI and JPEG formats. Unit is powered by Li-Ion rechargeable battery, which lasts up to 24 hr, or by ac adapter. USB memory stick, providing additional 20 hr of data, can be added.

AdvancedIO Systems, Inc.    British Columbia V6C 2T5  Canada

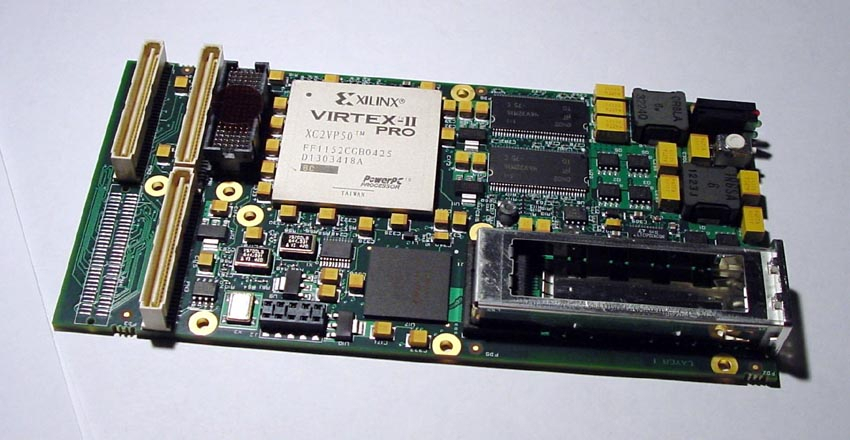

Sep 29, 2006 Based on VITA 42.3 XMC form factor, Model V1020 Intelligent 10 GbE XMC Module supports VxWorks and Linux operating systems. When combined with high-end embedded computing systems, module provides 10 GbE packet processing at line-speed for applications such as Signal Intelligence (SIGINT), Radar/Sonar, Electronic Warfare (EW), and wireless infrastructure.

McPherson, Inc.    Chelmsford, MA 01824
Sep 29, 2006 Available for 325 to 830 nm lasers, single stage Raman Workstation features research grade 350 nm, f/4.8 spectrometer with CCD and software. System includes solid-state laser, specialty filters, sample chamber with laser focusing, and signal collection optics. Used for detection of Raman shifted above 300 wavenumbers from Raleigh scatter, open architecture solution is suited for research, analytical, and teaching laboratories.

Analytical Spectral Devices, Inc.    Boulder, CO 80301
Sep 28, 2006 Featuring integrated light source, LabSpec® 5000/5100 series post-dispersive spectrometers combine 350-2,500 nm spectral range with Ethernet and optional wireless functionality. They come with ASD Indico(TM) Pro software and offer compatibility with LabVIEW® software for autonomous spectrometer control. Suited for qualitative and quantitative applications, products offer remote diagnostics, embedded Remote Trigger port, and NIR Cooled InGaAs TurboScanner(TM) technology.

Dwyer Instruments, Inc.    Michigan City, IN 46361

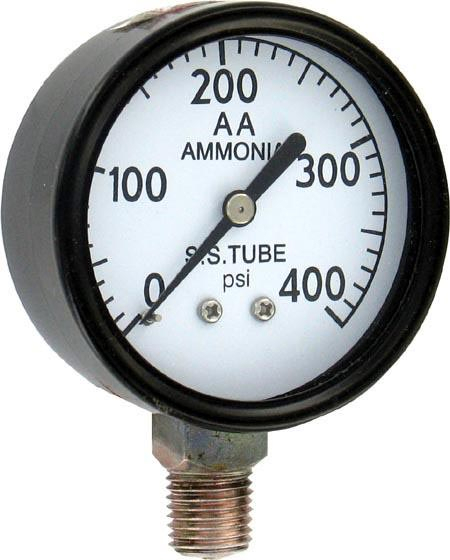

Sep 28, 2006 Constructed with black steel housings, Series AAG Agricultural Ammonia Gauges feature psi scale with 3-2-3% ANSI B40.1 Grade B accuracy. Wetted parts include steel socket and Bourdon tube, and process connection on gages is bottom ¼ in. male NPT. Able to withstand temperatures of -40 to 160°F, units are available in ranges of 60, 160, and 400 psi.

Mahr Federal Inc.    Providence, RI 02905
Sep 28, 2006 Including data connection cables, 7-port industrial model USB hub, and MarCom data transmission software, MarConnect USB Interface Kits enable universal assembly of multiple measuring systems for data transmission. With additional hubs, up to 100 measuring devices can be connected using USB interface, and software can transfer measure values directly Excel spreadsheets or text files. Measuring sequences can be activated either at gauge, on PC, or via a foot switch.

Zwick USA    Kennesaw, GA 30152
Sep 28, 2006 Model videoXtens extensometer is capable of simultaneously measuring longitudinal and transverse strain and is used for measurement of r and n values to ISO 10113 and ISO 10275, respectively, on sheet steel. It is utilized in materials testing applications where contact with specimen is impractical and includes software to record real-time video stream of test. Extensometer complies with Class 1 of ISO 9513 and B2 of ASTM E83.

Optotherm, Inc.    Sewickley, PA 15143
Sep 28, 2006 Thermalyze v4.5 creates videos that can display thermal images, 3D thermal images, strip charts, line profiles, histograms, and temperature statistical data from images. Videos can be emailed, incorporated into reports, and used for training and marketing. Thermal imaging analysis software enables users to locate position of thermal anomalies with respect to reference point.

Advantech Automation Corp.    Cincinnati, OH 45240
Sep 28, 2006 With operating temperature range of -40 to 85°C, ADAM-4510I isolated RS-422/485 repeater and ADAM-4520I isolated RS-232 to RS-422/485 converter feature automatic RS-485 data flow control, 3,000 Vdc isolation protection, surge protection RS-485 data line, transmission speed up to 115.2 Kbps, and networking up to 1,200 m. Mountable on DIN-rail, panel, or piggyback, they have space for termination resistors and power and data flow indicator for troubleshooting.

Thompson Scale Co.    Houston, TX 77055
Sep 28, 2006 Designed for industrial and institutional packaging applications, Model 4693-R Heavy-Duty Checkweigher features pneumatically operated heavy-duty reject ram that is located directly off side of weigh station conveyor to reject off-spec packages. Weigh station conveyors are 4-5 ft long and run at speeds up to 100 ft/min. System offers production rate of up to 30 units/min and handles weight ranges from 1-110 lb.

Sensor System Solutions Inc.    Irvine, CA 92618
Sep 28, 2006 Designed for Semiconductor Industry gas cabinets and gas cylinder applications, Model 2000S Gas Cylinder Scale communicates measured-weight-readings to electronic instrument through RS232 or multi-drop R485 communications port, which can network up to 8 scales. Resistant to chemicals and corrosive gases, scale is accurate to within 0.25% full scale, with load capacity of 50 or 300 lb. Optional BlueWeigh module allows wireless connectivity to Bluetooth-enabled device.

Radcom Equipment Inc.    Paramus, NJ 07652
Sep 28, 2006 Omni-Q lets 3G operators and their vendors monitor and troubleshoot data services provisioned over 3G HSUPA (High-Speed Uplink Packet Access) broadband data networks. It provides full visibility into behavior of UMTS network traffic in lab and over production networks, enabling users to track performance of all network elements as well as quality of service experienced by subscribers. Solution also tests inter-system handovers from GPRS (2.5G) to UMTS (3G) networks.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 28, 2006 Suited for next-generation base station architectures, SCAN25100 CPRI® (common public radio interface) serializer/deserializer (SerDes) exceeds all CPRI interface signal voltage and jitter requirements. It uses dual on-board phase lock loops (PLLs) to synchronize remote radio heads to digital processing base station. Along with delay calibration measurement circuitry, product integrates high-speed, mixed-signal, as well as clock management and conditioning features.
