Rockwell Automation    Milwaukee, WI 53204
Jan 15, 2007 Designed for conveyor applications, Series B 1799 Modules combine I/O circuits, power supply, and network adapters into single IP00 module to offer local control of outputs using DeviceLogix technology. Zone Control Cards can directly consume data from up to 4 other cards without going through PLC scanner. Other features include password protection and built-in DeviceNet communications.

Rotex, Inc.    Cincinnati, OH 45223 1845
Jan 12, 2007 Using ASTM-approved 8 in. round test sieves, PC-controlled GRADEX® 2000 analyzes individually loaded samples and multiple samples staged for continuous testing. System shakes and taps samples with same stroke and frequency as manual shakers. It classifies and weighs each sieve fraction, calculates and stores weight values, and reports data in format compatible with Windows-based QC/SPC software. GRADEX 2000 has balance capacity of 5000 g and balance resolution of 0.1 g.

Instron    Norwood, MA 02062-2643

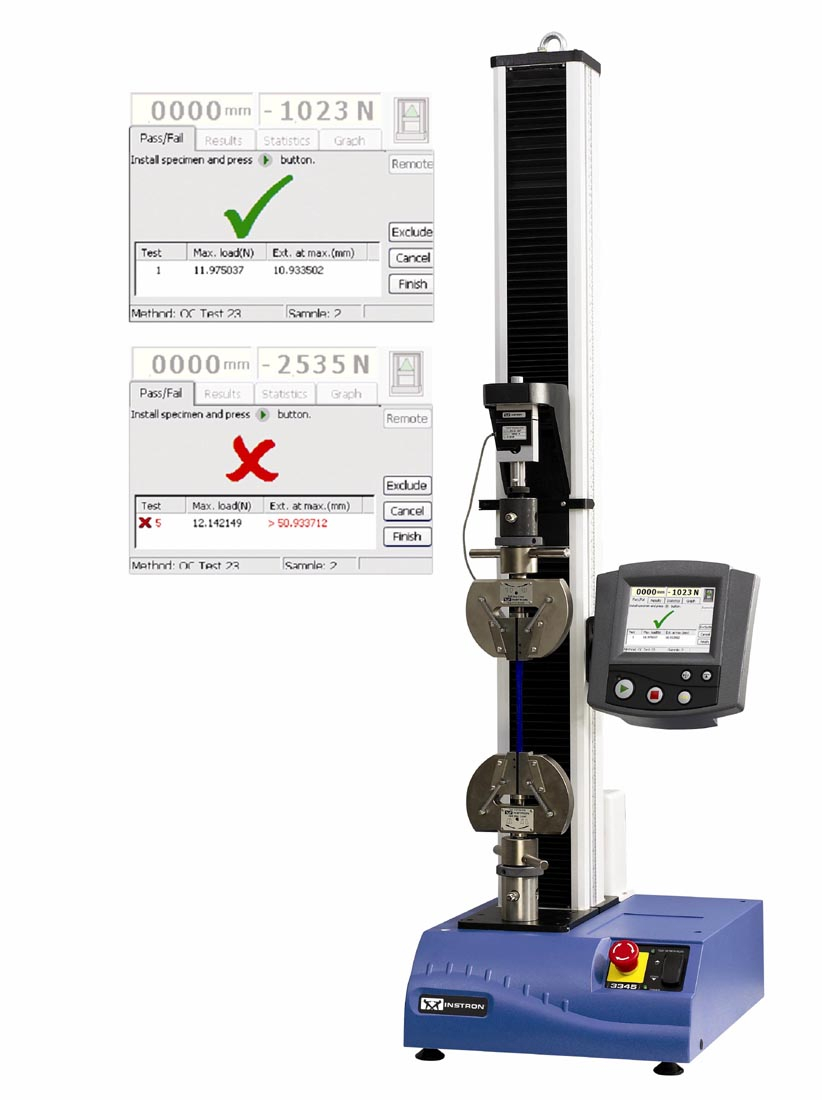

Jan 12, 2007 Suited for quality control, tension, compression, and component testing, Model 3345 features TouchPanel controller that offers quick test and method-based testing mode for one-time tests and preconfigured test applications, respectively. Options include USB interfaces to printer, memory stick, and keyboard. QC Package is comprised of 5 kN (1,000 lbf) testing machine, 5 kN tensile wedge grips, and 2 compression platens.

Magnaflux    Glenview, IL 60025

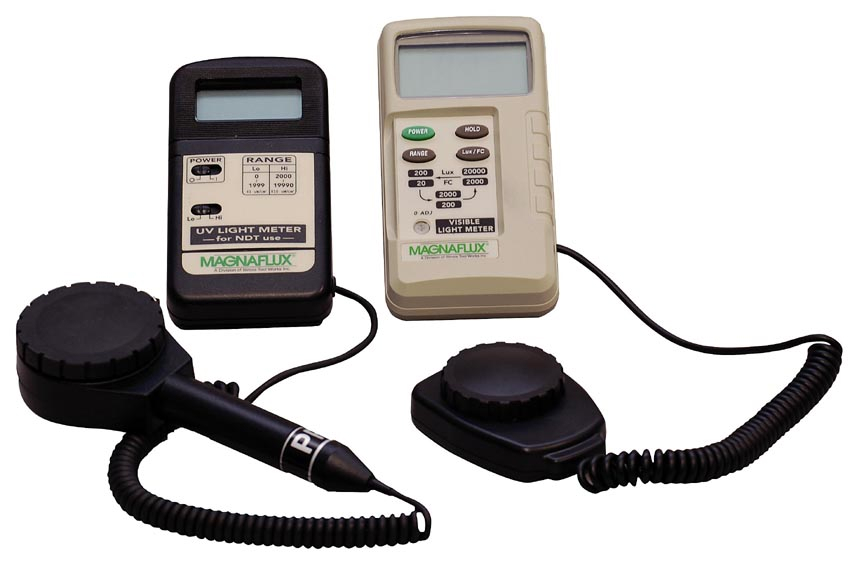

Jan 12, 2007 Digital Black Light Meter (P/N 622339) has digital readout of black light intensity in mW/cm² and includes UV light meter, permanently affixed black light sensor, battery, and carrying case. Digital White Light Meter (P/N 622338) measures visible light by foot candles and lux, and includes UV light meter, permanently affixed white light sensor, battery, and carrying case.

Thermo Electron Corp.    Waltham, MA 02454
Jan 12, 2007 At less than 3 mm in diameter, ROSS Micro pH Electrode (Model 8220BNWP) can be used with Orion PerpHecT® meters to enable measurement of pH while allowing for direct temperature measurement and compensation without separate ATC probe. Used independently or in conjunction with Orion meters, Micro Automatic Temperature Compensation Probe (Model 928007MD) features SS sensing tip measuring less than 1 mm in diameter, allowing users to obtain temperature of samples as small as 10 µL.

NAVIGON, Inc.    Chicago, IL 60606
Jan 12, 2007 Measuring 0.6 in. thin and weighing 3.9 oz, Pocket LOOX N100(TM) is powered by 5 hr rechargeable lithium-ion battery and features 2.8 in. color screen. One-click operation is directed by MobileNavigator Premium(TM) software, which delivers touch screen capabilities, multilingual user interface, and audio-guided navigation. In addition to POI searches, map display provides lane information, speed limit warnings, road signs, and GPS auto-follow in tunnels.

Intermec Technologies    Everett, WA 98203
Jan 12, 2007 Intended for industrial warehouse use, Adaptable Load Backrest and Antenna Cell system allows forklift drivers to use RFID and other data collection techniques to gather real-time inventory data without leaving vehicle. System can be made to accommodate almost all forklifts, providing factory-certified product that meets OSHA and industry safety requirements. It can switch from one application to another, allowing driver to accomplish pallet-, case- and shelf-level readings.

Acrosser Technology    Cypress, CA 90630
Jan 12, 2007 Featuring 32-bit 33 MHz 5 V/3.3 V PCI bus, Model AR-B2002 accommodates gaming machine controls with 88 channels programmable digital I/O, 4 x 16-bit programmer timer, and 512 Kb battery backup SRAM. Capable of supporting Windows XP and Linux device drivers, product also includes 8 channels, 16 events intrusion logger, and 8-bit DIP switch readback.

Pinpoint Laser Systems    Peabody, MA 01960
Jan 12, 2007 Microgage 2D Factory Alignment Kit features 90-Line Right Angle which takes reference laser beam from Microgage 2D and turns it by 90° for squaring machinery and equipment. Capable of holding precision optical elements that redirect laser beam, Angle housing has several adjustments that allow square exiting beam to rotate through a full plane. Beam can be adjusted with precision rotary mount, and 2-axis stage mount allows easy positioning of the 90-Line.

United Electronic Industries    Canton, MA 02021
Jan 11, 2007 Based on 100BASE-FX, DNA-FPPC Series of Data Acquisition and Control Cubes each consist of core module with processor and network interface, along with 3 or 6 open I/O slots or layers. Fiber optic interface extends max distance between PowerDNA I/O Cube and host computer from to 2 km. Single-mode fiber interface is also available, extending max distance to 20 km. Fiber is virtually immune to EMI and offers infinite electrical isolation between host computer and I/O Cube.

Anritsu Co.    Richardson, TX 75081
Jan 11, 2007 Measuring 313 x 211 x 77 mm and weighing 2.9 kg max, Series MS2720B handheld spectrum analyzers support all regulation test items for installation and maintenance of W-CDMA base stations. Battery powered units are also offered with option for modulation analysis of W-CDMA signals and power measurements. Internal memory can store up to 1,000 measured data items, which can be downloaded to external PC for analysis and report creation.

Magellan Systems Corp.    San Dimas, CA 91773
Jan 11, 2007 Providing navigation for both driving and outdoor activities, Magellan CrossoverGPS is preloaded with street maps and topographic contour maps. It includes 3D bird's-eye map view, SmartDetour(TM) feature to help drivers route around motorway traffic, and SayWhere(TM) directions with audible street names and multi-destination routing. By switching to Marine mode, CrossoverGPS automatically changes to nautical miles for distance and knots for speed.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jan 11, 2007 Used for testing gigabit receivers, J-BERT N4903A Serial BERT includes built-in and calibrated jitter sources as well as built-in clock data recovery that operates over complete range of 1-12.5 Gb/s. J-BERT v4.5 software offers 1-click jitter tolerance test insight with 1-screen results that show all tested points and test limits. It also provides worst-case testing of computer bus devices with spread spectrum clocking, which can be enabled during automated jitter tolerance tests.

American Power Conversion    West Kingston, RI 02892
Jan 11, 2007 APC AV C3 Power Filter delivers surge protection and isolated noise filtering to help eliminate power anomalies such as surges, spikes, or EMI/RFI that threaten AV component hardware, signal integrity, and system availability. Featuring 8 outlets, unit offers surge protection efficiency with less than 85 V let-through rating. Gold Coax connections and phone jack surge protection provide additional safeguard for incoming signals on dataline.

Semtech Corp.    Newbury Park, CA 91320
Jan 10, 2007 Featuring programmable gain from 0.5-1,000x in 10% steps, Model SX8722 interfaces with most Wheatstone bridge chemical, pressure, or magnetic sensors to condition and read data. ZoomingADC(TM) 16-bit analog/digital converter with 10-bit preamplifier allows device to zoom in on small portion of analog signal and apply full 16-bit ADC to that part of signal. With this capability, Model SX8722 can directly connect to sensors ranging from 5 V chemical to 2 mV magnetic without external amplifier.

Texas Instruments Inc. / Tiris Division    Dallas, TX 75243
Jan 10, 2007 Supplied in 48-lead TQFP packages, SRC4392 integrates 2-channel asynchronous sample rate converter with digital audio interface receiver and transmitter. It features 144 dB dynamic range, -140 dB distortion, and up to 216 kHz sampling rates, making it useful for broadcast audio applications. Product operates from +1.8 V core supply and +3.3 V DIO supply. SPI or I2C interface provides access to on-chip registers and data buffers.

Measurement Specialties, Inc.    Hampton, VA 23666
Jan 09, 2007 Featuring Microfused(TM) technology in vibration-proof package, Model M5100 is suited for high-pressure, high cycle count applications. Faraday shield, filter network, and ASIC work together for 100 V/mV EMI performance and heavy industrial CE rating. Machined from single piece of 17-4 SS, port and diaphragm have no welds or seals to leak over time. Transducer has total error band of ±1% FS, pressure options from 0-50 to 0-10,000 psi, and output options of 1-5 V, 0.5-4.5 ratiometric, and 4-20 mA.

TURCK, Inc.    Plymouth, MN 55441
Jan 09, 2007 Suited for factory and process automation applications, TS400 and TS500 are platinum RTDs that may be mounted directly or remotely. Products have -50 to +932°F range and several available process connections: compression fittings, thermowells, and tri-clamp fittings. Both sensors are available with 2 switch points: analog current output with one switch point, and analog voltage output with one switch point. Multiple outputs are programmed via push-buttons.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 08, 2007 Suited for 3.3 and 5 V PCI bus signaling, PCI-1739U uses Opto-22 compatible, 50-pin connectors for interfacing to various signal conditioning and termination options. Interrupt function can output digital signal synchronized with internal PC interrupt generated by card. With power-on state of outputs configurable via dip switches, this 48-channel digital I/O (DIO) universal PCI card operates over 0 to +65°C range and offers digital output status read-back.

Spectrum Control, Inc.    Fairview, PA 16415
Jan 08, 2007 Available in 5 and 10 kW models, Sens-A-Coil integrates thermistor element into plastic overmolded copper clip that snaps onto 3/8 in. return bends. Sensor is housed in small bulb, which is attached to copper clips, maximizing sensing surface area while allowing sensing element to quickly react to any changes in refrigerant temperature. Sens-A-Coil comes with 10 ft AWG No. 22 PVC-jacketed cable and requires no tools for installation.
