Inventa Australia Pty. Ltd    Ultimo NSW 2007  Australia
Feb 08, 2007 Used in real-time video and audio capture applications, S26X Multi-Input Hardware MPEG4/H.264 Video Encoder PCI card series allows dozens of jitter-free video windows to be opened on one PC screen. Cards use H.264/AVC/MPEG4-Part10 encoding algorithm to compress incoming video and audio in real-time on board capture card, achieving high-quality video simultaneously from all 4, 8, or 16 video input ports. Customizable series offers DSP chipset and on-board firmware programming.

JAI, Inc.    San Jose, CA 95134
Feb 08, 2007 Leveraging Kodak 1.2 in. progressive scan IT CCD sensor, TM-4200 Series provides 12-bit linear images or 10-bit/8-bit images that are modifiable by user-defined look-up table. Software-selectable operation lets users choose between dual tap mode at 15 fps, or single tap mode at 8 fps. Series offers monochrome and Bayer CFA color models with choice of Camera Link or GigE Vision digital interfaces. All include image center partial scanning as well as variable partial scanning.

DVEO division of Computer Modules, Inc    San Diego, CA 92127
Feb 07, 2007 La Jolla (The Jewel) videoconferencing building blocks include 2 basic components to realize HD videoconferencing for managers and executives who require optimal interactive quality over long distances. Real-time, HD, MPEG-2 encoder with IP output offers latency as low as 60 msec, while complementary decoder offers 100 msec latency. Together, products provide flexibility of compressing HD-SDI into DVB-ASI or UDP output on one system.

SICK STEGMANN, INC.    Dayton, OH 45413
Feb 07, 2007 Providing total resolution of over 67 million steps, ATM 60-C Multi-Turn Absolute Encoders are electronically adjustable and feature CANopen interface for any application profile. Devices operate in environments with high shock and vibration, and are suited for machine tool, and textile, woodworking, and packaging machinery applications. Rated IP67, they are available with face mount flange, servo flange, or blind hollow shaft connections.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Feb 07, 2007 Offered in 128-lead multi-layered ceramic quad flat package, Model ADC08D1000WG-QV 8-bit, 1 GSPS dual CMOS analog-to-digital converter (ADC) consumes 800 mW/channel from 1.9 V nominal supply. Radiation-tolerant unit meets space-grade specifications including radiation levels of 120 MeV for single event latch-up and 300 K rad for total ionizing dose. With fully programmable dual-edge sampling feature, product can achieve 2 GSPS sampling from 1 channel by interleaving 2 on-chip converters.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Feb 07, 2007 Laureate Model FR 6-digit panel-mount meter can display ac line frequency to 50.0000 or 60.0000 Hz with 0.0001 Hz resolution in few ac line cycles. Frequency signals in kHz range can be read with 0.01 Hz accuracy at up to 25 readings/sec. UL-listed unit's dual-channel signal conditioner can accept signals from proximity switches with PNP/NPN output, TTL/CMOS logic, magnetic pickups, contact closures, and other signals from 12 mV to 250 Vac.

Ultera Systems Inc.    Laguna Hills, CA 92653
Feb 06, 2007 Mirage(TM) Data Recorder (MDR) enables real-time data acquisition in mission-critical operations, such as seismic, where repeating test is not possible or cost-effective. Equipped with two 146/300/750 GB disk drives in removable canisters, system's RAID 1 configuration provides built-in redundancy to ensure continuous recording if one drive fails. Automatic write protection prevents accidental data erasure once it is acquired.

Ascon Corporation    Batavia, IL 60510
Feb 06, 2007 Fully configurable from IP65-rated front panel or PC, gammadue® Series J5 is used for measuring melt pressure and other process variables. LED display can be configured to operate in green or red and change color when operating in alarm condition. Main input is 350W strain gauge, linear dc voltage, and dc current, with sq root extraction 16 segment linearizer for custom input. Second input, with dc voltage and dc current, suits temperature indication and signal conditioning.

Invensys Systems, Inc.    Foxboro, MA 02035
Feb 06, 2007 Designed for use in sanitary liquid, gas, or steam applications, HART-compatible Foxboro 84S Vortex Series provide accuracies of ±0.5% of reading with liquids, and ±1.0% of reading with gas and steam. Units are 3A-authorized per specification 28-03 and feature crevice-free design with no moving parts. Available in 2 and 3 in. sanitary line sizes, meters offer flow rates from 5.50-648 gpm, and all are provided with permanently sealed, stainless steel sensor.

Amber Science, Inc.    Eugene, OR 97402 4147
Feb 06, 2007 Portable, bench-top Model 4083 measures conductivity, resistivity, high purity water, total dissolved solids, salinity, and temperature of aqueous samples using 1 mm of solution (min). Remote Audible Alarm box, optional, buzzes when measurements fall above or below user-set limits. Along with RS-232 output and data logging PC software, product comes with 6 manual ranges, plus auto range; backlit, 2-line LCD; and non-volatile memory that retains set points while power is off.

Quantum Data, Inc.    Elgin, IL 60123
Feb 06, 2007 Available for Series 882 test instruments, The HDCP System enables developers of HDMI products to perform HDCP compliance tests on any source, sink, or repeater in any configuration. Initiated through front panel interface, tests run continuously until completion, then system issues report that provides detailed pass/fail results. In case of failure, system provides troubleshooting information by with visual snapshot of bus traffic on I2C Auxiliary Control Channel.

Conax Buffalo Technologies LLC    Buffalo, NY 14225 4740

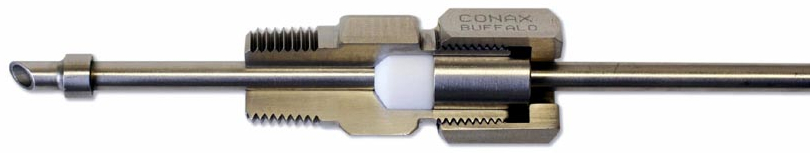

Feb 05, 2007 Process Analyzer Sample Probe Assembly (SPA) is hot-tapped into process via isolation valve and sealed off with Conax Buffalo Packing Gland. Available in .250, .375, and .500 in. ODs, SPA is supplied with welded safety-stop collar and angled end for on-line extraction of process liquids or gases. Angled probe tip and tapered end reduce particulate entry. While supplied standard in 304 and 316 SST, SPA is also offered in Monel, Hastelloy C276, and Inconel 600.

Georg Fischer Piping Systems    Tustin, CA 92780
Feb 05, 2007 Mounted in 2-48 in. pipes, Signet 2552 provides dynamic flow range of 0.15-33 fps with repeatability of ±0.5% of reading at 25°C. It uses corrosion-resistant materials, including 316 SS, PVDF, and FPM to ensure minimal maintenance. With no moving parts to wear, unit accurately measures flow in fluids containing high content of particles, solids, and fibers. Offering empty pipe detection and bi-directional flow capabilities, device provides frequency, digital, or 4-20 mA output.

RAE Systems    San Jose, CA 95134
Feb 05, 2007 DoseRAE and DoseRAE-P are Geiger-Mueller tube-based, direct-reading, electronic dosimeters that monitor personal radiation dosages to ensure workers do not exceed annual US federal or international exposure limits of 50 milliSieverts. Along with dose reading resolution of under 0.02 microSieverts, DoseRAE-P (programmable) allows alarm settings to be changed on-the-fly. Both units alert user with 75+ dB alarm and flashing LEDs if dosage exceeds limit restrictions.

Patton Electronics    Gaithersburg, MD 20879
Feb 05, 2007 Designed for plug-and-play, back-to-back operation, CopperLink(TM) Models 2113 and 2115 can connect remote PBXs over existing dry copper. They operate in clear-channel mode to transparently extend data and voice bearing circuits. Service providers can extend T1/E1 TDM circuits without repeaters to more than 3.5 miles over single twisted pair. Model 2115 T1 extender comes with RJ-48C connector, while Model 2113 E1 extender includes dual BNC and RJ-48C connectors.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Feb 05, 2007 With built-in and calibrated jitter sources for simulating random jitter, periodic jitter, and bounded uncorrelated jitter, J-BERT N4903A 7 and 12.5 Gbps pattern generators enable characterization and compliance testing of high-speed serial interfaces. They test robustness against differential-mode or single-mode noise and can inject commonly used spread spectrum clocks. Units can be used in combination with oscilloscopes, built-in error detectors, or other analyzers.

Polytec, Inc.    Tustin, CA 92780
Feb 02, 2007 Offering non-contact vibration and topography measurements, Measurement Services Program is suited for engineers who have short-notice critical needs or require occasional measurements where purchase cannot be justified. Test structures are characterized with equipment such as 1D and 3D scanning laser vibrometers, single-point vibrometers, microstructure motion analyzers, and topography measurement systems, operated by knowledgeable, experienced application engineers.

Strategic Test Corporation    Woburn, MA 01801-1915
Feb 02, 2007 Featuring multiple recording option that allows pulse repetition frequencies to 16 MHz, UF2 series of 66 MHz PCI-based Oscilloscope/Digitizer cards can be used to record any high-speed series of waveforms such as sonar, ultrasound, and laser. Card re-arms itself and is ready for next trigger event within 4 clock cycles. If area of interest is located specific time after trigger event, trigger delay can be programmed. Each channel has its own trigger detection.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Feb 02, 2007 Featuring flash-folding/interpolating architecture, ADC08D1000WG-QV meets space-grade specifications, including radiation levels of 120 MeV for single event latch-up and 300K rad (Si) for total ionizing dose. Each ADC has 1:2 demultiplexer that feeds 2 LVDS buses. Using programmable dual-edge sampling feature, product can achieve 2 GSPS sampling from one channel by interleaving 2 on-chip converters. ADC digitizes 2 input signals to 8-bit resolution at sampling rates up to 1.2 GSPS.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
Feb 02, 2007 Combining optical, 3D scanning, and video capabilities, Trimble® VX(TM) Spatial Station measures objects in 3D to produce 2D and 3D data sets for spatial imaging projects. Ground-based information may be blended with airborne data to provide comprehensive datasets for use in geospatial information industry. Along with millimeter positioning accuracy, ground-based sensor has data overlay feature that lets users view positioning data over video display of job site.
