Techne Inc.    Burlington, NJ 08016
Mar 09, 2007 Designed for routine analyses, 6320D measurement system features multi-parameter display with wavelength readout and can operate in Absorbance, %T, and Concentration modes. LCD and keypad enable access to range of functions, and users can calibrate concentration measurement using known standard or by adjusting displayed factor. With included 63-Zero PC software, users can take measurements remotely and export results to PC for reporting and presentation.

C & D Technologies    Mansfield, MA 02048-1151
Mar 09, 2007 Housed in moisture- and vibration-resistant, 12-pin DIP package suitable for panel or PCB mounting, DATEL DMS-30DR Series features 3½-digit, daylight-readable LED display. It comprises 4 models offering choice of 4 differential input voltage ranges, including ±200 mV, ±2 V, ±20 V, and ±200 V. All models operate from single +5 V supply and draw as little as 7 mA when operated in total darkness. CMRR for all devices is 86 dB, and inputs are over-voltage protected to ±250 V.

Prosilica Inc.    Burnaby V5J 5E9  Canada
Mar 09, 2007 Incorporating Kodak KAI-2020 progressive scan CCD sensor with electronic shutter, GigE Vision(TM) Model GE1650 provides 12-bit image data running 30 frames/sec at 1,600 x 1,200 resolution. Camera includes binning, on-camera color interpolation, frame rate controls, and advance triggering modes as well as programmatic and automatic exposure controls. Users can control camera peripheral devices over gigabit Ethernet interface through integrated RS-232 port.

Aviation Data Systems, Inc    Orlando, FL 32803
Mar 09, 2007 Available through fboweb.com, AutoLog generates pilot logbook entries by processing radar-based flight tracking data. System extracts departure and destination airports, time of departure and arrival, weather conditions at appropriate airports, and equipment type used for flight. Using existing fboweb.com databases, service calculates flight times and categories, including day/night flight and landings, instrument approaches, and multi/single engine flight time.

Dwyer Instruments, Inc.    Michigan City, IN 46361

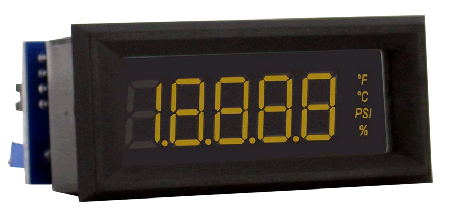

Mar 08, 2007 Offering 4½-digit LCD display with choice of red, amber, or green segments, loop-powered Series DPML-4 accepts 4-20 mA input signal from temperature, flow, level, and pressure transmitters. It features user-selectable engineering units as well as field-selectable decimal point position. Span and zero can be adjusted via trim pots located on rear of unit, and snap-in bezel facilitates installation.

AMETEK Spectro Analytical Instruments Inc.    Mahwah, NJ 07430

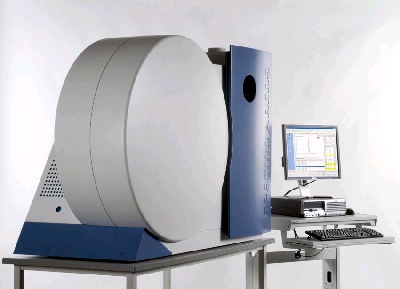

Mar 08, 2007 Providing focal length of 750 mm, SPECTRO ARCOS Inductively Coupled Plasma-Optical Emission Spectrometer utilizes 32 linear CCD detectors in Paschen-Runge mount ORCA for simultaneous recording of wavelengths from 130-770 nm. Generator uses tube with max input power of 5 kW. Low-temperature ceramic tube is forced air cooled by internal ventilation system, eliminating need for liquid coolants. In time resolution mode, sampling frequencies up to 10 measurements/sec can be achieved.

AMETEK Spectro Analytical Instruments Inc.    Mahwah, NJ 07430

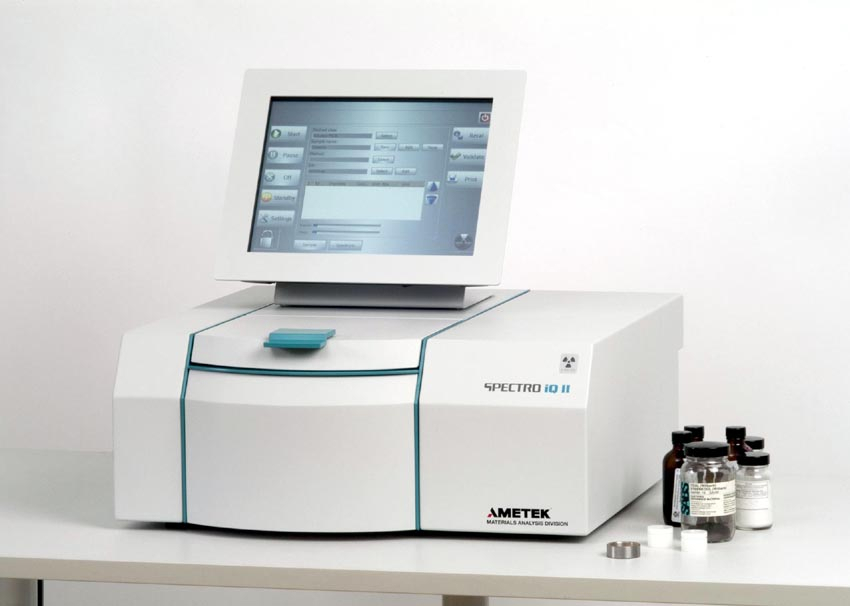

Mar 08, 2007 SPECTRO iQ II features Silicon Drift Detector unit derived from SPECTRO XEPOS XRF, as well as software control interface allowing addition of optional touch-screen computer and structure menus enabling non-technical personnel to start, monitor, evaluate, and document analytical processes. It uses polarized excitation to perform multi-elemental analysis of solid, powder, and liquid samples for process control.

AMETEK Test & Calibration Instruments    Largo, FL 33773

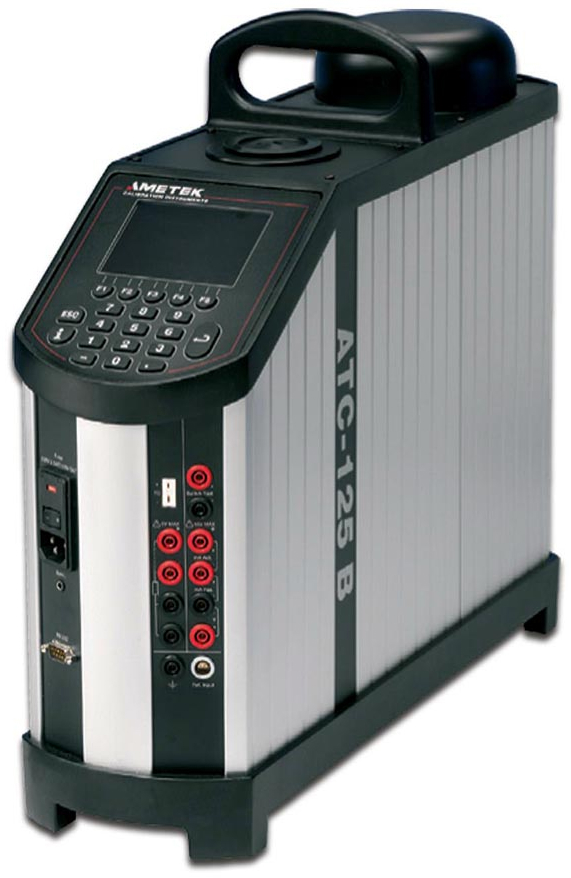

Mar 08, 2007 Capable of reaching temperatures from -90 to +125°C, JOFRA(TM) ATC-125 Ultra Cooler incorporates ATC Series dual-zone control technology to ensure precise temperature homogeneity throughout calibration well. Unit achieves cryogenic temperatures through Free Piston Stirling Cooler technology, which consists of Stirling heat pump in 290 g, compact unit. Helium gas acts as heat transport medium, while mains power variance immunity technology promotes temperature stability.

AMETEK Test & Calibration Instruments    Largo, FL 33773
Mar 08, 2007 Designed for onsite calibration of various instruments, parts, and meters, handheld JOFRA(TM) DPC-500 can measure pressure, absolute pressure, current, and voltage. It has separate reference pressure sensor that can be fixed to instrument or used off-instrument via cable. Up to 5 interchangeable reference sensors of different pressure ranges may be used with any one instrument. Unit offers 15 predefined measurement units and one that can be defined by user.

AMETEK Test & Calibration Instruments    Largo, FL 33773

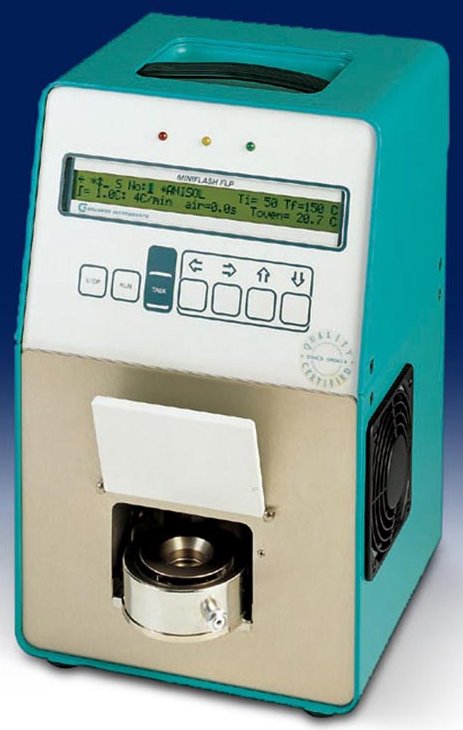

Mar 08, 2007 MINIFLASH Series determines flash point of liquids and solids according to advanced ASTM D7094 Standard, which outlines Standard Test Method for Flash-Point by Modified Continuously Closed Cup. Detection method measures instantaneous pressure increase inside continuously closed test chamber resulting from high-energy electric arc that ignites vapor from 2 mL sample. Uses include flash-point testing of contaminated samples and biodiesel fuels.

Aspectrics, Inc.    Pleasanton, CA 94566
Mar 08, 2007 Capable of acquiring 100 scans/sec, MultiComponent(TM) 2750 Encoded Photometric Near Infrared (EP-NIR) process analyzer enables high sample throughput, real-time quality control monitoring, and optimal sensitivity through spectral averaging. It incorporates pre-aligned and pre-indexed optical design suited for applications in process environments such as biodiesel, edible oils, end point drying, protein/fat analysis, petrochemicals, and alcohols/starch.

Advanced Micro Controls, Inc.    Terryville, CT 06786
Mar 07, 2007 Available in single-turn or multi-turn configurations, Absolute SSI DuraCoder combines resolver sensor technology and integrated circuitry in 2.5 in. package. It includes Reset to Zero and Increasing Count direction input. Optional 5/8 in. diameter shaft carries 100 lb radial and 50 lb axial load rating. In addition to communicating over RS485 link, encoder connects to SSI interface modules or network-based interfaces for integration to machine's automaton architecture.

Micro Control Co.    Minneapolis, MN 55432
Mar 07, 2007 Useful for meeting JTAG requirements, LC-1 Logic Burn-In with Test System accommodates 64 burn-in boards at up to 24 x 12.5 in. and 128 I/O, or 32 burn-in boards at up to 24 x 24 in. and 256 I/O. It offers 16 user-defined pattern and power zones, 16 M vector memory depth, and scan mode vector memory up to 2 G deep. Featuring programmable temperature control up to 150°C, system provides per-pin timing, testing, and formatting of pattern data.

LitePoint Corporation    Sunnyvale, CA 94085
Mar 07, 2007 IQmax-100 one-box tester features integrated vector signal analyzer and vector signal generator, and offers consistent test results for all fixed and mobile WiMAX physical layer parameters. With flexible C++ API interface, it includes test programs with chip-specific production tests, test limits, chipset test driver, and test executive. Device offers optional WiFi and Bluetooth capabilities to test any WiMAX, WiFi, Bluetooth, or combination product.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Mar 06, 2007 VBA series I/O modules for AS-Interface specification 3.0 support extended addressing with 4 inputs and 4 outputs for up to 62 nodes per network. Along with combined transaction functionality, series offers dedicated high-speed communications profile that updates analog data at full speed of network. It is also possible to define configuration channel between I/O devices and gateway, allowing complex devices to be configured and used on AS-Interface.

Thermo Fisher Scientific    Waltham, MA 02454
Mar 06, 2007 Designed for regulated laboratories, life science, QA/QC, and general research laboratories, UV-visible Evolution(TM) 60 features built-in biochemical tests and single-cell Peltier temperature control accessory. For users with limited sample volumes, nanoCell accessory provides accurate measurements using 0.7-5 µl of solution. Evolution 60 is available in PC and local control configurations, and offers optional software enabling 21 CFR Part 11 compliance.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 06, 2007 Specifically designed for industrial environments, multi-function Model USB-4716 provides 16x single-ended analog inputs, 2x 16-bit analog outputs, 8x digital inputs, 8x digital outputs, and one 32-bit event counter. Module comes with WaveScan trending and data logging software as well as Windows API's, Active X controls, and LabView(TM) drivers. Powered by USB port, device includes USB connector with screw fasteners and DIN-rail mounting kit.

Macro Sensors    Pennsauken, NJ 08110 1334
Mar 06, 2007 Suited for applications utilizing ac and dc operated LVDT inputs, microprocessor-based, dual-channel Series DMC provides digital position indication and cross-channel math and control functions for monitoring, measuring, and control requirements. Units offer programmable input averaging, digital filtering, and HI/LO limit detection. GUI enables operators to calibrate and set up sensors, retrieve or send programs, and view and collect data remotely through RS-232 or Ethernet.

Aspectrics, Inc.    Pleasanton, CA 94566
Mar 06, 2007 Designed for scientists working in process industry, MultiComponent(TM) 2750 Encoded Photometric Infrared (EP-IR) analyzer is used to measure water percentage in ethanol. This determination is of importance during purification process of ethanol when percentage of water needs to be minimized for ethanol to be as absolute as possible. Solution works when coupled to external halogen NIR source and extended range 2 mm pathlength process transmission multimode fiber probe.

Proceq USA, Inc.    Aliquippa, PA 15001
Mar 06, 2007 EQUOTIP® 3 offers menus, soft function keys, and control structure to facilitate operation, while graphic display has adjustable contrast and backlight to promote viewing of test results, statistics, and all relevant test parameters. Along with automatic/manual impact direction, unit features test result conversion, data storage (up to 100,000+ readings), and communications interfaces. User profiles allow instrument setup to be configured for individuals and password protected.
