Kin-Tek Laboratories    LaMarque, TX 77568 4202
Apr 27, 2007 Modular gas standards generator 491M/B/SD dynamically blends precisely known VOC/TOC gas standards with parts-per-billion and parts-per-trillion analyte concentrations. In first stage, 491M/B combines analyte flow from Trace Source(TM) permeation tubes with precisely controlled flow of pure dilution gas to form parts-per-billion concentration mixture. Second stage, 491M/SD, further dilutes aliquot of ppb mixture to form part-per-trillion mixture.

Bryant Electric    Milford, CT 06460 2465
Apr 27, 2007 Functioning interdependently with magnetic branch circuit breaker, GFCI module monitors electrical circuit by use of external differential current transformer. No direct load is present at module, and in case of ground fault, load is interrupted by way of circuit breaker utilizing shunt trip coil. Available with automatic or manual safe start reset feature, unit is rated from 1-15 A and is suited for circuit-carrying conductors from 1-3 poles.

Mettler Toledo, Inc.    Columbus, OH 43240
Apr 27, 2007 With OIML approved accuracy of ±0.75 in., CSN840 Pallet(TM) automatically collects dimensions, weight, and identification of large goods. Unit processes about 200 pallets/hr and features overhead, non-intrusive design that can be floor, wall, or ceiling-mounted. Graphical interface provides clear overview of measuring process and historical measurement statistics. Communication with host computer or warehouse management system is achieved via Ethernet or serial communication.

C.M. Mockbee Co., Inc.    Cincinnati, OH 45223
Apr 27, 2007 Capable of static and dynamic testing, Mockbee 20 ton test stand can be operated in vertical or horizontal applications via its 2-stage, hydraulic hand pump. It is designed for testing hoisting equipment as well as other related lifting equipment after repair or inspections are performed as required by ASME Code B30.16. Stand also tests function of overload devices. Components include reinforced steel frame, fine-adjustment pressure valve, and 4.0 in. dia pressure gauge.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Apr 27, 2007 Available with two 5 A, 250 Vac contact relays, Model BAR Bargraph Process Meter fits into 1/8 DIN panel meter cutout. It provides bar graph display of industrial process signals such as 4-20, 0-20, and 0-10 mA, and 1-5 or 0-10 V. Bar graph consists of 30 LED elements which are offered in either red or green. Designed for industrial environments, unit is immune to EMI, and features environmentally sealed to NEMA-12 (IP54) front panel.

ADLINK Technology Inc.    Irvine, CA 92618
Apr 27, 2007 With WDM driver for C/C++, VB, Delphi, C++ Builder, and .NET programming languages and full device drivers for MATLAB® and LabVIEW®, Model PCI-9221 multi-function, 16-bit resolution DAQ card targets test and measurement system integrators and laboratories. Unit features single-button auto-calibration, programmable I/O supporting digital I/O (TTL), general-purpose timer/counters, motor encoder inputs, and PWM (pulse width modulation) outputs for motion control.

SICK STEGMANN, INC.    Dayton, OH 45413
Apr 27, 2007 Allowing users to freely program width of zero pulse and number of lines from 1-8,192, Model DRS26 CoreTech® Incremental Encoder can be programmed at any time, in any location, for any application. Offered in 2.5 in. housing, it features opto-ASIC with chip-on-board technology and automatic light regulation. Square flange, servo flange, and face mount versions are available with 0.25 and 0.375 in., and 10 mm solid shafts.

Maximum, Inc.,    New Bedford, MA 02745
Apr 27, 2007 Able to record speeds in excess of 200 mph, wind speed sensors are available with voltage, frequency, or pulse counting outputs and feature black Lexan cups that resist and shed ice. Handheld anemometer, offered in battery (DIC-3) and self-powered (BTC) models, features 3 cups to obtain accurate readings regardless of position. Also available, wind alarms provide warning for and control of wind-sensitive equipment via thumbwheel switch-selectable speed level thresholds.

TSI, Inc.    Shoreview, MN 55126-3996
Apr 27, 2007 Along with integral display for viewing measurements, thermal anemometers come with LogDat2 software package for data logging and reporting. USB data downloading and wireless Bluetooth printing are also standard. Capable of real-time measurements, Indoor Air Quality instruments let users save data and review statistics on same compact unit. Products serve building service contractors, commissioning specialists, facility engineers, and research professionals.

VEGA Controls Ltd    West Sussex RH15 9NF  United Kingdom
Apr 27, 2007 PLICSRADIO field transmitter accommodates up to 3 transmitters and 2 switches, using combination of 4-20 mA HART and 2 digital relay or NAMUR inputs, and can also provide power to sensors. ATEX-approved device has range potential of 1.6 km and features in-head display to show radio signal strength and data. Configuration and diagnostics are accomplished using internal programmer, or can be done remotely via PC using FDT/DTM and PACTware software.

Vectron International    Hudson, NH 03051
Apr 27, 2007 Suited for process control environments, ViSmart(TM) provides instantaneous sample and/or continuous, real-time, in-process measurements of fluids from 1-500 cps. USB connectivity enables unit to be attached to any likewise-equipped computer platform for immediate acquisition of viscosity and temperature data (125°C max). Unaffected by vibration or flow conditions, solid-state sensor uses semiconductor technology and is sealed for complete immersion.

Cognex Corp.    Natick, MA 01760 2059

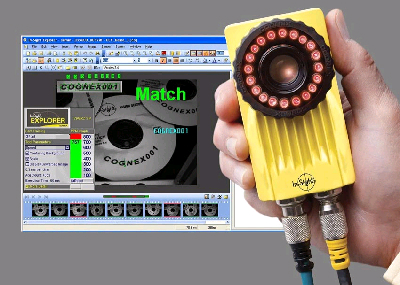

Apr 26, 2007 In-Sight® 5600 Series includes standard, 640 x 480 resolution model as well as 2 megapixel, 1,600 x 1,200 models that perform in high-speed applications. All units have IP67 rating to withstand dust and washdown without accessory enclosure. Library of advanced vision software is provided for inspection, identification, measurement, and alignment tasks.

Absolute Process Instruments Inc.    Libertyville, IL 60048

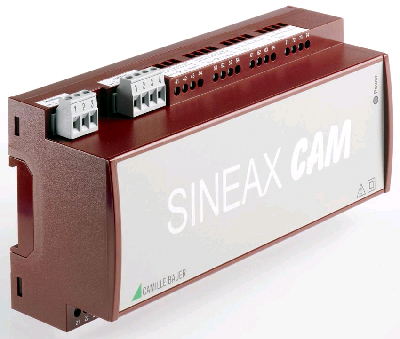

Apr 26, 2007 Designed for continuous electrical power measurements in distribution systems or industrial facilities, SINEAX CAM provides basic accuracy of ±0.1% for voltage and current and ±0.2% for other variables. Unit measures RMS voltage, current, active power, reactive power, apparent power, power factor, frequency, unbalance, harmonics, and energy. Simultaneous measurement of all 3 phases captures every change or disturbance as fast as every cycle with time-stamped min/max values.

Linear Technology Corp.    Milpitas, CA 95035
Apr 26, 2007 Housed in 4 x 3 mm DFN package and consuming 300 µA, 4-channel LTC2493 measures 4 single-ended or 2 differential analog inputs, and communicates over 2-wire, I2C-compatible serial interface. It performs conversions at rates of 15 Hz or 7.5 Hz while using internal oscillator. Easy Drive(TM) technology enables rail-to-rail inputs with zero differential input current. Offering 1/30°C resolution and 2°C absolute accuracy, temperature sensor enables temperature compensation of external sensors.

Dwyer Instruments, Inc.    Michigan City, IN 46361

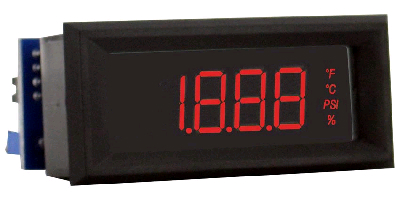

Apr 26, 2007 Designed with 3½ digital LCD display, Series DPMP-5 offers choice of red, amber, or green segments. It features adjustable zero and span, selectable decimal point position, and selectable 12 Vdc or 24 Vdc power supply. User can field-select engineering units to fit variety of applications. Snap-in bezel allows installation without additional mounting hardware.

Moore Industries International, Inc.    North Hills, CA 91343
Apr 26, 2007 Supplied in NEMA 4X explosionproof housing, 3-wire EPX2 Voltage-to-Pressure (E/P) transmitter is designed for use with normal instrument air and can also be used with natural gas. Product accepts voltage input signal from DCS, PLC, or PC-based control system and converts it to pneumatic signal for control of valves, actuators, and other pneumatically controlled devices. Accuracy is ±0.25% of span, maintained in supply pressure fluctuations from 20-40 psig.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Apr 25, 2007 Utilizing microprocessor technology, portable Model 300051 operates at sample temperatures up to 40°C and provides 8,000 readings on single AAA alkaline battery. Device includes automatic temperature compensation from 41-104°F and automatic shutoff after 3 min if not in use. Water-resistant design protects electronics from wet environments and facilitates clean up. With measurement time of 1 sec, instrument delivers ±0.2% accuracy and 0.1% resolution.

ABB Instrumentation    Warminster, PA 18974
Apr 25, 2007 To eliminate traditional leak paths, Model 364 pressure and differential pressure transmitters are designed with no bolts, gaskets, and flanges. Features include all-stainless steel housing and process connection along with Hastelloy® C-276 diaphragm for corrosive process media. Base accuracy is 0.06% and stability is ±0.15% of maximum span for 10 yr period. Along with LCD display that includes Easy Setup menu configuration, unit also offers built-in surge protection.

Integrated Metering Systems Inc.    Pinellas Park, FL 33782
Apr 25, 2007 Compatible with Inovonics TapWatch® submetering system and Commercial-Mesh(TM) Network, HVAC Pro-E is designed to accurately allocate gas consumption of furnaces, fan coil broiler/chiller systems, baseboard, and individual domestic hot water tanks. Product provides multifamily properties with tool for submetering central heating and cooling systems, allowing owner to cut operating expenses.

Rohde & Schwarz GmbH & Co      Germany
Apr 24, 2007 Conformance test system, TU8980, enables manufacturers to evaluate mobile handsets for compliance with MediaFLO(TM) minimum performance specifications published by TIA as well as any additional performance requirements emphasized by service providers. Built with CMU200 Universal Radio Communication Tester and SFU Broadcast Test System, solution is available as full conformance test system for FLO I and can be extended for FLO II and FLO III as well.
